Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

14 part groups · 4 illustrations

Illustrations

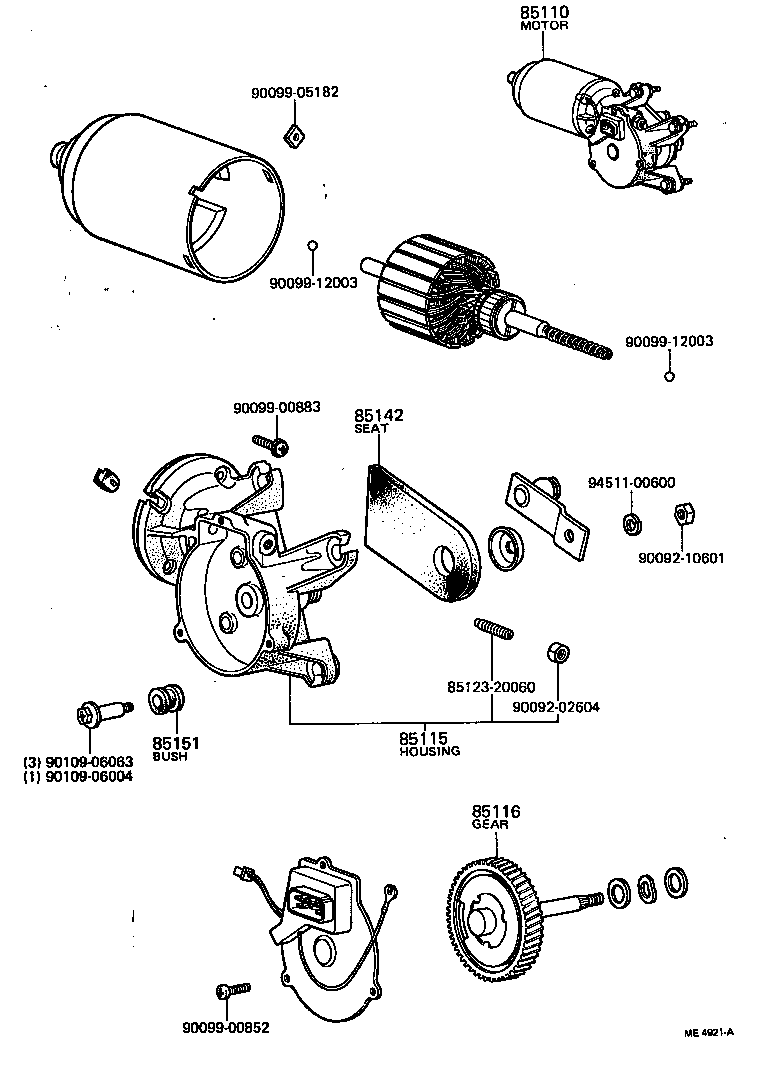

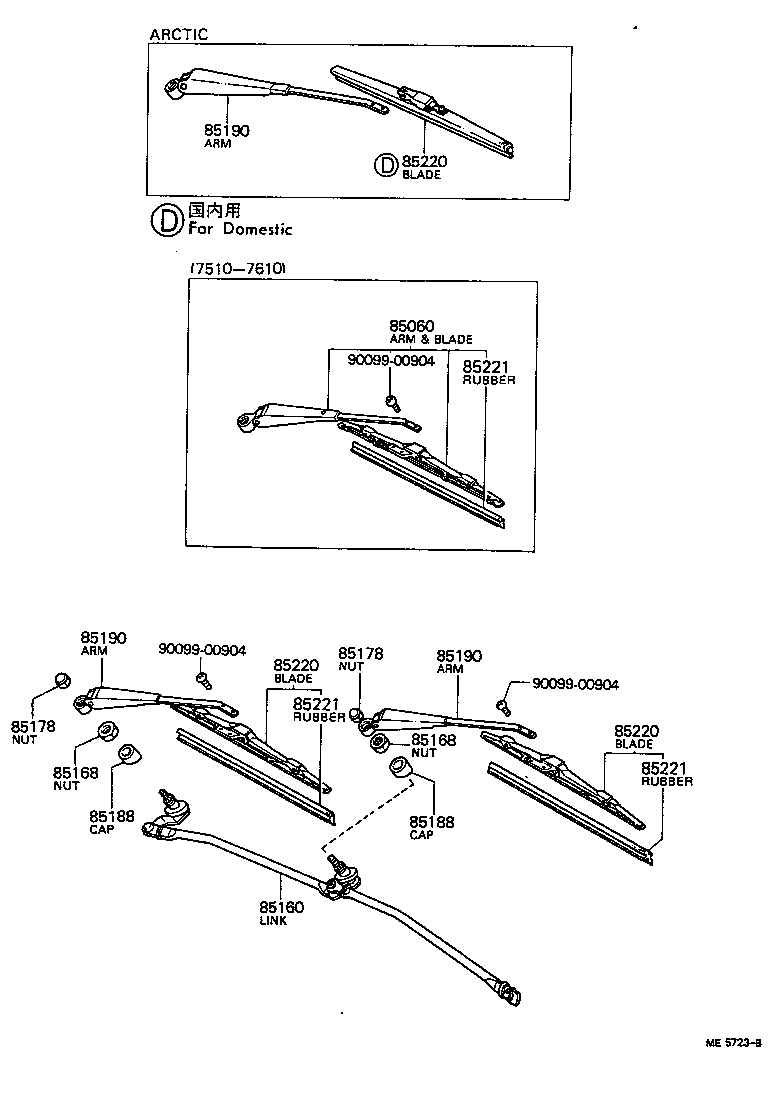

Figure ME6514D ME6514D 1973-08 → 1979-05 Figure ME5723B ME5723B 1974-03 → 1975-09 Figure ME5723B ME5723B 1975-09 → — Figure ME4921A ME4921A 1973-08 → 1979-05

Part groups

PNCDescription
85060 Arm And Blade Assy, Windshield Wiper
85110 Motor Assy, Windshield Wiper
85115 Housing, Windshield Wiper Motor Gear
85116 Gear, Windshield Wiper Motor
85142 Seat, Windshield Wiper Motor Rubber
85151 Bush, Windshield Wiper Motor Gear Housing Cover
85160 Link Assy, Windshield Wiper
85168 Nut, Windshield Wiper Link Pivot
85178 Nut (FOR FRONT WIPER ARM SETTING)
85188 Cap, Windshield Wiper Pivot, NO.1
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
