Factory parts data · Europe

Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 3 illustrations

Illustrations

Figure ME4924B

ME4924B 1973-08 → 1977-01

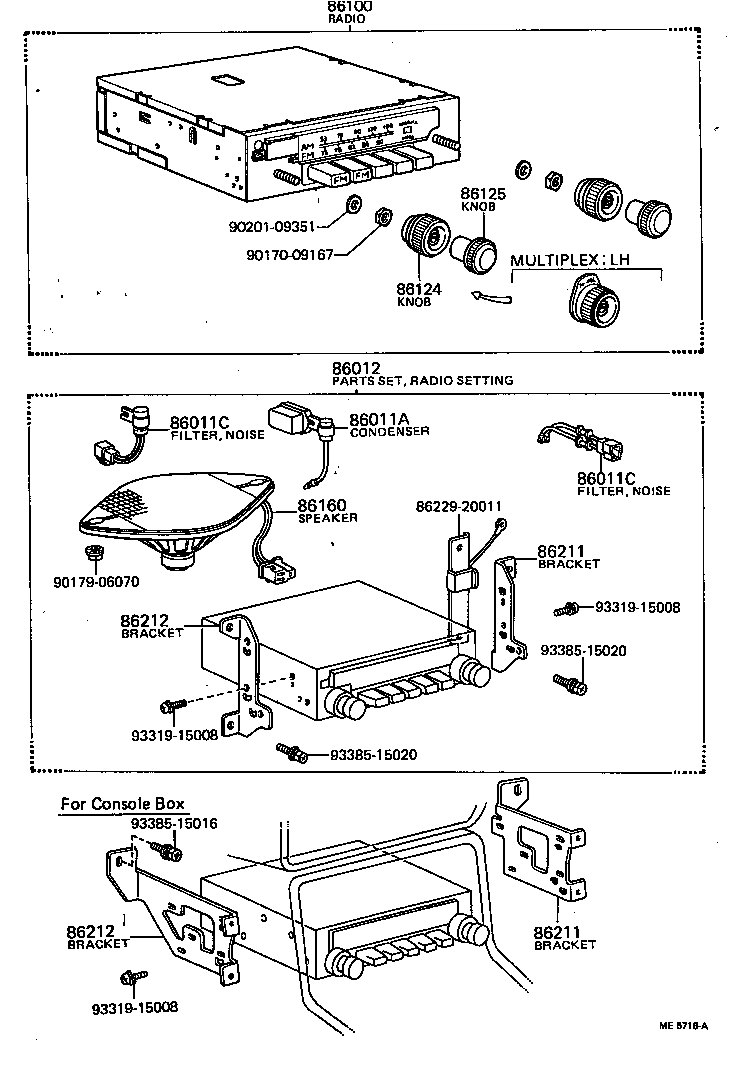

Figure ME5716A

ME5716A 1977-01 → 1979-05

Figure ME6513C

ME6513C 1977-06 → 1979-05

Part groups

PNC	Description
86011	Radio & Setting Parts Set
86011A	Condenser, Radio Setting
86011C	Filter, Noise
86012	Parts Set, Radio Setting
86100	Radio Assy
86120	Receiver Assy, Radio
86124	Knob, Radio Receiver Control
86125	Knob, Radio Receiver Switch
86160	Speaker Assy, Front NO.1
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
