Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

11 part groups · 4 illustrations

Illustrations

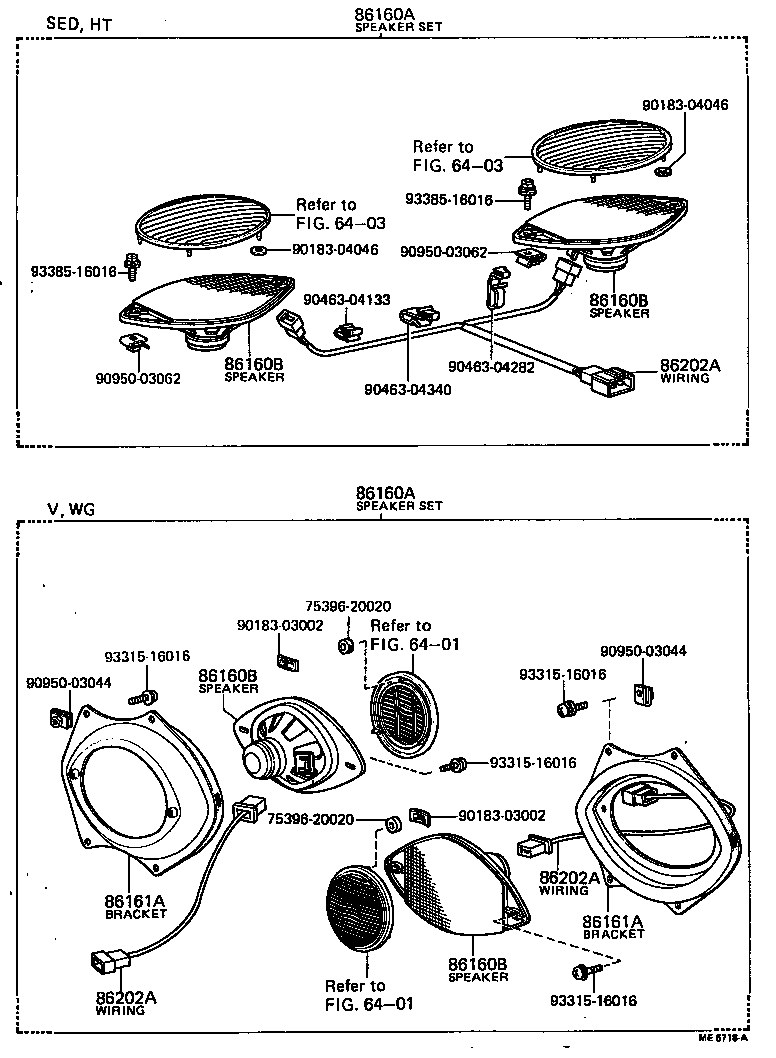

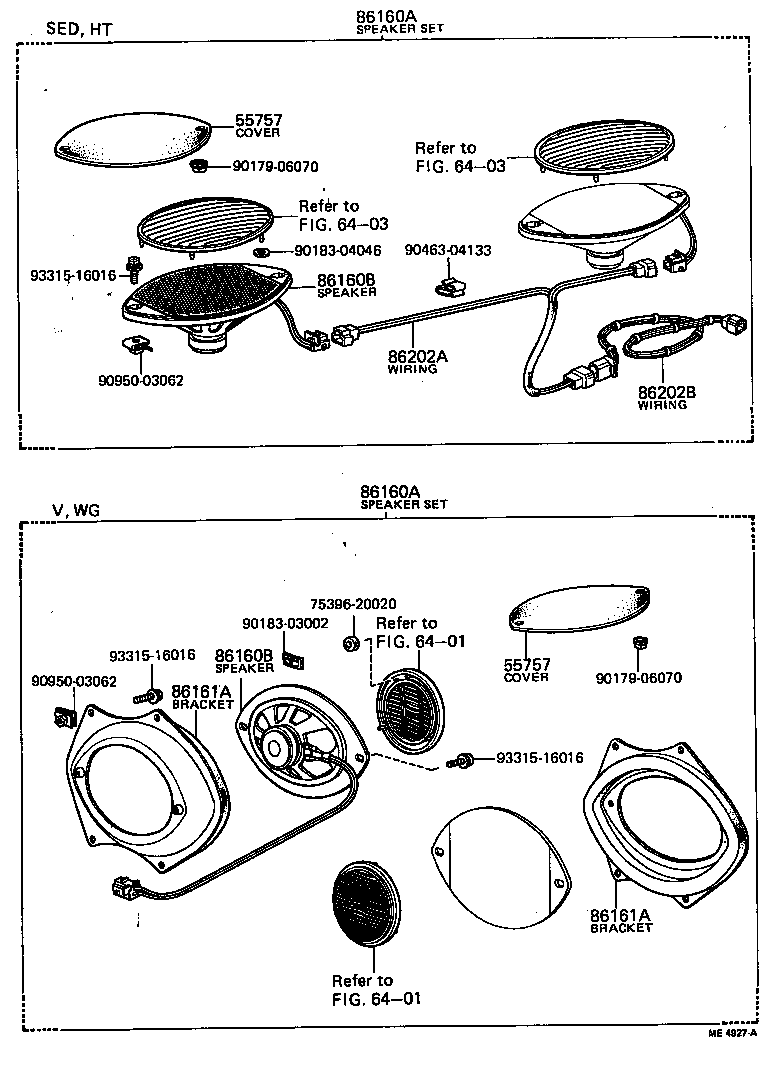

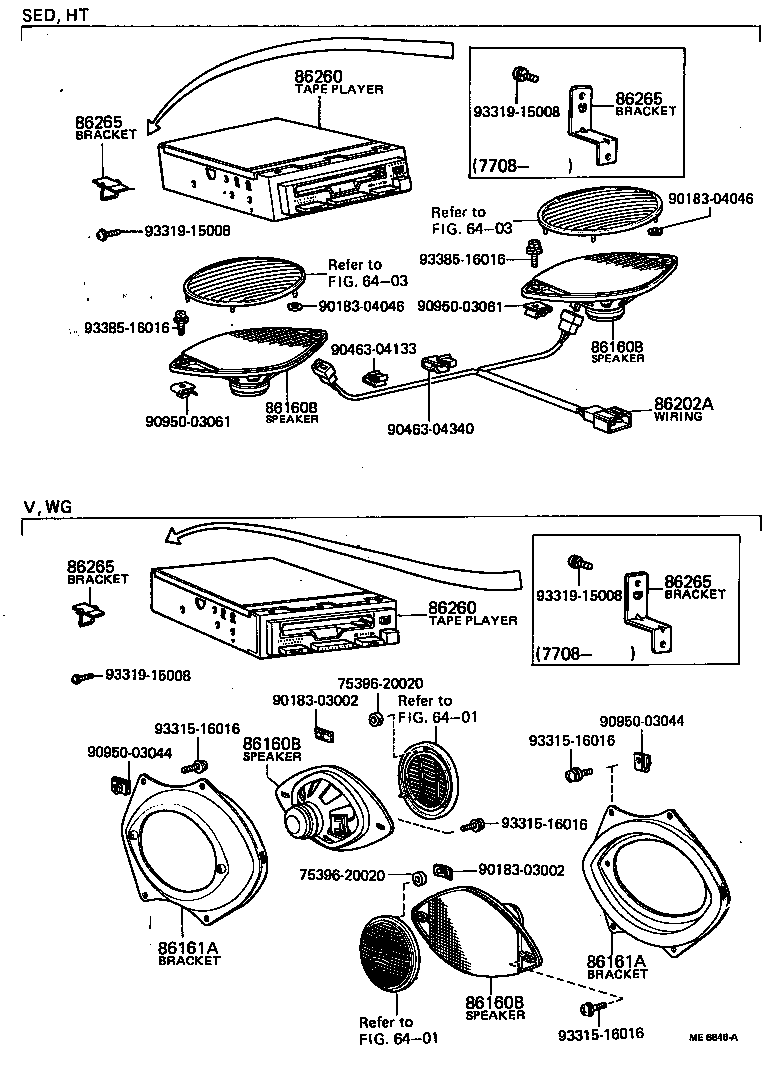

Figure ME4926B ME4926B 1973-08 → 1979-05 Figure ME4927A ME4927A 1973-08 → 1977-01 Figure ME5718A ME5718A 1977-01 → 1979-05 Figure ME6646A ME6646A 1977-08 → 1979-05

Part groups

PNCDescription
55757 Cover, Speaker Grille Hole
86021 Tape Player And Setting Parts Set
86140 Radio Cartridge Assy, Tape Player (AM, FM STEREO PACK)
86160A Speaker Set, Front
86160B Speaker Assy, Rear
86161A Bracket, Speaker, Rear
86202A Wire, Speaker, NO.2
86202B Wire, Tape Player
86260 Tape Player Assy
86263 Adapter, Tape Player Cartridge(FOR CASSETTE PACK)
86265 Bracket, Tape Player, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
