Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 8 illustrations

Illustrations

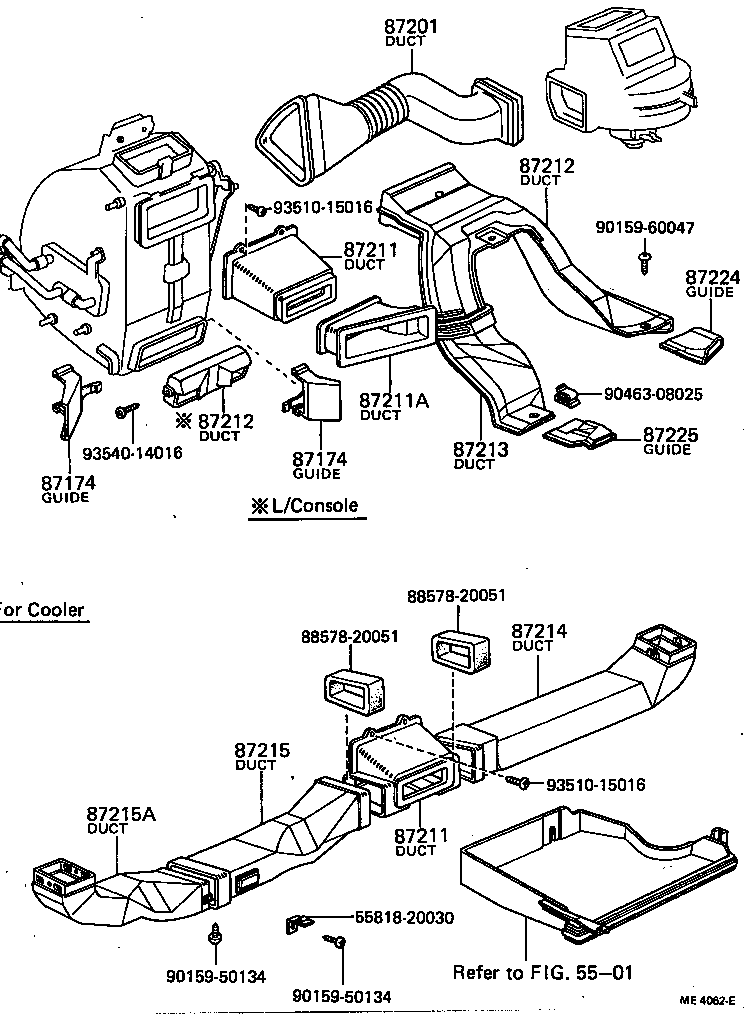

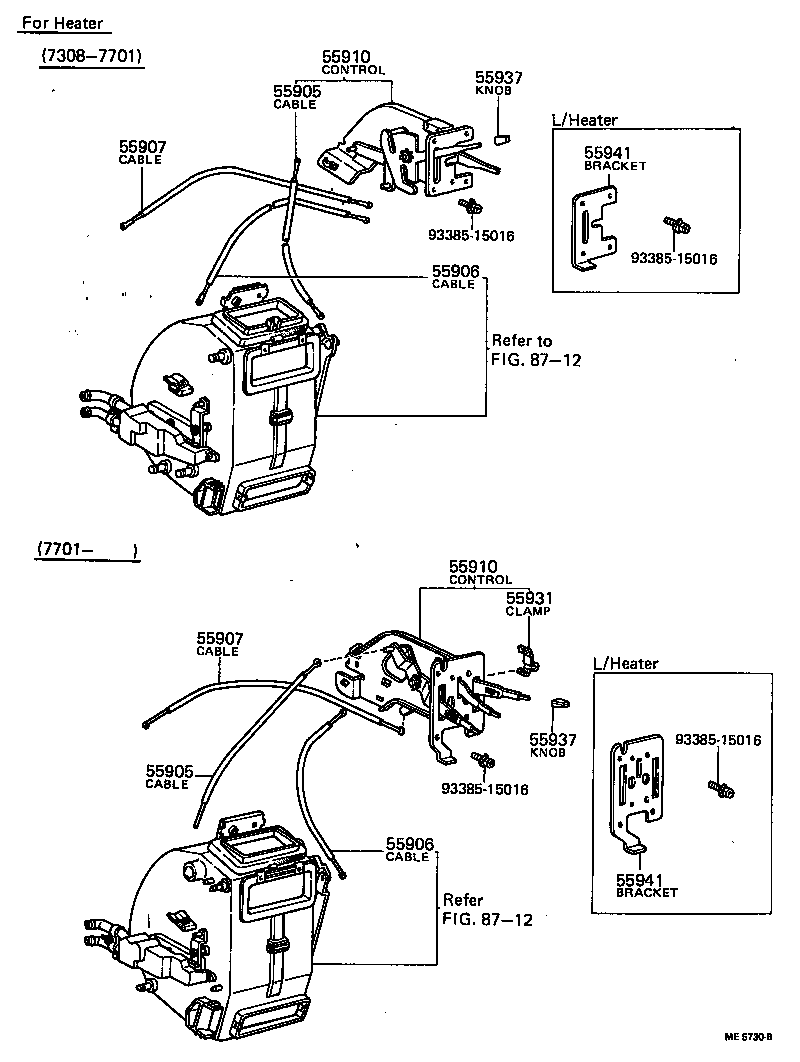

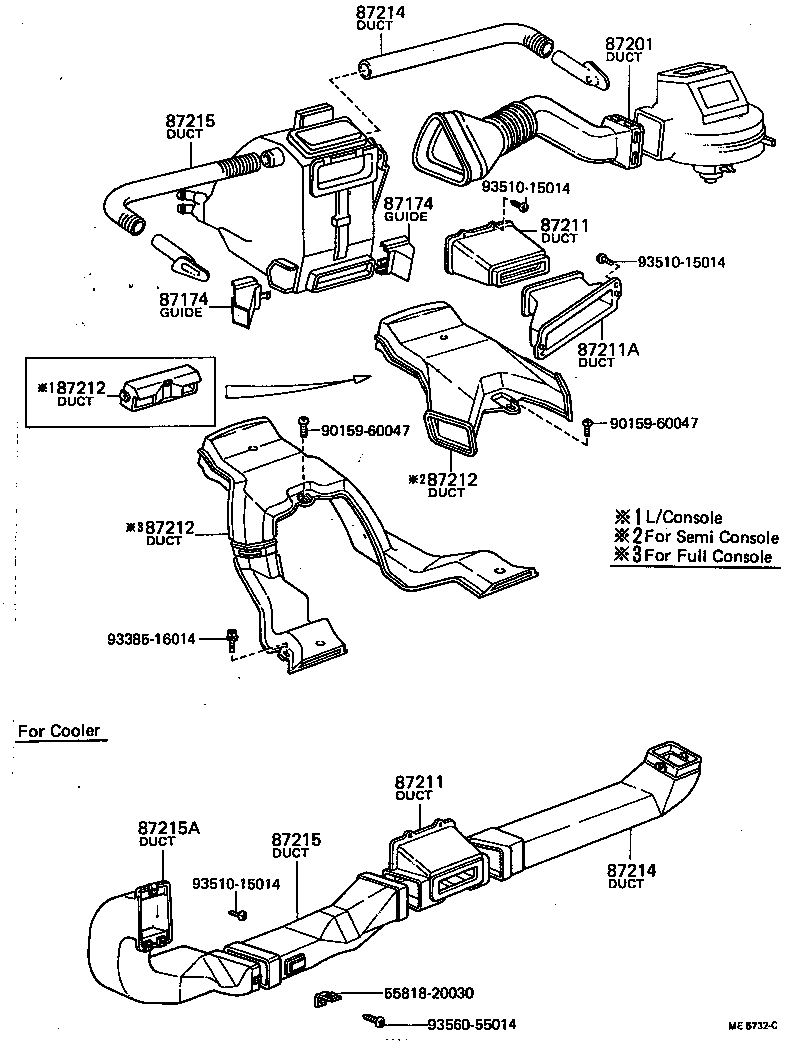

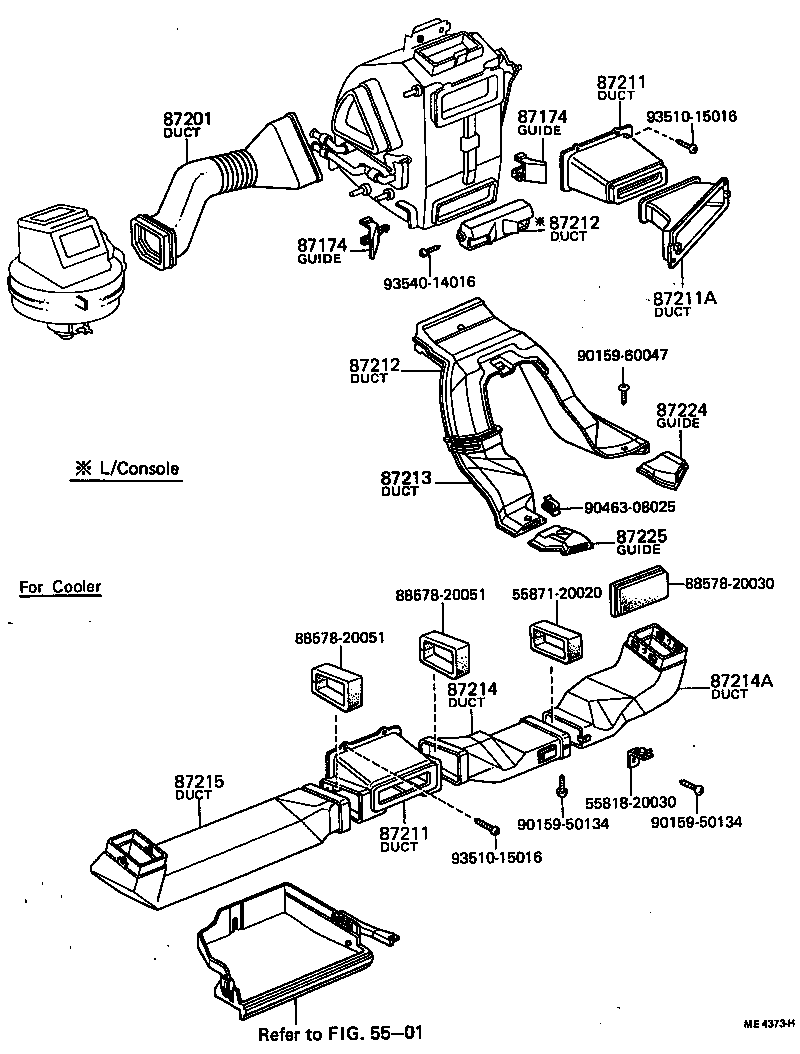

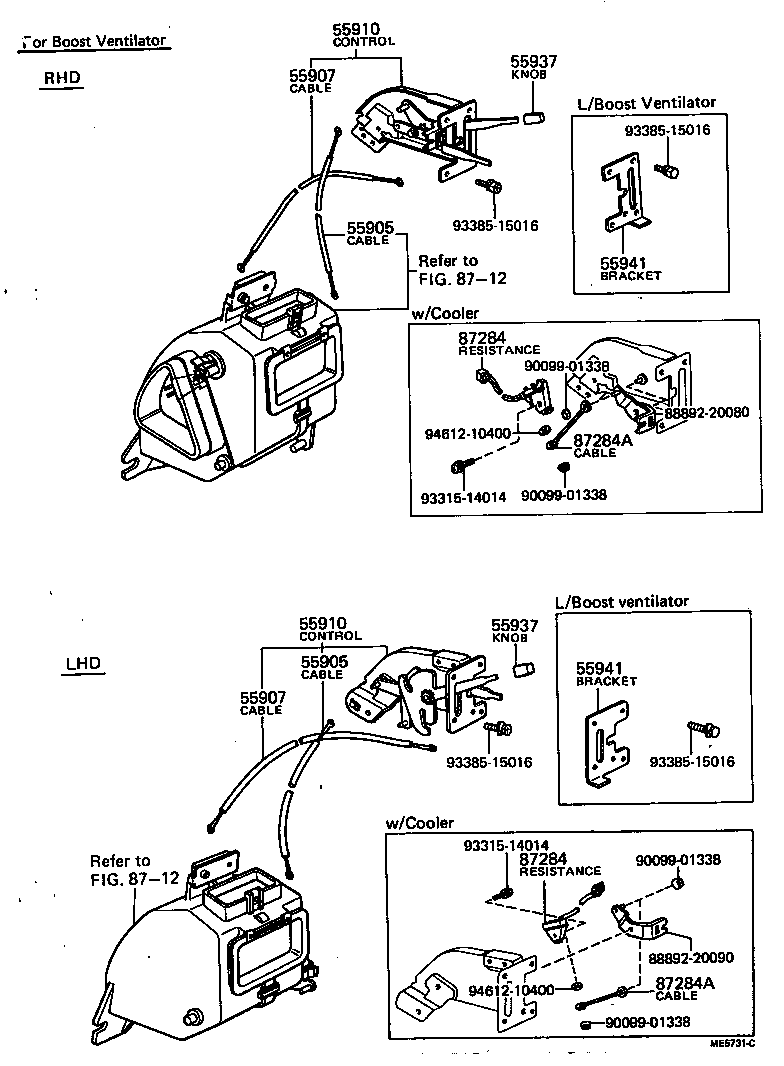

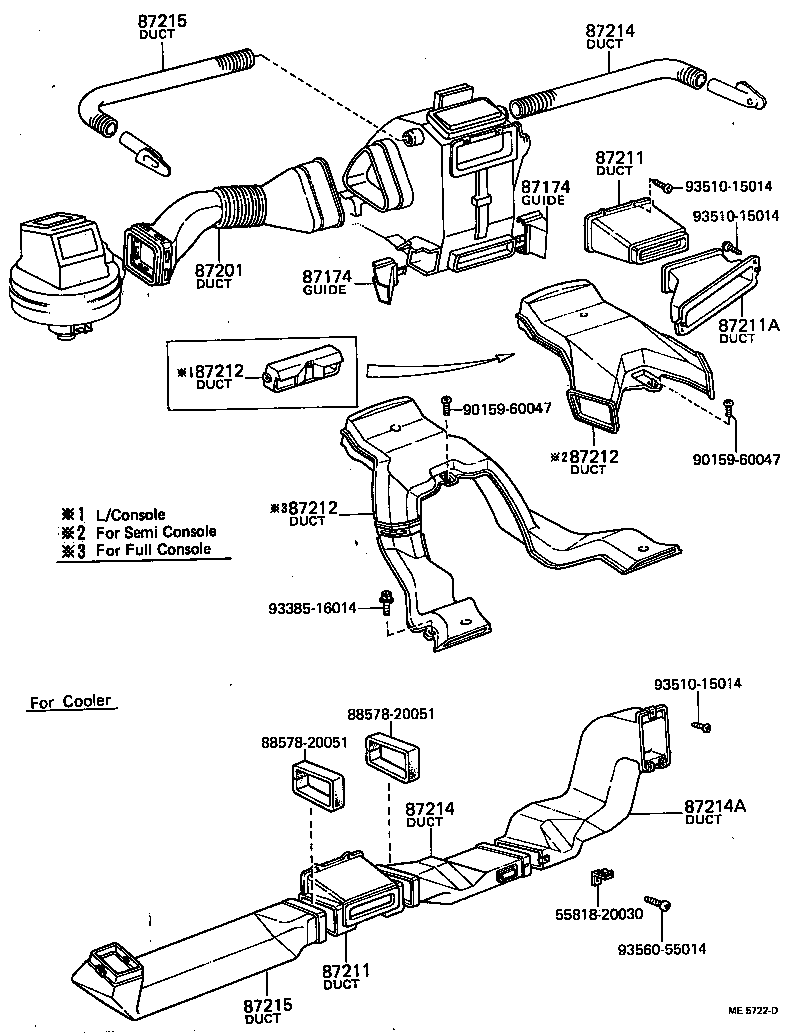

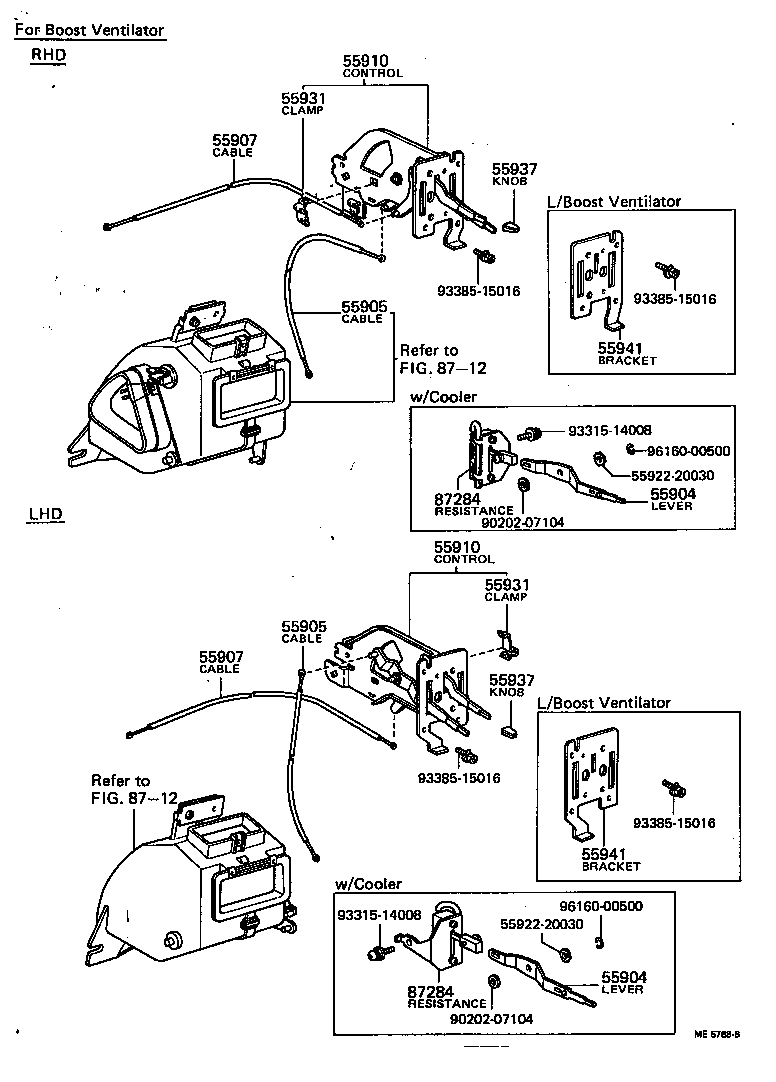

Figure ME5721A ME5721A 1973-08 → 1979-05 Figure ME5730B ME5730B 1973-08 → 1979-05 Figure ME5731C ME5731C 1973-08 → 1977-01 Figure ME5768B ME5768B 1977-01 → 1979-05 Figure ME4373H ME4373H 1973-08 → 1977-01 Figure ME5722D ME5722D 1977-01 → 1979-05 Figure ME4062E ME4062E 1973-08 → 1977-01 Figure ME5732C ME5732C 1977-01 → 1979-05

Part groups

PNCDescription
55904 Lever Sub-assy, Air Inlet Butterfly Control
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55910 Control Assy, Heater OR Boost Ventilator
55931 Clamp, Heater Control Wire
55937 Knob, Heater Control Lever
55941 Bracket, Heater Control
87174 Guide, Air Duct
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87224 Guide, Air Duct, RH
87225 Guide, Air Duct, LH
87284 Resistor Sub-assy, Variable
87284A Cable, Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
