Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

6 part groups · 2 illustrations

Illustrations

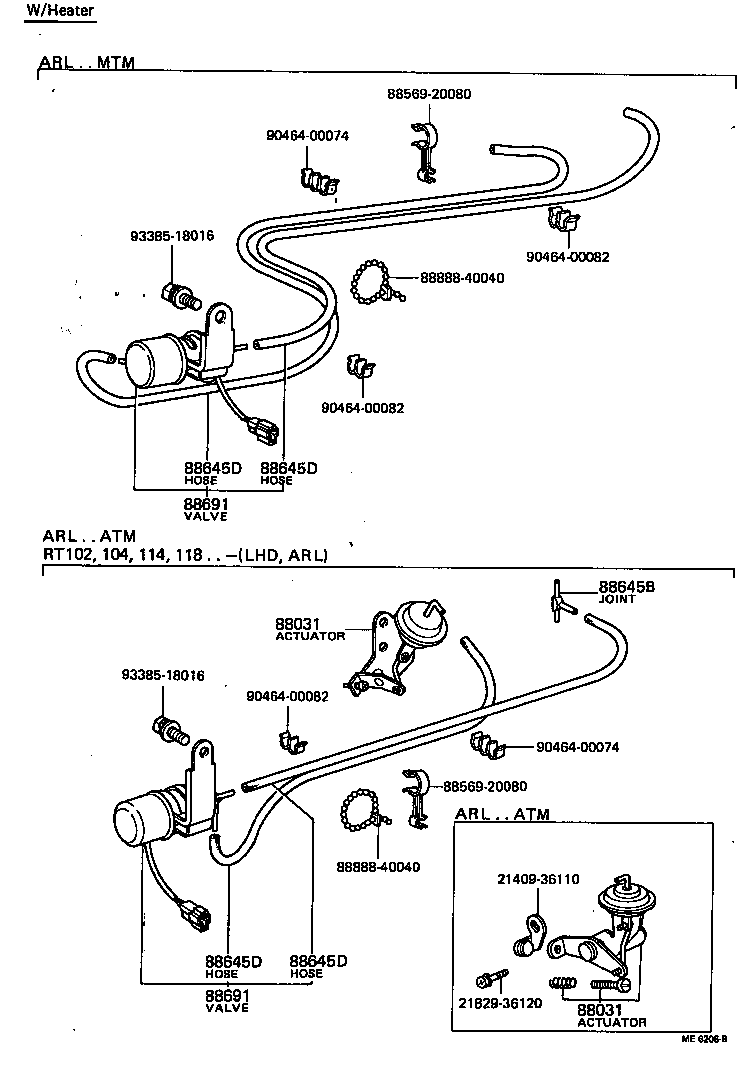

Figure ME5509A ME5509A 1976-04 → 1977-01 Figure ME6206B ME6206B 1977-01 → 1979-05

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88603 Wire, Idle UP Device
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88645D Hose (FOR IDLE UP DEVICE)
88646 Bracket, Idle UP Device, NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
