Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

10 part groups · 8 illustrations

Illustrations

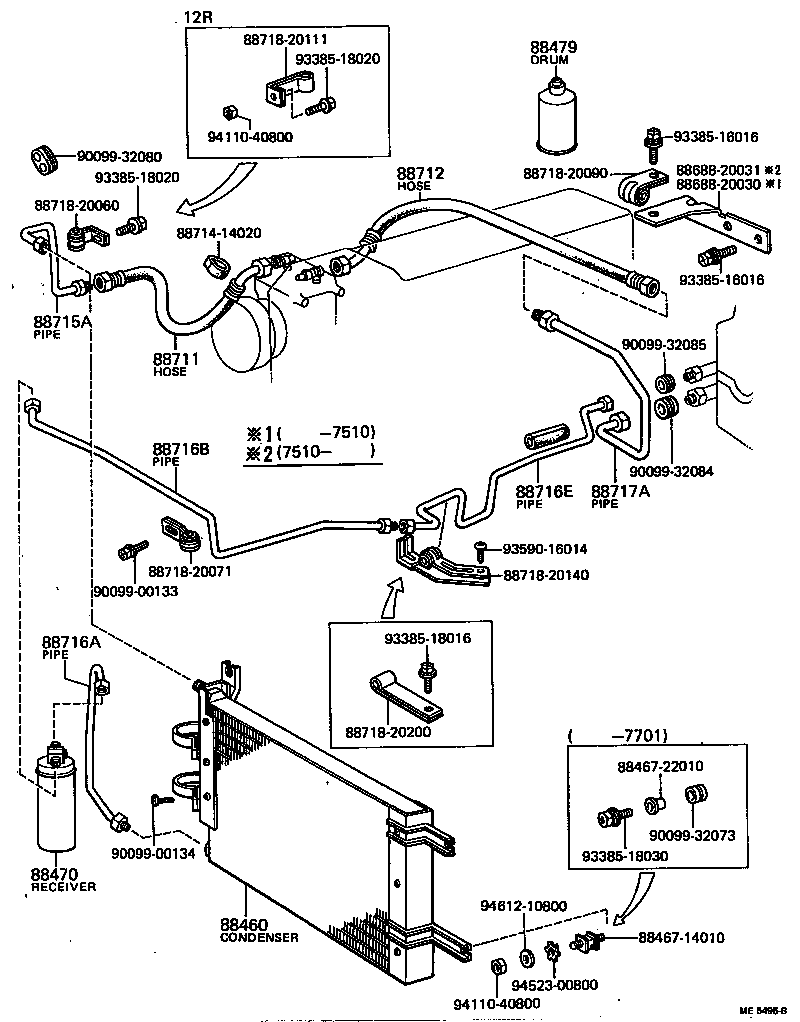

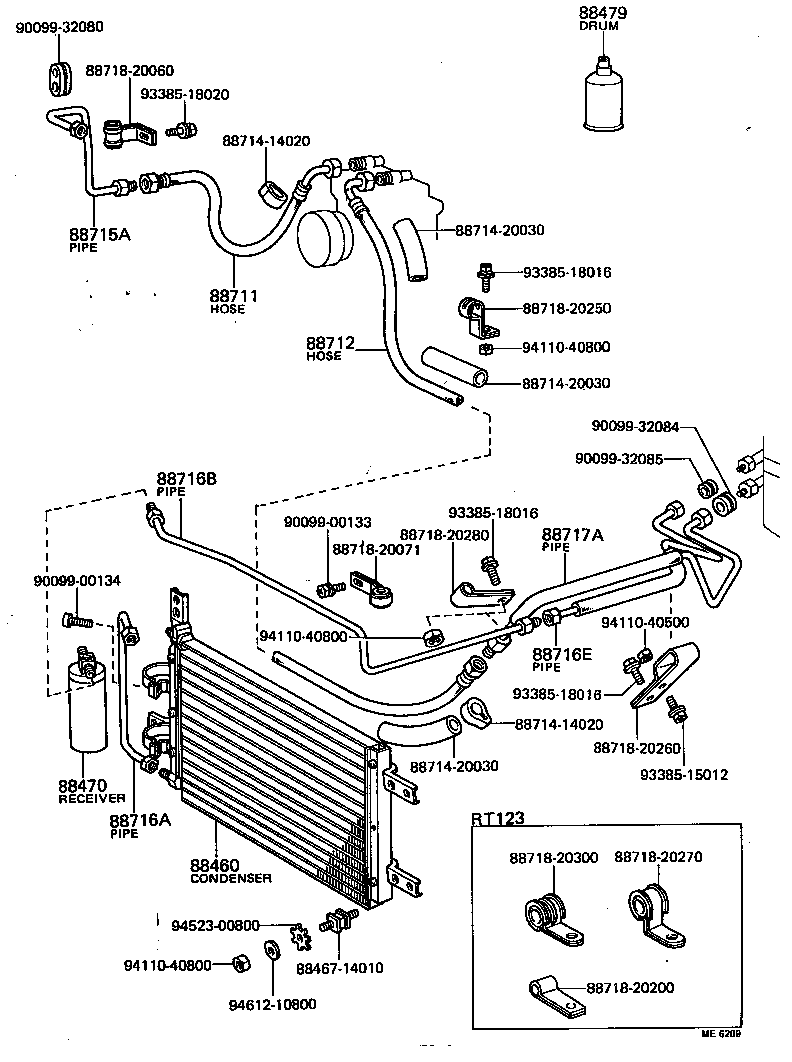

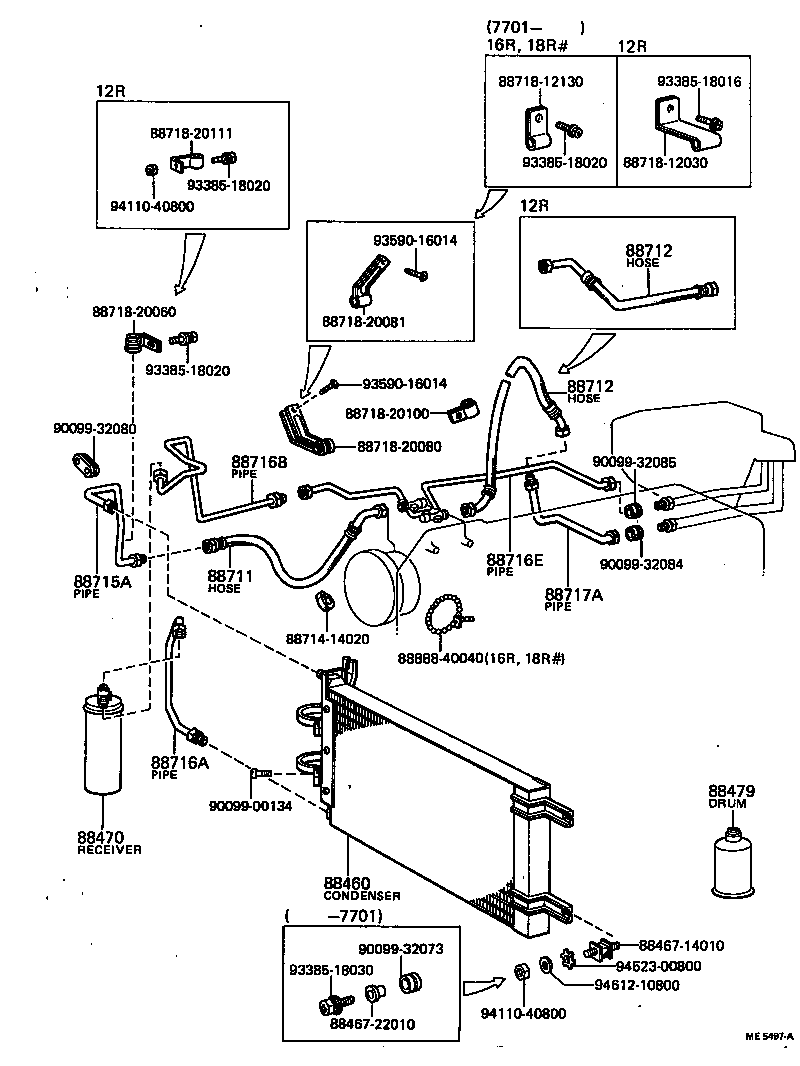

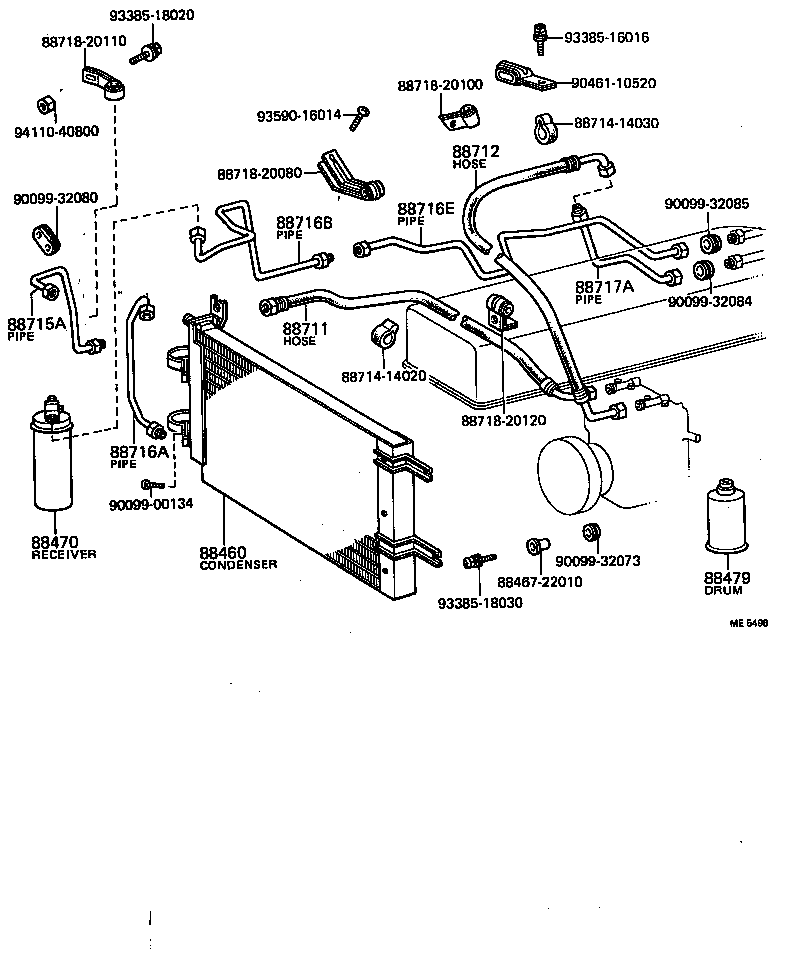

Figure ME5494 ME5494 1973-08 → 1975-09 Figure ME5496 ME5496 1973-08 → 1975-09 Figure ME5495B ME5495B 1973-08 → 1975-09 Figure ME5495B ME5495B 1975-09 → 1977-01 Figure ME5495B ME5495B 1977-01 → 1978-08 Figure ME6209 ME6209 1977-01 → 1979-05 Figure ME5497A ME5497A 1973-08 → 1975-09 Figure ME5497A ME5497A 1975-09 → 1979-05

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88470 Receiver & Dryer Assy, Cooler
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
