Toyota Corona
1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe
Discontinued model
Data version 1979-05
Heating & Air Conditioning - Compressor
42 part groups · 3 illustrations
Part groups

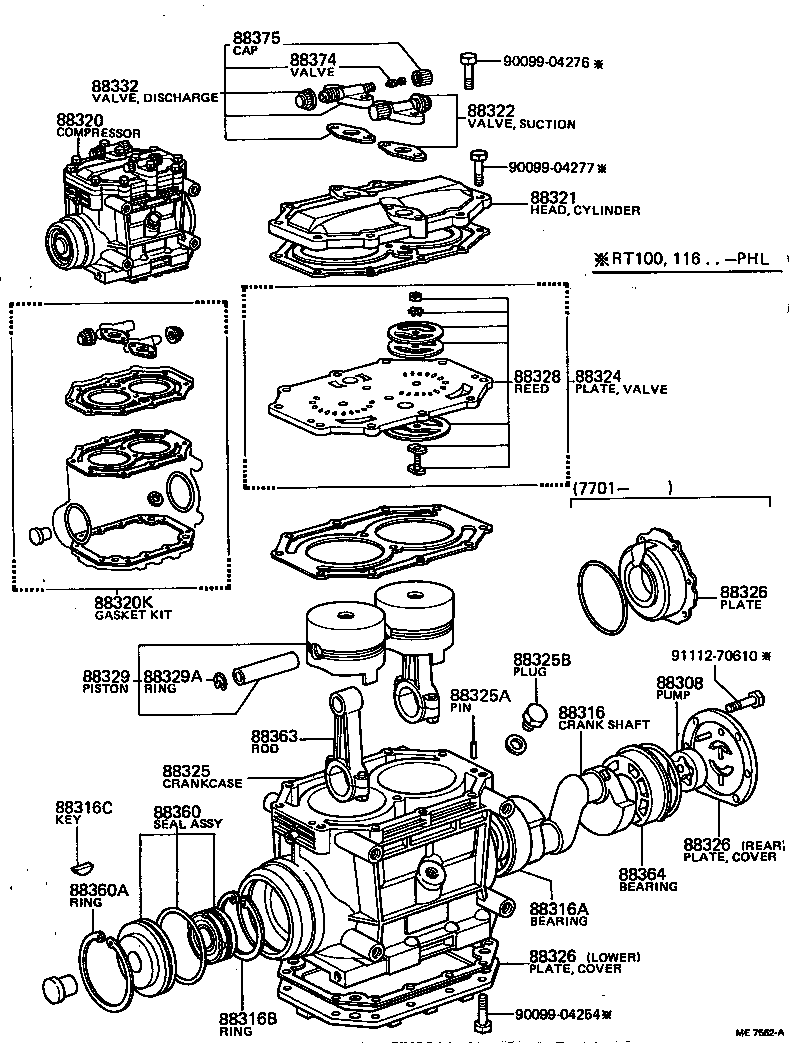

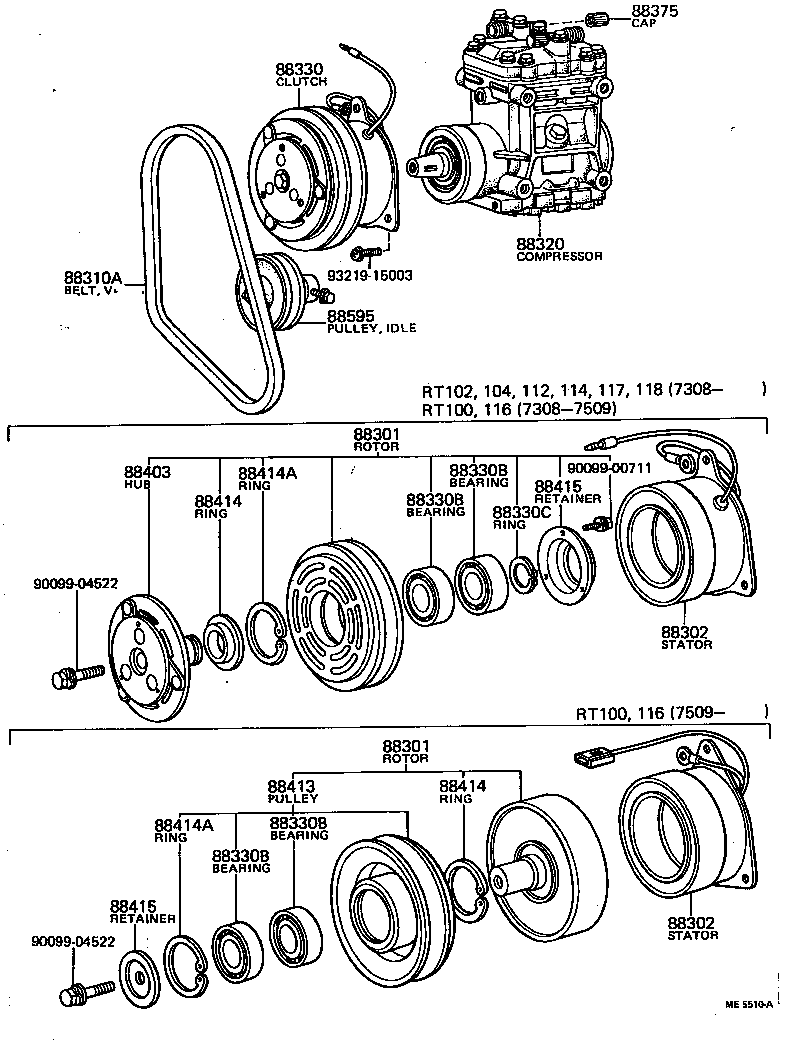

| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88308 | Pump Assy, Cooler Compressor |
| 88316 | Crankshaft, Cooler Compressor |
| 88316A | Bearing, Compressor Crankshaft, Front |
| 88316B | Ring, Compressor Crankshaft Rear Bearing Snap |
| 88316C | Key, Compressor Crankshaft |
| 88320 | Compressor Assy, Cooler |
| 88320K | Gasket Kit, Cooler Compressor Overhaul |
| 88321 | Head, Cooler Compressor Cylinder |
| 88322 | Valve, Cooler Compressor Suction Service |
| 88324 | Plate Sub-assy, Cooler Compressor Valve |
| 88325 | Crankcase, Cooler Compressor |
| 88325A | Pin, Cylinder Block |
| 88325B | Plug, Cylinder Block Oil |
| 88326 | Plate, Cooler Compressor Bottom |
| 88328 | Reed Sub-assy, Cooler Compressor Valve |
| 88329 | Piston Sub-assy, Cooler Compressor |
| 88329A | Ring, Compressor Piston Snap |
| 88330 | Clutch Assy, Magnet |
| 88330B | Bearing, Magnet Clutch |
| 88330C | Ring, Snap (FOR MAGNET CLUTCH) |
| 88332 | Valve, Cooler Compressor Discharge Service |
| 88360 | Seal Assy, Cooler Compressor Shaft |
| 88360A | Ring, Compressor Seal Plate Snap |
| 88363 | Rod Sub-assy, Cooler Compressor Connecting |
| 88364 | Bearing, Compressor Crankshaft, Rear |
| 88374 | Valve, Cooler Compressor Service |
| 88375 | Cap, Cooler Compressor Service Valve |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88413 | Pulley Sub-assy, Magnet Clutch |
| 88414 | Ring, Shield |
| 88414A | Ring, Shield Snap |
| 88415 | Retainer, Magnet Clutch Bearing, NO.1 |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88432 | Bracket, Compressor Mounting, NO.2 |
| 88433 | Bracket, Compressor Mounting, NO.3 |
| 88434 | Bracket, Compressor Mounting, NO.4 |
| 88444 | Bracket, Idle Pulley |
| 88445 | Bracket, Idle Pulley |
| 88595 | Pulley, Cooler Compressor Idle |
| 88596 | Pulley Assy, Idle, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
