Toyota Corona
1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe
Discontinued model
Data version 1983-12

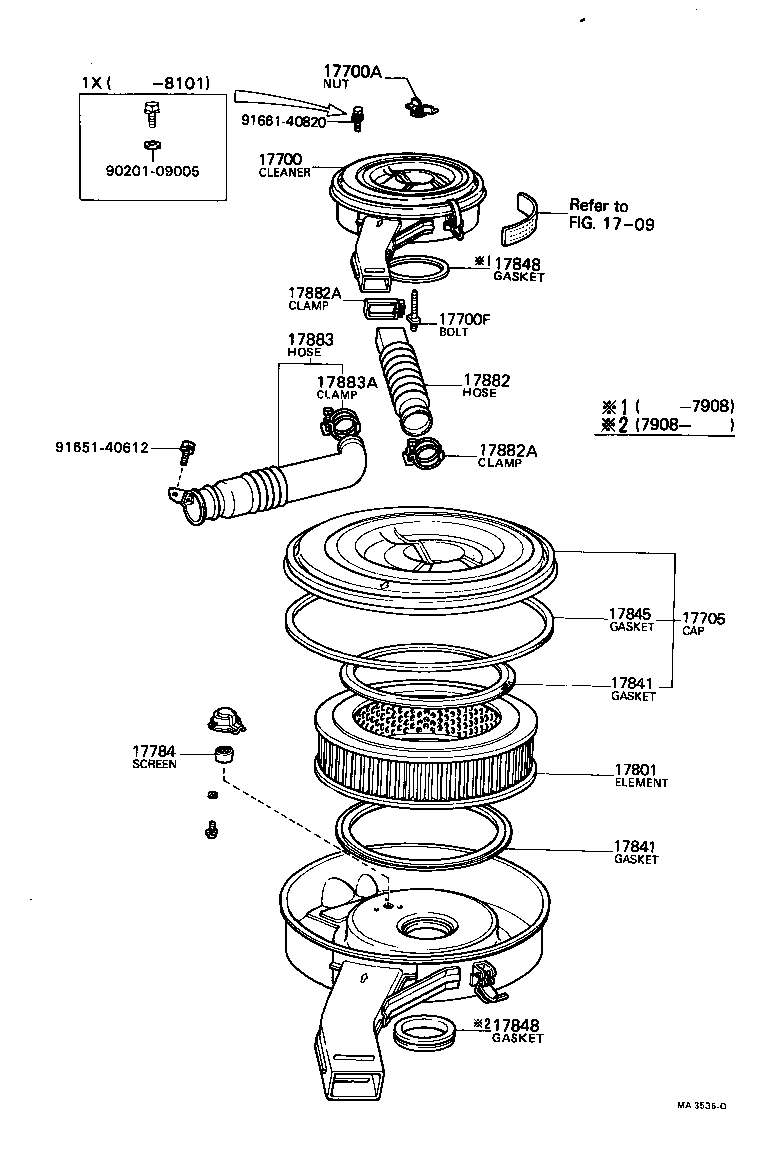

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-26201 note |
Cleaner Assy, Air
1978-09 → 1981-12
ended
|
2T,3T TT13# GEN | — | |
| 17700-26211 note |
Cleaner Assy, Air
1978-09 → 1981-12
ended
|
2T,3T TT13# | — | |
| 17700-31262 |
Cleaner Assy, Air
1978-09 → 1981-12
ended
|
12RM RT130 | — | |
| 17700-31360 |
Cleaner Assy, Air
1978-09 → 1979-08
ended
|
12R RT130 | — | |
| 17700-31380 note |
Cleaner Assy, Air
1978-09 → 1979-08
ended
|
12R RT130 | — | |
| 17700-34550 note |
Cleaner Assy, Air
1979-08 → 1982-05
ended
|
18R RT132 | — | |
| 17700-34630 |
Cleaner Assy, Air
1979-08 → 1981-08
ended
|
18RC RT132 | — | |
| 17700-36190 note |
Cleaner Assy, Air
1978-09 → 1979-08
ended
|
18R RT132 | — | |
| 17700-37110 |
Cleaner Assy, Air
1981-08 → 1983-01
ended
|
21RC RT133 | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1978-09 → 1983-01
ended
|
2T,3T TT13# | — | |
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1978-09 → 1983-01
ended
|
21RC,12R#,18R# RT13# | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06020 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1981-08 → 1983-01
ended
|
21RC RT133 | — | |
| 90116-06142 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1978-09 → 1981-12
ended
|
12R# RT130 | — | |
| 90116-06142 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1978-09 → 1981-12
ended
|
3T TT132 | — | |
| 90116-06143 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1978-09 → 1982-05
ended
|
18R# RT132 | — | |
| 90116-06222 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1979-08 → 1981-12
ended
|
2T TT133 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-25012 |
Cap Sub-assy, Air Cleaner
1978-09 → 1981-12
ended
|
2T,3T TT13# | — | |
| 17705-31032 note |
Cap Sub-assy, Air Cleaner
1978-09 → 1981-10
ended
|
12R# RT130 | — | |
| 17705-31033 note |
Cap Sub-assy, Air Cleaner
1981-10 → 1981-12
ended
|
12RM RT130 | — | |
| 17705-34190 |
Cap Sub-assy, Air Cleaner
1978-09 → 1982-05
ended
|
18R# RT132 | — | |
| 17705-35060 |
Cap Sub-assy, Air Cleaner
1981-08 → 1983-01
ended
|
21RC RT133 | — | |
| 17784 — Screen, Air Cleaner | ||||
| 17784-31010 |
Screen, Air Cleaner
1978-09 → 1982-05
ended
|
12R#,18R# RT130,132 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-25010 |
Element Sub-assy, Air Cleaner Filter
1978-09 → 1981-12
ended
|
2T,3T TT13# | — | |
| 17801-25010 |
Element Sub-assy, Air Cleaner Filter
1978-09 → 1981-12
ended
|
12R# RT130 | — | |
| 17801-31080 note |
Element Sub-assy, Air Cleaner Filter
1981-03 → 1981-12
ended
|
12RM RT130 | — | |
| 17801-34060 |
Element Sub-assy, Air Cleaner Filter
1978-09 → 1982-05
ended
|
18R# RT132 | — | |
| 17801-37010 |
Element Sub-assy, Air Cleaner Filter
1981-08 → 1983-01
ended
|
21RC RT133 | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-31020 |
Gasket, Filter Element
1978-09 → 1981-12
ended
|
12R# RT130 | — | |
| 17841-31020 |
Gasket, Filter Element
1978-09 → 1981-12
ended
|
2T,3T TT13# | — | |
| 17841-33011 |
Gasket, Filter Element
1978-09 → 1982-05
ended
|
18R# RT132 | — | |
| 17841-41050 |
Gasket, Filter Element
1981-08 → 1983-01
ended
|
21RC RT133 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-25010 |
Gasket, Air Cleaner Cap
1978-09 → 1981-12
ended
|
2T,3T TT13# | — | |
| 17845-25010 |
Gasket, Air Cleaner Cap
1979-10 → 1981-12
ended
|
12RM RT130 | — | |
| 17845-31020 |
Gasket, Air Cleaner Cap
1978-09 → 1979-10
ended
|
12R# RT130 | — | |
| 17845-33011 |
Gasket, Air Cleaner Cap
1978-09 → 1982-05
ended
|
18R# RT132 | — | |
| 17845-35010 |
Gasket, Air Cleaner Cap
1981-08 → 1983-01
ended
|
21RC RT133 | — | |
| 17848 — Gasket, Air Cleaner TO Carburetor | ||||
| 17848-35010 |
Gasket, Air Cleaner TO Carburetor
1981-08 → 1983-01
ended
|
21RC RT133 | — | |
| 90430-63187 |
Gasket, Air Cleaner TO Carburetor
1978-09 → 1979-10
ended
|
12R# RT130 | — | |
| 90430-63187 |
Gasket, Air Cleaner TO Carburetor
1978-09 → 1979-10
ended
|
2T,3T TT13# | — | |
| 90430-63187 |
Gasket, Air Cleaner TO Carburetor
1979-10 → 1981-12
ended
|
2T,3T TT13# | — | |
| 90430-72003 |
Gasket, Air Cleaner TO Carburetor
1979-08 → 1982-05
ended
|
18R# RT132 | — | |
| 90430-72114 |
Gasket, Air Cleaner TO Carburetor
1978-09 → 1979-08
ended
|
18R RT132 | — | |
| 17882 — Hose, Air Cleaner, NO.2 | ||||
| 17882-27020 |
Hose, Air Cleaner, NO.2
1978-09 → 1981-12
ended
|
2T,3T TT13# GEN | — | |
| 17882-27040 |
Hose, Air Cleaner, NO.2
1978-09 → 1981-08
ended
|
3T TT132 EUR | — | |
| 17882-34070 |
Hose, Air Cleaner, NO.2
1978-09 → 1983-01
ended
|
18R# RT132 | — | |
| 17882-34070 |
Hose, Air Cleaner, NO.2
1978-09 → 1983-01
ended
|
1X XT130 | — | |
| 17882-38051 |
Hose, Air Cleaner, NO.2
1981-08 → 1983-01
ended
|
21RC RT133 | — | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01003 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-09 → 1983-01
ended
|
1X XT130 | — | |
| 90460-01003 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-09 → 1983-01
ended
|
2T,3T TT13# | — | |
| 90460-01003 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-09 → 1983-01
ended
|
18R# RT132 | — | |
| 90460-01015 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-08 → 1983-01
ended
|
21RC RT133 | — | |
| 90460-01016 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-08 → 1983-01
ended
|
21RC RT133 | — | |
| 90460-58013 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-09 → 1979-01
ended
|
3T TT132 | — | |
| 90460-58013 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-09 → 1979-01
ended
|
18R RT132 | — | |
| 96111-10570 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1979-01 → 1983-01
ended
|
18R# RT132 | — | |
| 96111-10570 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1979-01 → 1983-01
ended
|
2T,3T TT13# | — | |
| 96111-10570 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1979-01 → 1983-01
ended
|
1X XT130 | — | |
| 17883 — Hose, Air Cleaner, NO.3 | ||||
| 53299-20030 |
Hose, Air Cleaner, NO.3
1978-09 → 1980-05
ended
|
18R# RT132 | — | |
| 53299-20030 |
Hose, Air Cleaner, NO.3
1980-05 → 1980-08
ended
|
18R# RT132 GL,STD | — | |
| 53299-20030 |
Hose, Air Cleaner, NO.3
1980-05 → 1980-08
ended
|
1X XT130 | — | |
| 53299-20030 |
Hose, Air Cleaner, NO.3
1978-09 → 1980-08
ended
|
3T TT132 EUR | — | |
| 53299-20030 |
Hose, Air Cleaner, NO.3
1978-09 → 1980-05
ended
|
1X XT130 | — | |
| 53299-20031 |
Hose, Air Cleaner, NO.3
1980-08 → 1982-05
ended
|
3T TT132 EUR | — | |
| 53299-20031 |
Hose, Air Cleaner, NO.3
1980-08 → 1982-05
ended
|
18R# RT132 | — | |
| 53299-20031 |
Hose, Air Cleaner, NO.3
1980-08 → 1983-01
ended
|
1X XT130 | — | |
| 53299-20040 |
Hose, Air Cleaner, NO.3
1981-08 → 1983-01
ended
|
21RC RT133 | — | |
| 17883A — Clamp(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01015 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1981-08 → 1983-01
ended
|
21RC RT133 | — | |
| 90460-60001 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1978-09 → 1980-05
ended
|
18R# RT132 | — | |
| 90460-60001 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1978-09 → 1980-05
ended
|
1X XT130 | — | |
| 90460-60001 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1978-09 → 1981-08
ended
|
3T TT132 EUR | — | |
| 90460-60001 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-05 → 1982-05
ended
|
18R# RT132 GL,STD | — | |
| 90460-60001 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-05 → 1983-01
ended
|
1X XT130 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
