Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

25 part groups · 7 illustrations

Illustrations

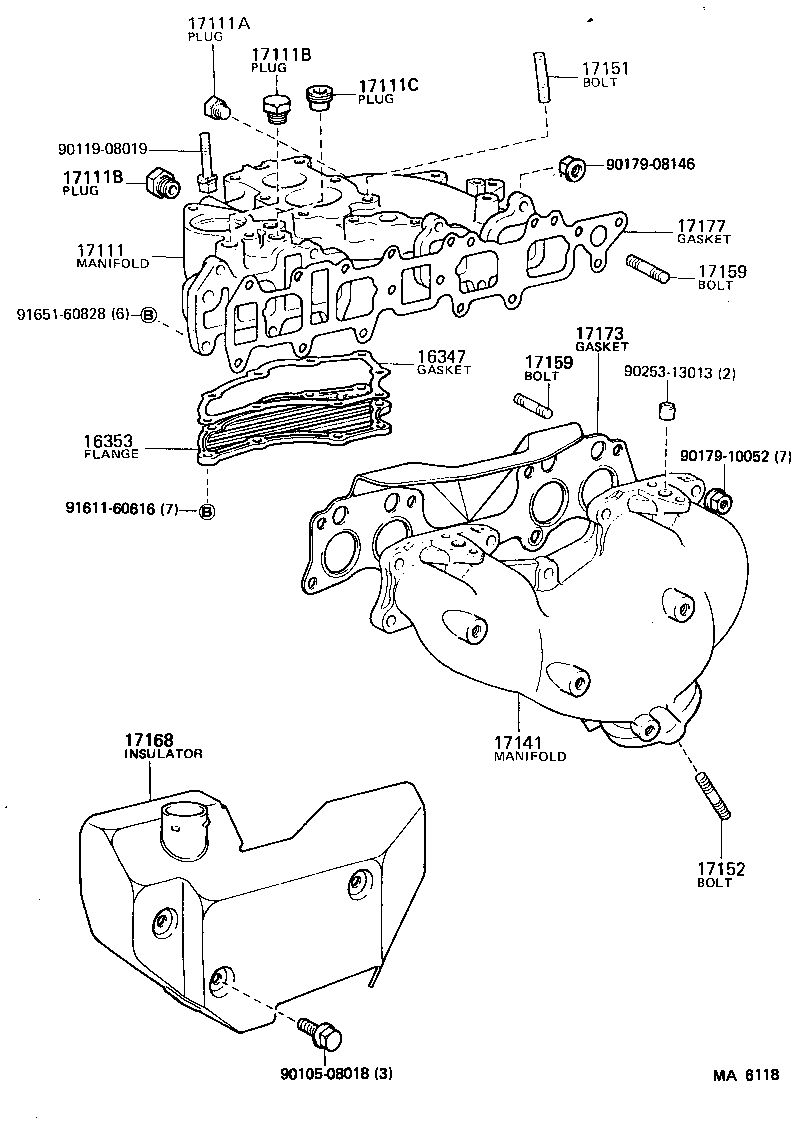

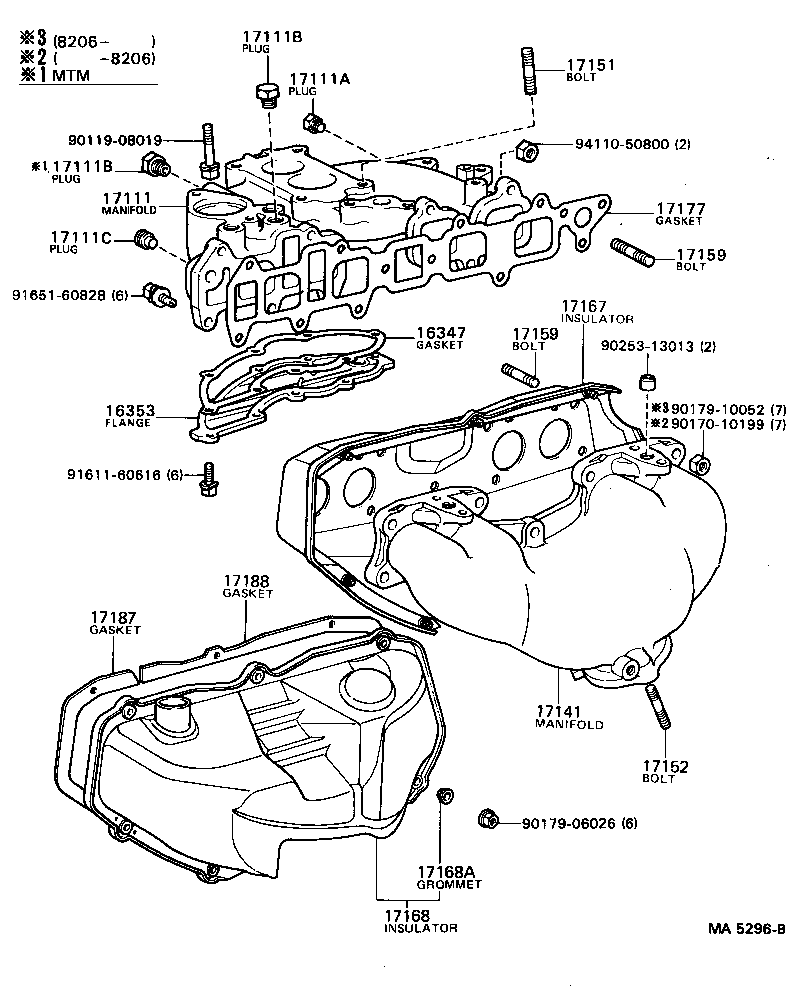

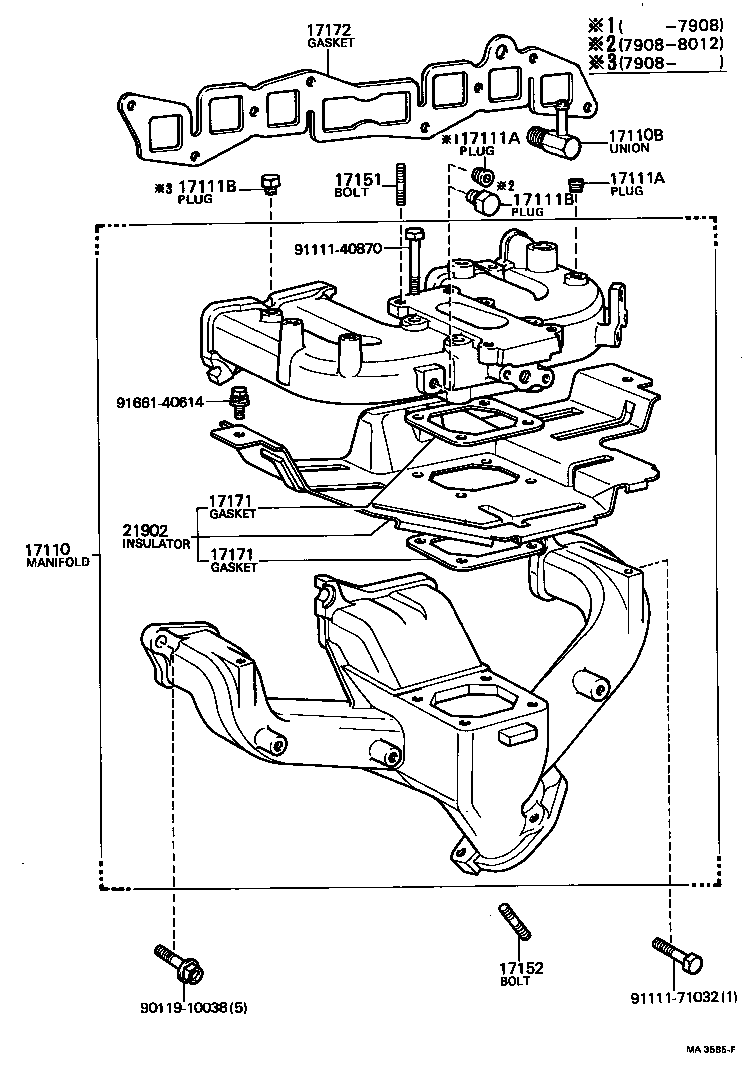

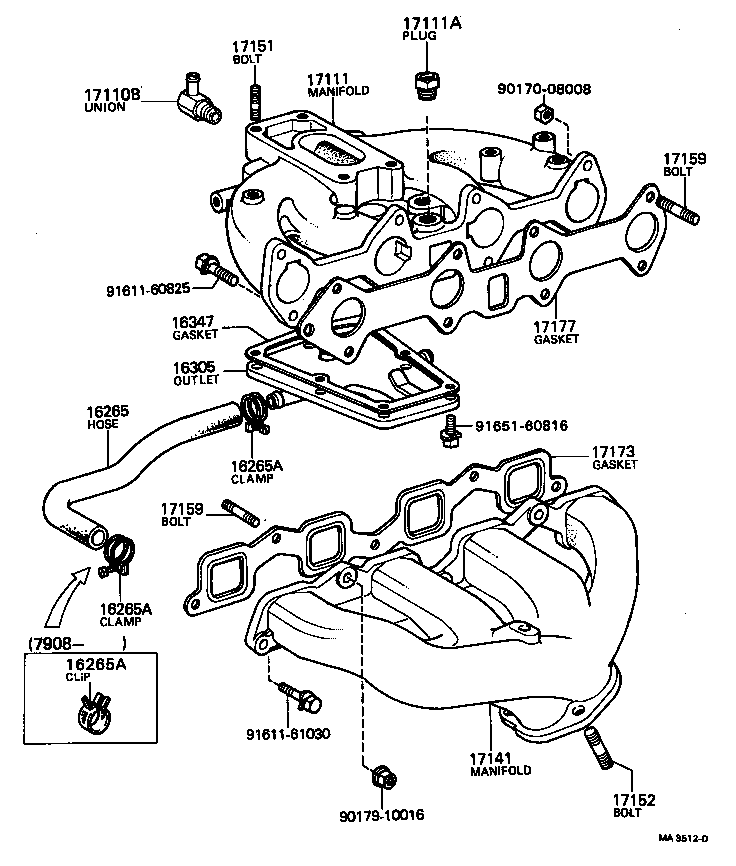

Figure MA2046F MA2046F 1978-09 → 1981-12 Figure MA2473A MA2473A 1978-09 → 1979-01 Figure MA3585F MA3585F 1979-01 → — Figure MA5296B MA5296B 1981-08 → 1982-08 Figure MA6118 MA6118 1982-08 → — Figure MA3512D MA3512D 1978-09 → 1981-12 Figure MA3585F MA3585F 1979-01 → —

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
16305 Outlet Sub-assy, Water By-pass
16347 Gasket, Water By-pass
16353 Flange, Water By-pass
17110 Manifold Assy
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17168A Grommet(FOR EXHAUST MANIFOLD HEAT INSULATOR)
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17187 Gasket, Heat Insulator, NO.1
17188 Gasket, Heat Insulator, NO.2
21902 Insulator Sub-assy, Carburetor Heat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
