Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

25 part groups · 7 illustrations

Illustrations

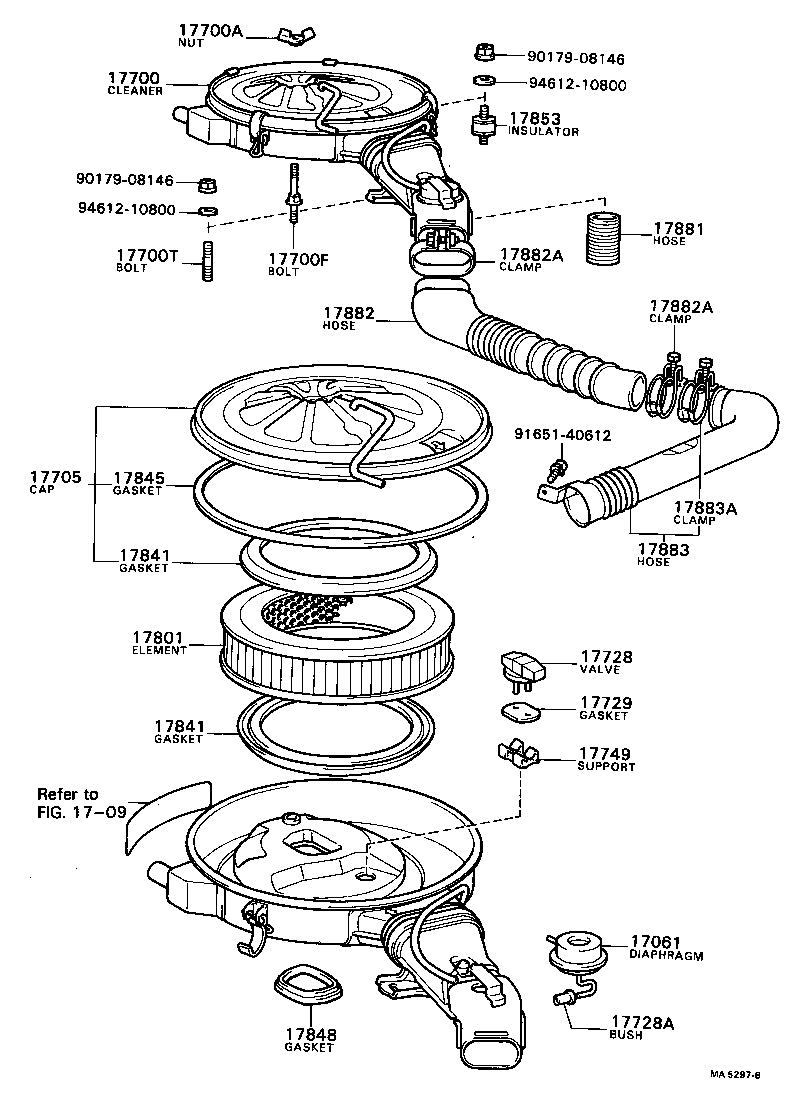

Figure MA5490 MA5490 1978-09 → 1981-12 Figure MA3362B MA3362B 1978-09 → 1979-08 Figure MA3535D MA3535D 1978-09 → — Figure MA4028A MA4028A 1979-08 → 1981-08 Figure MA5297B MA5297B 1981-08 → — Figure MA3513E MA3513E 1978-09 → 1981-12 Figure MA3535D MA3535D 1978-09 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700T Bolt, Stud(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17728 Valve, Thermostatic
17728A Bush
17729 Gasket, Thermostat Valve
17749 Support, Thermostat Valve
17784 Screen, Air Cleaner
17789 Cap, Air Cleaner Screen
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17853 Insulator, Air Cleaner Bracket
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
23262B Valve, Bimetal Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
