Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

14 part groups · 3 illustrations

Illustrations

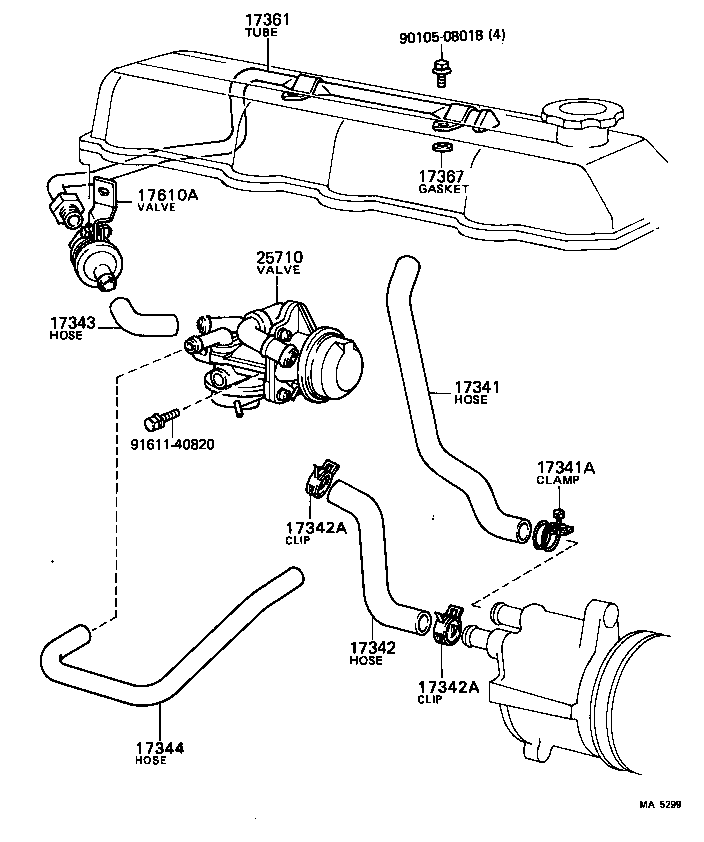

Figure MA4938 MA4938 1979-08 → 1981-08 Figure MA5299 MA5299 1981-08 → — Figure MA5075 MA5075 1981-08 → —

Part groups

PNCDescription
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17351 Manifold, Air Injection
17355 Nozzle, Air Injection
17361 Tube, Air
17367 Gasket, Air Tube
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
17670 Valve Assy, Air By-pass
25710 Valve Assy, Air Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
