Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

14 part groups · 9 illustrations

Illustrations

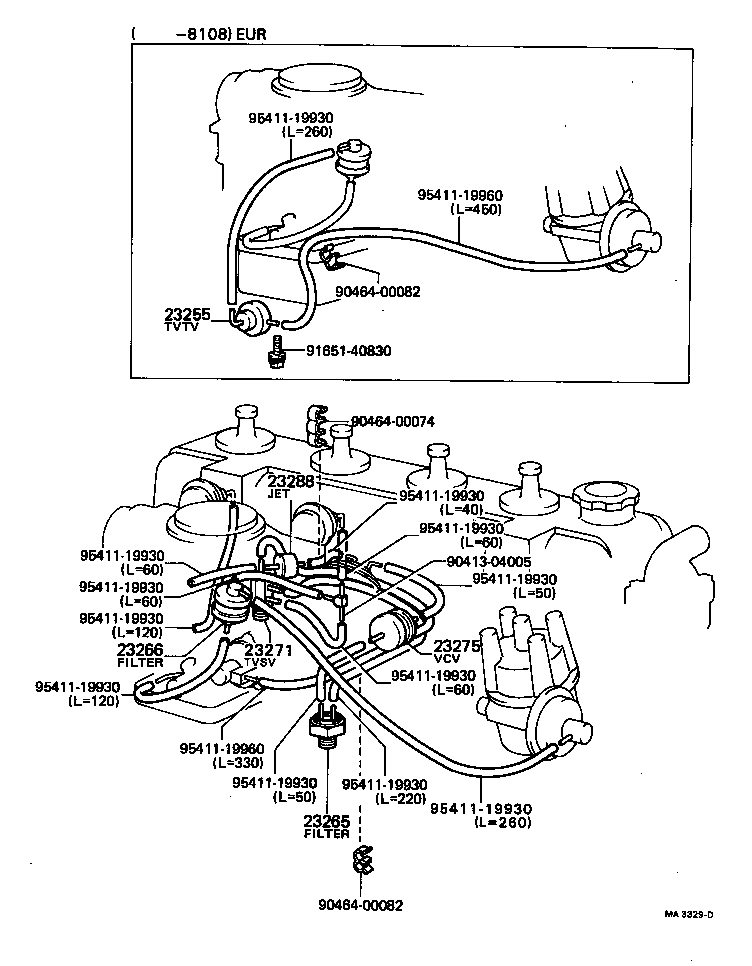

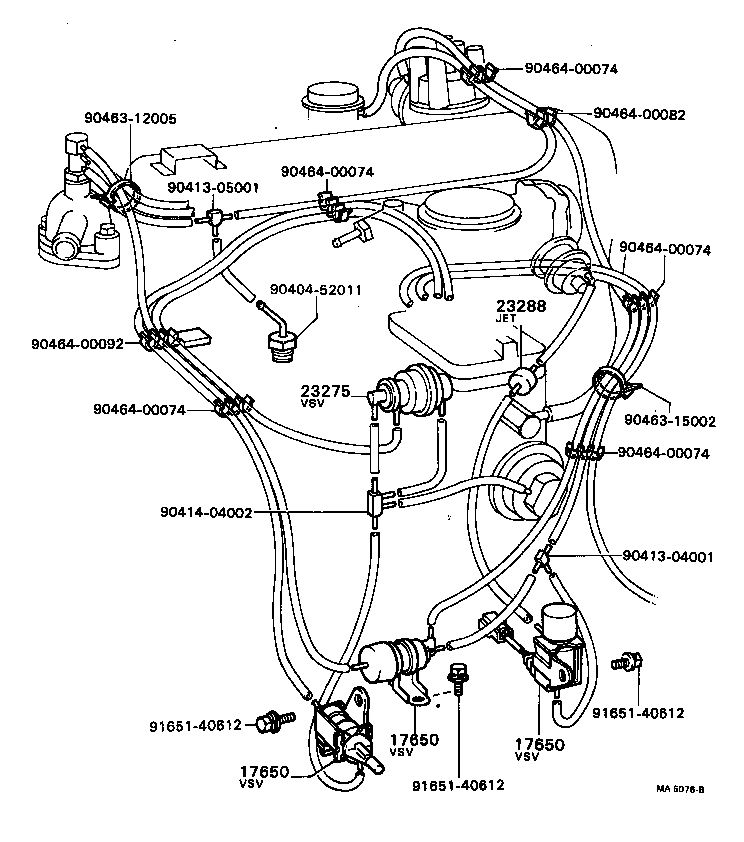

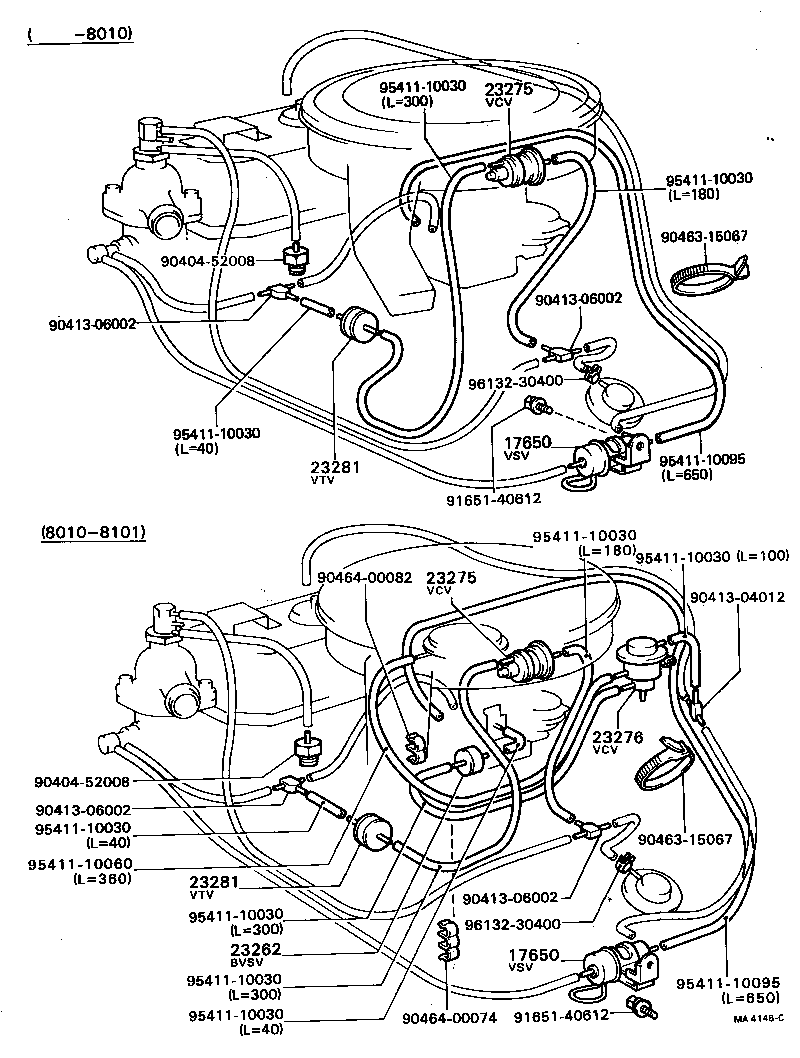

Figure MA9501 MA9501 1978-09 → — Figure MA4165B MA4165B 1979-08 → 1981-08 Figure MA5333D MA5333D 1981-08 → — Figure MA9501 MA9501 1978-09 → — Figure MA4025A MA4025A 1979-08 → 1981-12 Figure MA3329D MA3329D 1978-09 → 1981-12 Figure MA9501 MA9501 1978-09 → — Figure MA4146C MA4146C 1979-08 → 1981-01 Figure MA5076B MA5076B 1981-01 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
23255 Valve, Thermostatic Vacuum Transmitting, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23264 Valve, Bimetal Vacuum Switching, NO.3
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23269 Union(FOR GAS FILTER)
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
