Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pipe & Clamp

14 part groups · 7 illustrations

Illustrations

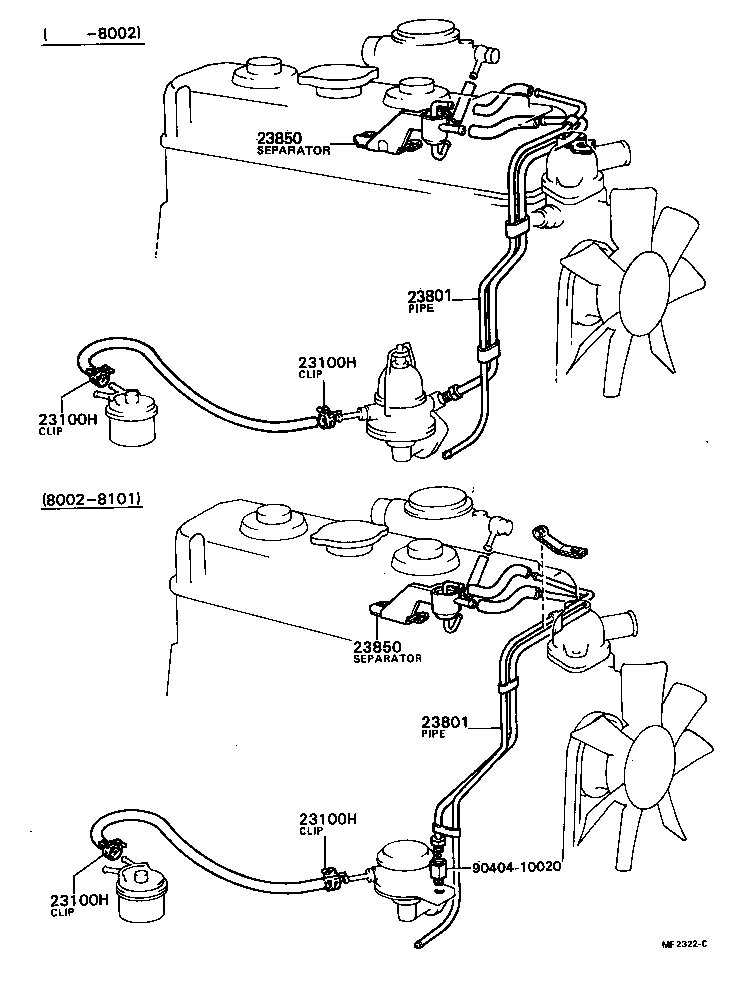

Figure MF2069E MF2069E 1978-09 → 1981-12 Figure MF2343B MF2343B 1978-09 → 1982-05 Figure MF2344A MF2344A 1979-08 → — Figure MF2701A MF2701A 1981-08 → — Figure MF2086B MF2086B 1978-09 → 1981-12 Figure MF2322C MF2322C 1979-08 → 1981-01 Figure MF2627 MF2627 1981-01 → —

Part groups

PNCDescription
19907 Hose, Vacuum, NO.1
23100A Hose, Fuel
23100H Clip(FOR FUEL HOSE)
23100P Hose(FOR FUEL PUMP TO FUEL TUBE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801A Olive(FOR FUEL PIPE)
23801B Nut, Union(FOR FUEL PIPE)
23801C Clip(FOR CARBURETOR FUEL HOSE)
23801D Hose, Fuel Pipe, NO.1
23801E Hose, Fuel Pipe, NO.2
23814 Pipe, Fuel Delivery
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
23850 Separator Assy, Fuel Vapor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
