Toyota Corona
1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe
Discontinued model
Data version 1983-12

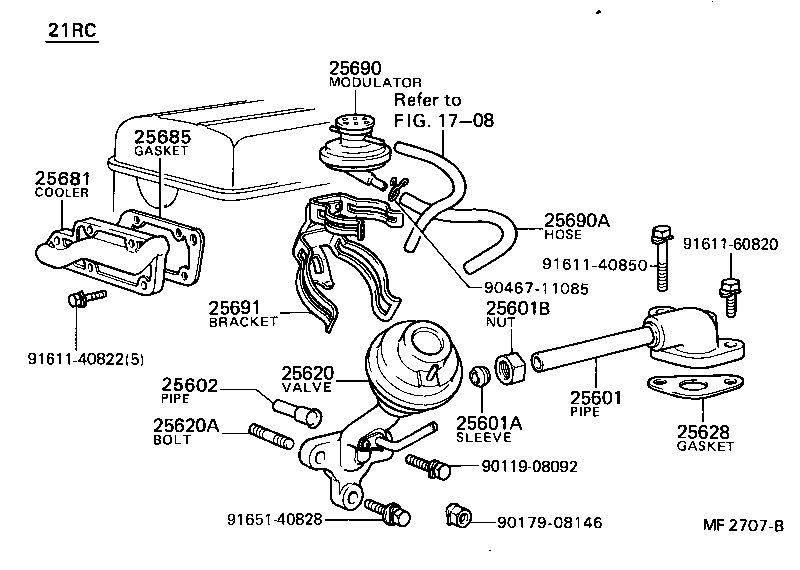

Exhaust Gas Recirculation System
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601A | Sleeve, Ball, Egr Pipe, NO.1 |
| 25601B | Nut, Union, Egr Pipe, NO.1 |
| 25601C | Hose(FOR EGR PIPE, NO.1) |
| 25601F | Union(FOR EGR PIPE, NO.1) |
| 25602 | Pipe Sub-assy, Egr, NO.2 |
| 25620 | Valve Assy, Egr |
| 25620A | Bolt, Stud(FOR EGR VALVE) |
| 25625 | Bracket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25635 | Bracket, Egr Pipe, NO.1 |
| 25636 | Bracket, Egr Pipe, NO.2 |
| 25637 | Bracket, Egr Pipe, NO.3 |
| 25681 | Cooler, Egr, NO.1 |
| 25685 | Gasket, Egr Cooler, NO.1 |
| 25690 | Modulator Assy, Egr Vacuum |
| 25690A | Hose(FOR EGR VACUUM MODULATOR) |
| 25691 | Bracket, Egr Vacuum Modulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
