Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

20 part groups · 4 illustrations

Illustrations

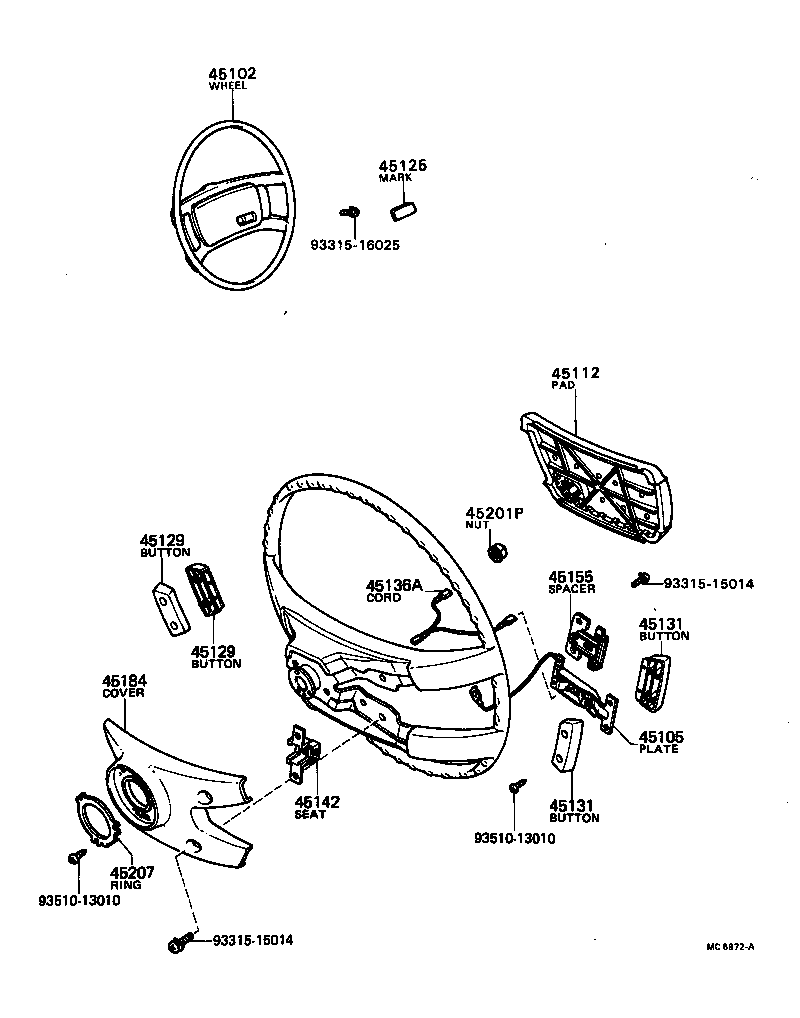

Figure MC5800B MC5800B 1978-09 → 1982-05 Figure MC5546B MC5546B 1978-09 → 1980-08 Figure MC5546B MC5546B 1980-10 → 1981-11 Figure MC6872A MC6872A 1980-08 → 1981-12

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45112 Pad, Steering Wheel
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45125 Mark, Steering Wheel Pad
45126 Plate, Steering Wheel Pad Set
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45155 Spacer, Horn Button Contact Plate
45159 Retainer, Steering Wheel Pad Set
45184 Cover, Steering Wheel Boss, Lower
45192 Cover, Horn Button, Upper
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
