Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 6 illustrations

Illustrations

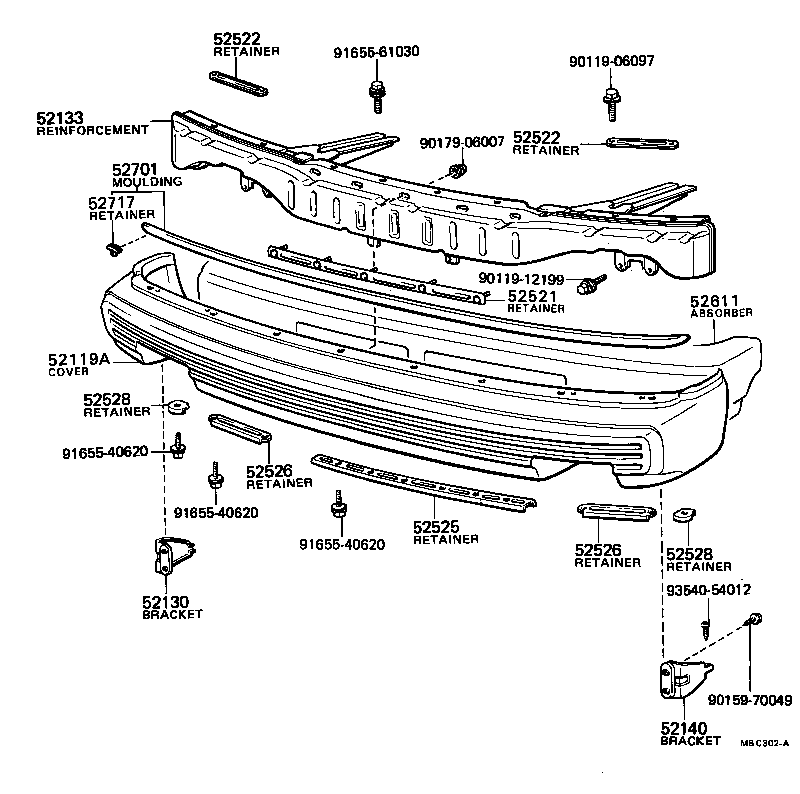

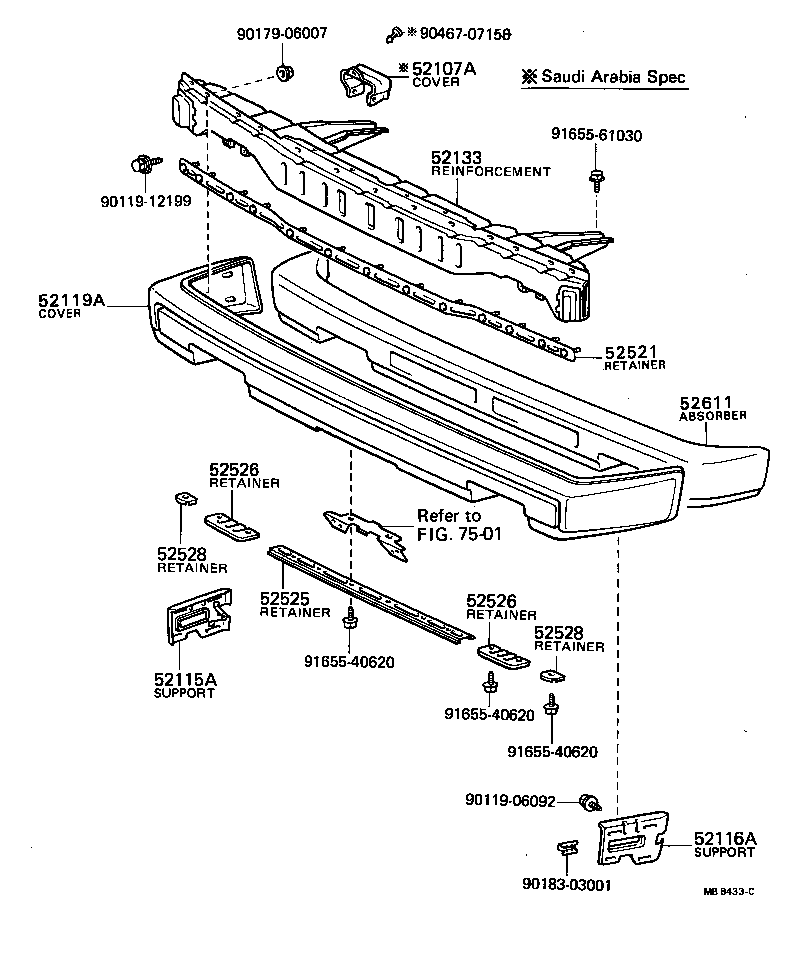

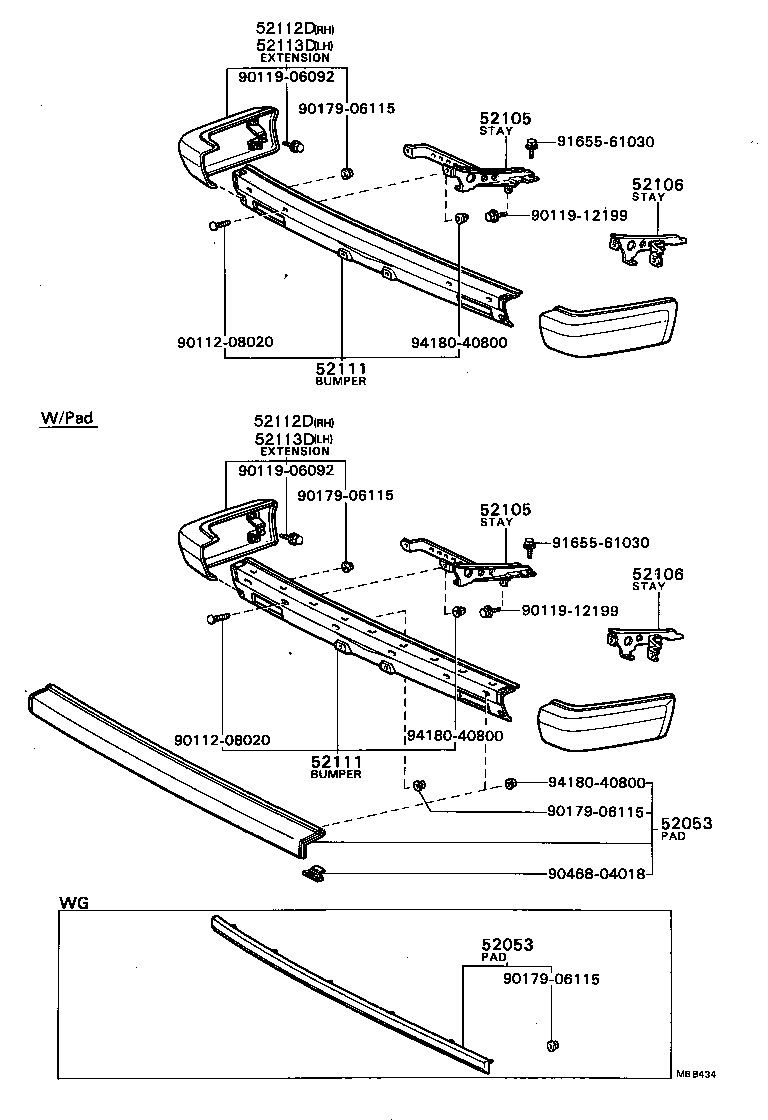

Figure MB8227F MB8227F 1978-09 → 1980-08 Figure MB8227F MB8227F 1980-08 → 1981-11 Figure MBC302A MBC302A 1979-06 → 1980-08 Figure MBC302A MBC302A 1979-12 → 1980-08 Figure MBB434 MBB434 1980-08 → — Figure MB8433C MB8433C 1980-08 → 1981-12

Part groups

PNCDescription
52053 Pad Sub-assy, Front Bumper
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52107A Cover, Front Bumper Arm Hole
52111 Bumper Assy, Front
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52130 Bracket Assy, Front Bumper Side Mounting, RH
52133 Reinforcement, Front Bumper
52140 Bracket Assy, Front Bumper Side Mounting, LH
52502 Extension Sub-assy, Front Bumper, RH
52503 Extension Sub-assy, Front Bumper, LH
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52528 Retainer, Front Bumper, Lower Corner
52611 Absorber, Front Bumper Energy
52701 Moulding Sub-assy, Front Bumper
52717 Retainer, Front Bumper Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
