Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

15 part groups · 8 illustrations

Illustrations

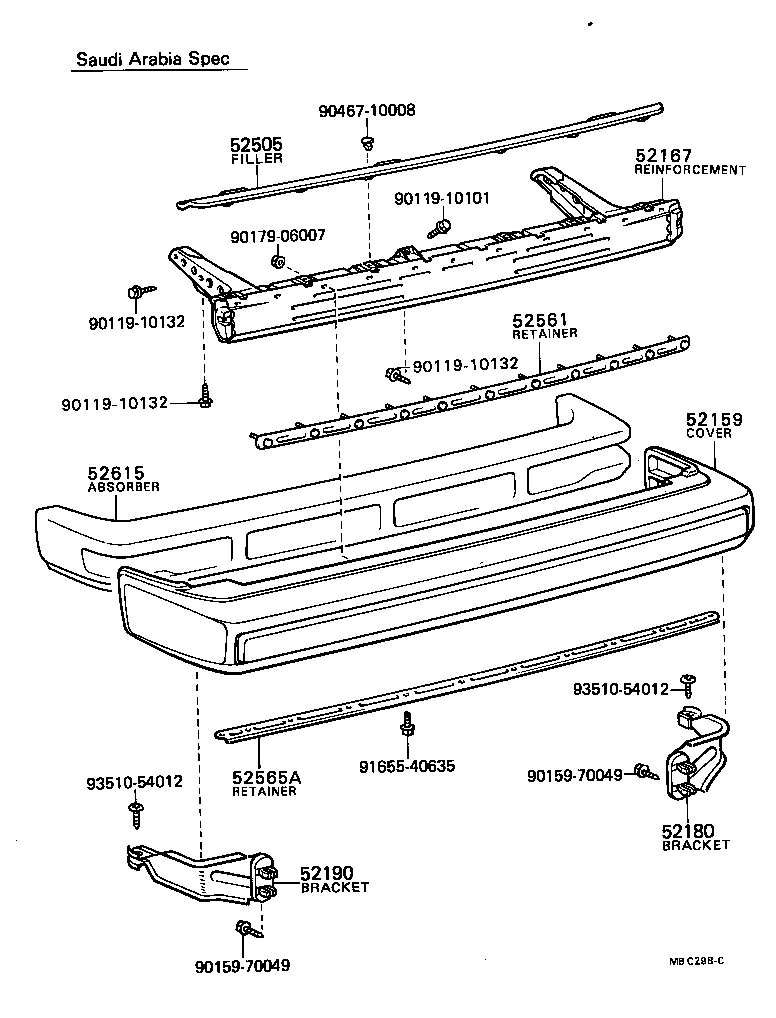

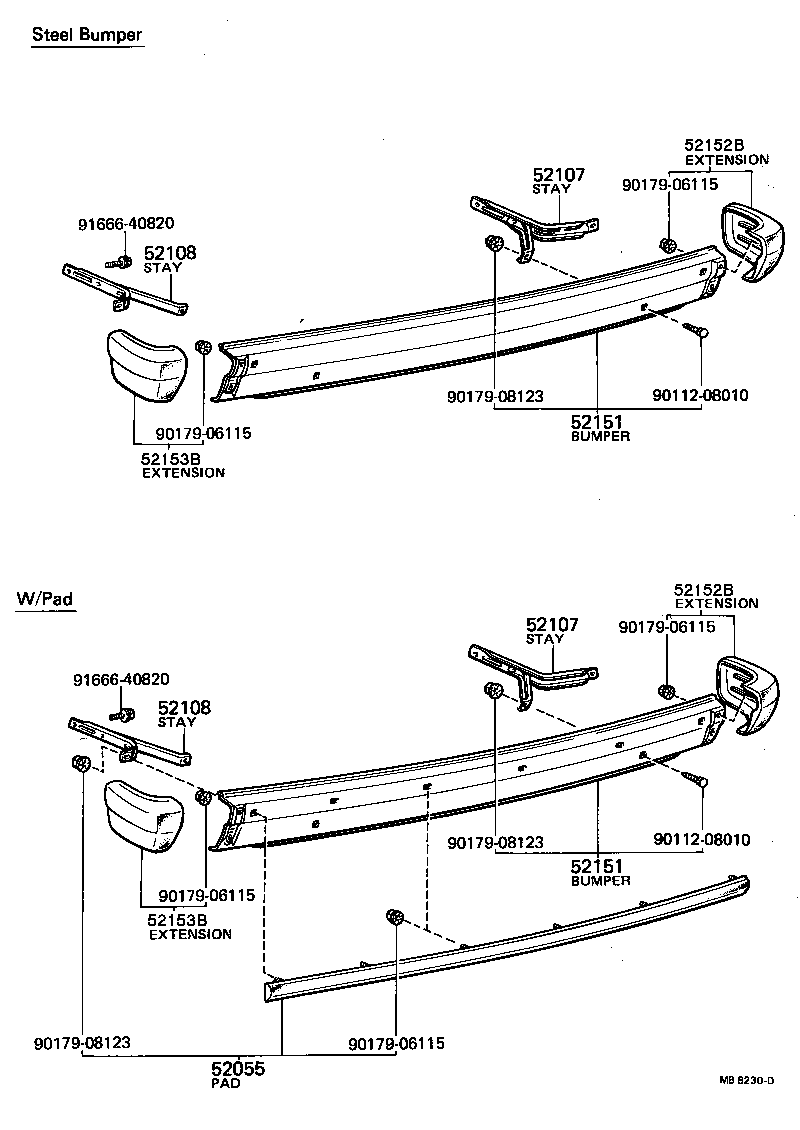

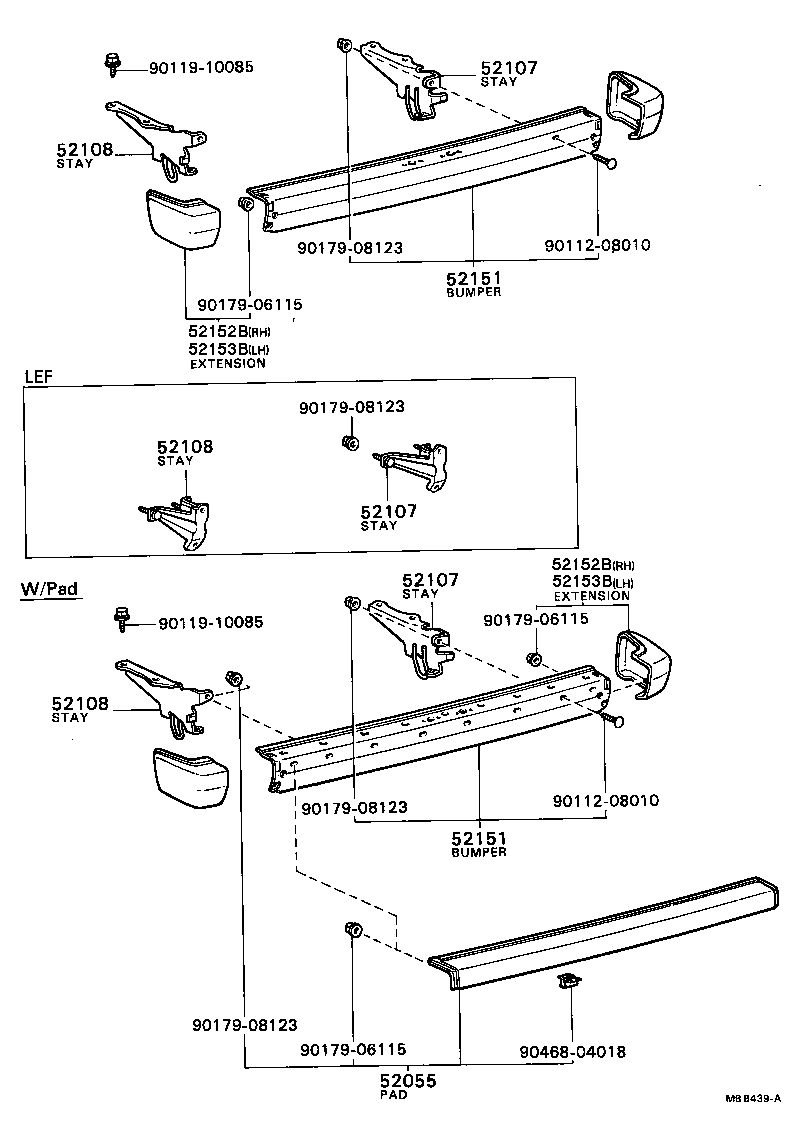

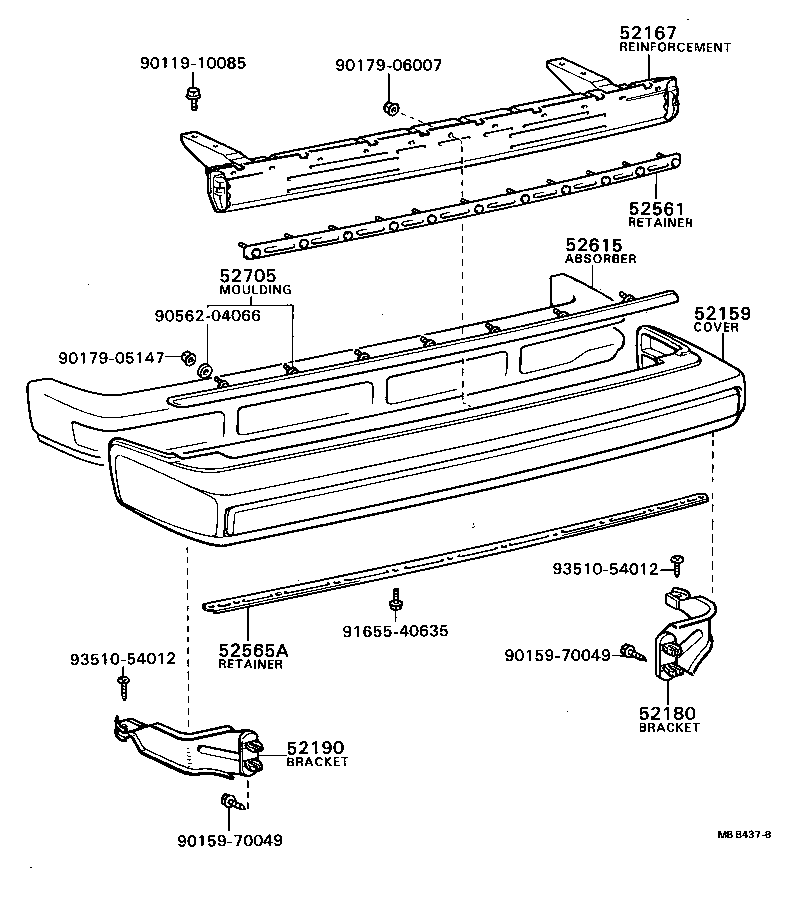

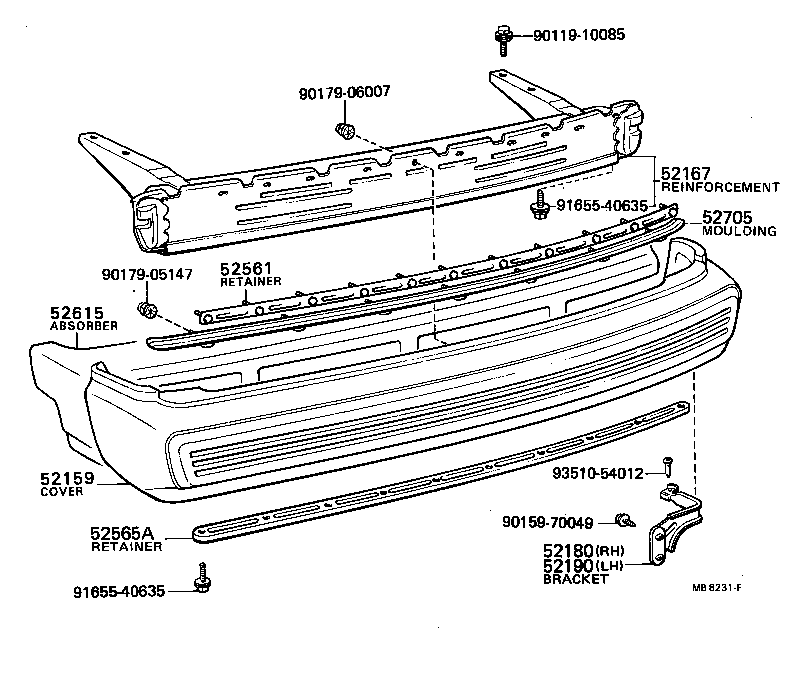

Figure MB8229D MB8229D 1978-09 → 1980-08 Figure MB8229D MB8229D 1980-08 → 1981-11 Figure MB8231F MB8231F 1979-06 → 1980-08 Figure MB8231F MB8231F 1979-12 → 1980-08 Figure MBB439A MBB439A 1980-08 → — Figure MBB437B MBB437B 1980-08 → 1981-12 Figure MB8230D MB8230D 1978-09 → — Figure MBC298C MBC298C 1980-12 → 1981-12

Part groups

PNCDescription
52055 Pad Sub-assy, Rear Bumper
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151 Bumper Assy, Rear
52159 Cover, Rear Bumper
52167 Reinforcement, Rear Bumper
52180 Bracket Assy, Rear Bumper Side Mounting, RH
52190 Bracket Assy, Rear Bumper Side Mounting, LH
52505 Filler Sub-assy, Rear Bumper
52506 Extension Sub-assy, Rear Bumper, RH
52507 Extension Sub-assy, Rear Bumper, LH
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
52705 Moulding Sub-assy, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
