Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

28 part groups · 4 illustrations

Illustrations

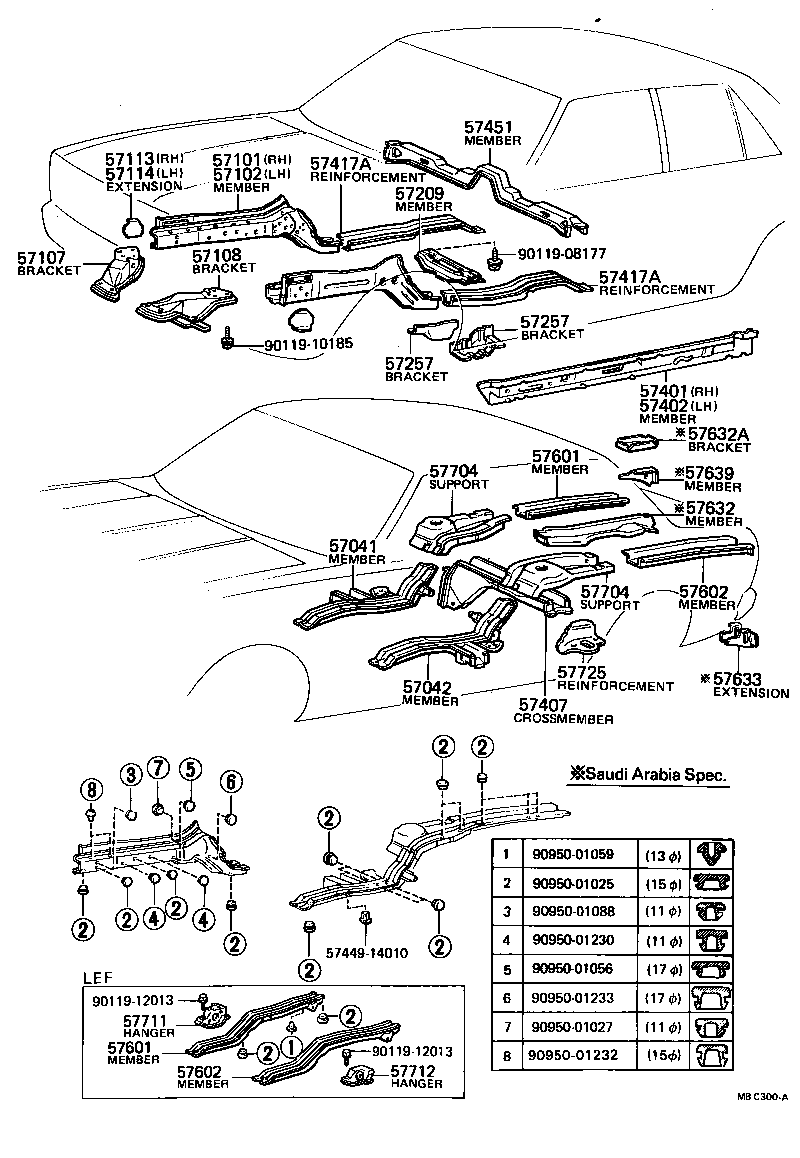

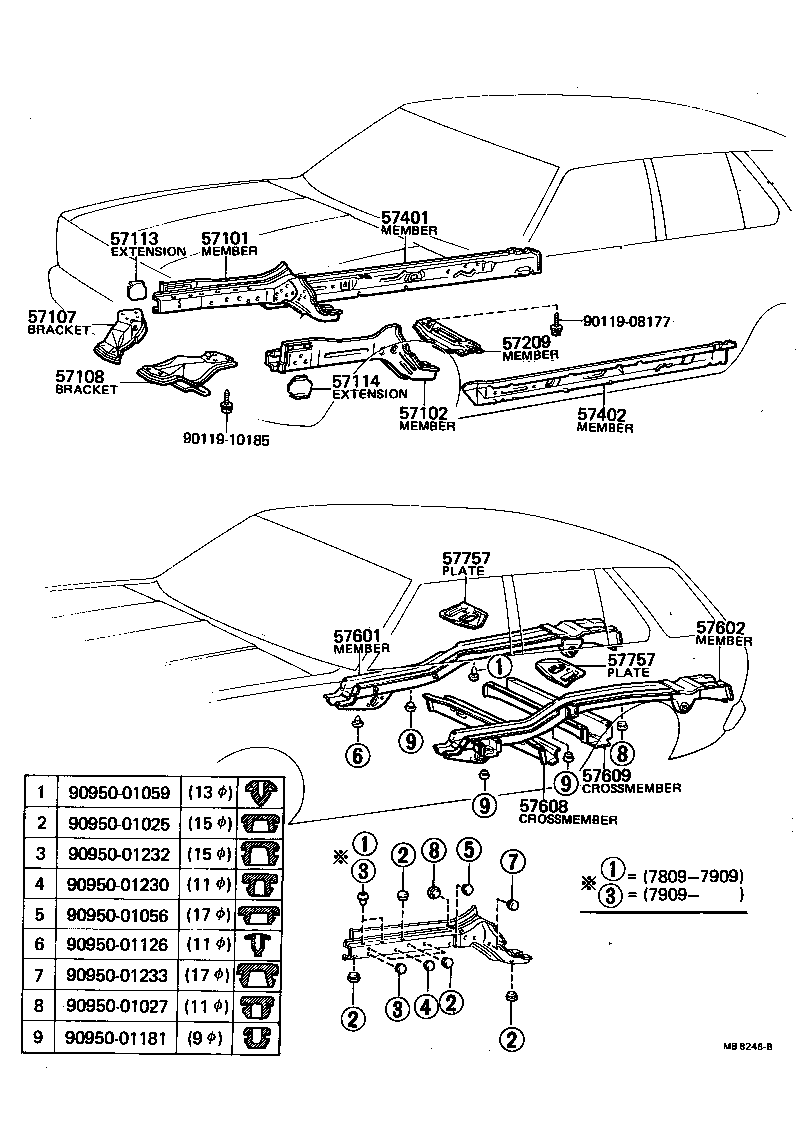

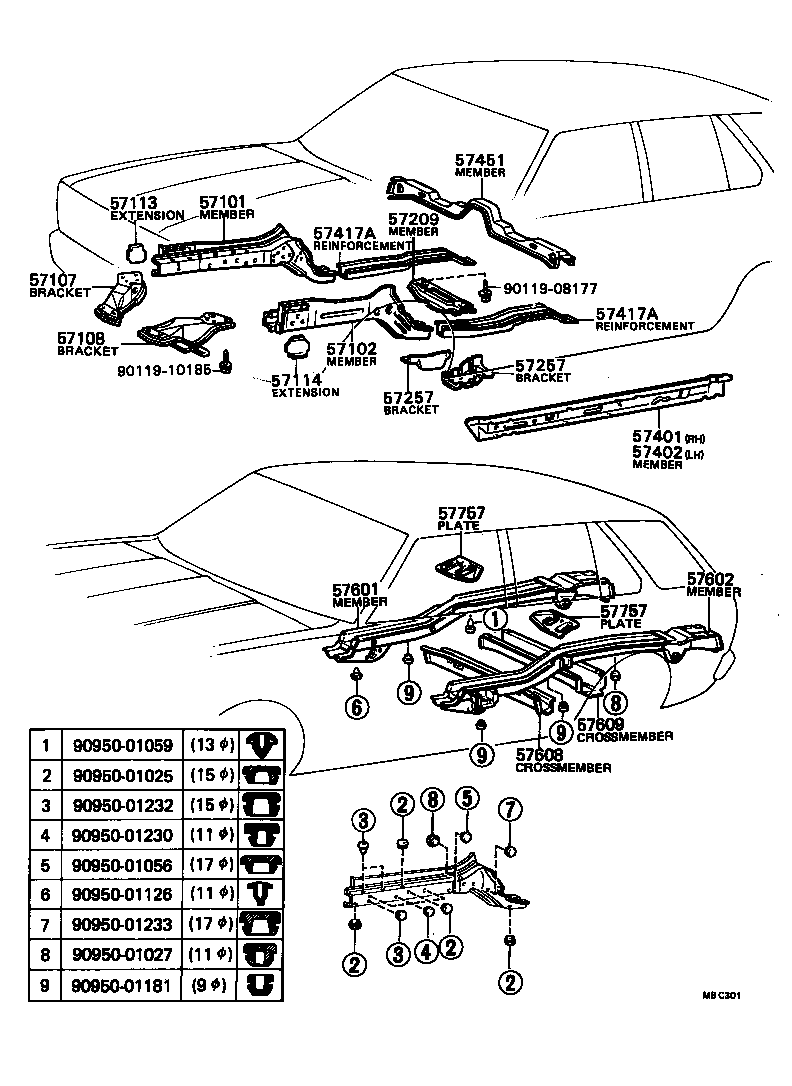

Figure MB8245C MB8245C 1978-09 → 1980-08 Figure MBC300A MBC300A 1980-08 → — Figure MB8248B MB8248B 1978-09 → 1980-08 Figure MBC301 MBC301 1980-08 → —

Part groups

PNCDescription
57041 Member Sub-assy, Center Floor Side, RH
57042 Member Sub-assy, Center Floor Side, LH
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57107 Bracket Sub-assy, Strut Bar, RH
57108 Bracket Sub-assy, Strut Bar, LH
57113 Extension, Front Side Member, RH
57114 Extension, Front Side Member, LH
57209 Member Sub-assy, Engine Rear Support
57257 Bracket, Engine Rear Support Member
57401 Member Sub-assy, Main Floor Side, RH
57402 Member Sub-assy, Main Floor Side, LH
57407 Crossmember Sub-assy, Center Floor, NO.1
57417A Reinforcement, Front Floor Under
57451 Member, Front Floor Cross
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57608 Crossmember Sub-assy, Rear Floor, NO.2
57609 Crossmember Sub-assy, Rear Floor, NO.3
57632 Member, Rear Floor, Center NO.1
57632A Bracket, Rear Bumper Arm Support, Center
57633 Extension, Rear Floor Side Member
57639 Member, Rear Floor, Center NO.2
57704 Support Sub-assy, Rear Suspension Spring
57711 Hanger, Rear Spring, Front RH
57712 Hanger, Rear Spring, Front LH
57725 Reinforcement, Rear Suspension Spring Support
57757 Plate, Rear Floor Crossmember
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
