Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

36 part groups · 8 illustrations

Illustrations

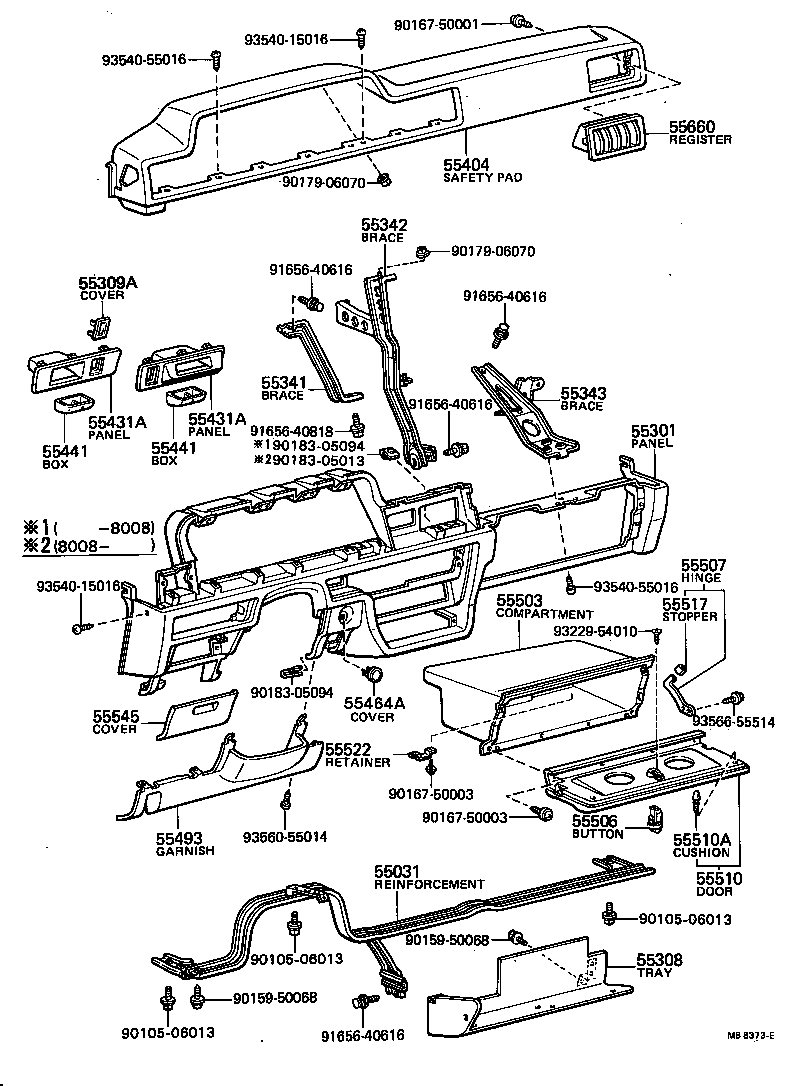

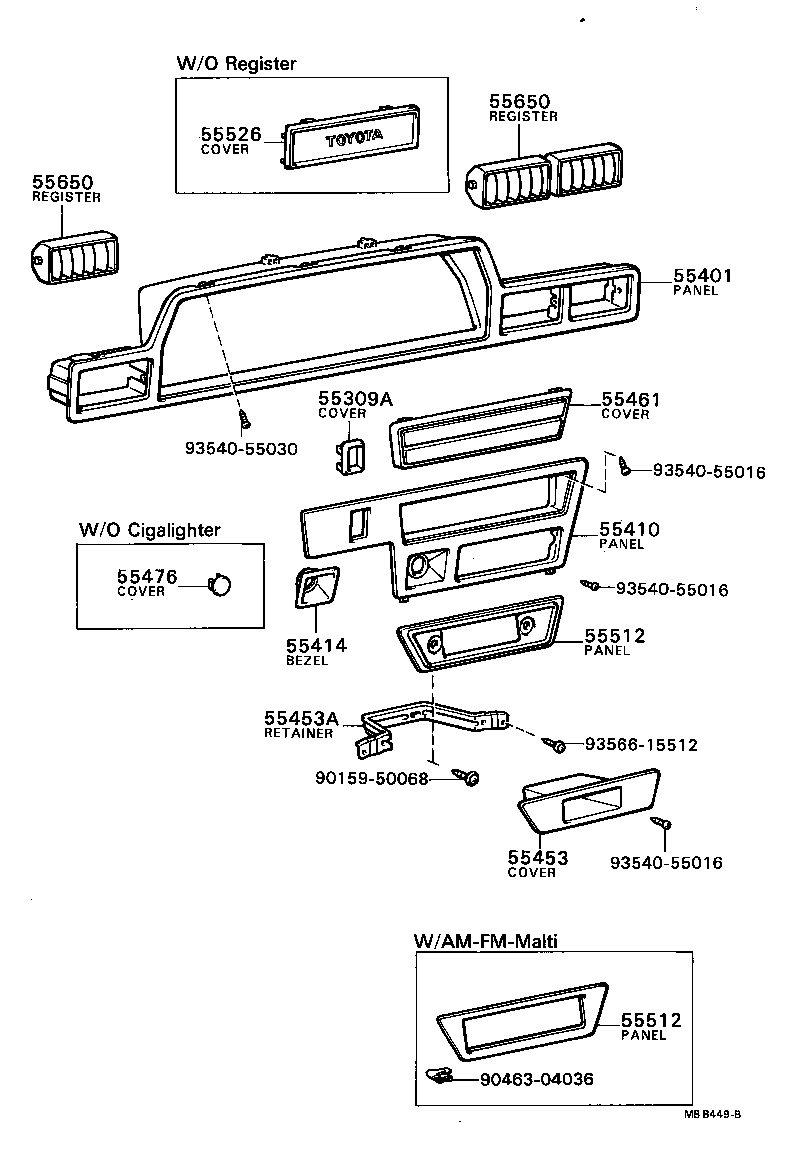

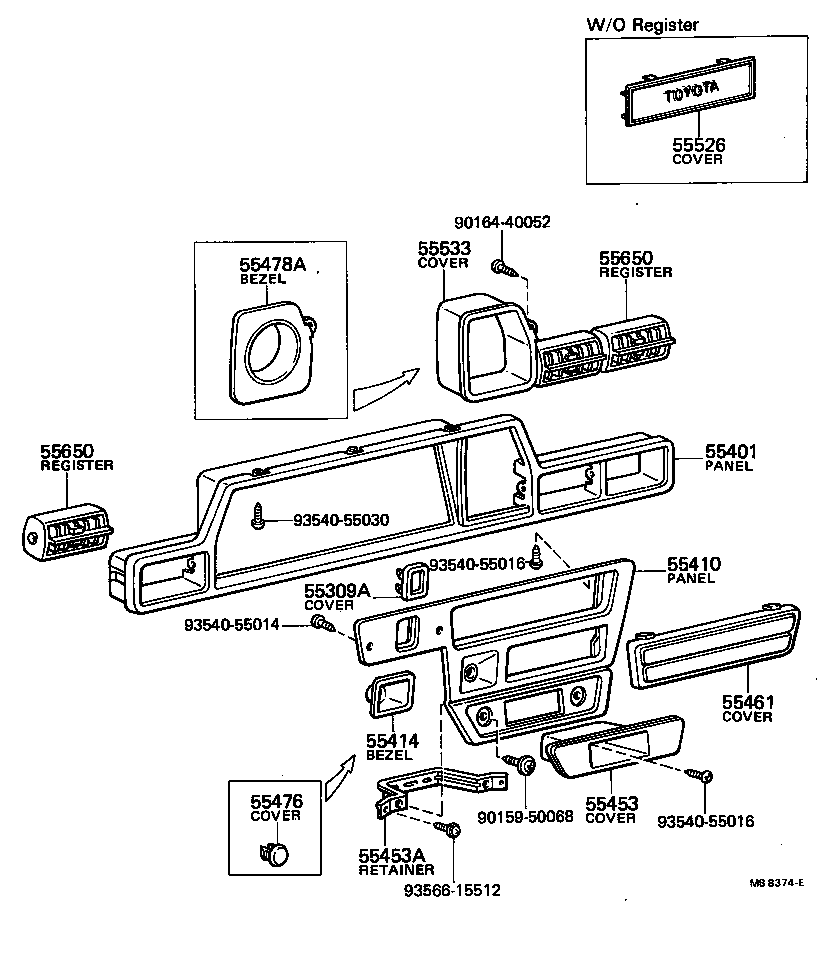

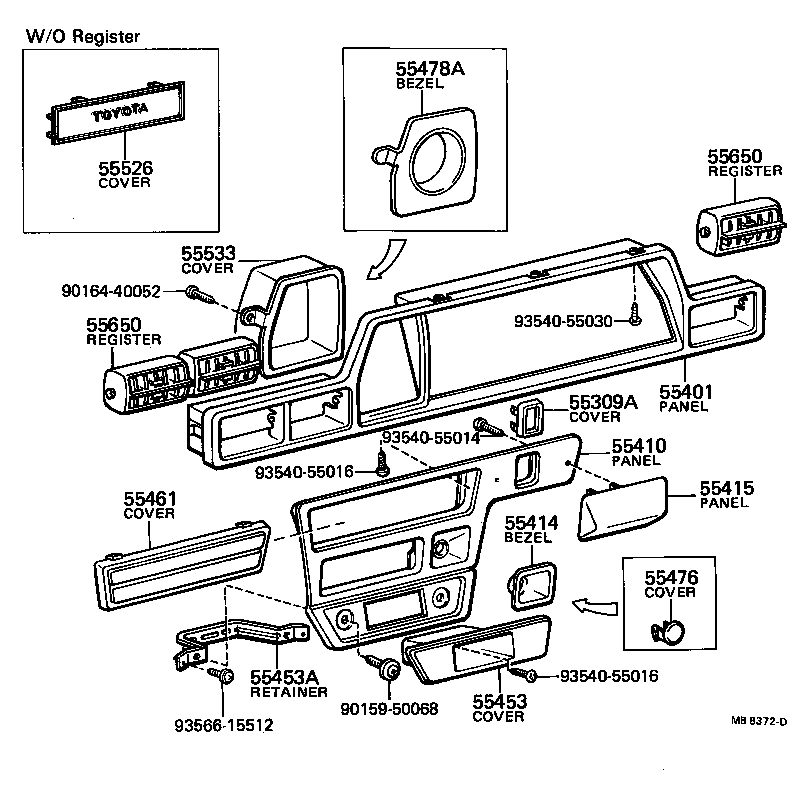

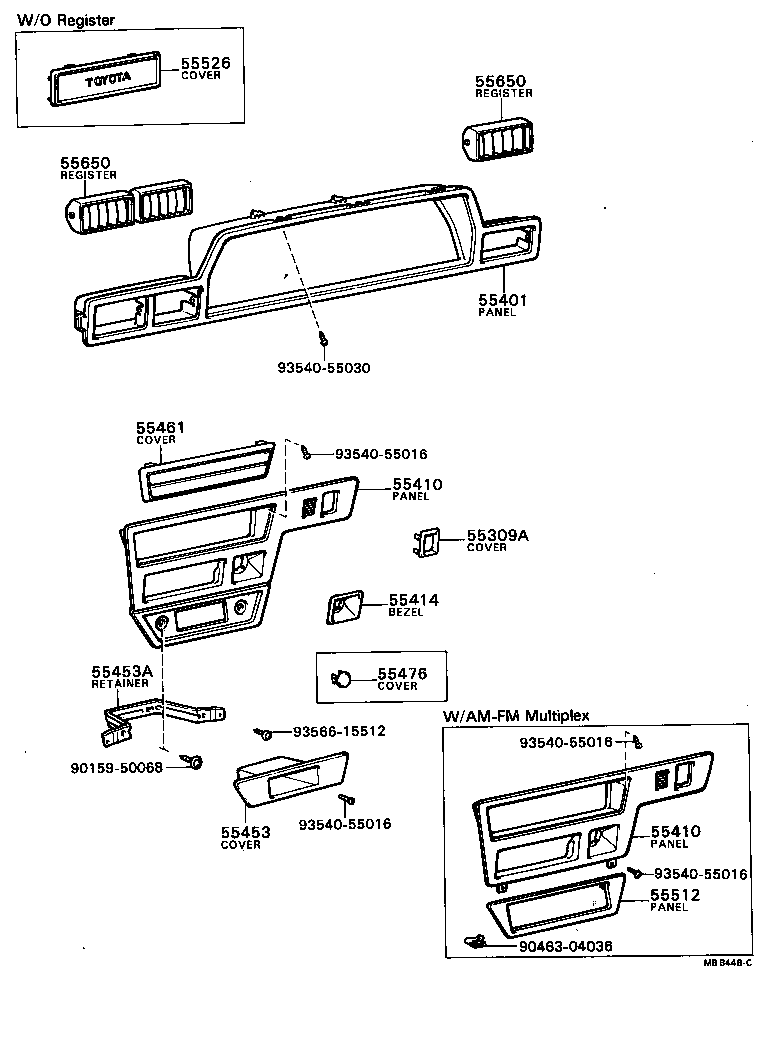

Figure MB8371F MB8371F 1978-09 → — Figure MB8372D MB8372D 1978-09 → 1980-08 Figure MB8372D MB8372D 1980-08 → 1981-11 Figure MBB448C MBB448C 1980-08 → — Figure MBB448C MBB448C 1981-11 → — Figure MB8373E MB8373E 1978-09 → 1982-05 Figure MB8374E MB8374E 1978-09 → 1980-08 Figure MBB449B MBB449B 1980-08 → 1982-05

Part groups

PNCDescription
55031 Reinforcement, Instrument Panel, NO.1
55301 Panel Sub-assy, Instrument
55308 Tray Sub-assy, Instrument Panel Under
55309A Cover, Base Switch Hole, NO.1
55329A Bracket, Instrument Panel Meter
55341 Brace, Instrument Panel, NO.1
55342 Brace, Instrument Panel, NO.2
55343 Brace, Instrument Panel, NO.3
55401 Panel Sub-assy, Instrument Cluster Finish
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55410 Panel Assy, Instrument Cluster Finish, NO.2
55414 Bezel, Cigar Lighter Hole
55415 Panel, Instrument Cluster Finish, Center
55431A Panel, Instrument Panel Finish
55441 Box, Instrument Panel
55453 Cover, Radio Tuner Opening
55453A Retainer, Radio Tuner Opening, NO.1
55461 Cover, Heater Control Hole
55464A Cover, Choke Knob Hole
55476 Cover, Cigarette Lighter Hole
55478A Bezel, Auto Clock Hole
55492 Garnish OR Safety Pad, Lower, RH
55493 Garnish OR Safety Pad, Lower, LH
55503 Compartment Sub-assy, Glove
55506 Button Sub-assy, Glove Compartment Door Lock
55507 Hinge Sub-assy, Glove Compartment Door
55510 Door Assy, Glove Compartment
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55512 Plate, Radio Tuner Finish
55517 Stopper, Glove Compartment Door Arm
55522 Retainer, Glove Compartment Male
55526 Cover, Instrument Panel Register Opening
55533 Cover, Auto Clock Hole
55545 Cover, Fuse Box Opening
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
