Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 3 illustrations

Illustrations

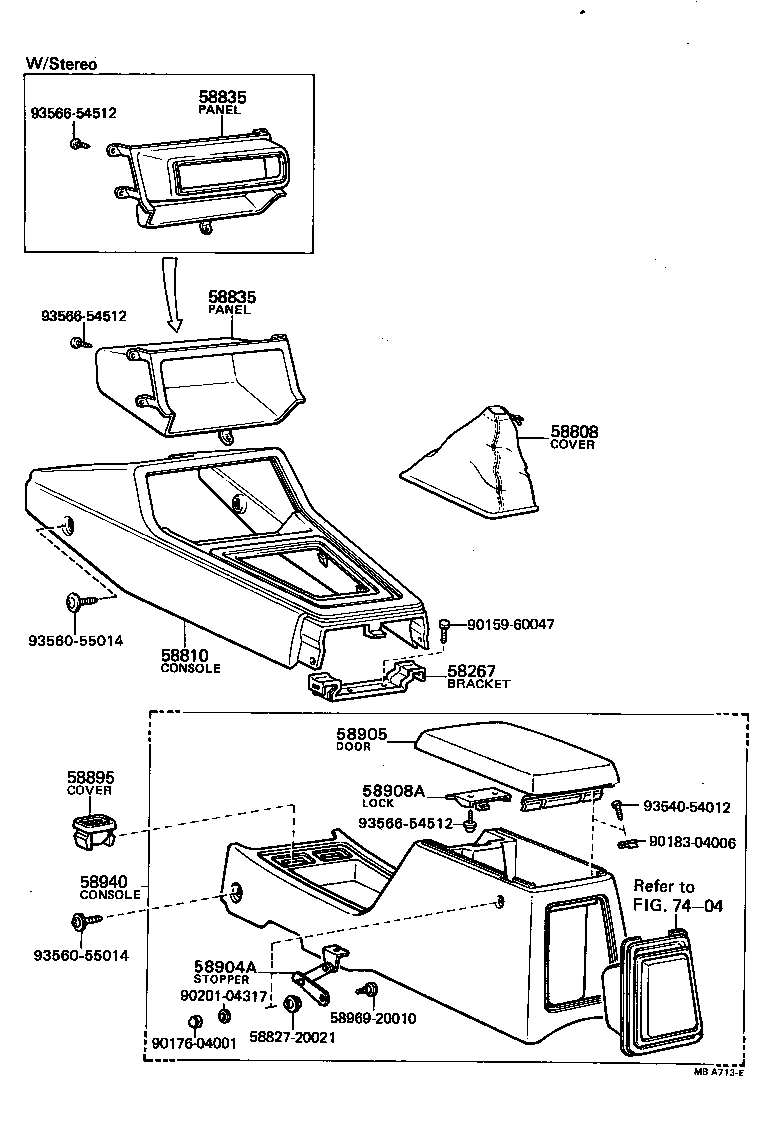

Figure MB8264H MB8264H 1978-09 → — Figure MBA713E MBA713E 1979-08 → 1980-08 Figure MBA713E MBA713E 1980-08 → —

Part groups

PNCDescription
58267 Bracket, Console Box Support, Center
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58828A Bracket, Console Box, Lower
58834 Panel, Console End
58835 Panel, Console, Upper
58862 Plate, Console Finish
58881 Cover, Shifting Hole
58884 Cover, Stereo Opening
58895 Cover, Switch Hole, NO.1
58904A Stopper Sub-assy, Console Compartment Door
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58940 Console Assy, Rear
58944 Cover, Parking Brake Hole
58985 Retainer, Console Box
58985A Retainer, Console Box, NO.2
58996 Bracket, Console Box Mounting, NO.1
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
