Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

22 part groups · 3 illustrations

Illustrations

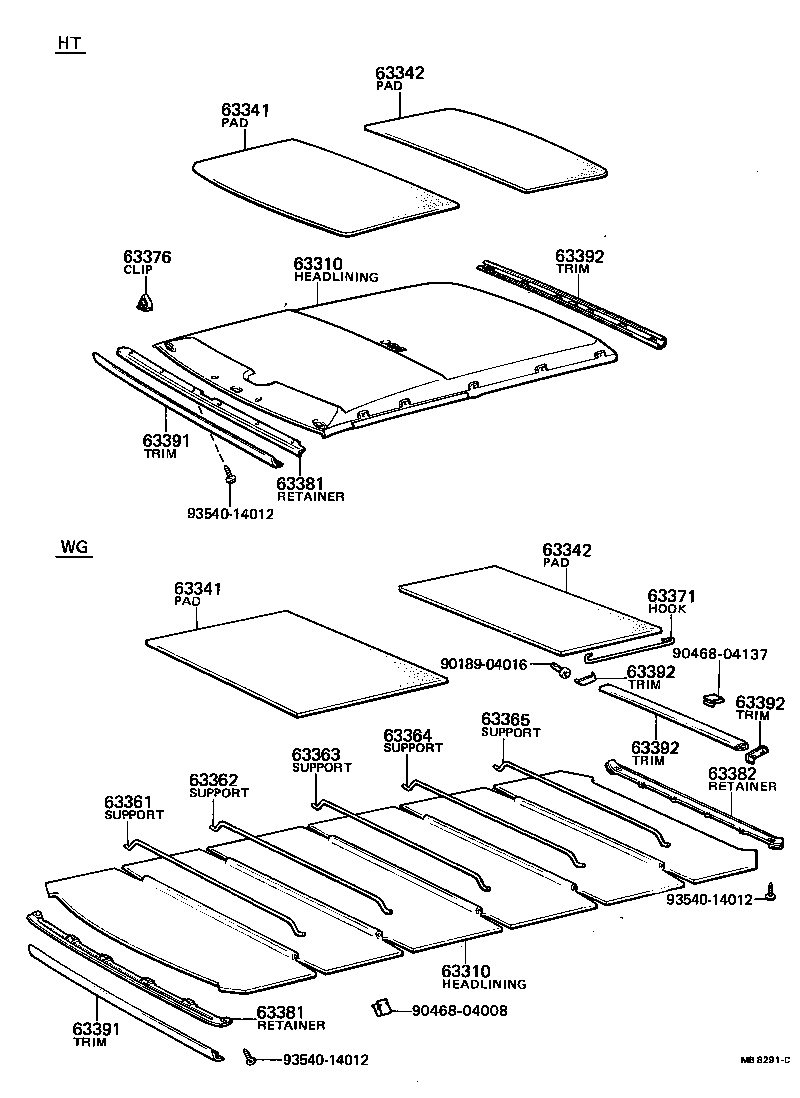

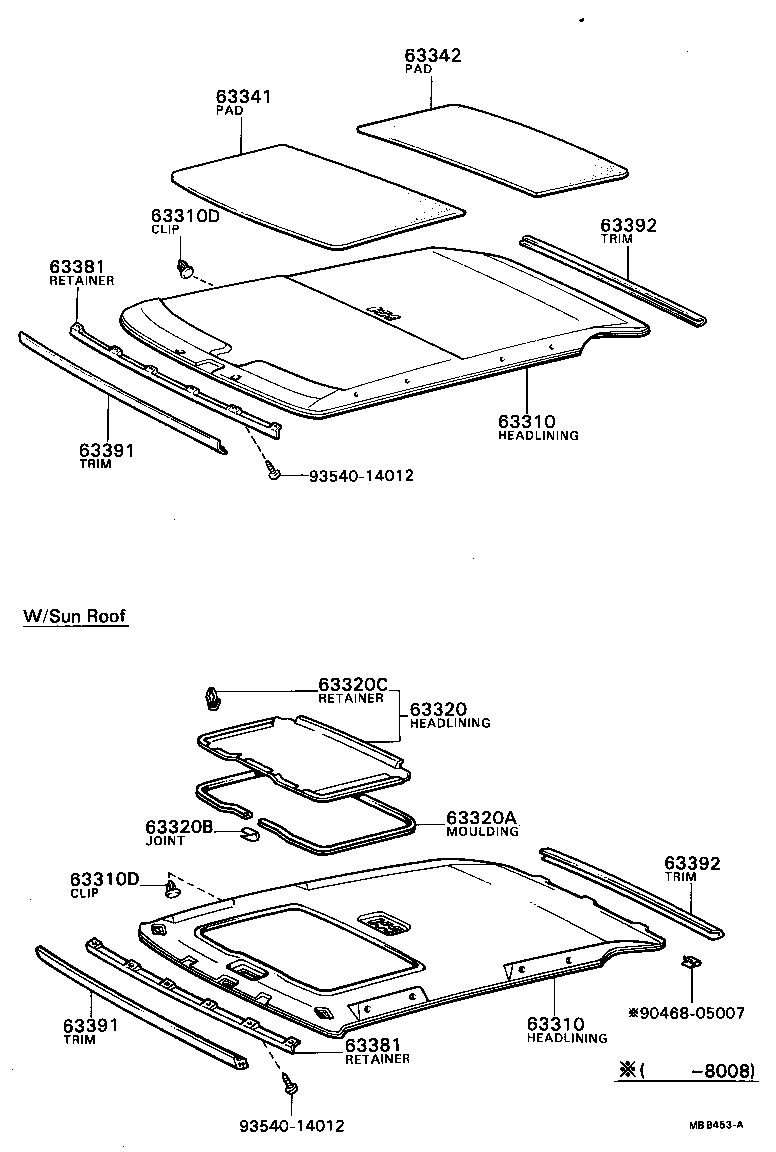

Figure MB8290C MB8290C 1978-09 → — Figure MBB453A MBB453A 1978-09 → — Figure MB8291C MB8291C 1978-09 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63320 Headlining Assy, Sun Roof OR Removable Roof
63320A Moulding, Sun Roof OR Removable Roof Opening Trim
63320B Joint, Sun Roof Opening Trim
63320C Retainer, Trim Board(FOR SUN ROOF)
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63371 Hook, Roof Headlining Support
63372 Retainer, Headlining Support
63376 Clip, Headlining
63381 Retainer, Headlining, Front
63382 Retainer, Headlining, Rear Center
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
