Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12

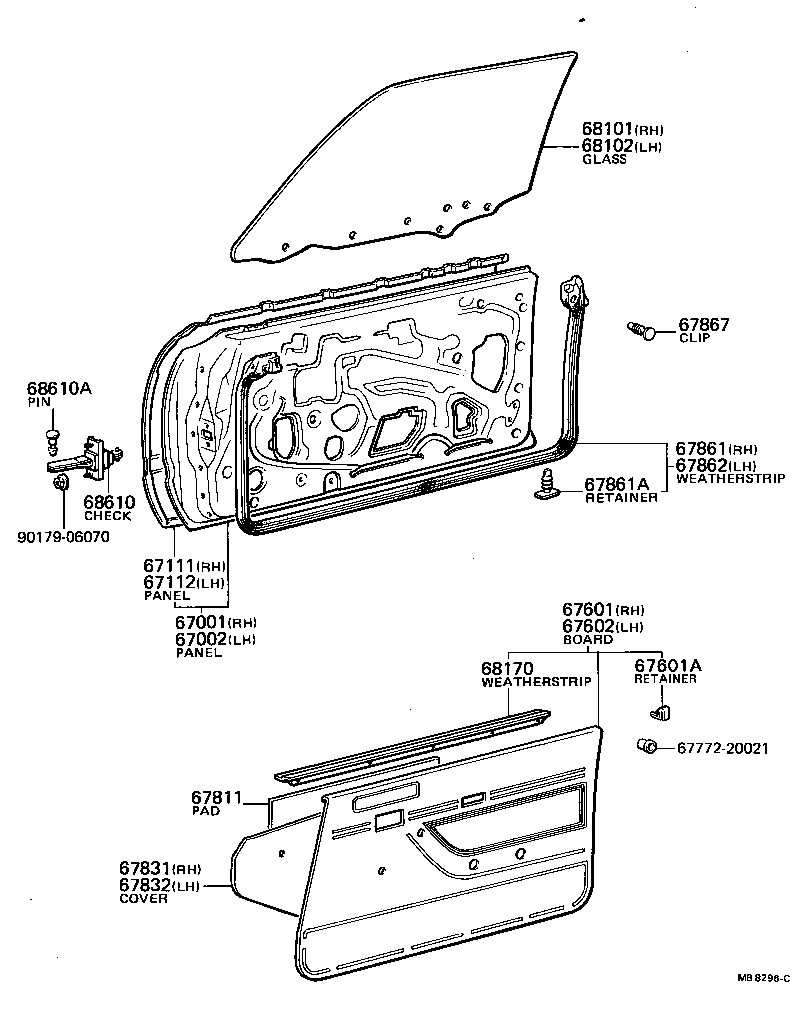

Front Door Panel & Glass

37 part groups · 2 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67401F	Frame Sub-assy, Front Door, Front Lower RH
67402F	Frame Sub-assy, Front Door, Front Lower LH
67481A	Seal, Front Door Front Lower Frame, RH
67482A	Seal, Front Door Front Lower Frame, LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67495	Cover, Front Door Front Lower Frame, Upper
67499	Retainer, Front Door Lower Frame Bracket Garnish
67601	Board Sub-assy, Front Door Trim, RH
67601A	Retainer(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67777	Pocket, Front Door Trim, RH
67778	Pocket, Front Door Trim, LH
67785A	Holder, Door Locking Button Collar(FOR FRONT DOOR)
67811	Pad, Front Door Silencer
67811A	Pad, Rear Door Silencer
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67861A	Retainer(FOR FRONT DOOR WEATHERSTRIP)
67862	Weatherstrip, Front Door, LH
67867	Clip, Door Weatherstrip
67867A	Clip, Door Weatherstrip(FOR FRONT DOOR)
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141	Run, Front Door Glass
68161	Weatherstrip, Front Door Glass, Outer
68161A	Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170	Weatherstrip Assy, Front Door Glass, Inner
68218	Seal, Front Door Window Corner, RH
68219	Seal, Front Door Window Corner, LH
68610	Check Assy, Front Door
68610A	Pin(FOR FRONT DOOR CHECK)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
