Toyota Corona
1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe
Discontinued model
Data version 1983-12

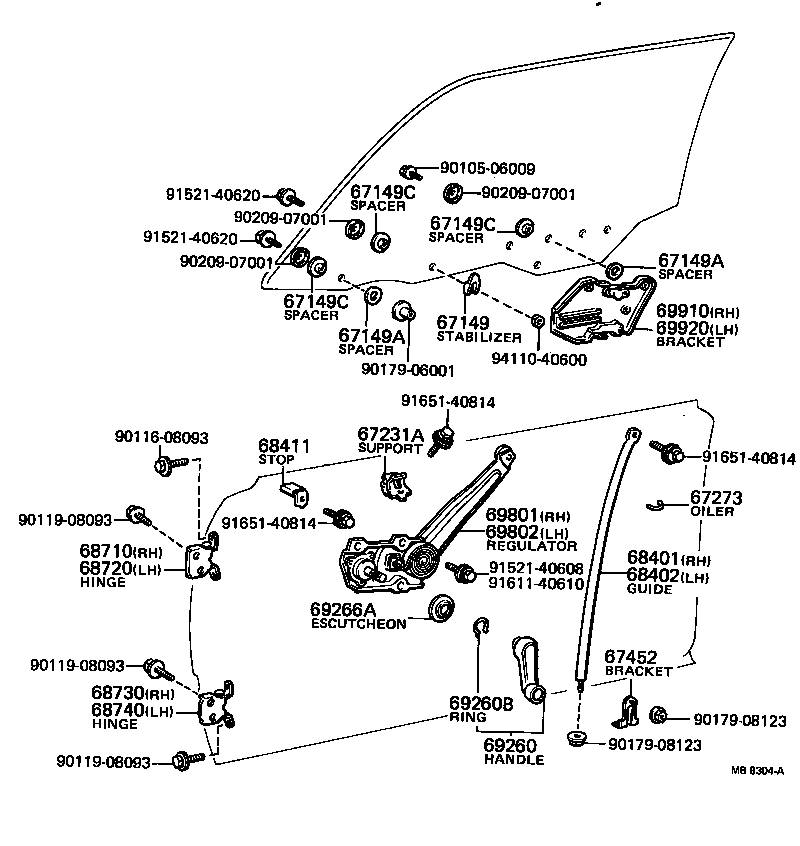

Front Door Window Regulator & Hinge
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67149 | Stabilizer, Front Door Glass |
| 67149A | Spacer, Front Door Glass, NO.1 |
| 67149C | Spacer, Front Door Glass, NO.2 |
| 67231A | Support, Front Door Trim |
| 67273 | Oiler, Front Door Window Bar |
| 67452 | Bracket, Front Door Guide, Lower |
| 68401 | Guide Sub-assy, Front Door Window, RH |
| 68402 | Guide Sub-assy, Front Door Window, LH |
| 68411 | Stopper, Door Window Glass, Upper Front |
| 68710 | Hinge Assy, Front Door, Upper RH |
| 68720 | Hinge Assy, Front Door, Upper LH |
| 68730 | Hinge Assy, Front Door, Lower RH |
| 68740 | Hinge Assy, Front Door, Lower LH |
| 69260 | Handle Assy, Front Door Window Regulator |
| 69260B | Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE) |
| 69266A | Escutcheon, Door Regulator Handle(FOR FRONT DOOR) |
| 69801 | Regulator Sub-assy, Front Door Window, RH |
| 69802 | Regulator Sub-assy, Front Door Window, LH |
| 69901 | Channel Sub-assy, Front Door Glass, RH |
| 69902 | Channel Sub-assy, Front Door Glass, LH |
| 69910 | Bracket Assy, Front Door Glass, RH |
| 69920 | Bracket Assy, Front Door Glass, LH |
| 69971A | Filler, Front Door Glass Channel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
