Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

16 part groups · 2 illustrations

Illustrations

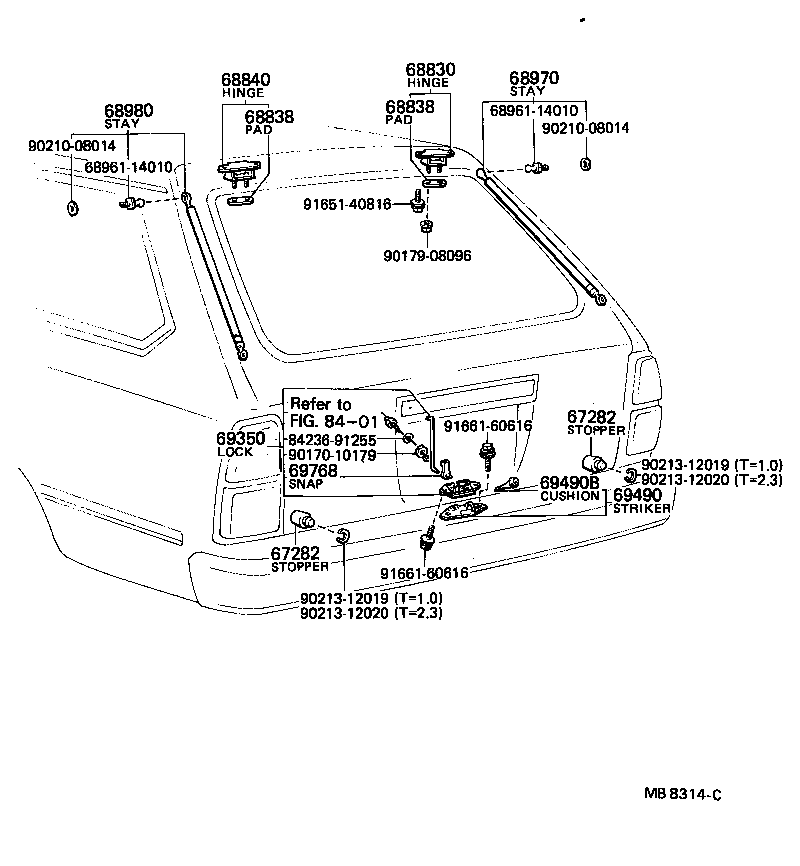

Figure MBC924 MBC924 1978-09 → — Figure MB8314C MB8314C 1978-09 → —

Part groups

PNCDescription
67282 Stopper, Back Door, NO.1
67392 Protector, Back Door Lock
68606 Lever Sub-assy, Back Door Lock Open
68606A Spring, Tension(FOR BACK DOOR LOCK OPEN LEVER)
68607 Cable Sub-assy, Back Door Lock Control
68830 Hinge Assy, Back Door, RH
68838 Pad, Back Door Hinge, NO.1
68840 Hinge Assy, Back Door, LH
68970 Stay Assy, Back Door, RH
68977 Bracket, Back Door Stay
68980 Stay Assy, Back Door
69350 Lock Assy, Back Door
69490 Striker Assy, Back Door Lock
69490A Spring(FOR BACK DOOR LOCK STRIKER)
69490B Cushion(FOR BACK DOOR LOCK STRIKER)
69768 Snap, Back Door Lock Control Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
