Toyota Corona
1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe
Discontinued model
Data version 1983-12

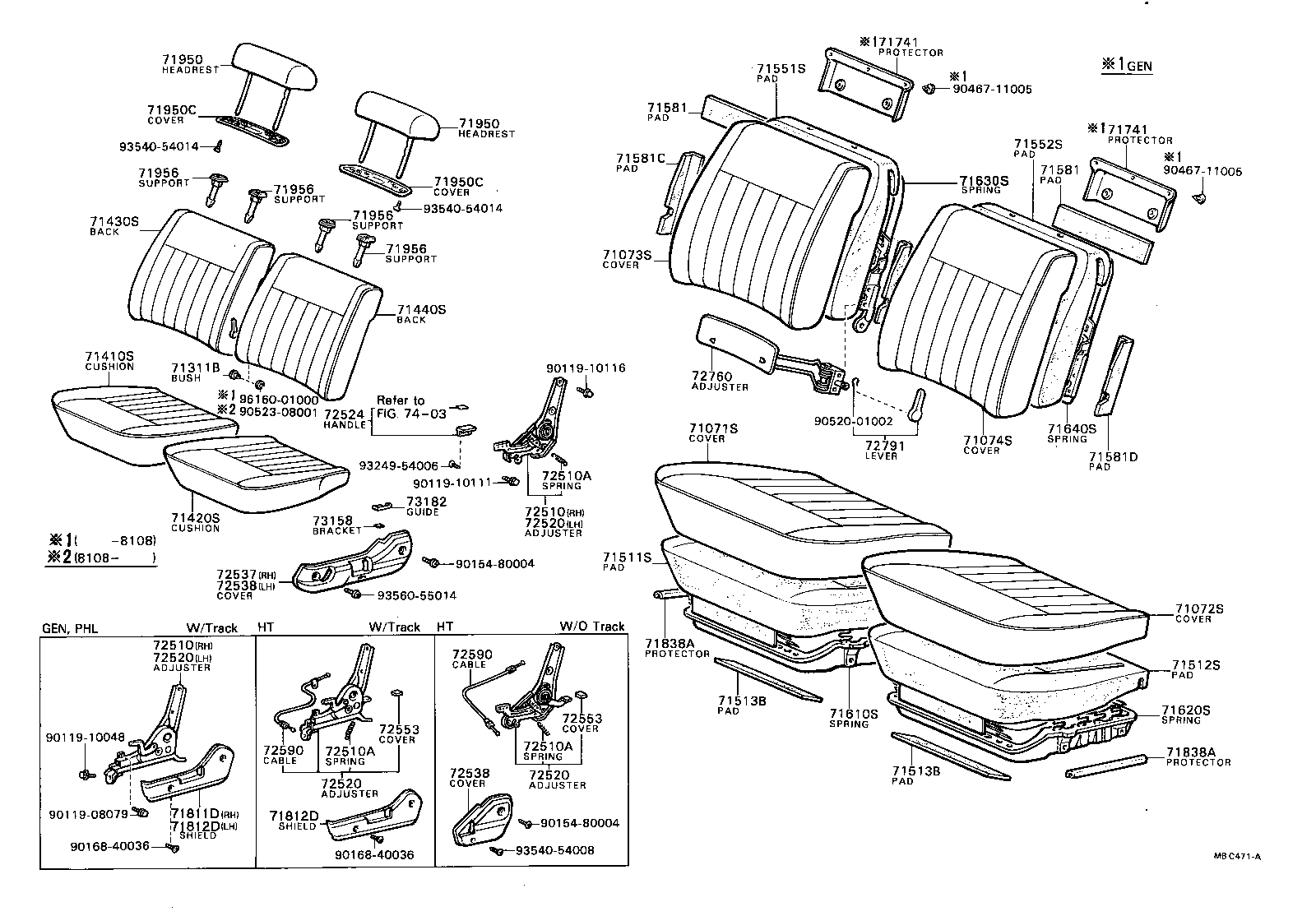

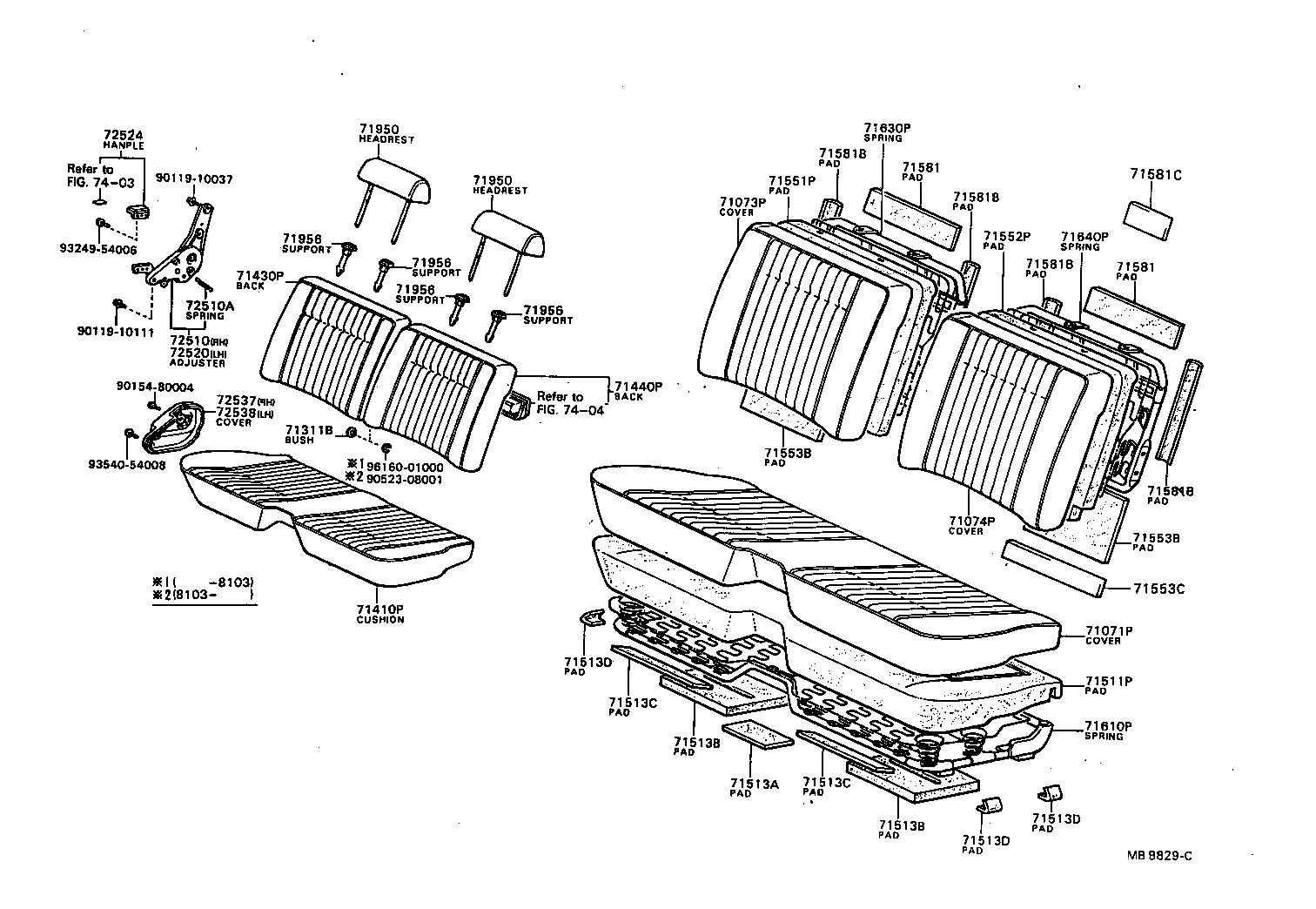

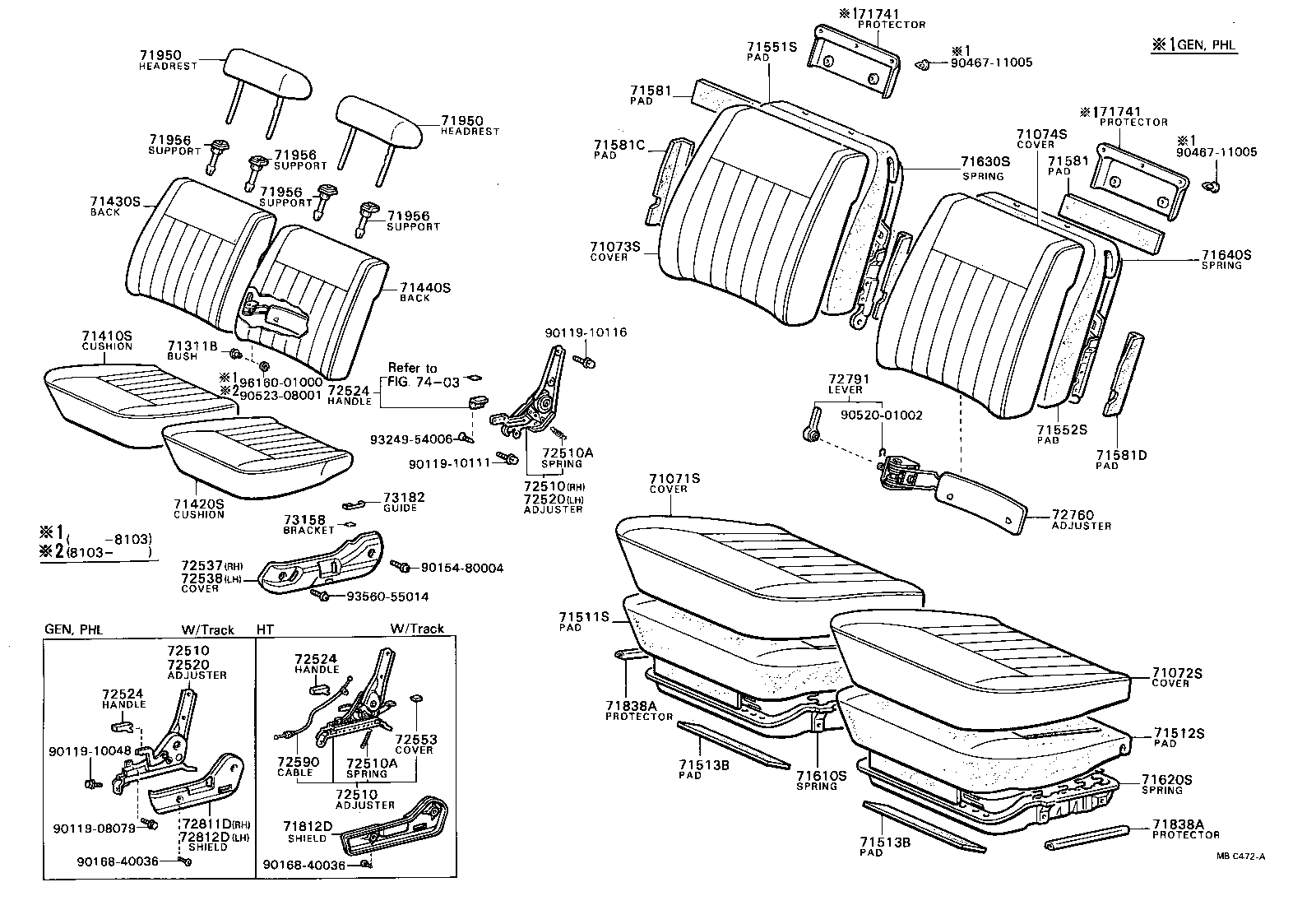

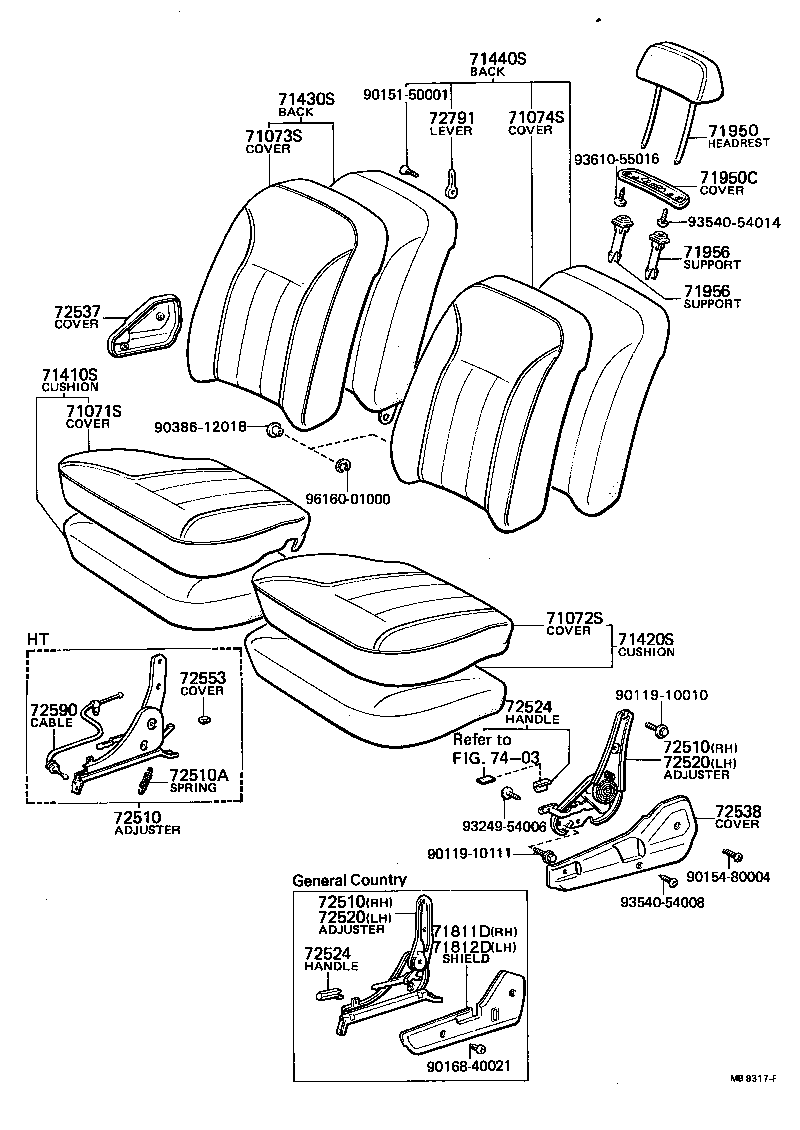

Front Seat & Seat Track
59 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071P | Cover, Front Seat Cushion(FOR SEMI-SEPARATE TYPE) |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073P | Cover, Front Seatback, RH(FOR SEMI-SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074P | Cover, Front Seatback, LH(FOR SEMI-SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71311B | Bush (FOR FRONT SEAT HINGE PIN) |
| 71410P | Cushion Assy, Front Seat(FOR SEMI-SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430P | Back Assy, Front Seat, RH(FOR SEMI-SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440P | Back Assy, Front Seat, LH(FOR SEMI-SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511P | Pad, Front Seat Cushion(FOR SEMI-SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71513A | Pad, Front Seat Cushion, A |
| 71513B | Pad, Front Seat Cushion, B |
| 71513C | Pad, Front Seat Cushion, C |
| 71513D | Pad, Front Seat Cushion, D |
| 71551P | Pad, Front Seatback, RH(FOR SEMI-SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552P | Pad, Front Seatback, LH(FOR SEMI-SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71553B | Pad, Front Seatback, B |
| 71553C | Pad, Front Seatback, C |
| 71581 | Pad, Front Seatback Silencer |
| 71581B | Pad, Front Seatback Corner, B |
| 71581C | Pad, Front Seatback Corner, C |
| 71581D | Pad, Front Seatback Corner, D |
| 71610P | Spring Assy, Front Seat Cushion(FOR SEMI-SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630P | Spring Assy, Front Seatback, RH(FOR SEMI-SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640P | Spring Assy, Front Seatback, LH(FOR SEMI-SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71741 | Protector, Front Seatback Headrest Stay |
| 71821 | Shield, Front Seat Side, RH |
| 71822 | Shield, Front Seat Side, LH |
| 71838A | Protector, Front Seat Cushion Edge |
| 71950 | Headrest Assy, Front Seat |
| 71950C | Cover, Front Seat Headrest Under |
| 71956 | Support, Headrest |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72510A | Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER) |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72524 | Handle, Reclining Adjuster Release |
| 72537 | Cover, Reclining Hinge Outer, RH |
| 72538 | Cover, Reclining Hinge Outer, LH |
| 72553 | Cover, Reclining Pedal |
| 72590 | Cable Assy, Seatback Control |
| 72760 | Adjuster Assy, Lumbar Support, RH |
| 72791 | Lever, Lumbar Support |
| 72797 | Spacer, Lumbar Support |
| 73158 | Bracket, Seat Belt Guide Set |
| 73182 | Guide, Front Seat Lap Belt, Outer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
