Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

48 part groups · 6 illustrations

Illustrations

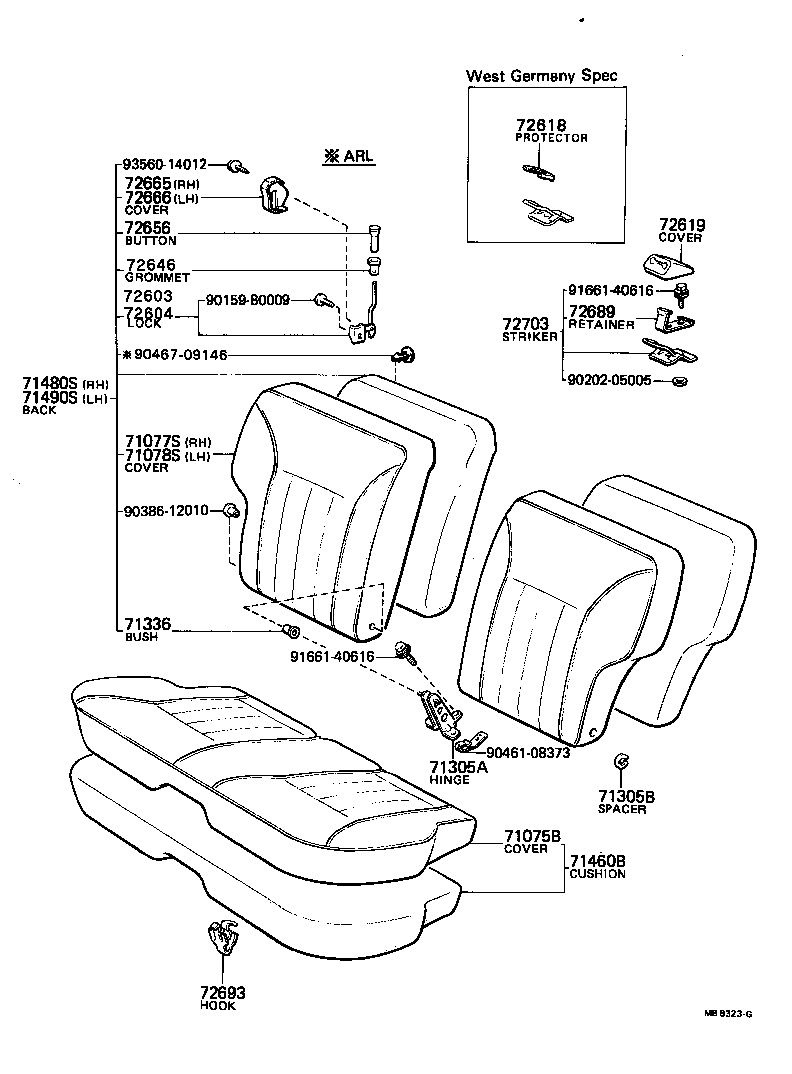

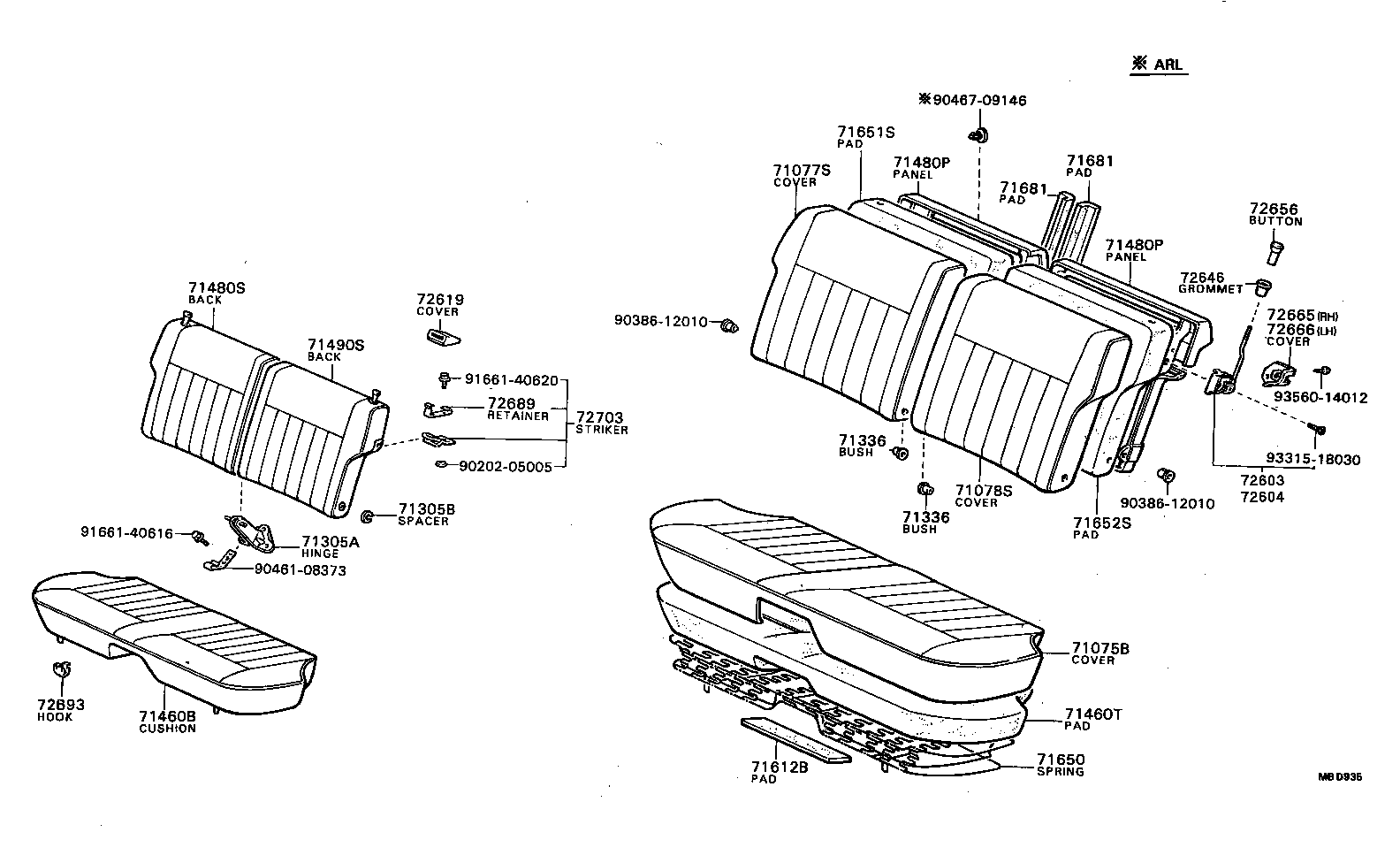

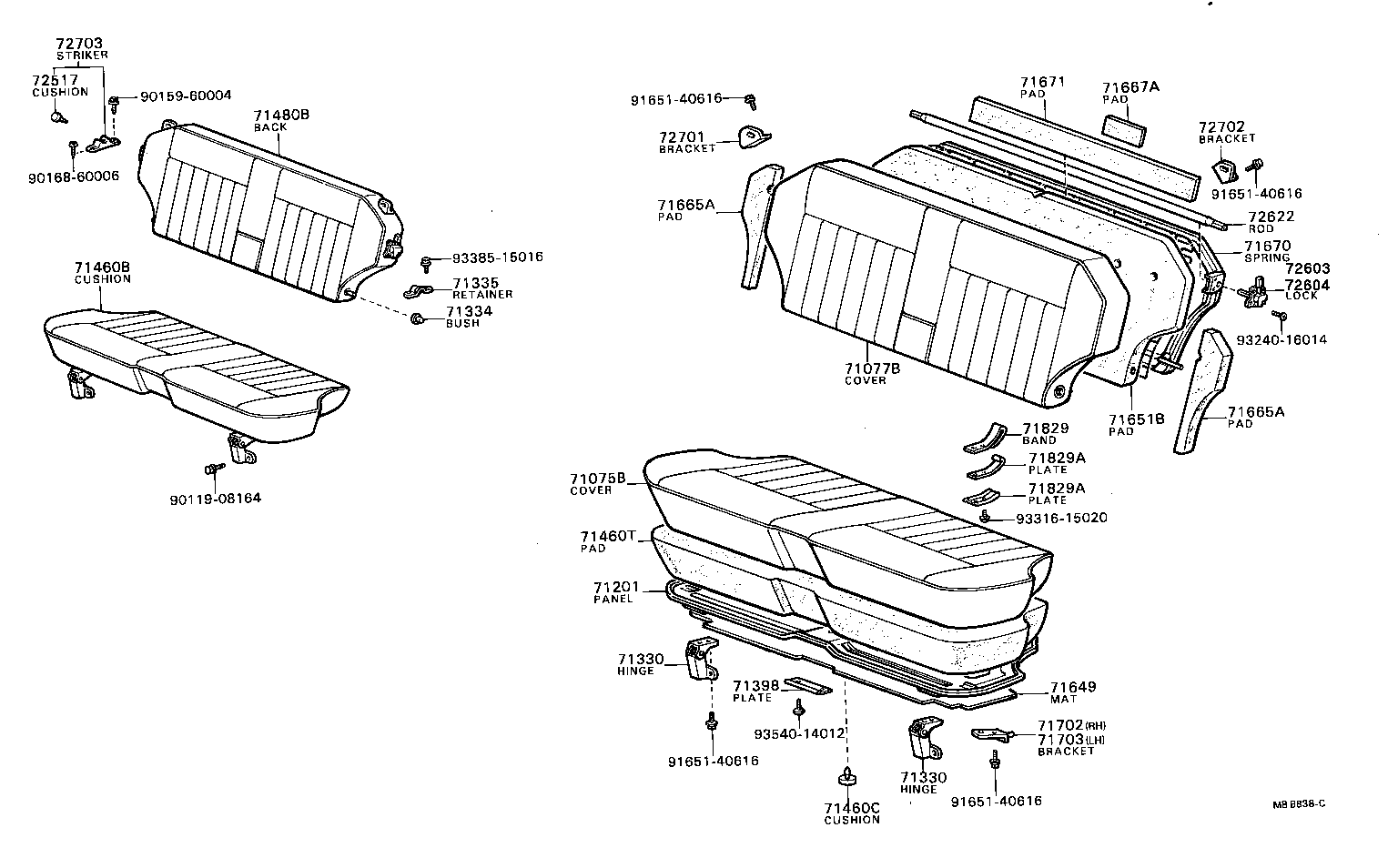

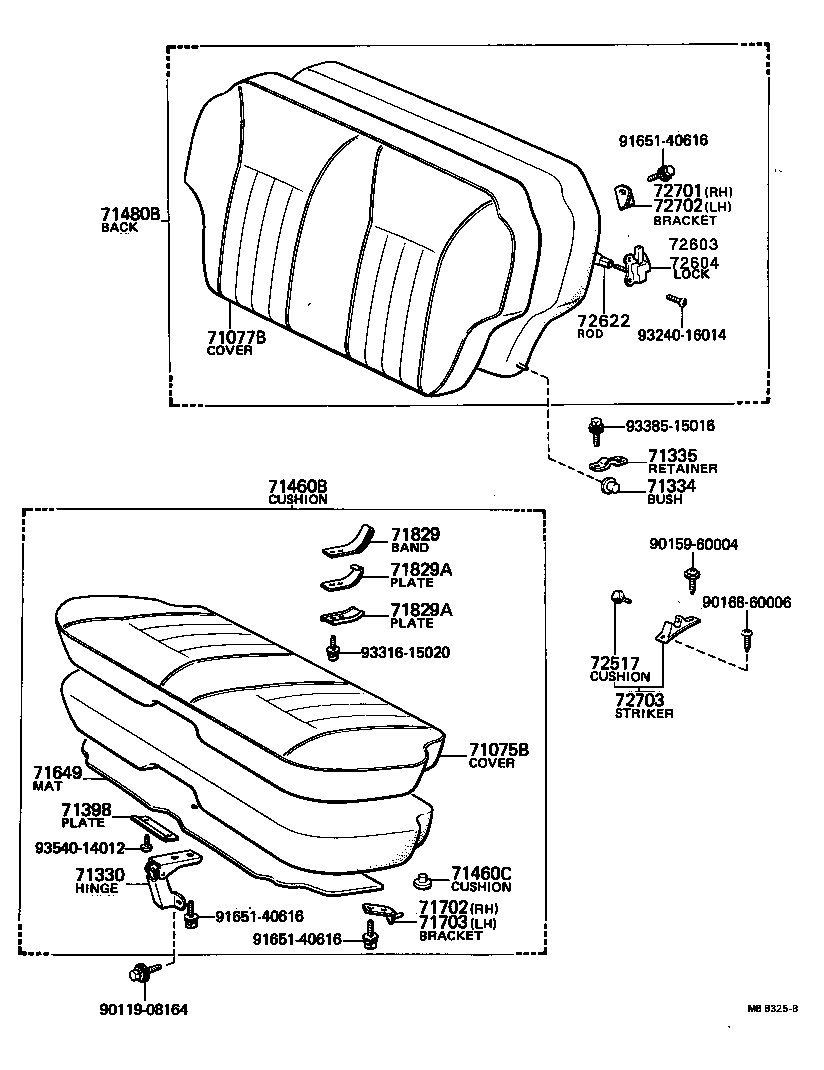

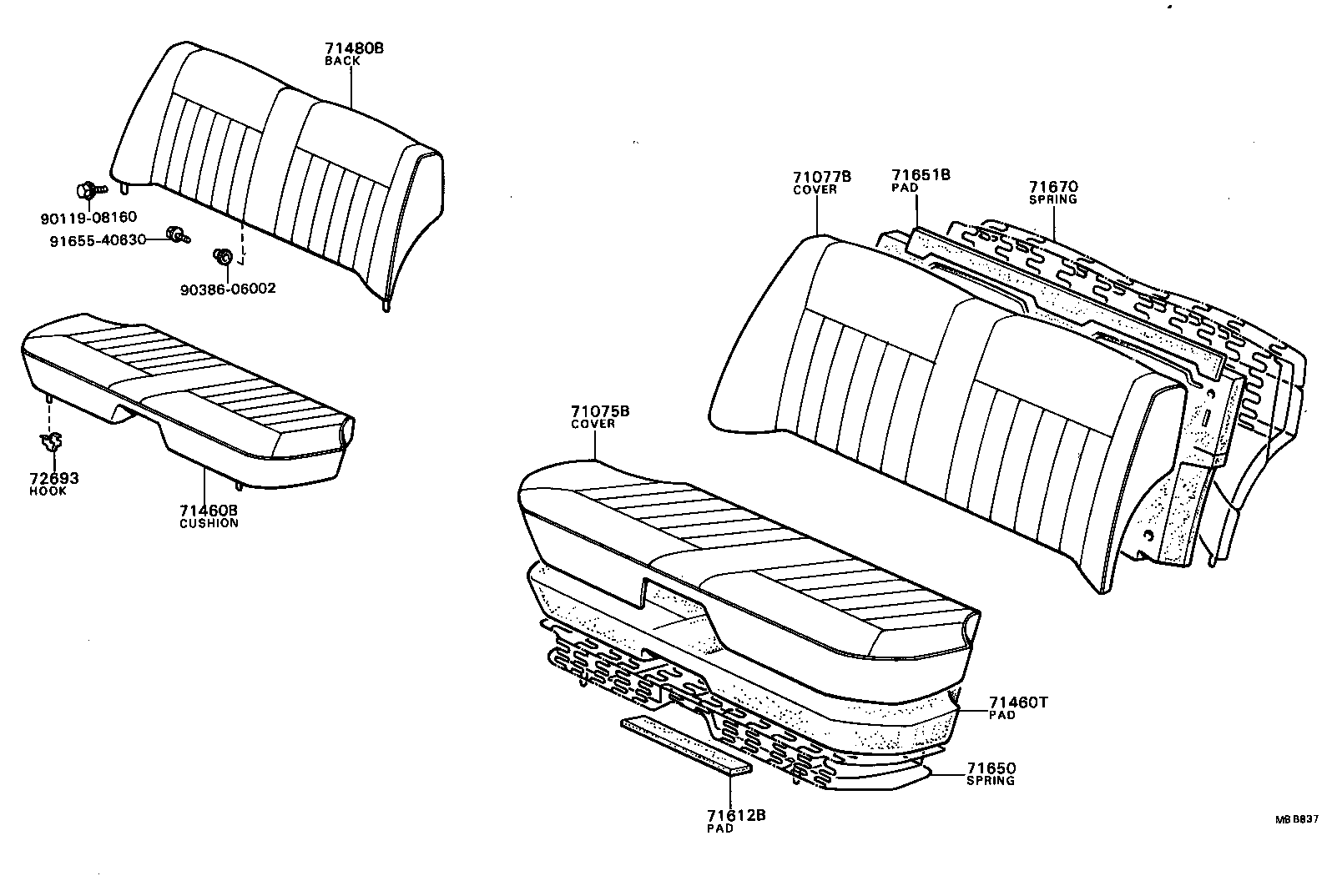

Figure MB8321 MB8321 1978-09 → 1980-08 Figure MB8323G MB8323G 1978-09 → 1980-08 Figure MB8325B MB8325B 1978-08 → 1980-08 Figure MBB837 MBB837 1980-08 → — Figure MBD935 MBD935 1980-08 → — Figure MBB838C MBB838C 1980-08 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71201 Panel Sub-assy, Rear Seat Cushion
71305A Hinge Sub-assy, Rear Seatback, Center
71305B Spacer, Rear Seatback Hinge
71330 Hinge Assy, Rear Seat Cushion
71334 Bush, Rear Seatback Pivot
71335 Retainer, Rear Seatback Pivot, Upper
71336 Bush OR Spacer, Rear Seatback Hinge
71398 Plate, Rear Seat Base
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460C Cushion (FOR REAR SEAT CUSHION)
71460T Pad Sub-assy, Rear Seat Cushion, NO.1
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480P Panel Sub-assy, Rear Seatback
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71612B Pad, Rear Seat Cushion, B
71649 Mat, Rear Seat Cushion
71650 Spring Assy, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71665A Pad, Rear Seatback, Side A
71667A Pad, Rear Seatback, Center A
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71671 Pad, Rear Seatback Silencer, A
71681 Pad, Rear Seatback Corner, A
71702 Bracket Sub-assy, Rear Seatback Stop, RH
71703 Bracket Sub-assy, Rear Seatback Stop, LH
71829 Band, Rear Seat Cushion
71829A Plate, Rear Seat Cushion Band Support
72517 Cushion, Rear Seatback Stop
72618 Protector, Rear Seatback Lock Striker
72619 Cover, Rear Seatback Lock Striker
72620 Lock Assy, Rear Seatback
72622 Rod, Rear Seatback Stopper Connecting
72656 Button, Rear Seatback Stop Release
72656A Grommet, Rear Seatback Stop Button
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72689 Retainer, Seatback Lock Striker Cover
72693 Hook, Rear Seat Cushion Lock
72701 Bracket Sub-assy, Rear Seatback Stopper
72702 Bracket Sub-assy, Rear Seatback Striker
72703 Striker Sub-assy, Rear Seatback Stopper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
