Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

12 part groups · 4 illustrations

Illustrations

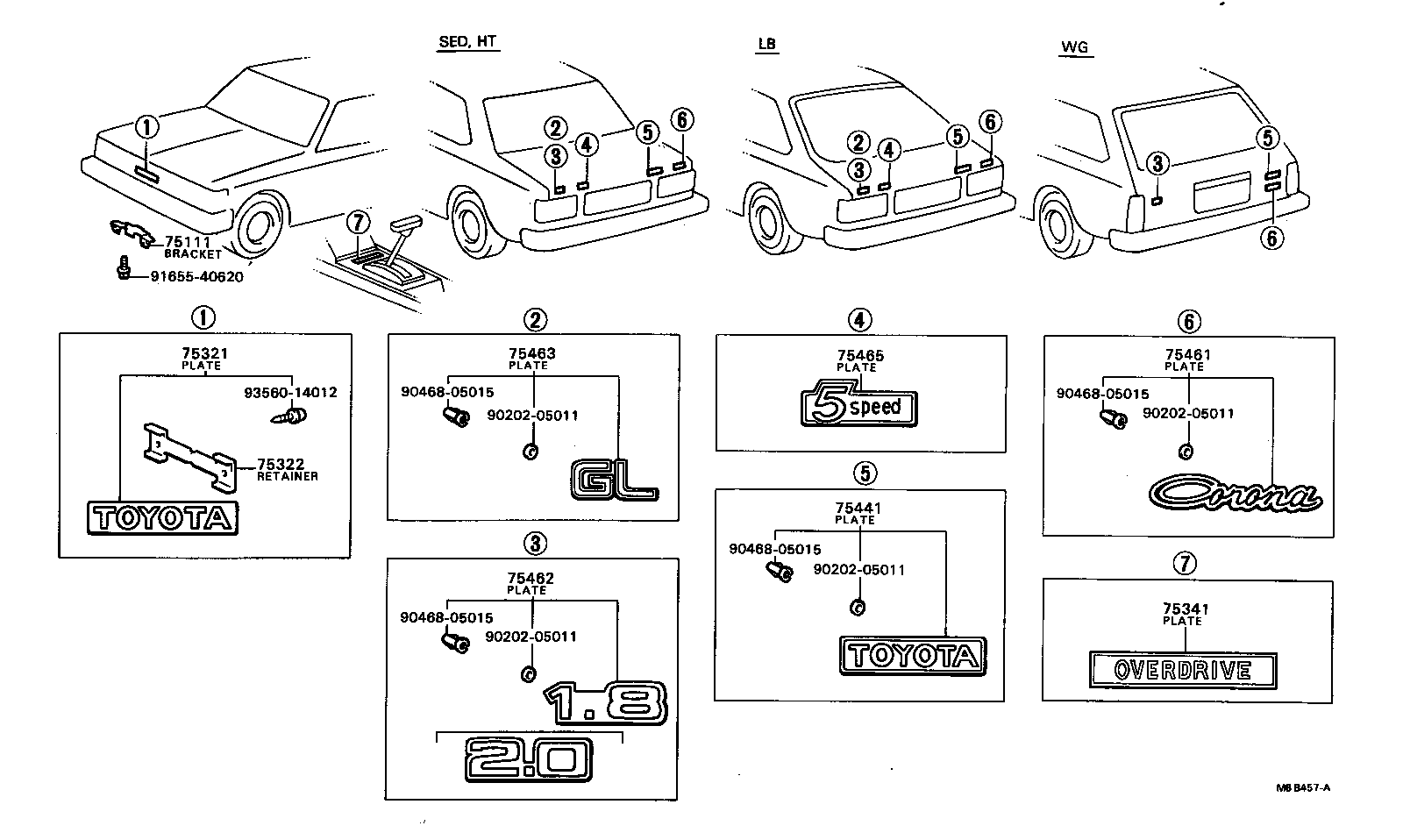

Figure MB8386D MB8386D 1978-09 → 1980-08 Figure MB8386D MB8386D 1980-08 → 1981-11 Figure MBB457A MBB457A 1980-08 → — Figure MBB457A MBB457A 1981-11 → —

Part groups

PNCDescription
75111 Bracket, Front License Plate
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75322 Retainer, Radiator Grille Name Plate
75341 Plate, Instrument Panel Name, NO.1
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75381 Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
