Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

46 part groups · 4 illustrations

Illustrations

MB8337D 1978-09 → —

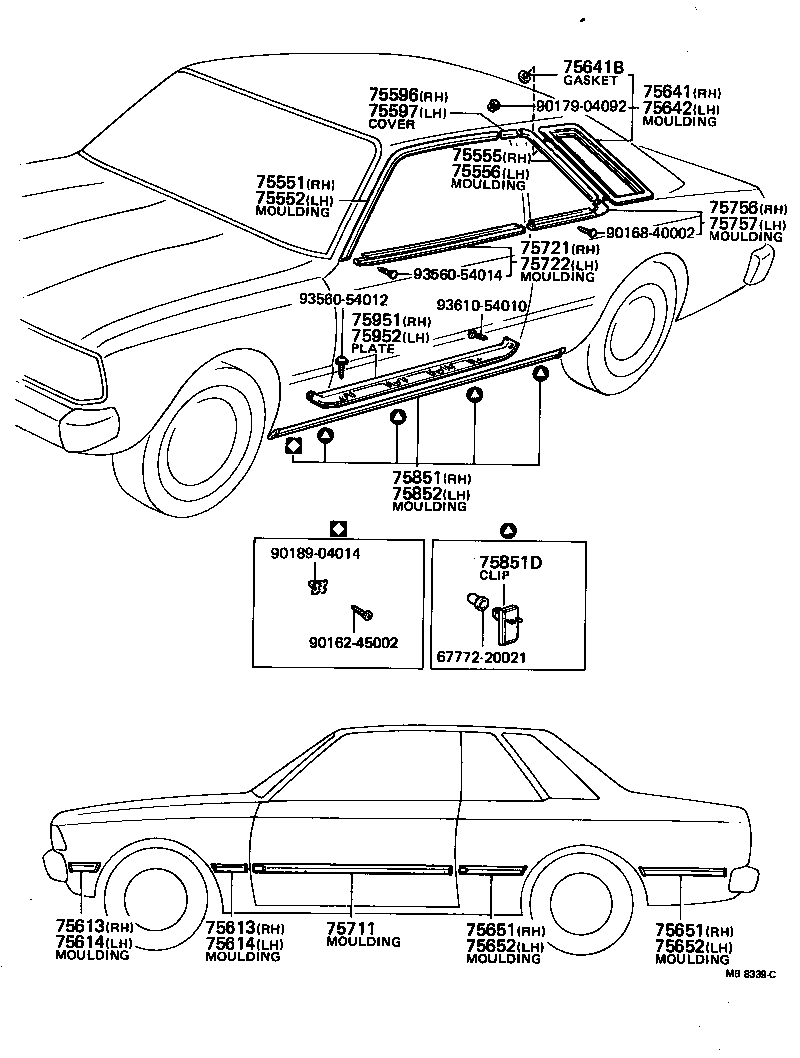

MB8339C 1978-09 → 1981-12

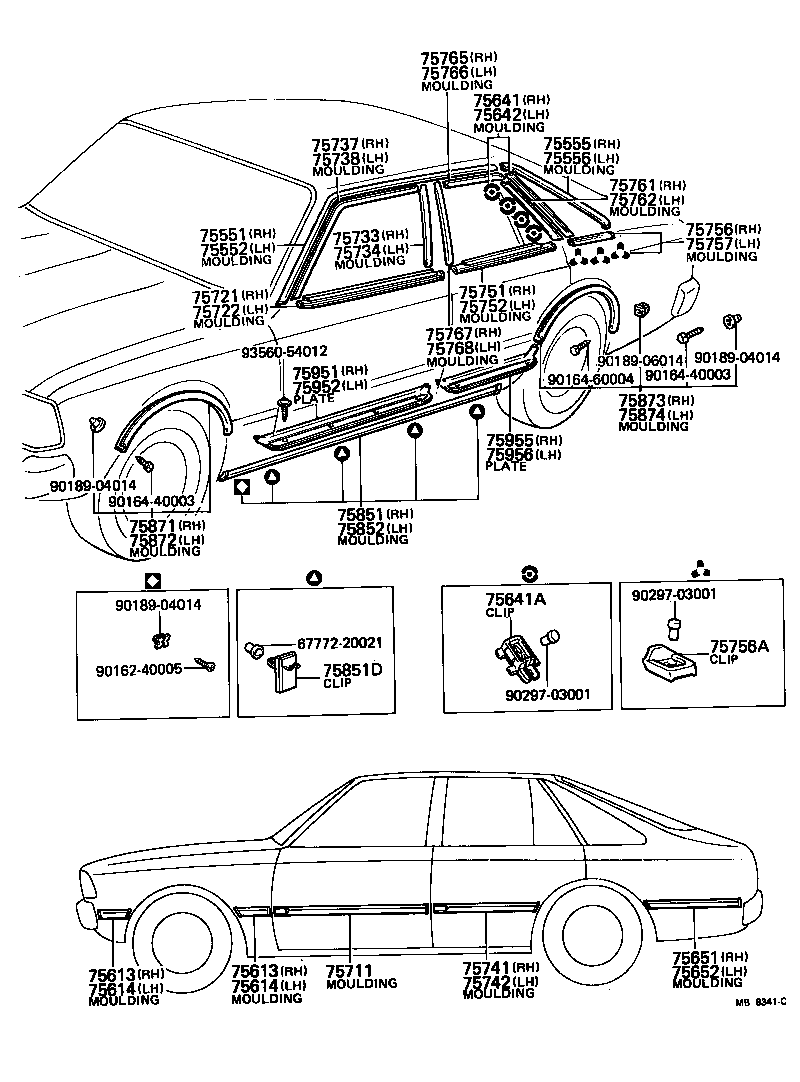

MB8341C 1978-09 → —

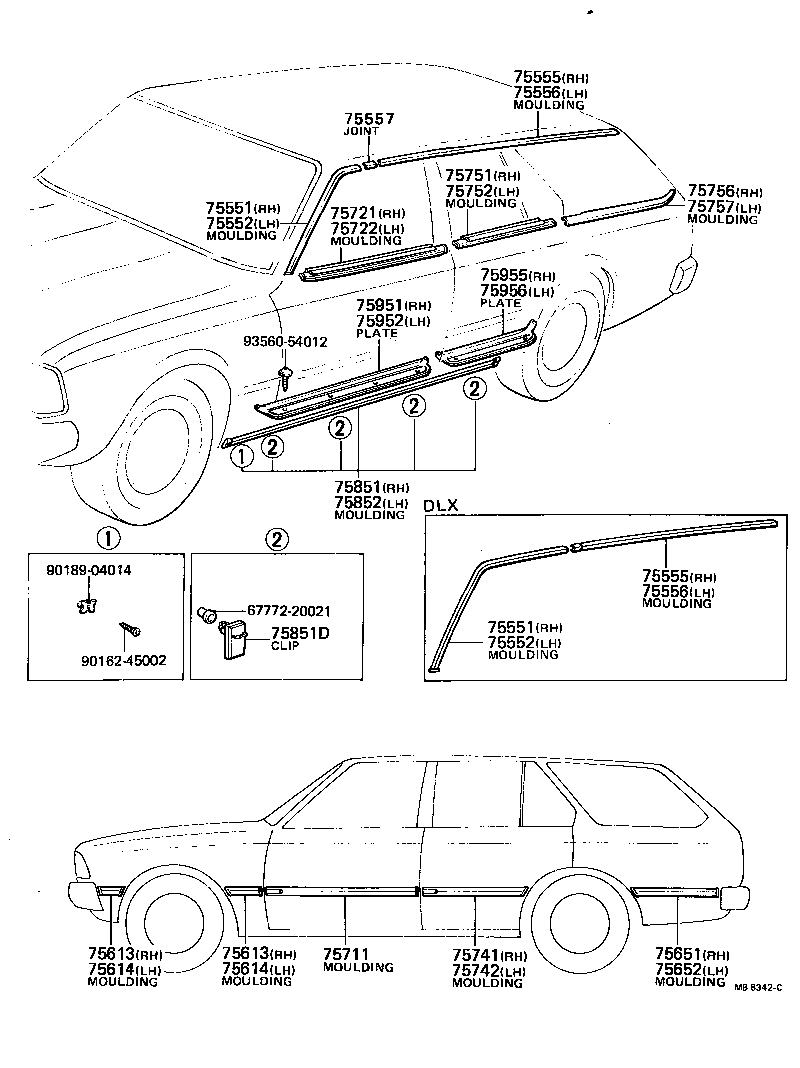

MB8342C 1978-09 → —

Part groups

PNC	Description
75551	Moulding, Roof Drip Side Finish, RH
75552	Moulding, Roof Drip Side Finish, LH
75555	Moulding, Roof Drip Side Finish, Rear RH
75556	Moulding, Roof Drip Side Finish, Rear LH
75557	Joint, Roof Drip Side Finish Moulding
75596	Cover, Roof Drip Side Finish Moulding Joint, RH
75597	Cover, Roof Drip Side Finish Moulding Joint, LH
75613	Moulding, Front Fender, Outside RH
75614	Moulding, Front Fender, Outside LH
75641	Moulding, Quarter Window, Outside Front RH
75641A	Clip(FOR QUARTER WINDOW OUTSIDE MOULDING)
75641B	Gasket(FOR QUARTER WINDOW OUTSIDE MOULDING)
75642	Moulding, Quarter Window, Outside Front LH
75651	Moulding, Quarter, Outside RH
75652	Moulding, Quarter, Outside LH
75711	Moulding, Front Door Outside, NO.1
75721	Moulding, Front Door Belt, RH
75722	Moulding, Front Door Belt, LH
75733	Moulding, Front Door Window Frame, Rear RH
75734	Moulding, Front Door Window Frame, Rear LH
75737	Moulding, Front Door Window Frame, Front RH
75738	Moulding, Front Door Window Frame, Front LH
75741	Moulding, Rear Door, Outside RH
75742	Moulding, Rear Door, Outside LH
75751	Moulding, Rear Door Belt, RH
75752	Moulding, Rear Door Belt, LH
75756	Moulding, Quarter Belt, RH
75756A	Clip, Belt Side Moulding
75757	Moulding, Quarter Belt, LH
75761	Moulding, Rear Door Window Frame, Rear RH
75762	Moulding, Rear Door Window Frame, Rear LH
75765	Moulding, Rear Door Window Frame, Upper RH
75766	Moulding, Rear Door Window Frame, Upper LH
75767	Moulding, Rear Door Window Frame, Front RH
75768	Moulding, Rear Door Window Frame, Front LH
75851	Moulding, Rocker Panel, RH
75851D	Clip(FOR ROCKER PANEL MOULDING SET)
75852	Moulding, Rocker Panel, LH
75871	Moulding, Front Fender Wheel Opening, RH
75872	Moulding, Front Fender Wheel Opening, LH
75873	Moulding, Quarter Panel Wheel Opening, RH
75874	Moulding, Quarter Panel Wheel Opening, LH
75951	Plate, Front Door Scuff, Outside RH
75952	Plate, Front Door Scuff, Outside LH
75955	Plate, Rear Door Scuff, Outside RH
75956	Plate, Rear Door Scuff, Outside LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
