Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

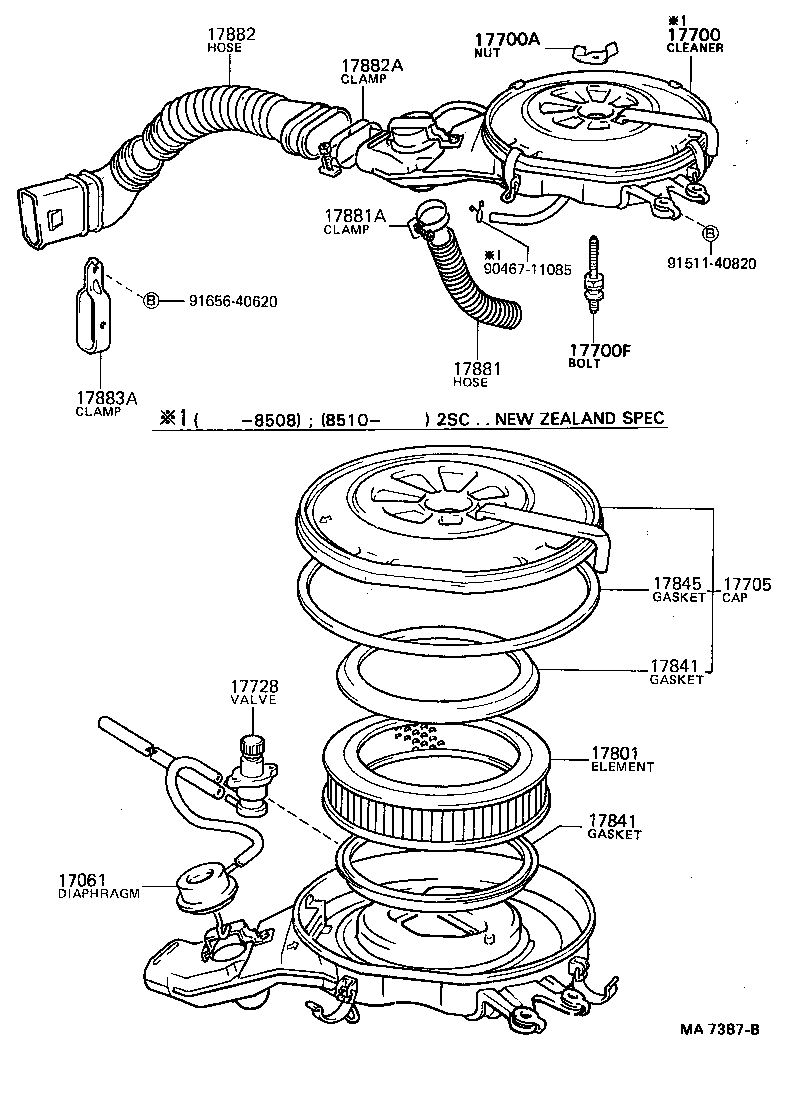

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

96 parts on this figure

Part number	Description	Fitment	Price
17061 — Diaphragm Sub-assy
17061-26010 note	Diaphragm Sub-assy 1982-10 → 1983-10 ended	2T TT140 SED RHD +2	—
17061-26010 note	Diaphragm Sub-assy 1982-01 → 1982-10 ended	2T,3T TT14# SED LHD +4	—
17061-26010 note	Diaphragm Sub-assy 1982-10 → 1984-12 ended	3T TT141 RHD	—
17061-72010 note	Diaphragm Sub-assy 1986-12 → 1999-07 ended	2Y YT140	—
17061-74010	Diaphragm Sub-assy 1983-04 → 1986-12 ended	2SC ST141	—
17700 — Cleaner Assy, Air
17700-26290	Cleaner Assy, Air 1982-01 → 1982-10 ended	2T TT140;3T TT141 RHD;3T +6	—
17700-26290	Cleaner Assy, Air 1982-10 → 1985-08 ended	2T,3T TT14#	—
17700-26300 note	Cleaner Assy, Air 1982-01 → 1982-10 ended	2T,3T TT14# SED LHD +4	—
17700-26300 note	Cleaner Assy, Air 1982-10 → 1983-10 ended	2T TT140 SED RHD +2	—
17700-26300 note	Cleaner Assy, Air 1982-10 → 1984-12 ended	3T TT141 RHD	—
17700-31262	Cleaner Assy, Air 1982-06 → 1983-12 ended	12RM RT140	—
17700-35250	Cleaner Assy, Air 1984-08 → 1985-08 ended	22REC RT142	—
17700-35260	Cleaner Assy, Air 1985-08 → 1986-12 ended	22REC RT142	—
17700-64010	Cleaner Assy, Air 1986-01 → 1999-07 ended	2C CT141	—
17700-64020	Cleaner Assy, Air 1982-01 → 1983-12 ended	1C CT140	—
17700-72060	Cleaner Assy, Air 1986-12 → 1999-07 ended	2Y YT140	—
17700-72140 note	Cleaner Assy, Air 1986-12 → 1999-07 ended	2Y YT140	—
17700-74020	Cleaner Assy, Air 1983-04 → 1985-08 ended	2SC ST141	—
17700-74060	Cleaner Assy, Air 1985-08 → 1986-12 ended	2S ST141	—
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003	Nut, Wing(FOR AIR CLEANER) 1982-01 → 1999-07 ended	12RM RT140	—
90175-06003	Nut, Wing(FOR AIR CLEANER) 1982-01 → 1999-07 ended	2S# ST141	—
90175-06003	Nut, Wing(FOR AIR CLEANER) 1982-01 → 1999-07 ended	2T,3T TT14#	—
90175-06003	Nut, Wing(FOR AIR CLEANER) 1986-12 → 1999-07 ended	2Y YT140	—
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06024	Bolt, Stud(FOR AIR CLEANER SETTING) 1986-12 → 1999-07 ended	2Y YT140	—
90116-06142	Bolt, Stud(FOR AIR CLEANER SETTING) 1982-06 → 1983-12 ended	12RM RT140	—
90116-06222 note	Bolt, Stud(FOR AIR CLEANER SETTING) 1982-01 → 1985-08 ended	2T,3T TT14#	—
90116-06309	Bolt, Stud(FOR AIR CLEANER SETTING) 1983-04 → 1986-12 ended	2S# ST141	—
17705 — Cap Sub-assy, Air Cleaner
17705-26080	Cap Sub-assy, Air Cleaner 1982-01 → 1985-08 ended	2T,3T TT14#	—
17705-31033	Cap Sub-assy, Air Cleaner 1982-06 → 1983-12 ended	12RM RT140	—
17705-35120	Cap Sub-assy, Air Cleaner 1984-08 → 1986-12 ended	22REC RT142	—
17705-64010	Cap Sub-assy, Air Cleaner 1986-01 → 1999-07 ended	2C CT141	—
17705-64010	Cap Sub-assy, Air Cleaner 1982-01 → 1983-12 ended	1C CT140	—
17705-71020	Cap Sub-assy, Air Cleaner 1986-12 → 1992-11 ended	2Y YT140	—
17705-73080	Cap Sub-assy, Air Cleaner 1992-11 → 1999-07 ended	2Y YT140	—
17705-74020	Cap Sub-assy, Air Cleaner 1983-04 → 1986-12 ended	2S# ST141	—
17728 — Valve, Thermostatic
17728-26040 note	Valve, Thermostatic 1982-01 → 1982-10 ended	2T,3T TT14# SED LHD +4	—
17728-26040 note	Valve, Thermostatic 1982-10 → 1983-10 ended	2T TT140 SED RHD +2	—
17728-26040 note	Valve, Thermostatic 1982-10 → 1984-12 ended	3T TT141 RHD	—
17728-34010 note	Valve, Thermostatic 1986-12 → 1999-07 ended	2Y YT140	—
17728-63010	Valve, Thermostatic 1983-04 → 1986-12 ended	2SC ST141	—
17801 — Element Sub-assy, Air Cleaner Filter
17801-25010	Element Sub-assy, Air Cleaner Filter 1982-01 → 1985-08 ended	12RM RT140	—
17801-25010	Element Sub-assy, Air Cleaner Filter 1982-01 → 1985-08 ended	2T,3T TT14#	—
17801-31080 note	Element Sub-assy, Air Cleaner Filter 1982-01 → 1985-08 ended	2T TT140;3T TT141 RHD;3T +6	—
17801-34060	Element Sub-assy, Air Cleaner Filter 1983-04 → 1986-12 ended	2S# ST141	—
17801-34070	Element Sub-assy, Air Cleaner Filter 1986-12 → 1999-07 ended	2Y YT140	—
17801-41110	Element Sub-assy, Air Cleaner Filter 1984-08 → 1986-12 ended	22REC RT142	—
17801-64010	Element Sub-assy, Air Cleaner Filter 1986-01 → 1999-07 ended	2C CT141	—
17801-64020	Element Sub-assy, Air Cleaner Filter 1982-01 → 1983-12 ended	1C CT140	—
17841 — Gasket, Filter Element
17841-31020	Gasket, Filter Element 1982-01 → 1985-08 ended	12RM RT140	—
17841-31020	Gasket, Filter Element 1982-01 → 1985-08 ended	2T,3T TT14#	—
17841-33011	Gasket, Filter Element 1983-04 → 1986-12 ended	2S# ST141	—
17845 — Gasket, Air Cleaner Cap
17845-15020	Gasket, Air Cleaner Cap 1983-04 → 1986-12 ended	2S# ST141	—
17845-25010	Gasket, Air Cleaner Cap 1982-01 → 1982-10 ended	12RM RT140	—
17845-25010	Gasket, Air Cleaner Cap 1982-01 → 1982-10 ended	2T,3T TT14#	—
17845-42010 note	Gasket, Air Cleaner Cap 1982-10 → 1985-08 ended	12RM RT140	—
17845-42010 note	Gasket, Air Cleaner Cap 1982-10 → 1985-08 ended	2T,3T TT14#	—
17881 — Hose, Air Cleaner, NO.1
17881-16210 note	Hose, Air Cleaner, NO.1 1990-07 → 1999-07 ended	2Y YT140	—
17881-34040 note	Hose, Air Cleaner, NO.1 1982-10 → 1984-12 ended	3T TT141 RHD	—
17881-34040 note	Hose, Air Cleaner, NO.1 1982-10 → 1983-10 ended	2T TT140 SED RHD +2	—
17881-34040 note	Hose, Air Cleaner, NO.1 1982-01 → 1982-10 ended	2T,3T TT14# SED LHD +4	—
17881-35010	Hose, Air Cleaner, NO.1 1984-08 → 1986-12 ended	22REC RT142	—
17881-64150 note	Hose, Air Cleaner, NO.1 1986-12 → 1999-07 ended	2C CT141 4F	—
17881-74030	Hose, Air Cleaner, NO.1 1983-11 → 1985-02 ended	2SC ST141	—
17881-74040	Hose, Air Cleaner, NO.1 1985-02 → 1985-08 ended	2SC ST141	—
17881-74040	Hose, Air Cleaner, NO.1 1985-08 → 1986-12 ended	2SC ST141	—
17881-74040 note	Hose, Air Cleaner, NO.1 1986-12 → 1990-07 ended	2Y YT140	—
17881-74080	Hose, Air Cleaner, NO.1 1985-08 → 1986-12 ended	2S ST141	—
17882-31040	Hose, Air Cleaner, NO.1 1983-04 → 1983-11 ended	2SC ST141	—
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
90460-01024 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1985-08 → 1986-12 ended	2S ST141	—
96111-10460 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1986-12 → 1999-07 ended	2Y YT140	—
96111-10460	Clamp(FOR AIR CLEANER HOSE, NO.1) 1983-04 → 1986-12 ended	2SC ST141	—
96111-10600 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1985-08 → 1986-12 ended	2S ST141	—
96111-10670 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1986-12 → 1999-07 ended	2C CT141 4F	—
96111-10800	Clamp(FOR AIR CLEANER HOSE, NO.1) 1984-08 → 1986-12 ended	22REC RT142	—
17882 — Hose, Air Cleaner, NO.2
17880-72010	Hose, Air Cleaner, NO.2 1986-12 → 1999-07 ended	2Y YT140	—
17881-14020	Hose, Air Cleaner, NO.2 1982-01 → 1985-08 ended	2T,3T TT14#	—
17881-14050	Hose, Air Cleaner, NO.2 1982-01 → 1983-12 ended	1C CT140	—
17881-14050	Hose, Air Cleaner, NO.2 1986-01 → 1999-07 ended	2C CT141	—
17882-14030	Hose, Air Cleaner, NO.2 1983-04 → 1986-12 ended	2SC ST141	—
17882-35030	Hose, Air Cleaner, NO.2 1984-08 → 1986-12 ended	22REC RT142	—
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90460-01003 note	Clamp(FOR AIR CLEANER HOSE, NO.2) 1982-01 → 1985-08 ended	2T,3T TT14#	—
90460-01016	Clamp(FOR AIR CLEANER HOSE, NO.2) 1986-12 → 1999-07 ended	2Y YT140	—
90460-01018	Clamp(FOR AIR CLEANER HOSE, NO.2) 1986-12 → 1999-07 ended	2Y YT140	—
90460-01019 note	Clamp(FOR AIR CLEANER HOSE, NO.2) 1982-01 → 1985-08 ended	2T,3T TT14#	—
90460-01024	Clamp(FOR AIR CLEANER HOSE, NO.2) 1983-04 → 1986-12 ended	2SC ST141	—
90460-65001 note	Clamp(FOR AIR CLEANER HOSE, NO.2) 1986-01 → 1999-07 ended	2C CT141	—
90460-65001 note	Clamp(FOR AIR CLEANER HOSE, NO.2) 1982-01 → 1983-12 ended	1C CT140	—
96111-10600 note	Clamp(FOR AIR CLEANER HOSE, NO.2) 1986-01 → 1999-07 ended	2C CT141	—
96111-10600 note	Clamp(FOR AIR CLEANER HOSE, NO.2) 1982-01 → 1983-12 ended	1C CT140	—
96111-10730	Clamp(FOR AIR CLEANER HOSE, NO.2) 1986-12 → 1999-07 ended	2Y YT140	—
17883A — Clamp(FOR AIR CLEANER HOSE, NO.3)
17891-14010	Clamp(FOR AIR CLEANER HOSE, NO.3) 1982-01 → 1983-12 ended	1C CT140	—
17891-14010	Clamp(FOR AIR CLEANER HOSE, NO.3) 1986-01 → 1999-07 ended	2C CT141	—
90460-01018	Clamp(FOR AIR CLEANER HOSE, NO.3) 1982-01 → 1986-12 ended	2T,3T TT14#	—
90460-01018	Clamp(FOR AIR CLEANER HOSE, NO.3) 1982-01 → 1986-12 ended	2SC ST141	—
90460-01024 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1986-12 → 1999-07 ended	2Y YT140	—
96111-10600 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1986-12 → 1999-07 ended	2Y YT140	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
