Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

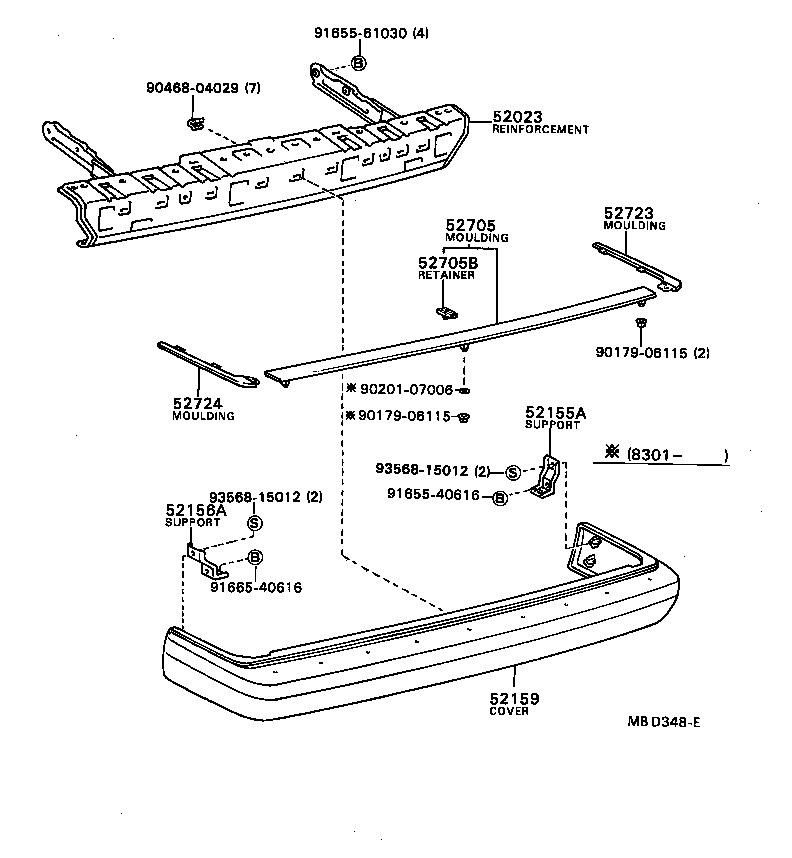

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

108 parts on this figure

Part number	Description	Fitment	Price
52023 — Reinforcement Sub-assy, Rear Bumper
52023-20050 note	Reinforcement Sub-assy, Rear Bumper 1982-01 → 1982-07 ended	TT141 GL GEN	—
52023-20060 note	Reinforcement Sub-assy, Rear Bumper 1982-01 → 1982-11 ended	TT14# ME	—
52023-20070 note	Reinforcement Sub-assy, Rear Bumper 1982-01 → 1982-11 ended	CT140,RT140,TT14# SED (GEN,PHL)	—
52023-20070 note	Reinforcement Sub-assy, Rear Bumper 1982-11 → 1985-08 ended	CT140,RT140,TT14# SED	—
52023-20070 note	Reinforcement Sub-assy, Rear Bumper 1983-04 → 1985-08 ended	RT142,ST141 CSX,CXI	—
52023-20070 note	Reinforcement Sub-assy, Rear Bumper 1985-08 → 1986-12 ended	RT142,ST141 CSX,CXI	—
52023-20100 note	Reinforcement Sub-assy, Rear Bumper 1986-01 → 1986-08 ended	RT142,ST141 SED (CS,CSI,DLX)	—
52023-20100 note	Reinforcement Sub-assy, Rear Bumper 1986-08 → 1999-07 ended	ST141 SED (CS,DLX)	—
52023-20100 note	Reinforcement Sub-assy, Rear Bumper 1986-01 → 1986-12 ended	CT141	—
52023-20100 note	Reinforcement Sub-assy, Rear Bumper 1985-08 → 1986-01 ended	ST141 SED (CS,DLX)	—
52023-20100 note	Reinforcement Sub-assy, Rear Bumper 1982-01 → 1985-08 ended	CT140,RT140,TT14# SED	—
52023-20250	Reinforcement Sub-assy, Rear Bumper 1986-12 → 1999-07 ended	CT141,YT140	—
52023-91259	Reinforcement Sub-assy, Rear Bumper 1985-08 → 1999-07 ended	ST141 WG GEN	—
52023-91259	Reinforcement Sub-assy, Rear Bumper 1982-01 → 1985-08 ended	CT140,RT140,TT14# WG	—
52155A — Support, Rear Bumper Side, RH
52155-14081	Support, Rear Bumper Side, RH 1986-12 → 1999-07 ended	CT141,YT140	—
52155-20070 note	Support, Rear Bumper Side, RH 1982-01 → 1985-08 ended	CT140,RT140,TT14# SED	—
52155-20070 note	Support, Rear Bumper Side, RH 1985-08 → 1986-12 ended	RT142,ST141 CSX,CXI	—
52155-20070 note	Support, Rear Bumper Side, RH 1983-04 → 1985-08 ended	RT142,ST141 CSX,CXI	—
52155-20080 note	Support, Rear Bumper Side, RH 1983-04 → 1985-08 ended	RT142,ST141 SED (CS,CSI)	—
52155-20080 note	Support, Rear Bumper Side, RH 1985-08 → 1986-01 ended	ST141 SED (CS,DLX)	—
52155-20080 note	Support, Rear Bumper Side, RH 1986-01 → 1999-07 ended	RT142,ST141 SED (CS,CSI,DLX)	—
52155-20080 note	Support, Rear Bumper Side, RH 1982-01 → 1985-08 ended	CT140,RT140,TT14# SED (DLX,GL,TAX)	—
52155-91257	Support, Rear Bumper Side, RH 1982-01 → 1999-07 ended	CT140,RT140,ST141,TT14# WG	—
52156A — Support, Rear Bumper Side, LH
52155-91257	Support, Rear Bumper Side, LH 1982-01 → 1999-07 ended	CT140,RT14#,ST141,TT14# WG	—
52156-14081	Support, Rear Bumper Side, LH 1986-12 → 1999-07 ended	CT141,YT140	—
52156-20080 note	Support, Rear Bumper Side, LH 1982-01 → 1985-08 ended	CT140,RT140,TT14# SED	—
52156-20080 note	Support, Rear Bumper Side, LH 1983-04 → 1985-08 ended	RT142,ST141 CSX,CXI	—
52156-20080 note	Support, Rear Bumper Side, LH 1985-08 → 1986-12 ended	RT142,ST141 CSX,CXI	—
52156-20090 note	Support, Rear Bumper Side, LH 1986-01 → 1999-07 ended	RT142,ST141 SED (CS,CSI,DLX)	—
52156-20090 note	Support, Rear Bumper Side, LH 1985-08 → 1986-01 ended	ST141 SED (CS,DLX)	—
52156-20090 note	Support, Rear Bumper Side, LH 1983-04 → 1985-08 ended	RT142,ST141 SED (CS,CSI)	—
52156-20090 note	Support, Rear Bumper Side, LH 1982-01 → 1985-08 ended	CT140,RT140,TT14# SED (DLX,GL,TAX)	—
52159 — Cover, Rear Bumper
52159-14110	Cover, Rear Bumper 1986-12 → 1999-07 ended	CT141,YT140	—
52159-20050 note	Cover, Rear Bumper 1982-01 → 1985-08 ended	CT140,RT140,TT14# SED (DLX,GL,TAX)	—
52159-20050 note	Cover, Rear Bumper 1986-08 → 1999-07 ended	ST141 SED (CS,DLX)	—
52159-20050 note	Cover, Rear Bumper 1985-08 → 1986-01 ended	ST141 SED (CS,DLX)	—
52159-20050 note	Cover, Rear Bumper 1986-01 → 1986-08 ended	RT142,ST141 SED (CS,CSI,DLX)	—
52159-20070 note	Cover, Rear Bumper 1982-01 → 1985-08 ended	CT140,RT140,TT14# SED	—
52159-20090 note	Cover, Rear Bumper 1982-01 → 1985-08 ended	CT140,RT140,TT14# SED (DLX,STD,TAX)	—
52159-20090 note	Cover, Rear Bumper 1986-01 → 1986-12 ended	CT141	—
52159-20900 note	Cover, Rear Bumper 1982-01 → 1982-11 ended	TT141 GL GEN	—
52159-20900 note	Cover, Rear Bumper 1982-11 → 1983-10 ended	TT141 GL	—
52159-20900 note	Cover, Rear Bumper 1983-04 → 1983-10 ended	ST141 CSX	—
52159-20907 note	Cover, Rear Bumper 1985-08 → 1986-12 ended	RT142,ST141 CSX,CXI	—
52159-20907 note	Cover, Rear Bumper 1983-10 → 1985-08 ended	RT142,ST141,TT141 CSX,CXI,GL	—
52159-91257 note	Cover, Rear Bumper 1985-08 → 1999-07 ended	ST141 WG GEN	—
52159-91257 note	Cover, Rear Bumper 1982-01 → 1985-08 ended	ST141,TT141 WG (CS,DLX)	—
52159-91258	Cover, Rear Bumper 1985-08 → 1986-12 ended	RT142,ST141 WG ARL	—
52159-91258	Cover, Rear Bumper 1983-04 → 1985-08 ended	ST141 WG S	—
52159-91258	Cover, Rear Bumper 1982-01 → 1985-08 ended	CT140,RT140,TT14# WG	—
52705 — Moulding Sub-assy, Rear Bumper
52705-20020 note	Moulding Sub-assy, Rear Bumper 1982-01 → 1985-08 ended	CT140,RT140,TT14# SED (DLX,GL,TAX)	—
52705-20020 note	Moulding Sub-assy, Rear Bumper 1985-08 → 1999-07 ended	ST141 SED (CS,DLX)	—
52705-20030 note	Moulding Sub-assy, Rear Bumper 1982-01 → 1983-01 ended	TT141 GL;TT141 WG	—
52705-20030 note	Moulding Sub-assy, Rear Bumper 1983-01 → 1984-12 ended	TT141 GL	—
52705-20030 note	Moulding Sub-assy, Rear Bumper 1986-01 → 1986-08 ended	RT142,ST141 SED (CS,CSI)	—
52705-91255	Moulding Sub-assy, Rear Bumper 1983-01 → 1985-08 ended	ST141,TT141 WG (CS,DLX)	—
52705-91255	Moulding Sub-assy, Rear Bumper 1985-08 → 1999-07 ended	ST141 WG GEN	—
52751-14030 note	Moulding Sub-assy, Rear Bumper 1986-12 → 1999-07 ended	CT141,YT140	—
52751-14040 note	Moulding Sub-assy, Rear Bumper 1986-12 → 1999-07 ended	CT141,YT140	—
52751-20050	Moulding Sub-assy, Rear Bumper 1983-04 → 1985-08 ended	RT142,ST141 SED (CS,CSI)	—
52705B — Retainer, Rear Bumper Moulding
52755-20010 note	Retainer, Rear Bumper Moulding 1982-01 → 1985-08 ended	CT140,RT140,TT14# DLX,GL,TAX	—
52755-20010 note	Retainer, Rear Bumper Moulding 1983-01 → 1985-08 ended	ST141,TT141 WG (CS,DLX)	—
52755-20010 note	Retainer, Rear Bumper Moulding 1983-04 → 1985-08 ended	RT142,ST141 CS,CSI	—
52755-20010 note	Retainer, Rear Bumper Moulding 1985-08 → 1999-07 ended	ST141 WG GEN	—
52755-20010 note	Retainer, Rear Bumper Moulding 1985-08 → 1986-12 ended	ST141 SED CS	—
52756-20010 note	Retainer, Rear Bumper Moulding 1982-01 → 1985-08 ended	CT140,RT140,TT14# DLX,GL,TAX	—
52756-20010 note	Retainer, Rear Bumper Moulding 1985-08 → 1999-07 ended	ST141 WG GEN	—
52756-20010 note	Retainer, Rear Bumper Moulding 1983-04 → 1985-08 ended	RT142,ST141 CS,CSI	—
52756-20010 note	Retainer, Rear Bumper Moulding 1985-08 → 1986-12 ended	ST141 SED CS	—
52757-20020 note	Retainer, Rear Bumper Moulding 1985-08 → 1986-12 ended	ST141 SED CS	—
52757-20020 note	Retainer, Rear Bumper Moulding 1982-01 → 1982-09 ended	CT140,RT140,TT14# DLX,GL,TAX	—
52757-20020 note	Retainer, Rear Bumper Moulding 1985-08 → 1999-07 ended	ST141 WG GEN	—
52757-20020 note	Retainer, Rear Bumper Moulding 1983-04 → 1985-08 ended	RT142,ST141 SED (CS,CSI)	—
52757-20020 note	Retainer, Rear Bumper Moulding 1983-01 → 1985-08 ended	CT140,RT140,TT14# SED (DLX,GL,TAX)	—
52757-20020 note	Retainer, Rear Bumper Moulding 1983-01 → 1985-08 ended	ST141,TT141 WG (CS,DLX)	—
52757-20020 note	Retainer, Rear Bumper Moulding 1982-09 → 1983-01 ended	CT140,RT140,TT14# DLX,GL,TAX	—
52723 — Moulding, Rear Bumper Extension, RH
52752-20010 note	Moulding, Rear Bumper Extension, RH 1982-01 → 1985-08 ended	CT140,RT140,TT14# SED (DLX,GL,TAX)	—
52752-20010 note	Moulding, Rear Bumper Extension, RH 1986-08 → 1999-07 ended	ST141 SED (CS,DLX)	—
52752-20010 note	Moulding, Rear Bumper Extension, RH 1983-04 → 1985-08 ended	RT142,ST141 SED (CS,CSI)	—
52752-20010 note	Moulding, Rear Bumper Extension, RH 1986-01 → 1986-08 ended	RT142,ST141 SED (CS,CSI,DLX)	—
52752-20010 note	Moulding, Rear Bumper Extension, RH 1985-08 → 1986-01 ended	RT142,ST141 SED (CS,CSI,DLX)	—
52752-20021 note	Moulding, Rear Bumper Extension, RH 1985-08 → 1986-01 ended	RT142,ST141 SED (CS,CSI,S)	—
52752-20021 note	Moulding, Rear Bumper Extension, RH 1986-08 → 1986-12 ended	RT142,ST141 SED (CS,CSI)	—
52752-20021 note	Moulding, Rear Bumper Extension, RH 1986-01 → 1986-12 ended	ST141 SED S	—
52752-20021 note	Moulding, Rear Bumper Extension, RH 1986-01 → 1986-12 ended	CT141	—
52752-20021 note	Moulding, Rear Bumper Extension, RH 1983-04 → 1985-08 ended	ST141 SED S	—
52752-20021 note	Moulding, Rear Bumper Extension, RH 1982-01 → 1985-08 ended	CT140,RT140,TT14# SED (DLX,STD,TAX)	—
52752-91255 note	Moulding, Rear Bumper Extension, RH 1982-01 → 1985-08 ended	ST141,TT141 WG (CS,DLX)	—
52752-91255 note	Moulding, Rear Bumper Extension, RH 1985-08 → 1999-07 ended	ST141 WG GEN	—
52752-91256	Moulding, Rear Bumper Extension, RH 1985-08 → 1986-12 ended	RT142,ST141 WG ARL	—
52752-91256	Moulding, Rear Bumper Extension, RH 1982-01 → 1985-08 ended	CT140,RT140,TT14# WG	—
52752-91256	Moulding, Rear Bumper Extension, RH 1983-04 → 1985-08 ended	ST141 WG S	—
52724 — Moulding, Rear Bumper Extension, LH
52753-20010 note	Moulding, Rear Bumper Extension, LH 1986-08 → 1999-07 ended	ST141 SED (CS,DLX)	—
52753-20010 note	Moulding, Rear Bumper Extension, LH 1986-01 → 1986-08 ended	RT142,ST141 SED (CS,CSI,DLX)	—
52753-20010 note	Moulding, Rear Bumper Extension, LH 1985-08 → 1986-01 ended	RT142,ST141 SED (CS,CSI,DLX)	—
52753-20010 note	Moulding, Rear Bumper Extension, LH 1983-04 → 1985-08 ended	RT142,ST141 SED (CS,CSI)	—
52753-20010 note	Moulding, Rear Bumper Extension, LH 1982-01 → 1985-08 ended	CT140,RT140,TT14# SED (DLX,GL,TAX)	—
52753-20021 note	Moulding, Rear Bumper Extension, LH 1983-04 → 1985-08 ended	ST141 SED S	—
52753-20021 note	Moulding, Rear Bumper Extension, LH 1985-08 → 1986-01 ended	RT142,ST141 SED (CS,CSI,S)	—
52753-20021 note	Moulding, Rear Bumper Extension, LH 1982-01 → 1985-08 ended	CT140,RT140,TT14# SED (DLX,STD,TAX)	—
52753-20021	Moulding, Rear Bumper Extension, LH 1986-01 → 1986-12 ended	CT141	—
52753-20021 note	Moulding, Rear Bumper Extension, LH 1986-01 → 1986-12 ended	ST141 SED S	—
52753-20021 note	Moulding, Rear Bumper Extension, LH 1986-08 → 1986-12 ended	RT142,ST141 SED (CS,CSI)	—
52753-91255 note	Moulding, Rear Bumper Extension, LH 1982-01 → 1985-08 ended	ST141,TT141 WG (CS,DLX)	—
52753-91255 note	Moulding, Rear Bumper Extension, LH 1985-08 → 1999-07 ended	ST141 WG GEN	—
52753-91256	Moulding, Rear Bumper Extension, LH 1982-01 → 1985-08 ended	CT140,RT140,TT14# WG	—
52753-91256	Moulding, Rear Bumper Extension, LH 1983-04 → 1985-08 ended	ST141 WG S	—
52753-91256	Moulding, Rear Bumper Extension, LH 1985-08 → 1986-12 ended	RT142,ST141 WG ARL	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
