Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

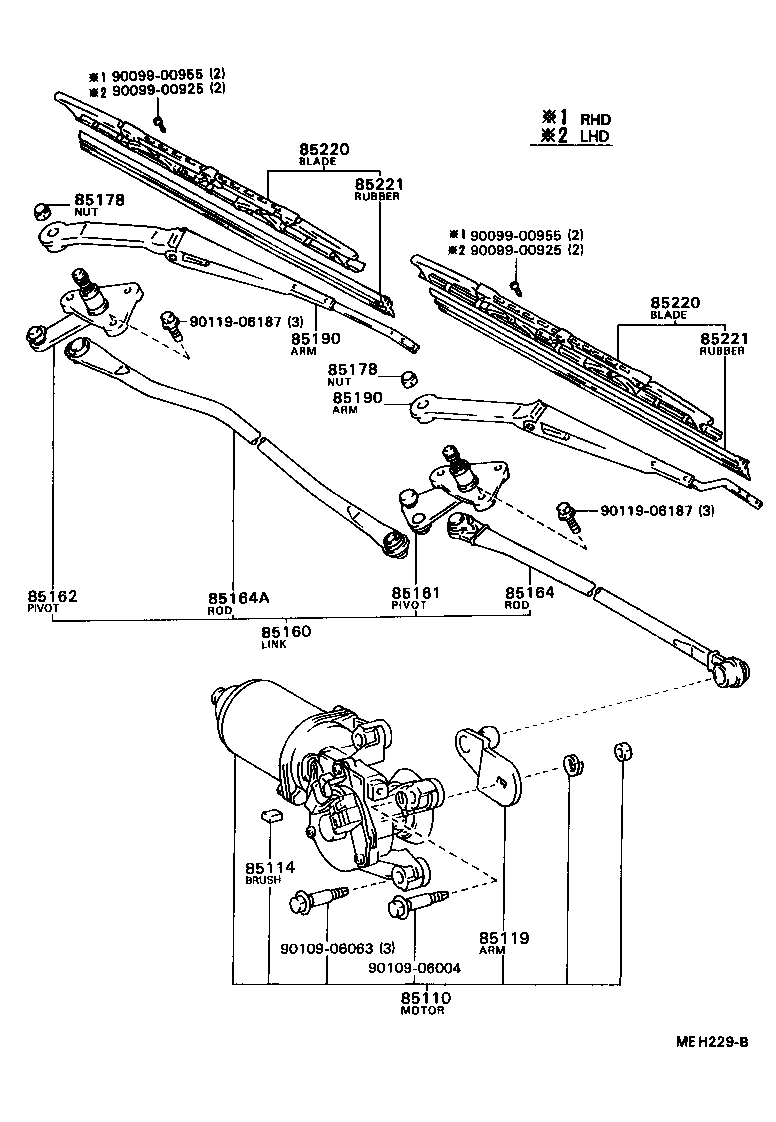

Exploded illustration MEH229B 9009900955 — not listed in this catalogue 9009900925 — not listed in this catalogue 85220 — BLADE ASSY, WINDSHIELD WIPER (18 parts) 85221 — BLADE, WINDSHIELD WIPER (5 parts) 85178 — NUT (FOR FRONT WIPER ARM SETTING) (3 parts) 9009900955 — not listed in this catalogue 9009900925 — not listed in this catalogue 85220 — BLADE ASSY, WINDSHIELD WIPER (18 parts) 9011906187 — not listed in this catalogue 85190 — ARM ASSY, WINDSHIELD WIPER (18 parts) 85221 — BLADE, WINDSHIELD WIPER (5 parts) 85178 — NUT (FOR FRONT WIPER ARM SETTING) (3 parts) 85190 — ARM ASSY, WINDSHIELD WIPER (18 parts) 9011906187 — not listed in this catalogue 85161 — PIVOT, WINDSHIELD WIPER LINK, NO.1 (3 parts) 85164 — ROD, WINDSHIELD WIPER LINK, NO.1 (3 parts) 85162 — PIVOT, WINDSHIELD WIPER LINK, NO.2 (3 parts) 85164A — ROD, WINDSHIELD WIPER LINK, NO.2 (3 parts) 85160 — LINK ASSY, WINDSHIELD WIPER (5 parts) 85114 — BRUSH, WINDSHIELD WIPER MOTOR (1 parts) 85119 — CRANK, WINDSHIELD WIPER MOTOR (1 parts) 9010906063 — not listed in this catalogue 9010906004 — not listed in this catalogue 85110 — MOTOR ASSY, WINDSHIELD WIPER (5 parts)
MEH229B · 16 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
85110 — Motor Assy, Windshield Wiper
85110-14170 Motor Assy, Windshield Wiper
1982-01 → 1983-10 ended
CT140,RT140,TT14# LHD —
85110-14190 Motor Assy, Windshield Wiper
1982-01 → 1986-12 ended
CT140,RT142,ST141,TT14# RHD —
85110-20200 Motor Assy, Windshield Wiper
1986-01 → 1986-12 ended
CT141 —
85110-20270 Motor Assy, Windshield Wiper
1986-12 → 1999-07 ended
CT141,YT140 RHD —
85110-20410 Motor Assy, Windshield Wiper
1986-12 → 1999-07 ended
CT141,YT140 LHD —
85114 — Brush, Windshield Wiper Motor
85114-30170 Brush, Windshield Wiper Motor
1986-01 → 1986-12 ended
CT141 —
85119 — Crank, Windshield Wiper Motor
85119-20200 Crank, Windshield Wiper Motor
1986-01 → 1986-12 ended
CT141 —
85160 — Link Assy, Windshield Wiper
85160-14220 Link Assy, Windshield Wiper
1982-01 → 1986-12 ended
CT140,RT142,ST141,TT14# RHD —
85160-14230 Link Assy, Windshield Wiper
1982-01 → 1999-07 ended
CT140,RT140,ST141,TT14# LHD —
85160-20211 Link Assy, Windshield Wiper
1986-01 → 1986-12 ended
CT141 —
85160-20270 Link Assy, Windshield Wiper
1986-12 → 1999-07 ended
CT141,YT140 RHD —
85160-20280 Link Assy, Windshield Wiper
1986-12 → 1999-07 ended
CT141,YT140 LHD —
85161 — Pivot, Windshield Wiper Link, NO.1
85161-14220 Pivot, Windshield Wiper Link, NO.1
1982-03 → 1982-08 ended
CT140,TT14# RHD —
85161-20212 Pivot, Windshield Wiper Link, NO.1
1986-01 → 1986-12 ended
CT141 —
85161-20270 Pivot, Windshield Wiper Link, NO.1
1986-12 → 1999-07 ended
CT141 5F —
85162 — Pivot, Windshield Wiper Link, NO.2
85162-14220 Pivot, Windshield Wiper Link, NO.2
1982-03 → 1982-08 ended
CT140,TT14# RHD —
85162-20211 Pivot, Windshield Wiper Link, NO.2
1986-01 → 1986-12 ended
CT141 —
85162-20270 Pivot, Windshield Wiper Link, NO.2
1986-12 → 1999-07 ended
CT141 5F —
85164 — Rod, Windshield Wiper Link, NO.1
85164-14220 Rod, Windshield Wiper Link, NO.1
1982-03 → 1982-08 ended
CT140,TT14# RHD —
85164-20211 Rod, Windshield Wiper Link, NO.1
1986-01 → 1986-12 ended
CT141 —
85164-20270 Rod, Windshield Wiper Link, NO.1
1986-12 → 1999-07 ended
CT141 5F —
85164A — Rod, Windshield Wiper Link, NO.2
85165-14220 Rod, Windshield Wiper Link, NO.2
1982-03 → 1982-08 ended
CT140,TT14# RHD —
85165-20211 Rod, Windshield Wiper Link, NO.2
1986-01 → 1986-12 ended
CT141 —
85165-20270 Rod, Windshield Wiper Link, NO.2
1986-12 → 1999-07 ended
CT141 5F —
85178 — Nut (FOR FRONT WIPER ARM SETTING)
90176-08029 Nut (FOR FRONT WIPER ARM SETTING)
1982-01 → 1985-08 ended
CT140,RT14#,ST141,TT14# —
90176-08033 Nut (FOR FRONT WIPER ARM SETTING)
1985-08 → 1986-12 ended
CT141,RT142,ST141 —
90176-08034 Nut (FOR FRONT WIPER ARM SETTING)
1986-12 → 1999-07 ended
CT141,YT140 —
85190 — Arm Assy, Windshield Wiper
85190-14340 note Arm Assy, Windshield Wiper
1982-01 → 1982-03 ended
CT140,TT14# RHD —
85190-14350 note Arm Assy, Windshield Wiper
1982-01 → 1982-11 ended
CT140,RT140,TT14# LHD —
85190-14510 note Arm Assy, Windshield Wiper
1982-11 → 1985-08 ended
CT140,RT140,TT14# LHD —
85190-20244 note Arm Assy, Windshield Wiper
1986-01 → 1986-12 ended
CT141 —
85190-20350 note Arm Assy, Windshield Wiper
1982-03 → 1986-12 ended
CT140,RT142,ST141,TT14# RHD —
85190-20550 note Arm Assy, Windshield Wiper
1986-12 → 1989-11 ended
CT141 5F —
85190-20551 note Arm Assy, Windshield Wiper
1989-11 → 1999-07 ended
CT141 5F —
85190-20560 note Arm Assy, Windshield Wiper
1986-12 → 1989-11 ended
CT141,YT140 LHD —
85190-20561 note Arm Assy, Windshield Wiper
1989-11 → 1999-07 ended
CT141,YT140 LHD —
85210-14060 note Arm Assy, Windshield Wiper
1982-01 → 1982-03 ended
CT140,TT14# RHD —
85210-14080 note Arm Assy, Windshield Wiper
1982-01 → 1982-11 ended
CT140,RT140,TT14# LHD —
85210-14230 note Arm Assy, Windshield Wiper
1982-11 → 1985-08 ended
CT140,RT140,TT14# LHD —
85210-20054 note Arm Assy, Windshield Wiper
1986-01 → 1986-12 ended
CT141 —
85210-20100 note Arm Assy, Windshield Wiper
1982-03 → 1986-12 ended
CT140,RT142,ST141,TT14# RHD —
85210-20180 note Arm Assy, Windshield Wiper
1986-12 → 1989-11 ended
CT141 5F —
85210-20181 note Arm Assy, Windshield Wiper
1989-11 → 1999-07 ended
CT141 5F —
85210-20190 note Arm Assy, Windshield Wiper
1986-12 → 1989-11 ended
CT141,YT140 LHD —
85210-20191 note Arm Assy, Windshield Wiper
1989-11 → 1999-07 ended
CT141,YT140 LHD —
85220 — Blade Assy, Windshield Wiper
85220-14310 note Blade Assy, Windshield Wiper
1982-01 → 1982-03 ended
CT140,TT14# RHD —
85220-14320 note Blade Assy, Windshield Wiper
1982-01 → 1982-11 ended
CT140,RT140,TT14# LHD —
85220-14360 note Blade Assy, Windshield Wiper
1982-01 → 1982-03 ended
CT140,TT14# RHD —
85220-14370 note Blade Assy, Windshield Wiper
1982-01 → 1982-11 ended
CT140,RT140,TT14# LHD —
85220-16100 note Blade Assy, Windshield Wiper
1982-11 → 1986-12 ended
CT140,RT142,ST141,TT14# RHD —
85220-16110 note Blade Assy, Windshield Wiper
1982-11 → 1986-12 ended
CT140,RT142,ST141,TT14# RHD —
85220-16140 note Blade Assy, Windshield Wiper
1982-11 → 1985-08 ended
CT140,RT140,TT14# LHD —
85220-16150 note Blade Assy, Windshield Wiper
1982-11 → 1985-08 ended
CT140,RT140,TT14# LHD —
85220-16450 note Blade Assy, Windshield Wiper
1986-01 → 1989-11 ended
CT141 5F —
85220-16451 note Blade Assy, Windshield Wiper
1989-11 → 1999-07 ended
CT141 5F —
85220-16460 note Blade Assy, Windshield Wiper
1986-01 → 1989-11 ended
CT141 5F —
85220-16461 note Blade Assy, Windshield Wiper
1989-11 → 1999-07 ended
CT141 5F —
85220-16470 note Blade Assy, Windshield Wiper
1986-12 → 1989-11 ended
CT141,YT140 LHD —
85220-16471 note Blade Assy, Windshield Wiper
1989-11 → 1999-07 ended
CT141,YT140 LHD —
85220-16680 note Blade Assy, Windshield Wiper
1986-12 → 1989-11 ended
CT141,YT140 LHD —
85220-16681 note Blade Assy, Windshield Wiper
1989-11 → 1999-07 ended
CT141,YT140 LHD —
85220-20260 note Blade Assy, Windshield Wiper
1982-03 → 1982-11 ended
CT140,TT14# RHD —
85220-30220 note Blade Assy, Windshield Wiper
1982-03 → 1982-11 ended
CT140,TT14# RHD —
85221 — Blade, Windshield Wiper
85221-12120 Blade, Windshield Wiper
1982-01 → 1983-08 ended
CT140,RT140,TT14# LHD —
85221-30080 Blade, Windshield Wiper
1982-01 → 1983-08 ended
CT140,ST141,TT14# RHD —
85221-30100 Blade, Windshield Wiper
1983-08 → 1985-08 ended
CT140,RT140,TT14# LHD —
85221-30100 Blade, Windshield Wiper
1986-12 → 1999-07 ended
CT141,YT140 LHD —
85221-30120 Blade, Windshield Wiper
1983-08 → 1999-07 ended
CT14#,RT142,ST141,TT14#,YT140 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
