Toyota Corona FR
1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe
Discontinued model
Data version 2000-01

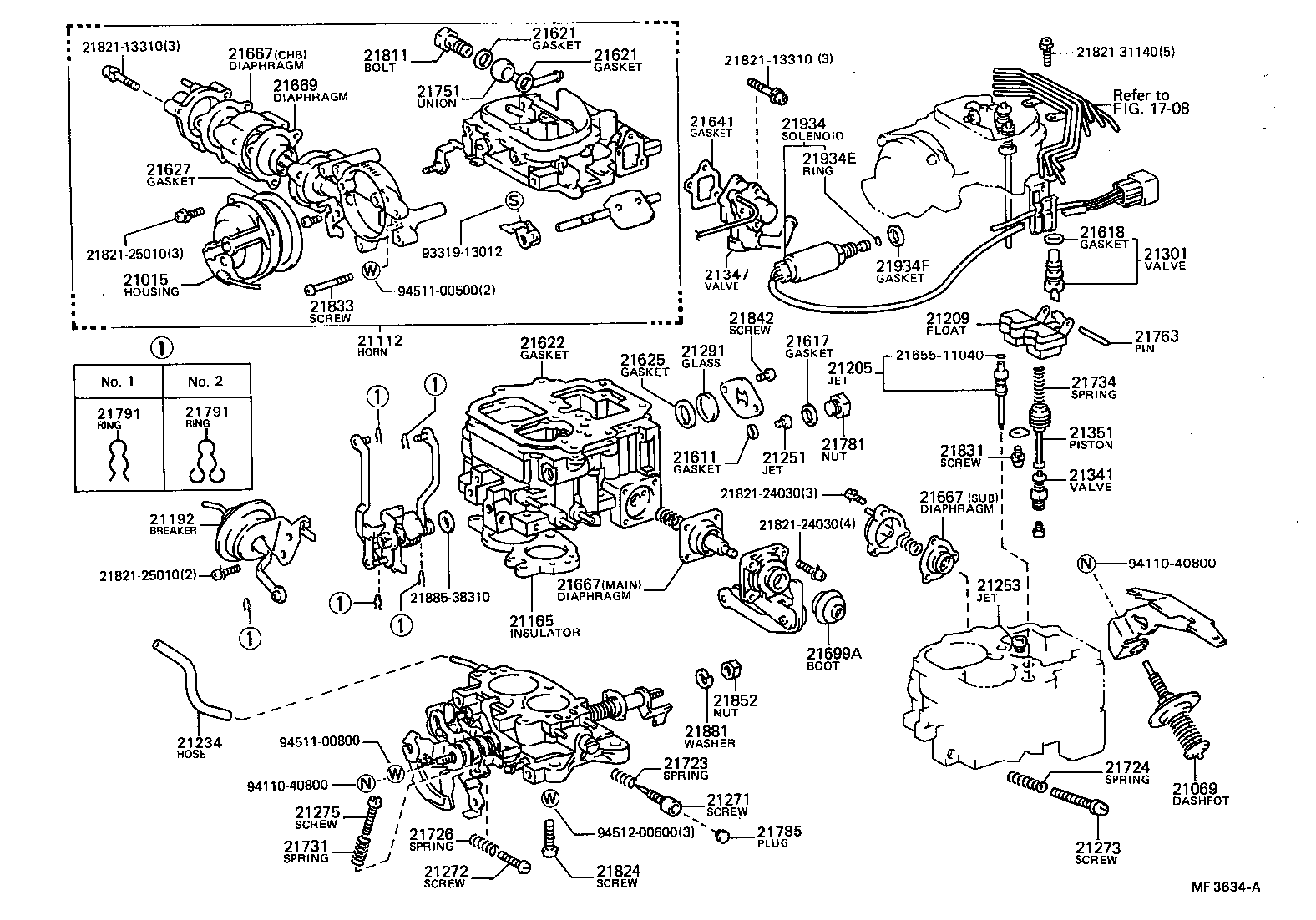

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 21015 — Housing Sub-assy, Coil | ||||
| 21015-2A051 |
Housing Sub-assy, Coil
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21015-63010 |
Housing Sub-assy, Coil
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21015-72150 |
Housing Sub-assy, Coil
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21069 — Dash Pot Sub-assy | ||||
| 21191-63010 |
Dash Pot Sub-assy
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21112 — Horn, Air | ||||
| 21112-2A051 |
Horn, Air
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21112-31410 |
Horn, Air
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 21112-72150 |
Horn, Air
1986-12 → 1988-08
ended
|
2Y YT140 | — | |
| 21112-72151 |
Horn, Air
1988-08 → 1989-10
ended
|
2Y YT140 | — | |
| 21112-72152 |
Horn, Air
1989-10 → 1999-07
ended
|
2Y YT140 | — | |
| 21112-74010 |
Horn, Air
1983-04 → 1985-08
ended
|
2SC ST141 | — | |
| 21112-74010 note |
Horn, Air
1985-10 → 1985-12
ended
|
2SC ST141 WG 5F | — | |
| 21112-74030 |
Horn, Air
1985-08 → 1986-12
ended
|
2S ST141 | — | |
| 21112-74030 note |
Horn, Air
1985-12 → 1986-12
ended
|
2SC ST141 WG 5F | — | |
| 21112-74050 |
Horn, Air
1985-08 → 1986-12
ended
|
2SC ST141 | — | |
| 21165 — Insulator | ||||
| 21165-63010 |
Insulator
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21165-72160 |
Insulator
1986-12 → 1989-10
ended
|
2Y YT140 | — | |
| 21165-72200 |
Insulator
1989-10 → 1999-07
ended
|
2Y YT140 | — | |
| 21192 — Breaker | ||||
| 21192-26400 |
Breaker
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21192-63060 |
Breaker
1983-04 → 1985-08
ended
|
2SC ST141 | — | |
| 21192-63060 |
Breaker
1985-08 → 1986-12
ended
|
2S ST141 | — | |
| 21192-63060 note |
Breaker
1985-10 → 1986-12
ended
|
2SC ST141 WG 5F | — | |
| 21192-63070 |
Breaker
1985-08 → 1986-12
ended
|
2SC ST141 | — | |
| 21205 — Jet Sub-assy, Slow | ||||
| 21205-14010 |
Jet Sub-assy, Slow
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21205-15010 |
Jet Sub-assy, Slow
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 21205-72160 |
Jet Sub-assy, Slow
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21205-74010 |
Jet Sub-assy, Slow
1983-04 → 1985-08
ended
|
2SC ST141 | — | |
| 21205-74010 |
Jet Sub-assy, Slow
1985-08 → 1986-12
ended
|
2S ST141 | — | |
| 21205-74010 note |
Jet Sub-assy, Slow
1985-10 → 1986-12
ended
|
2SC ST141 WG 5F | — | |
| 21205-74050 |
Jet Sub-assy, Slow
1985-08 → 1986-12
ended
|
2SC ST141 | — | |
| 21209 — Float Sub-assy | ||||
| 21209-15020 |
Float Sub-assy
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21209-33080 |
Float Sub-assy
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 21209-37041 |
Float Sub-assy
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21209-72160 |
Float Sub-assy
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21234 — Pipe OR Hose | ||||
| 21234-38011 |
Pipe OR Hose
1985-08 → 1986-12
ended
|
2S ST141 | — | |
| 21234-38011 note |
Pipe OR Hose
1985-12 → 1986-12
ended
|
2SC ST141 WG 5F | — | |
| 95411-19930 note |
Pipe OR Hose
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 95411-19930 note |
Pipe OR Hose
1983-04 → 1986-12
ended
|
2SC ST141 | — | |
| 21251 — Jet, 1ST Main | ||||
| 21251-74010 note |
Jet, 1ST Main
1984-05 → 1985-08
ended
|
2SC ST141 | — | |
| 21251-74010 note |
Jet, 1ST Main
1985-08 → 1986-12
ended
|
2S ST141 | — | |
| 21251-74010 note |
Jet, 1ST Main
1985-10 → 1986-12
ended
|
2SC ST141 WG 5F | — | |
| 90999-41099 note |
Jet, 1ST Main
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 90999-41101 note |
Jet, 1ST Main
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 90999-41109 |
Jet, 1ST Main
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 90999-41117 note |
Jet, 1ST Main
1985-08 → 1986-12
ended
|
2SC ST141 | — | |
| 90999-41118 note |
Jet, 1ST Main
1983-04 → 1984-05
ended
|
2SC ST141 | — | |
| 21253 — Jet, 2ND Main | ||||
| 21253-37040 |
Jet, 2ND Main
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21253-72160 |
Jet, 2ND Main
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 90999-42156 note |
Jet, 2ND Main
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 90999-42162 note |
Jet, 2ND Main
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 21271 — Screw, Idle Adjusting | ||||
| 21271-15120 |
Screw, Idle Adjusting
1982-01 → 1982-06
ended
|
2T,3T TT14# | — | |
| 21271-15230 |
Screw, Idle Adjusting
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21271-25201 |
Screw, Idle Adjusting
1982-06 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21271-35010 |
Screw, Idle Adjusting
1985-08 → 1986-12
ended
|
2S ST141 | — | |
| 21271-35010 note |
Screw, Idle Adjusting
1985-12 → 1986-12
ended
|
2SC ST141 WG 5F | — | |
| 21271-38010 |
Screw, Idle Adjusting
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 21271-63070 |
Screw, Idle Adjusting
1983-04 → 1985-08
ended
|
2SC ST141 | — | |
| 21271-63070 note |
Screw, Idle Adjusting
1985-10 → 1985-12
ended
|
2SC ST141 WG 5F | — | |
| 21271-74050 |
Screw, Idle Adjusting
1985-08 → 1986-12
ended
|
2SC ST141 | — | |
| 21272 — Screw, 1ST Idle Adjusting | ||||
| 21272-71010 |
Screw, 1ST Idle Adjusting
1984-01 → 1986-12
ended
|
2S# ST141 | — | |
| 21272-71010 |
Screw, 1ST Idle Adjusting
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21273-30052 |
Screw, 1ST Idle Adjusting
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 21828-25180 |
Screw, 1ST Idle Adjusting
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21844-33010 |
Screw, 1ST Idle Adjusting
1983-04 → 1984-01
ended
|
2SC ST141 | — | |
| 21273 — Screw, Throttle Adjusting | ||||
| 21273-35210 |
Screw, Throttle Adjusting
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21273-72160 |
Screw, Throttle Adjusting
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21273-72290 |
Screw, Throttle Adjusting
1988-08 → 1999-07
ended
|
2Y YT140 | — | |
| 21844-33010 |
Screw, Throttle Adjusting
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21844-33010 |
Screw, Throttle Adjusting
1982-01 → 1985-08
ended
|
12RM RT140 | — | |
| 21275 — Screw, Adjusting | ||||
| 21273-38010 |
Screw, Adjusting
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21844-33010 |
Screw, Adjusting
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21291 — Glass, Level Gage | ||||
| 21291-34320 |
Glass, Level Gage
1982-06 → 1986-12
ended
|
2S# ST141 | — | |
| 21291-34320 |
Glass, Level Gage
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21291-60200 |
Glass, Level Gage
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21301 — Valve Sub-assy, Needle | ||||
| 21301-14010 |
Valve Sub-assy, Needle
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 21301-15160 |
Valve Sub-assy, Needle
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21301-35010 |
Valve Sub-assy, Needle
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21301-35010 |
Valve Sub-assy, Needle
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21341 — Valve, Power | ||||
| 21304-30010 |
Valve, Power
1982-01 → 1999-07
ended
|
12RM RT140 | — | |
| 21304-30010 |
Valve, Power
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21304-30010 |
Valve, Power
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21304-30010 |
Valve, Power
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21347 — Valve, Solenoid | ||||
| 21347-72031 |
Valve, Solenoid
1986-12 → 1989-10
ended
|
2Y YT140 | — | |
| 21347-73390 |
Valve, Solenoid
1989-10 → 1999-07
ended
|
2Y YT140 | — | |
| 21347-74050 |
Valve, Solenoid
1985-08 → 1986-12
ended
|
2SC ST141 | — | |
| 21351 — Piston, Power | ||||
| 21351-33080 |
Piston, Power
1982-01 → 1985-08
ended
|
12RM RT140 | — | |
| 21351-33080 |
Piston, Power
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21351-37040 |
Piston, Power
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21351-37040 |
Piston, Power
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21611 — Gasket, Main Jet | ||||
| 21611-22010 |
Gasket, Main Jet
1982-01 → 1999-07
ended
|
12RM RT140 | — | |
| 21611-22010 |
Gasket, Main Jet
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21611-22010 |
Gasket, Main Jet
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21611-22010 |
Gasket, Main Jet
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21617 — Gasket, Main Passage Plug | ||||
| 21617-30010 |
Gasket, Main Passage Plug
1982-01 → 1999-07
ended
|
12RM RT140 | — | |
| 21617-30010 |
Gasket, Main Passage Plug
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21617-30010 |
Gasket, Main Passage Plug
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21617-30010 |
Gasket, Main Passage Plug
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21618 — Gasket, Needle Valve Seat | ||||
| 21618-14010 |
Gasket, Needle Valve Seat
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21618-14010 |
Gasket, Needle Valve Seat
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21618-14010 |
Gasket, Needle Valve Seat
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21618-14010 |
Gasket, Needle Valve Seat
1982-01 → 1999-07
ended
|
12RM RT140 | — | |
| 21621 — Gasket, Union Nipple | ||||
| 21633-24030 |
Gasket, Union Nipple
1982-01 → 1999-07
ended
|
12RM RT140 | — | |
| 21633-24030 |
Gasket, Union Nipple
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21633-24030 |
Gasket, Union Nipple
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21633-24030 |
Gasket, Union Nipple
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21622 — Gasket, Air Horn | ||||
| 21622-26510 |
Gasket, Air Horn
1982-01 → 1985-08
ended
|
12RM RT140 | — | |
| 21622-26510 |
Gasket, Air Horn
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21622-63010 |
Gasket, Air Horn
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21622-72160 |
Gasket, Air Horn
1986-12 → 1989-10
ended
|
2Y YT140 | — | |
| 21622-73330 |
Gasket, Air Horn
1989-10 → 1999-07
ended
|
2Y YT140 | — | |
| 21625 — Gasket, Level Gage | ||||
| 21655-60200 |
Gasket, Level Gage
1982-01 → 1999-07
ended
|
12RM RT140 | — | |
| 21655-60200 |
Gasket, Level Gage
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21655-60200 |
Gasket, Level Gage
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21655-60200 |
Gasket, Level Gage
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21627 — Gasket, Coil Housing | ||||
| 21627-28150 |
Gasket, Coil Housing
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21627-28150 |
Gasket, Coil Housing
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21627-34080 |
Gasket, Coil Housing
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21641 — Gasket(FOR THERMOSTATIC VALVE COVER) | ||||
| 21641-23012 |
Gasket(FOR THERMOSTATIC VALVE COVER)
1982-01 → 1985-08
ended
|
12RM RT140 | — | |
| 21641-23012 |
Gasket(FOR THERMOSTATIC VALVE COVER)
1982-01 → 1985-08
ended
|
2T TT140;3T TT141 RHD;3T +6 | — | |
| 21641-35010 |
Gasket(FOR THERMOSTATIC VALVE COVER)
1985-08 → 1986-12
ended
|
2SC ST141 | — | |
| 21667 — Diaphragm | ||||
| 21667-38310 |
Diaphragm
1982-01 → 1985-05
ended
|
2T,3T TT14# | — | |
| 21667-38310 note |
Diaphragm
1983-04 → 1985-05
ended
|
2SC ST141 | — | |
| 21667-63010 note |
Diaphragm
1983-04 → 1986-12
ended
|
2SC ST141 | — | |
| 21667-63020 note |
Diaphragm
1983-04 → 1985-05
ended
|
2SC ST141 | — | |
| 21667-72050 |
Diaphragm
1986-12 → 1989-10
ended
|
2Y YT140 | — | |
| 21667-72080 note |
Diaphragm
1985-05 → 1986-12
ended
|
2S# ST141 | — | |
| 21667-72080 |
Diaphragm
1985-05 → 1985-08
ended
|
3T TT141 | — | |
| 21667-73330 |
Diaphragm
1989-10 → 1999-07
ended
|
2Y YT140 | — | |
| 21667-74030 note |
Diaphragm
1985-05 → 1986-12
ended
|
2S# ST141 | — | |
| 21669 — Diaphragm | ||||
| 21669-35510 |
Diaphragm
1989-10 → 1999-07
ended
|
2Y YT140 | — | |
| 21669-37040 |
Diaphragm
1986-12 → 1989-10
ended
|
2Y YT140 | — | |
| 21669-63010 |
Diaphragm
1983-04 → 1986-12
ended
|
2SC ST141 | — | |
| 21669-74030 |
Diaphragm
1985-08 → 1986-12
ended
|
2S ST141 | — | |
| 21669-74030 note |
Diaphragm
1985-12 → 1986-12
ended
|
2SC ST141 WG 5F | — | |
| 21699A — Boot(FOR ACCELERATION PUMP) | ||||
| 21699-37040 |
Boot(FOR ACCELERATION PUMP)
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21699-37040 |
Boot(FOR ACCELERATION PUMP)
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21723 — Spring, Idle Adjusting | ||||
| 21723-21030 |
Spring, Idle Adjusting
1982-01 → 1985-08
ended
|
12RM RT140 | — | |
| 21723-21030 |
Spring, Idle Adjusting
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21723-21030 |
Spring, Idle Adjusting
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21723-37040 |
Spring, Idle Adjusting
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21724 — Spring, Throttle Adjusting | ||||
| 21723-21030 |
Spring, Throttle Adjusting
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21723-38330 |
Spring, Throttle Adjusting
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21723-38330 |
Spring, Throttle Adjusting
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21726-40010 |
Spring, Throttle Adjusting
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 21726 — Spring, 1ST Idle Adjusting | ||||
| 21723-21030 |
Spring, 1ST Idle Adjusting
1982-01 → 1985-08
ended
|
12RM RT140 | — | |
| 21723-21030 |
Spring, 1ST Idle Adjusting
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21726-38310 |
Spring, 1ST Idle Adjusting
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21726-38310 |
Spring, 1ST Idle Adjusting
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21731 — Spring, Dash Pot OR Positioner Adjusting | ||||
| 21723-21030 |
Spring, Dash Pot OR Positioner Adjusting
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21726-38310 |
Spring, Dash Pot OR Positioner Adjusting
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21734 — Spring, Power Piston | ||||
| 21734-24010 |
Spring, Power Piston
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21734-33080 |
Spring, Power Piston
1983-04 → 1986-12
ended
|
2S# ST141 MTM | — | |
| 21734-33080 |
Spring, Power Piston
1985-08 → 1986-12
ended
|
2SC ST141 ATM | — | |
| 21734-33081 |
Spring, Power Piston
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 21734-37040 |
Spring, Power Piston
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21734-74020 |
Spring, Power Piston
1985-08 → 1999-07
ended
|
2S ST141 4FC | — | |
| 21734-74020 |
Spring, Power Piston
1983-04 → 1985-08
ended
|
2SC ST141 ATM | — | |
| 21751 — Union, Nipple | ||||
| 21751-24290 |
Union, Nipple
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 21894-26350 |
Union, Nipple
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21894-63010 |
Union, Nipple
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21894-71010 |
Union, Nipple
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21763 — Pin, Float Lever | ||||
| 21763-26350 |
Pin, Float Lever
1982-01 → 1985-08
ended
|
12RM RT140 | — | |
| 21763-26350 |
Pin, Float Lever
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21763-34320 |
Pin, Float Lever
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21763-34320 |
Pin, Float Lever
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21781 — Plug, Main Passage(FOR CARBURETOR JET) | ||||
| 21781-15230 |
Plug, Main Passage(FOR CARBURETOR JET)
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21781-15230 |
Plug, Main Passage(FOR CARBURETOR JET)
1983-04 → 1983-12
ended
|
12RM RT140 | — | |
| 21781-15230 |
Plug, Main Passage(FOR CARBURETOR JET)
1982-06 → 1999-07
ended
|
2S# ST141 | — | |
| 21781-15230 |
Plug, Main Passage(FOR CARBURETOR JET)
1982-06 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21781-30020 |
Plug, Main Passage(FOR CARBURETOR JET)
1982-06 → 1983-04
ended
|
12RM RT140 | — | |
| 21781-30020 |
Plug, Main Passage(FOR CARBURETOR JET)
1982-01 → 1982-06
ended
|
2T,3T TT14# | — | |
| 21785 — Plug, Carburetor Fuel Inlet Strainer | ||||
| 21785-74050 |
Plug, Carburetor Fuel Inlet Strainer
1985-08 → 1986-12
ended
|
2SC ST141 | — | |
| 21791 — Ring, Snap, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 note |
Ring, Snap, NO.1(FOR CARBURETOR LINK)
1985-08 → 1986-12
ended
|
2S# ST141 | — | |
| 21791-60010 |
Ring, Snap, NO.1(FOR CARBURETOR LINK)
1982-01 → 1985-08
ended
|
12RM RT140 | — | |
| 21791-60010 |
Ring, Snap, NO.1(FOR CARBURETOR LINK)
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21791-60010 |
Ring, Snap, NO.1(FOR CARBURETOR LINK)
1982-01 → 1985-08
ended
|
2SC ST141 | — | |
| 21791-60010 note |
Ring, Snap, NO.1(FOR CARBURETOR LINK)
1985-08 → 1986-12
ended
|
2S# ST141 | — | |
| 21791-60010 |
Ring, Snap, NO.1(FOR CARBURETOR LINK)
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21811 — Bolt, Union Nipple | ||||
| 21811-11060 |
Bolt, Union Nipple
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21811-11060 |
Bolt, Union Nipple
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21811-11060 |
Bolt, Union Nipple
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21824 — Screw, Set(FOR 1ST IDLE CAM FOLLOWER SET) | ||||
| 21844-26400 |
Screw, Set(FOR 1ST IDLE CAM FOLLOWER SET)
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 93110-16035 |
Screw, Set(FOR 1ST IDLE CAM FOLLOWER SET)
1983-04 → 1986-12
ended
|
2S# ST141 | — | |
| 21831 — Screw, Power Piston Stop | ||||
| 21821-15060 |
Screw, Power Piston Stop
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21821-15060 |
Screw, Power Piston Stop
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21821-15060 |
Screw, Power Piston Stop
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21842-33010 |
Screw, Power Piston Stop
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 21833 — Screw, Set, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21824-31400 |
Screw, Set, NO.1(FOR CARBURETOR BODY SET)
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 21833-33010 |
Screw, Set, NO.1(FOR CARBURETOR BODY SET)
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21833-33010 |
Screw, Set, NO.1(FOR CARBURETOR BODY SET)
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21833-33010 |
Screw, Set, NO.1(FOR CARBURETOR BODY SET)
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21842 — Screw, Set(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
Screw, Set(FOR CARBURETOR LEVEL GAGE CLAMP SET)
1982-01 → 1999-07
ended
|
12RM RT140 | — | |
| 21842-33010 |
Screw, Set(FOR CARBURETOR LEVEL GAGE CLAMP SET)
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21842-33010 |
Screw, Set(FOR CARBURETOR LEVEL GAGE CLAMP SET)
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21842-33010 |
Screw, Set(FOR CARBURETOR LEVEL GAGE CLAMP SET)
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21852 — Nut, Throttle Lever Set | ||||
| 21852-30010 |
Nut, Throttle Lever Set
1982-01 → 1999-07
ended
|
12RM RT140 | — | |
| 21852-30010 |
Nut, Throttle Lever Set
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21852-30010 |
Nut, Throttle Lever Set
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21852-30010 |
Nut, Throttle Lever Set
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21881 — Washer, Lock(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
Washer, Lock(FOR THROTTLE SHAFT)
1982-01 → 1999-07
ended
|
12RM RT140 | — | |
| 21881-60010 |
Washer, Lock(FOR THROTTLE SHAFT)
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21881-60010 |
Washer, Lock(FOR THROTTLE SHAFT)
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21881-60010 |
Washer, Lock(FOR THROTTLE SHAFT)
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21934 — Solenoid, Throttle Valve | ||||
| 21062-25180 |
Solenoid, Throttle Valve
1982-01 → 1985-08
ended
|
2T,3T TT14# | — | |
| 21062-38011 |
Solenoid, Throttle Valve
1982-06 → 1983-12
ended
|
12RM RT140 | — | |
| 21062-72070 |
Solenoid, Throttle Valve
1993-02 → 1999-07
ended
|
2Y YT140 | — | |
| 21062-72150 |
Solenoid, Throttle Valve
1986-12 → 1988-08
ended
|
2Y YT140 | — | |
| 21062-73250 |
Solenoid, Throttle Valve
1988-08 → 1993-02
ended
|
2Y YT140 | — | |
| 21062-74010 |
Solenoid, Throttle Valve
1983-04 → 1985-08
ended
|
2SC ST141 | — | |
| 21062-74010 |
Solenoid, Throttle Valve
1985-08 → 1986-12
ended
|
2S ST141 | — | |
| 21062-74011 note |
Solenoid, Throttle Valve
1985-10 → 1986-12
ended
|
2SC ST141 WG 5F | — | |
| 21062-74050 |
Solenoid, Throttle Valve
1985-08 → 1986-12
ended
|
2SC ST141 | — | |
| 21934E — Ring, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
Ring, O(FOR SOLENOID VALVE)
1982-01 → 1999-07
ended
|
12RM RT140 | — | |
| 21655-44101 |
Ring, O(FOR SOLENOID VALVE)
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21655-44101 |
Ring, O(FOR SOLENOID VALVE)
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21655-44101 |
Ring, O(FOR SOLENOID VALVE)
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
| 21934F — Gasket | ||||
| 21617-10010 |
Gasket
1982-01 → 1999-07
ended
|
12RM RT140 | — | |
| 21617-10010 |
Gasket
1982-01 → 1999-07
ended
|
2S# ST141 | — | |
| 21617-10010 |
Gasket
1982-01 → 1999-07
ended
|
2T,3T TT14# | — | |
| 21617-10010 |
Gasket
1986-12 → 1999-07
ended
|
2Y YT140 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
