Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

59 part groups · 8 illustrations

Illustrations

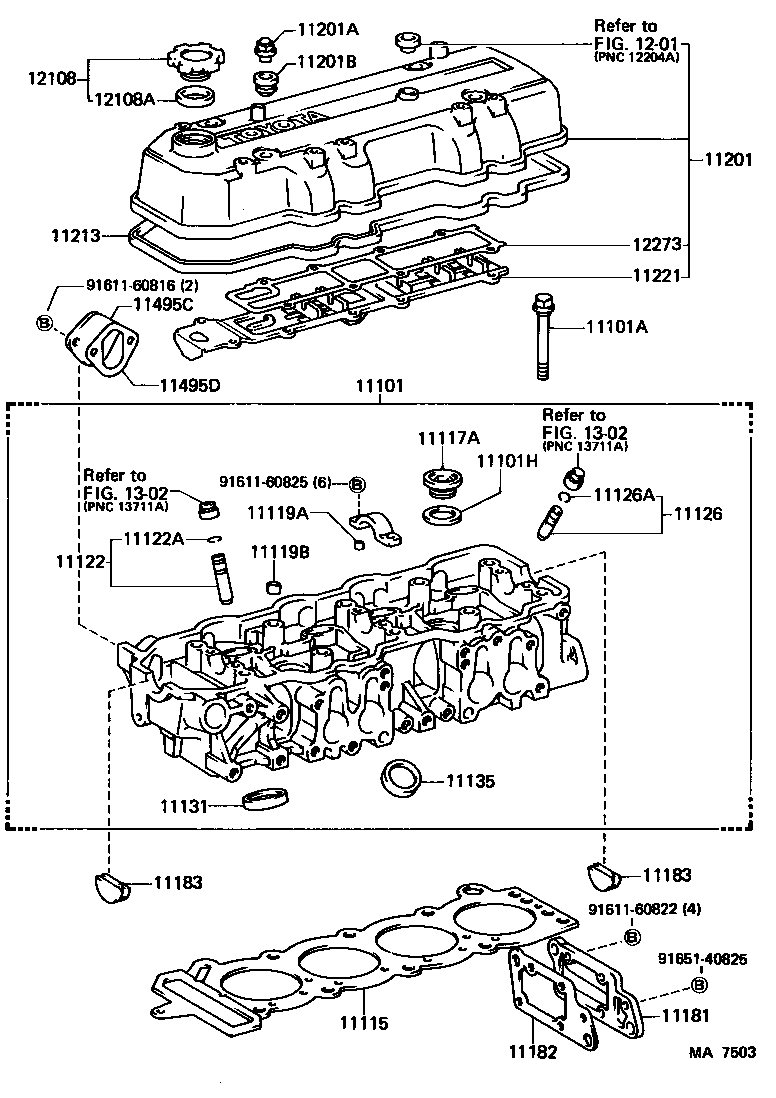

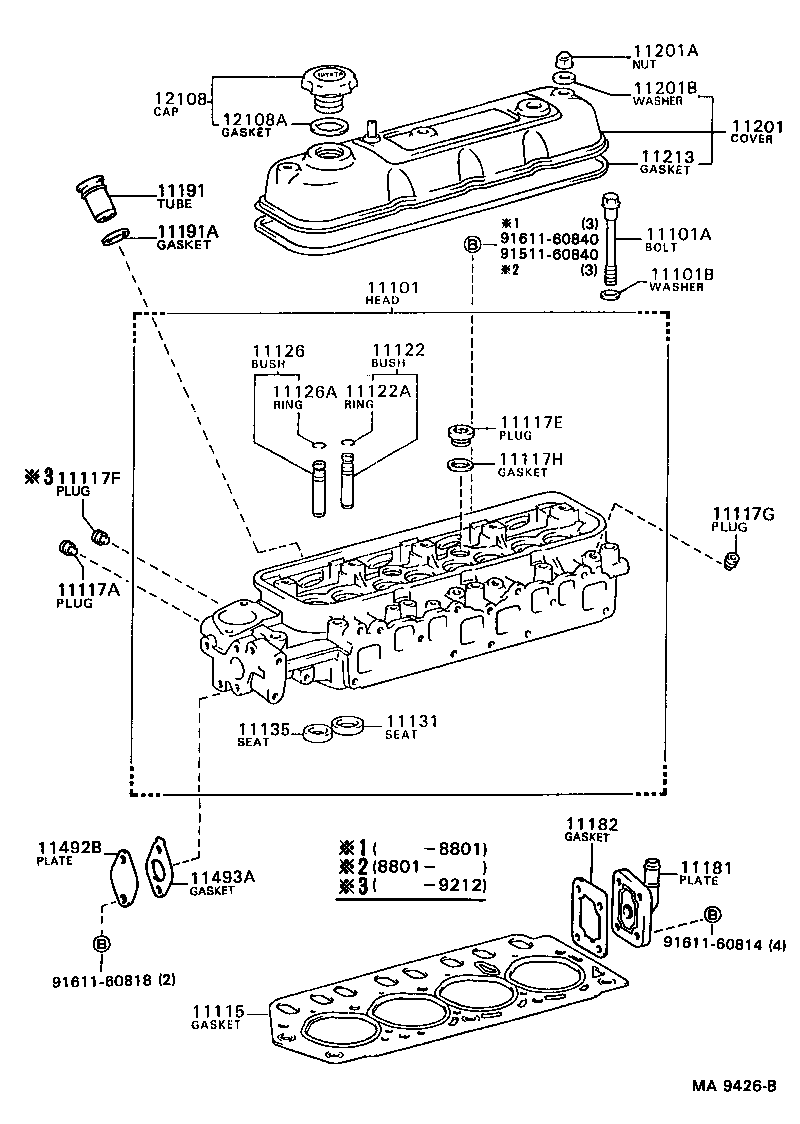

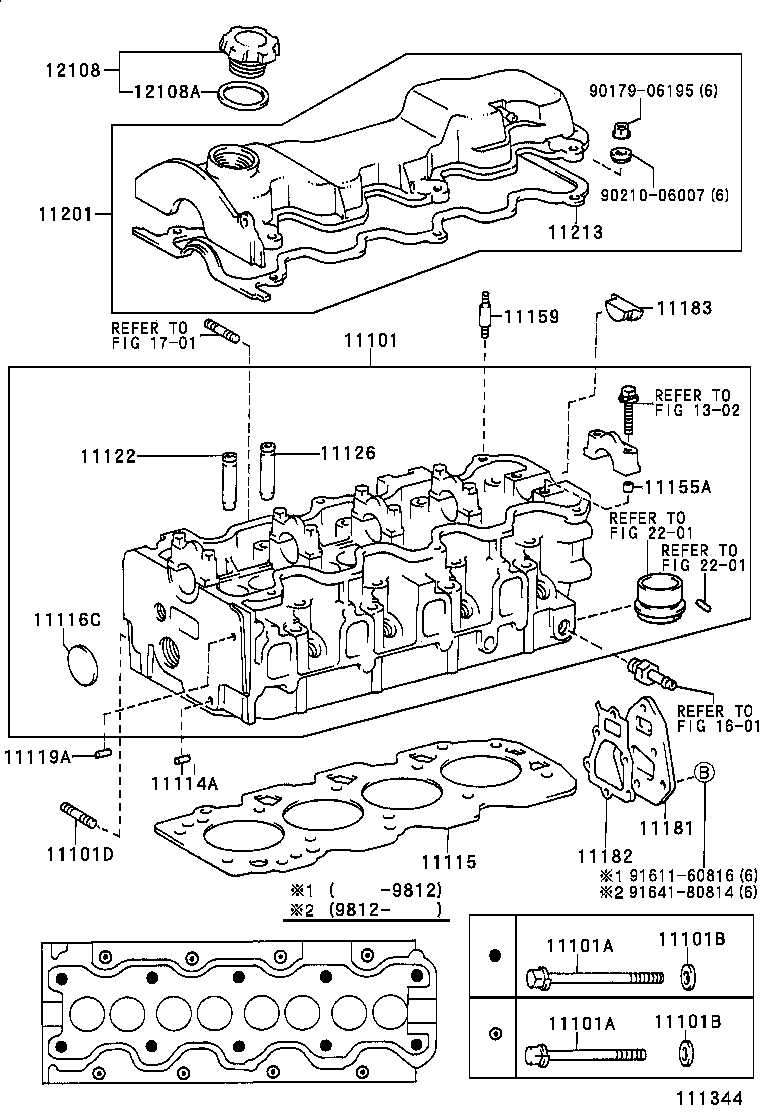

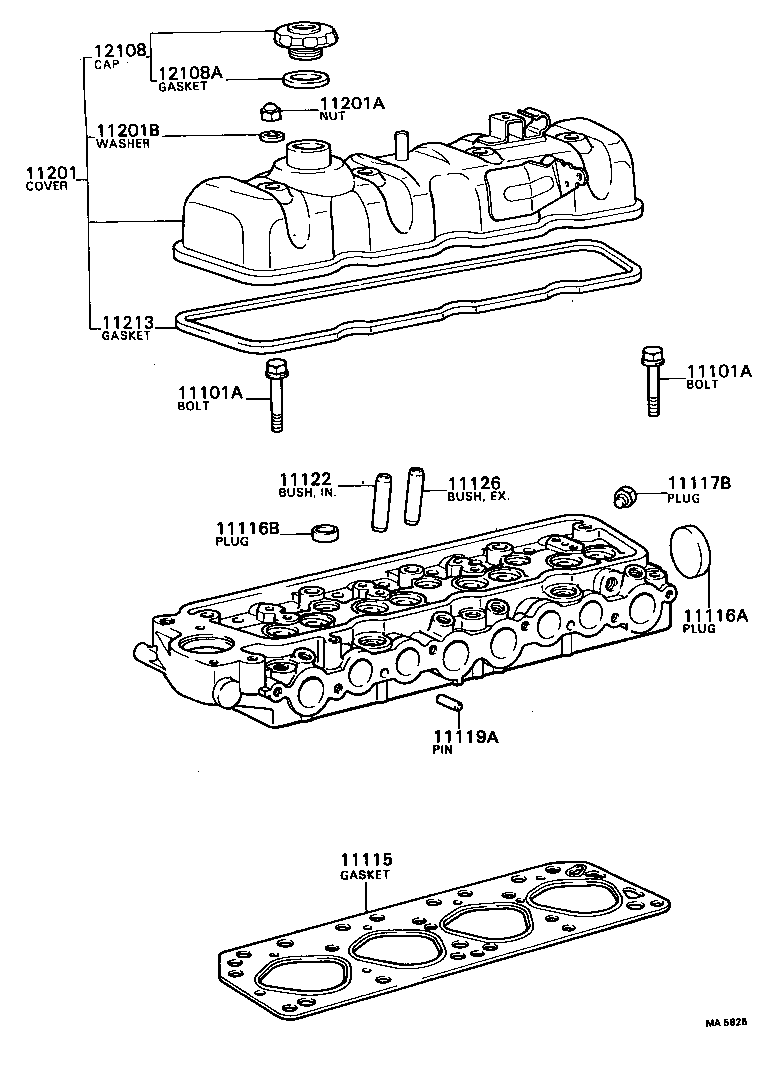

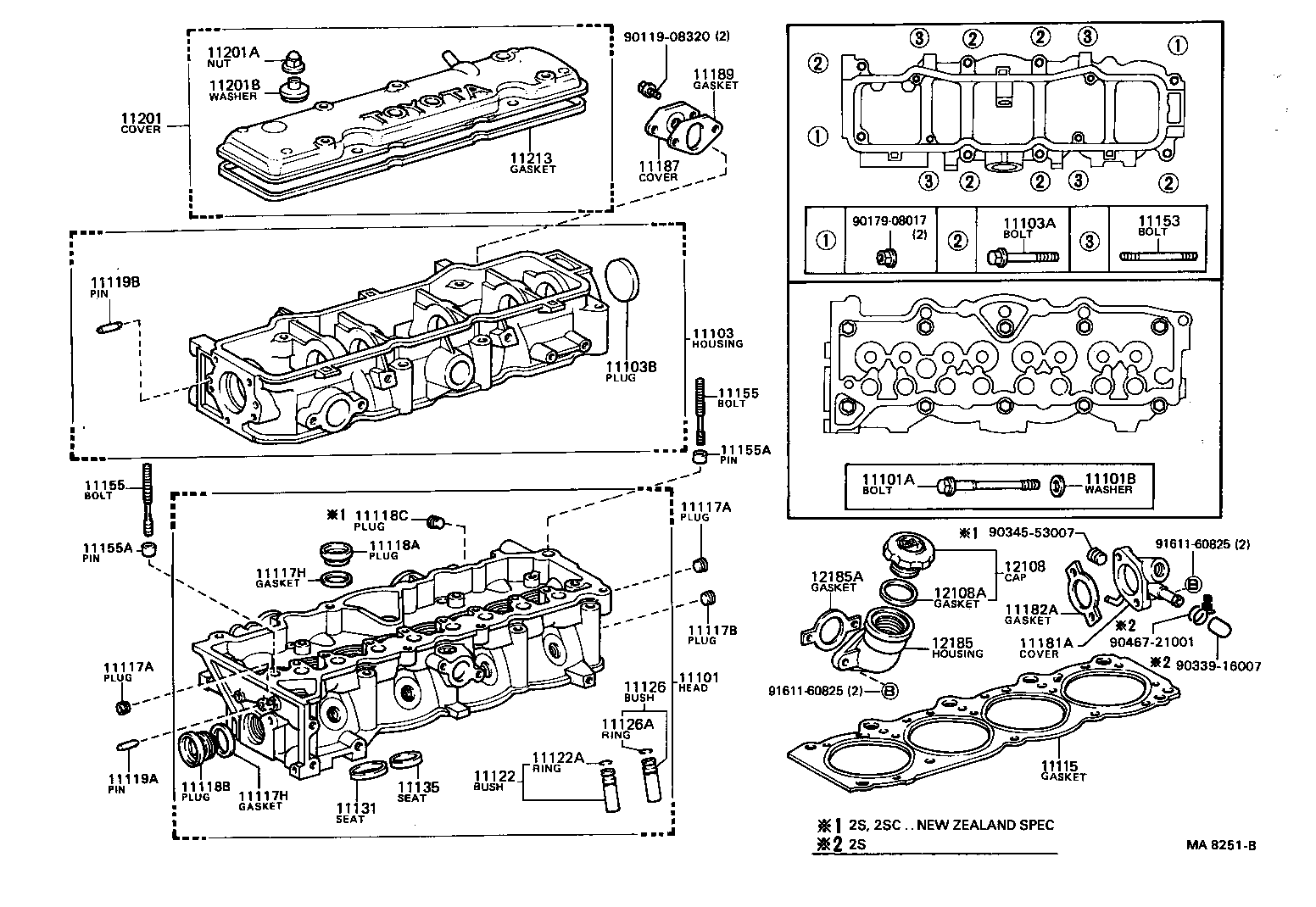

Figure MA8930B MA8930B 1982-01 → 1983-12 Figure MA8930B MA8930B 1986-01 → 1997-05 Figure 111344 111344 1997-05 → — Figure MA5825 MA5825 1982-06 → 1983-12 Figure MA7503 MA7503 1984-08 → 1986-12 Figure MA8251B MA8251B 1983-04 → 1986-12 Figure MA4728C MA4728C 1982-01 → 1985-08 Figure MA9426B MA9426B 1986-12 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101D Bolt, Stud(FOR WATER OUTLET)
11101H Gasket(FOR CYLINDER HEAD SCREW PLUG)
11103 Housing Sub-assy, Camshaft
11103A Bolt(FOR CAMSHAFT HOUSING SET)
11103B Plug, Tight, NO.1(FOR CAM HOUSING)
11114A Pin, Straight
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117G Plug, W/Head Straight Screw, NO.3
11117H Gasket(FOR WATER HOLE)
11118A Plug, Straight, NO.1
11118B Plug, Straight, NO.2
11118C Plug, Straight, NO.3
11119A Pin, Straight, NO.1
11119B Pin, Straight, NO.2
11122 Bush, Intake Valve Guide
11122A Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
11126 Bush, Exhaust Valve Guide
11126A Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11153 Bolt, Stud(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER)
11155 Bolt, Stud(FOR HEAD TO CAMSHAFT HOUSING)
11155A Pin, Ring W/Head
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159 Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
11181 Plate, Cylinder Head, Rear
11181A Cover, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11182A Gasket, Cylinder Head Rear Cover
11183 Plug, Semicircular
11187 Cover, Camshaft Housing, Rear
11189 Gasket, Camshaft Housing Rear Cover
11191 Tube, Spark Plug
11191A Gasket(FOR SPARK PLUG TUBE)
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
11221 Separator, Cylinder Head Cover, NO.1
11492B Plate, Water Seal
11493A Gasket, Water Seal Plate
11495C Plug, Plate(FOR CYLINDER HEAD)
11495D Gasket(FOR CYLINDER HEAD)
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12185 Housing, Oil Filler Cap
12185A Gasket, Oil Filler Cap Housing
12273 Gasket, Oil Separator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
