Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

48 part groups · 7 illustrations

Illustrations

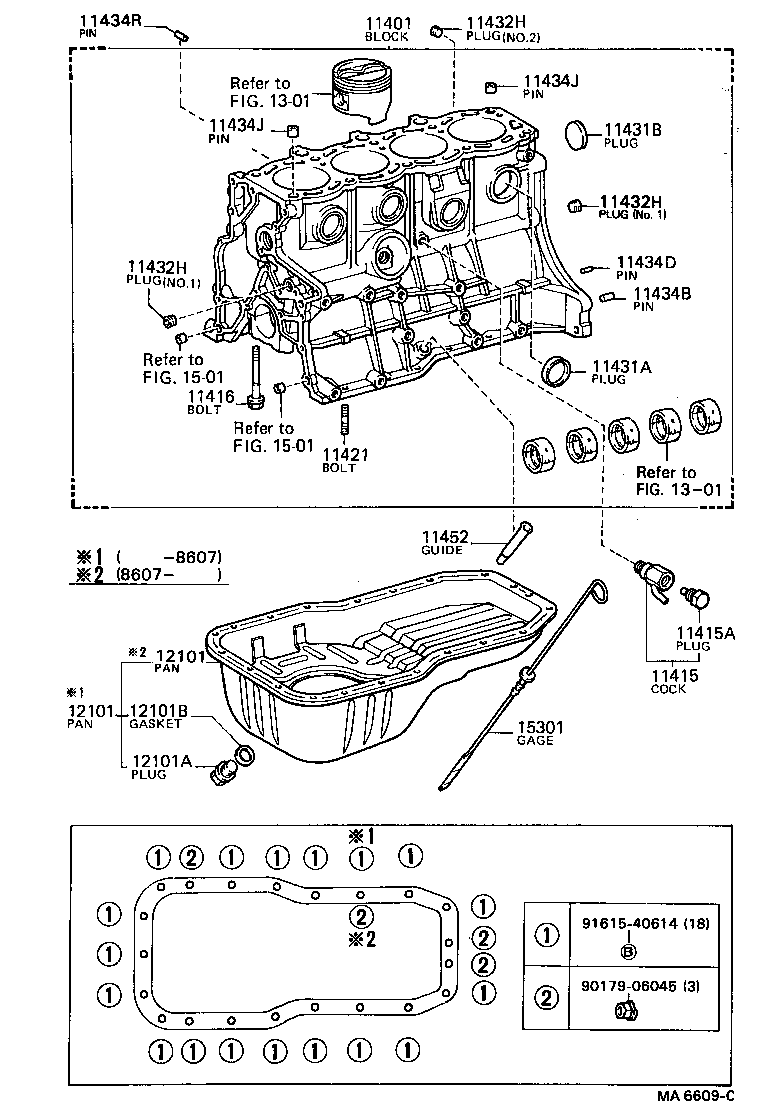

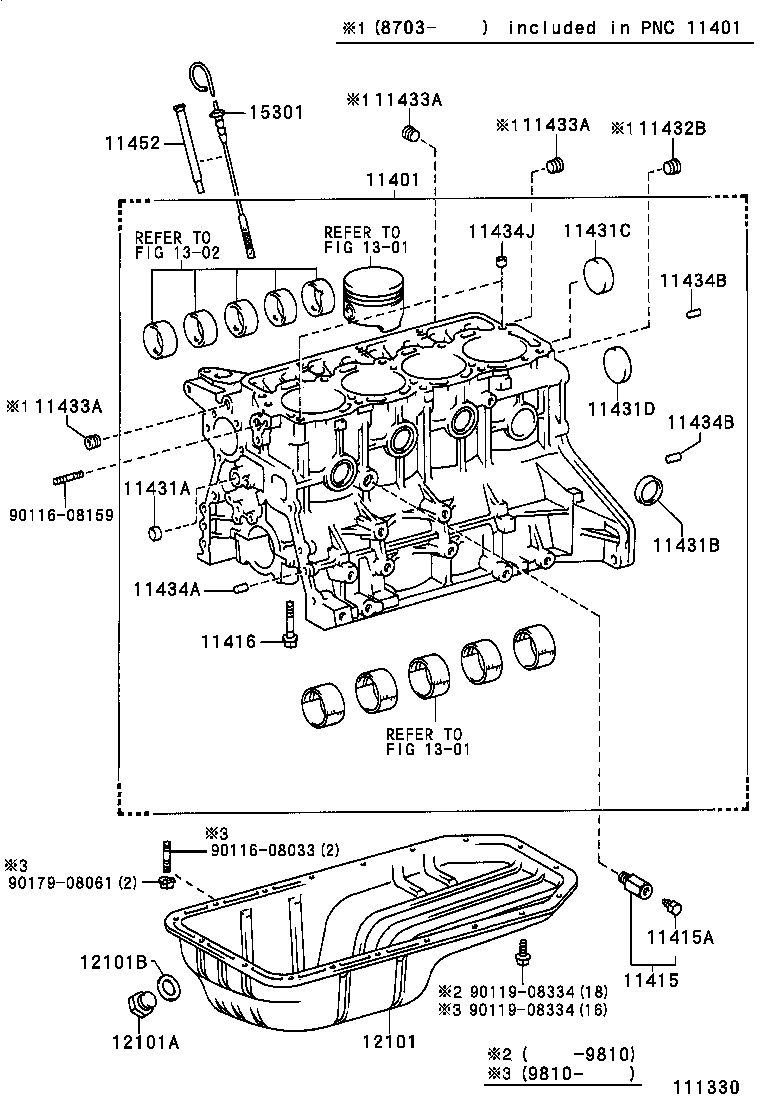

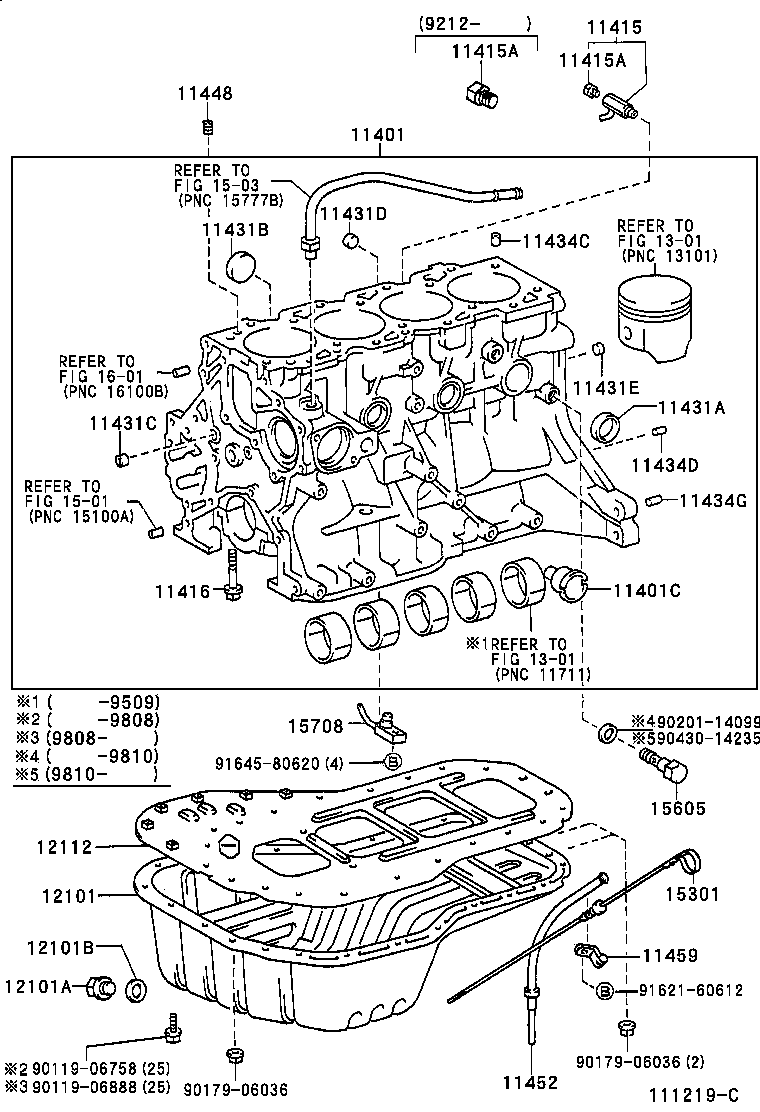

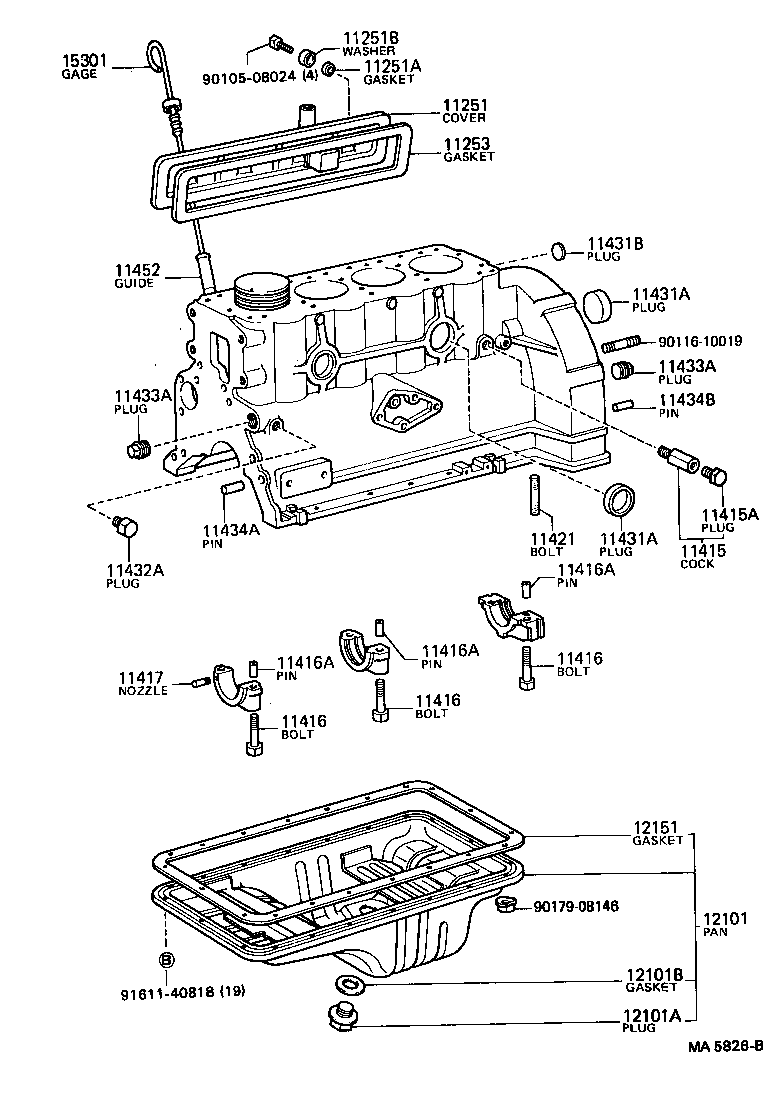

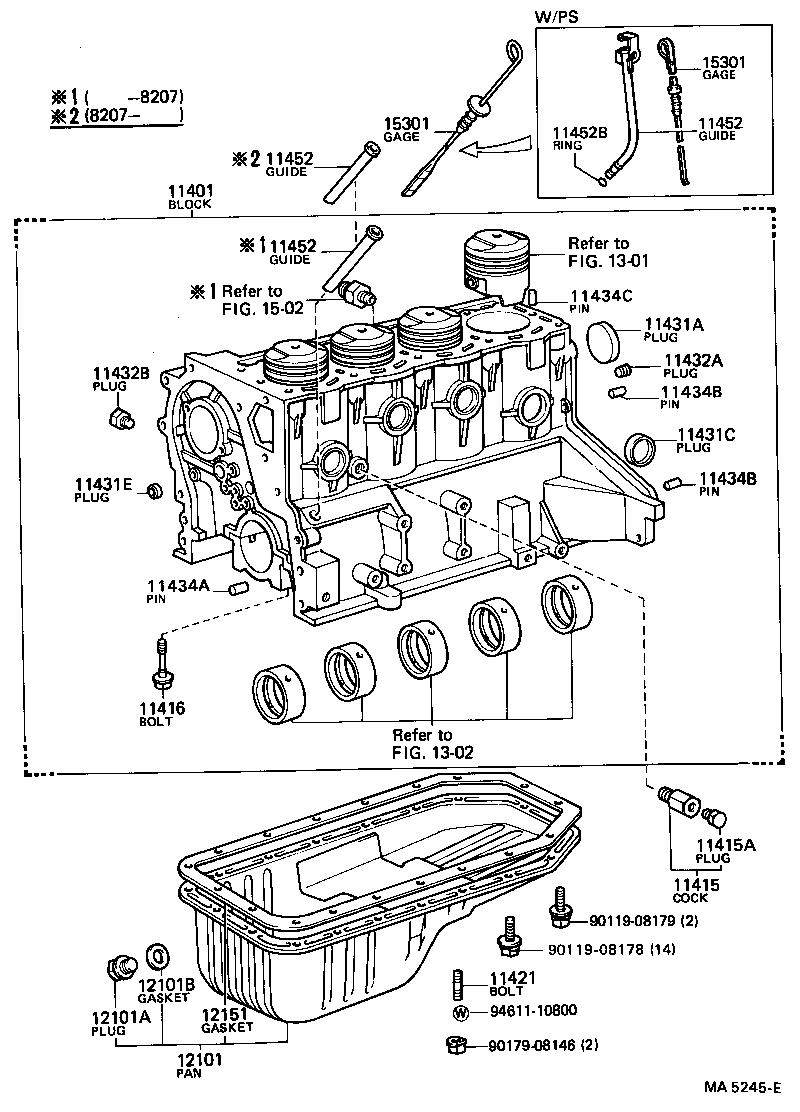

Figure MA5641H MA5641H 1982-01 → 1983-12 Figure 111219C 111219C 1986-01 → — Figure MA5826B MA5826B 1982-06 → 1983-12 Figure MA7504B MA7504B 1984-08 → 1986-12 Figure MA6609C MA6609C 1983-04 → 1986-12 Figure MA5245E MA5245E 1982-01 → 1985-08 Figure 111330 111330 1986-12 → —

Part groups

PNCDescription
11251 Cover, Valve Push Rod
11251A Gasket(FOR VALVE PUSH ROD COVER BOLT)
11251B Washer, Seal(FOR VALVE PUSH ROD COVER BOLT)
11253 Gasket, Valve Push Rod Cover
11401 Block Sub-assy, Cylinder
11401C Flange(FOR WATER BY-PASS)
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11417 Nozzle, Oil
11421 Bolt, Stud(FOR OIL PAN)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431D Plug, Tight, NO.4(FOR CYLINDER BLOCK)
11431E Plug, Tight, NO.5(FOR CYLINDER BLOCK)
11431F Plug, Tight, NO.6(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11432B Plug, W/Head Taper Screw, NO.2
11432C Plug, W/Head Taper Screw, NO.3
11432H Plug, W/Head Taper Screw, NO.5
11432R Plug, W/Head Straight Screw, NO.1(FOR CYLINDER BLOCK)
11432S Plug, W/Head Straight Screw, NO.2(FOR CYLINDER BLOCK)
11432T Plug, W/Head Straight Screw, NO.3(FOR CYLINDER BLOCK)
11432U Gasket, Straight Screw Plug NO.1(FOR CYLINDER BLOCK)
11432V Gasket, Straight Screw Plug NO.2(FOR CYLINDER BLOCK)
11432W Gasket, Straight Screw Plug NO.3(FOR CYLINDER BLOCK)
11433A Plug, Straight, NO.1
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434G Pin, Straight(FOR END PLATE)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434R Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
11448 Orifice, Cylinder Block Oil
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12112 Pan, Oil NO.2
12151 Gasket, Oil Pan
15301 Gage Sub-assy, Oil Level
15605 Valve Sub-assy, Oil Check
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
