Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 7 illustrations

Illustrations

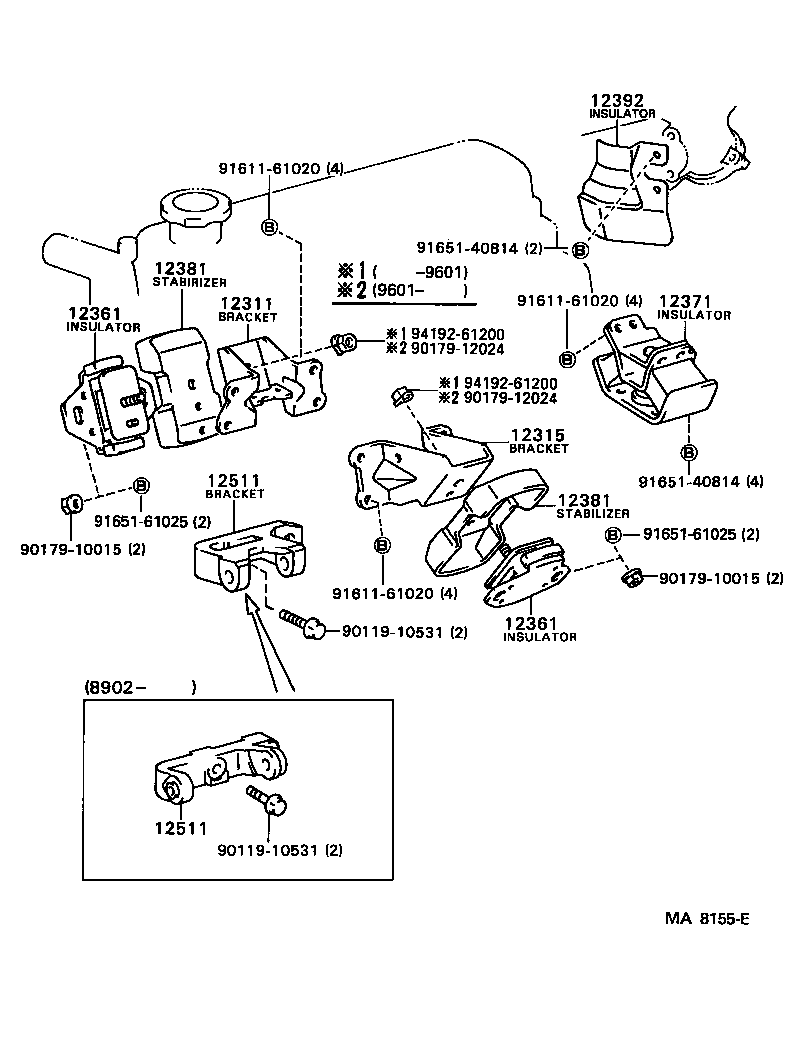

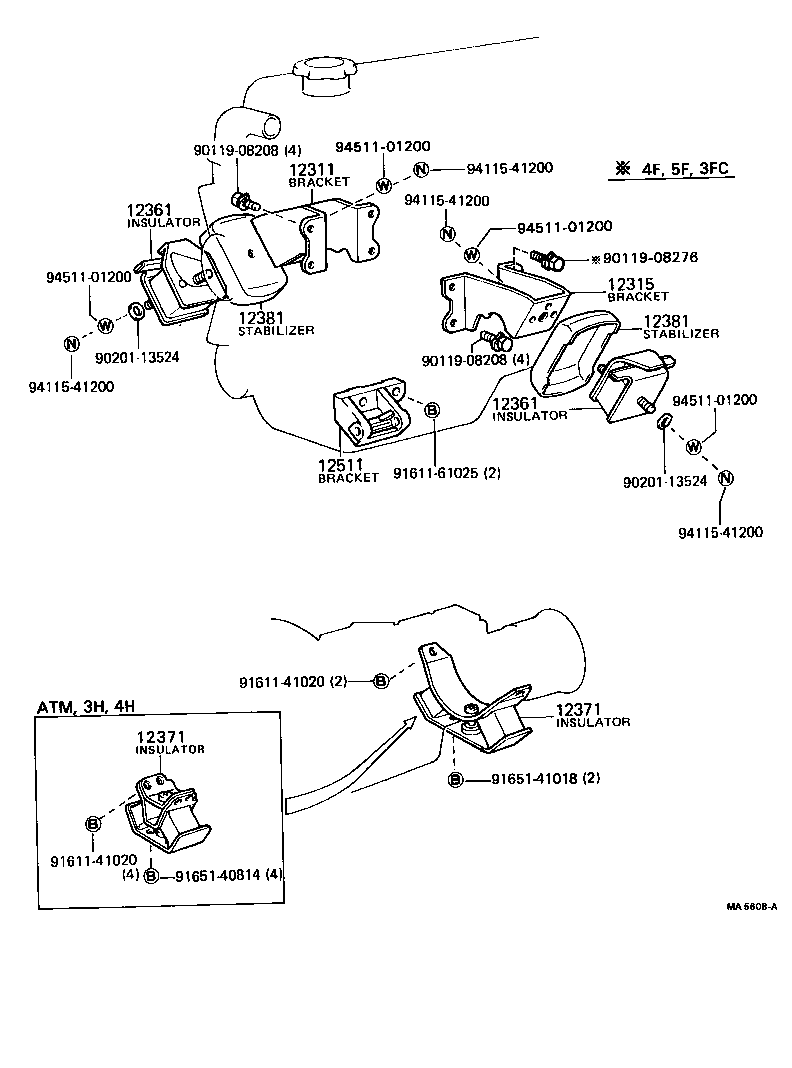

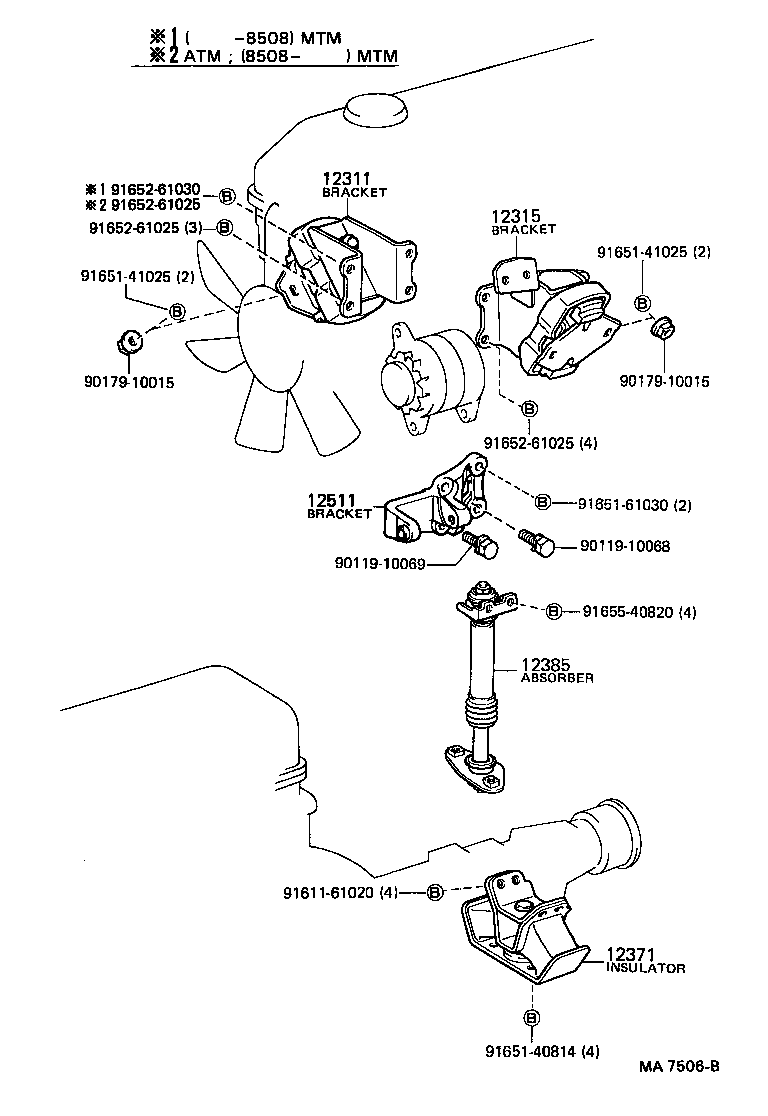

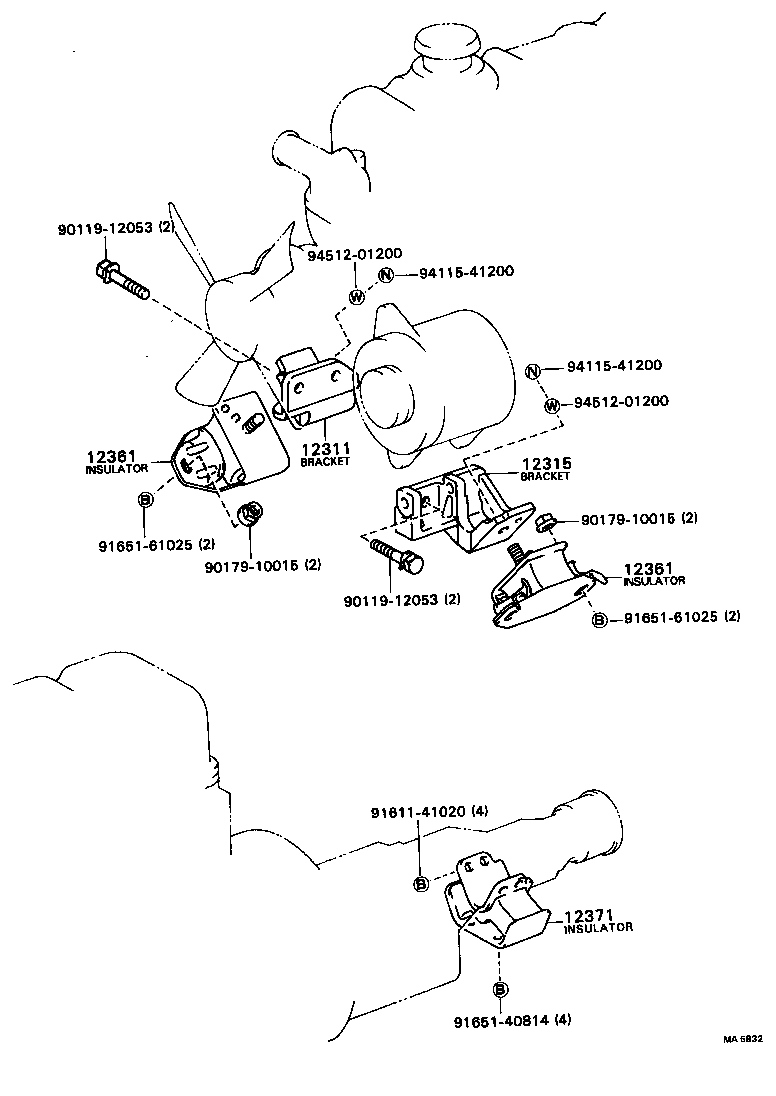

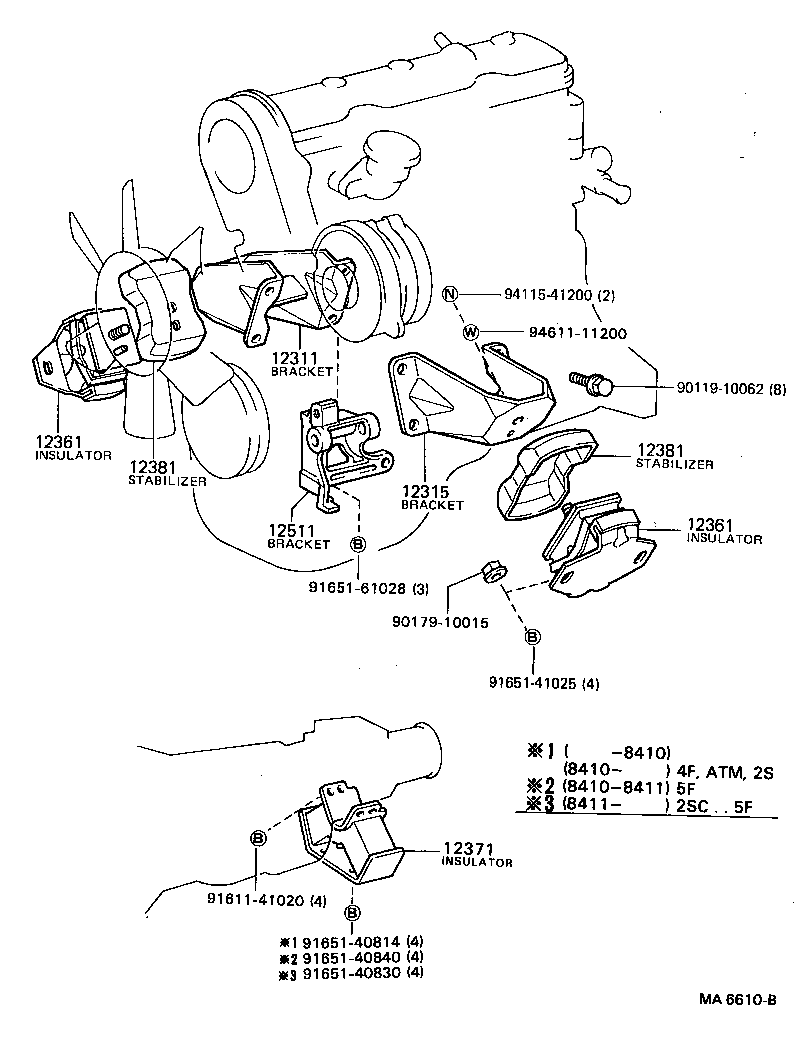

Figure MA5643H MA5643H 1982-01 → 1983-12 Figure MA5643H MA5643H 1986-01 → — Figure MA5832 MA5832 1982-06 → 1983-12 Figure MA7506B MA7506B 1984-08 → 1986-12 Figure MA6610B MA6610B 1983-04 → 1986-12 Figure MA5608A MA5608A 1982-01 → 1985-08 Figure MA8155E MA8155E 1986-12 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12323 Bracket, Engine Mounting Absorber
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12385 Absorber, Engine Mounting, NO.1
12392 Insulator, Engine Mounting Heat, Front LH
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
