Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

12 part groups · 6 illustrations

Illustrations

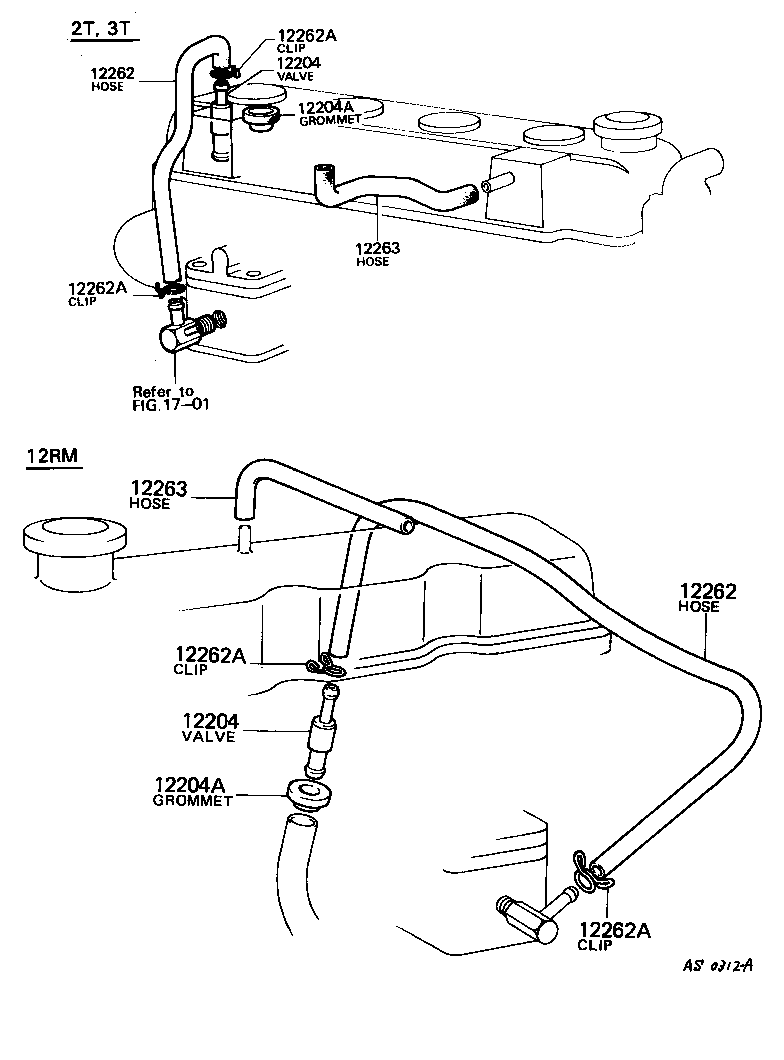

Figure MA5644 MA5644 1982-01 → — Figure AS0312A AS0312A 1982-01 → 1985-08 Figure MA5952 MA5952 1984-08 → 1986-12 Figure MA5260 MA5260 1983-04 → 1986-12 Figure AS0312A AS0312A 1982-01 → 1985-08 Figure MA6293A MA6293A 1986-12 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12221 Tube, Ventilation NO.1
12233 Connector, Ventilation NO.1
12233A Ring, O(FOR VENTILATION CONNECTOR)
12234 Connector, Ventilation NO.2
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
