Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

28 part groups · 11 illustrations

Illustrations

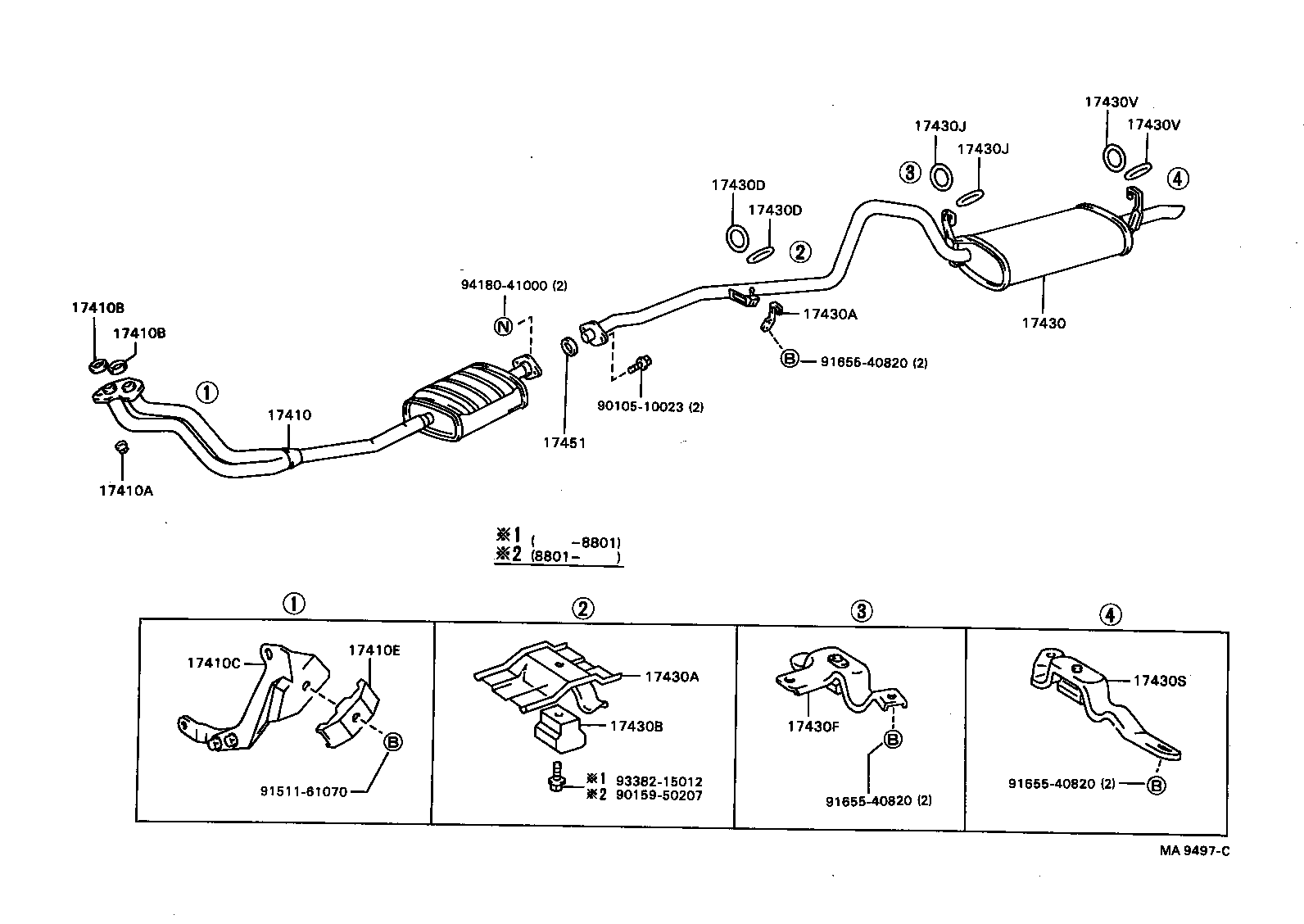

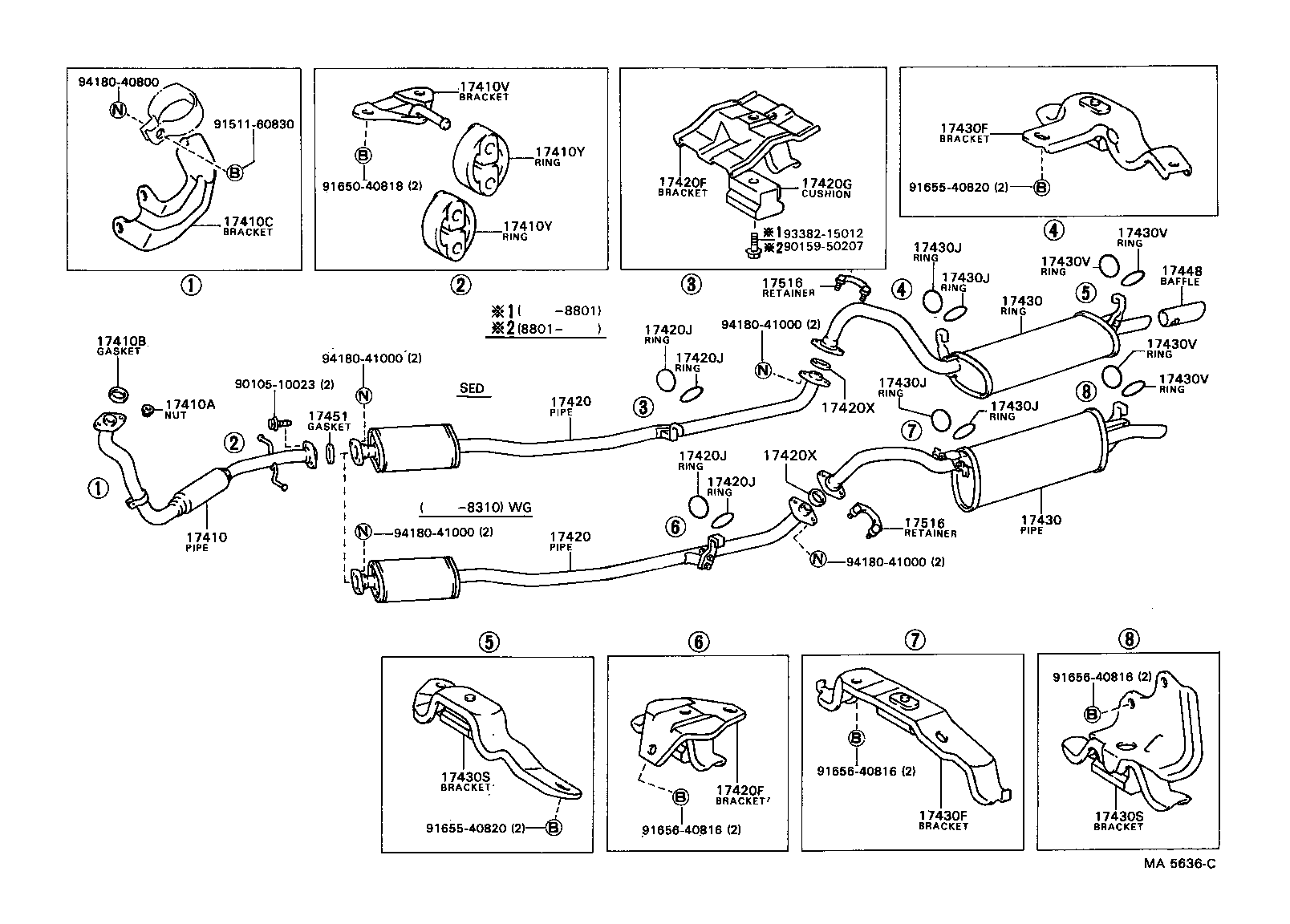

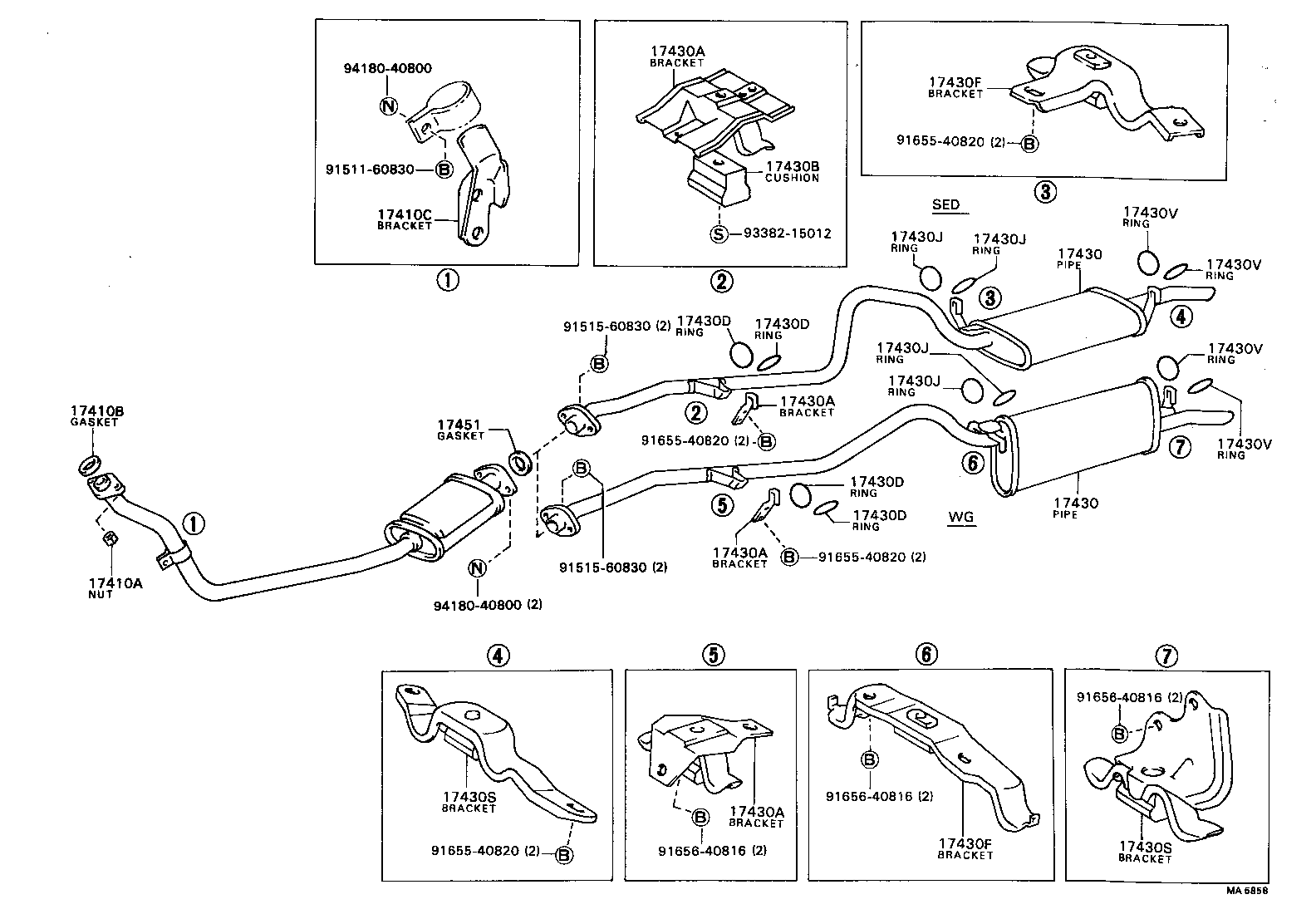

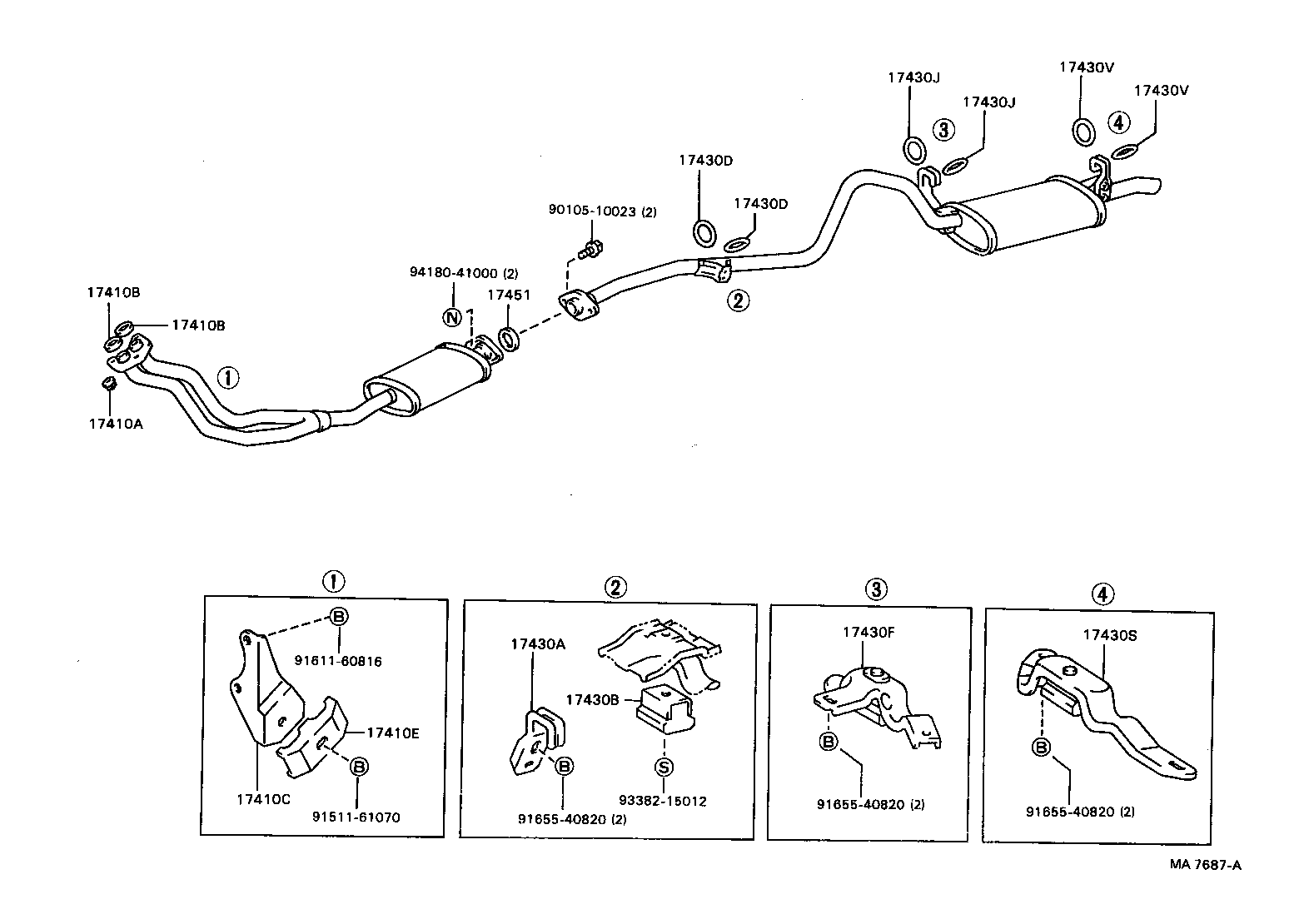

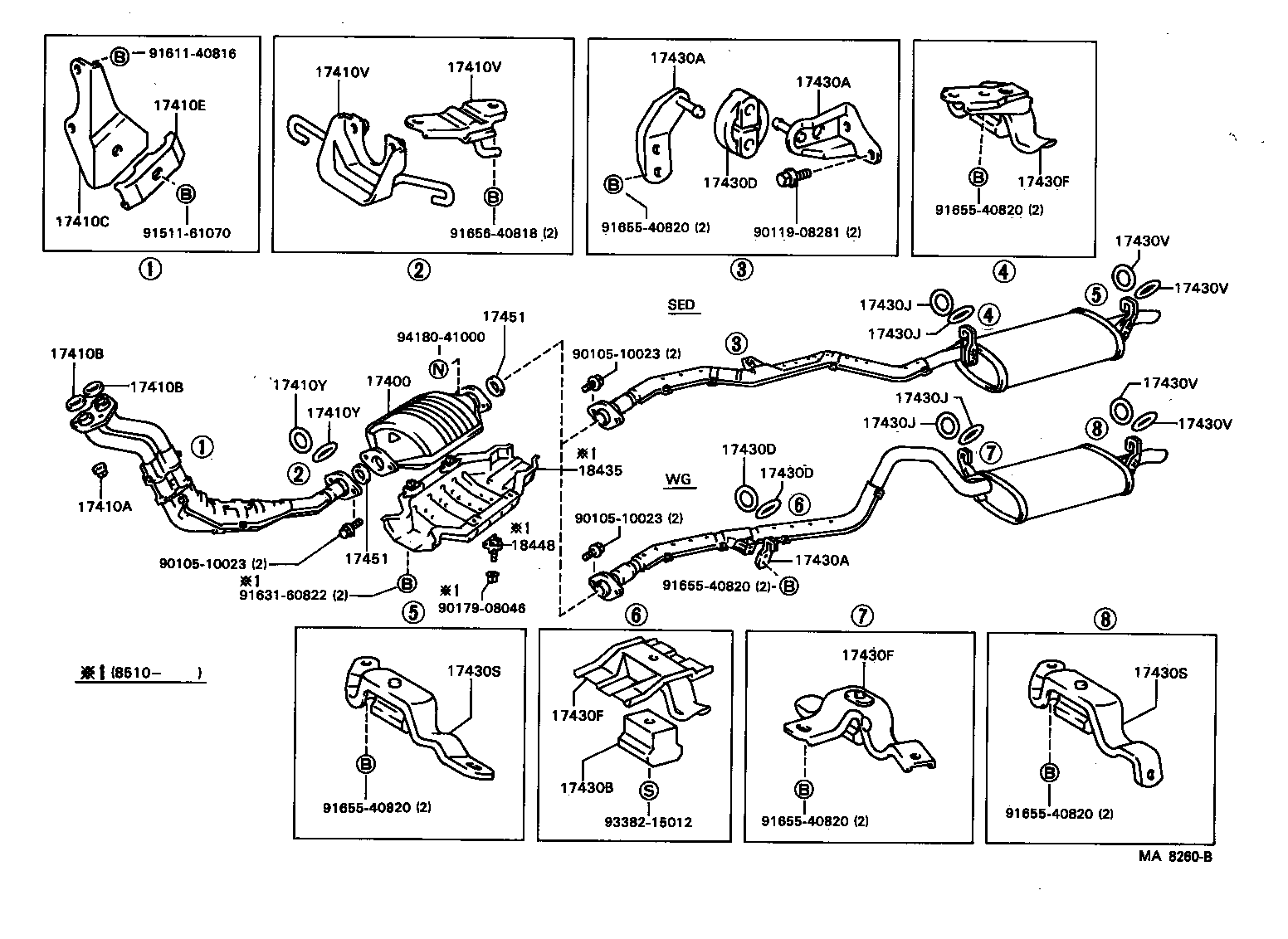

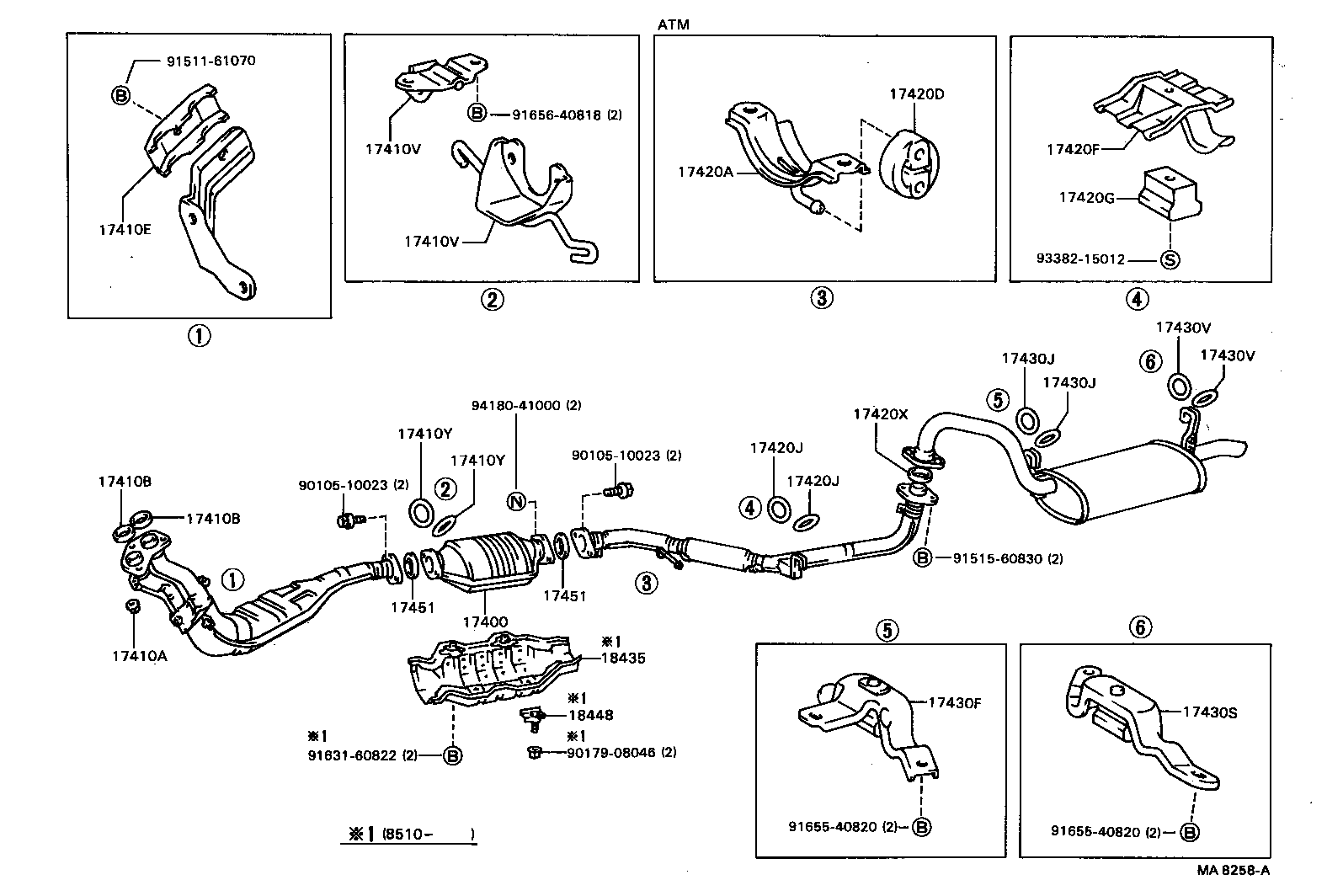

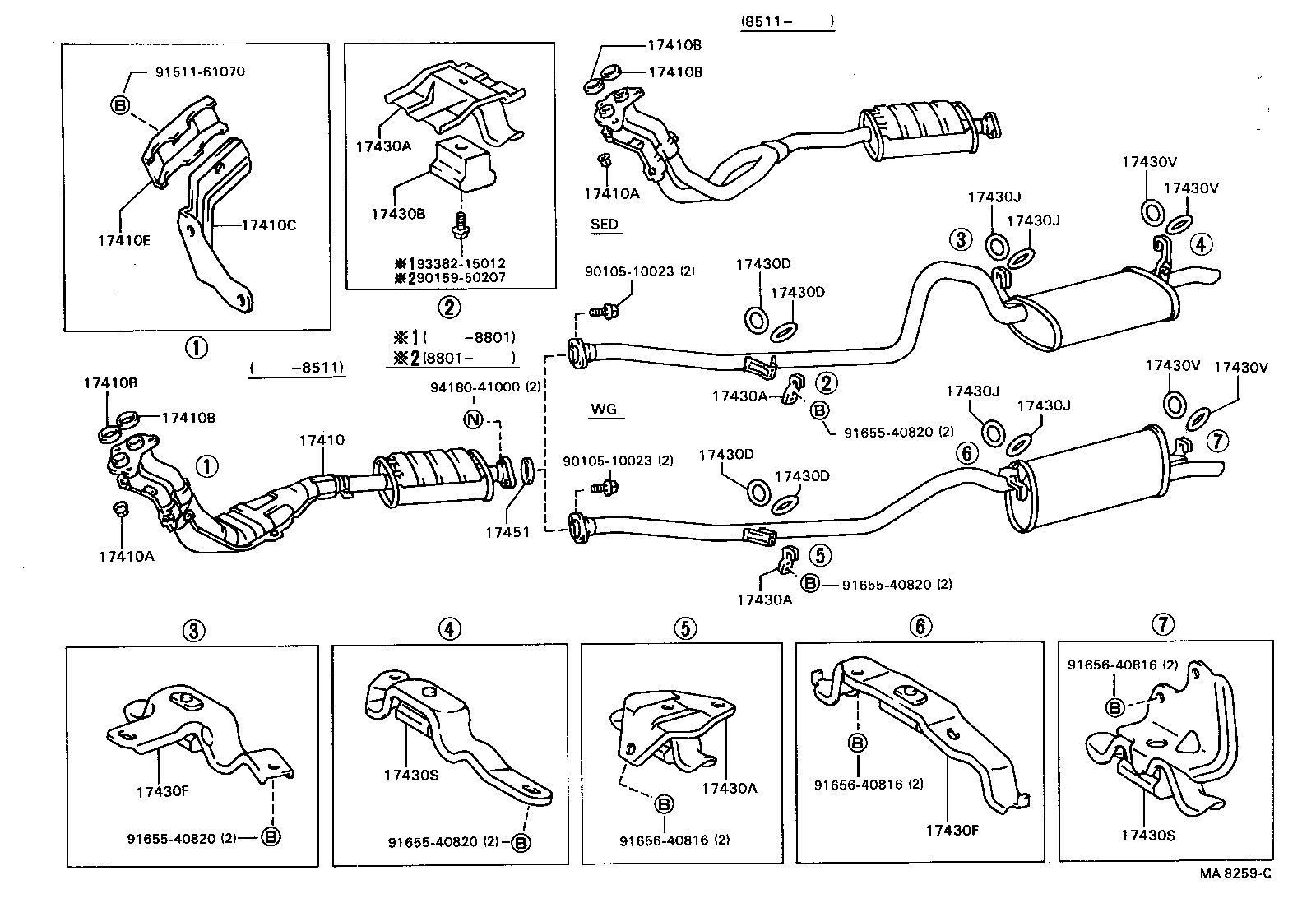

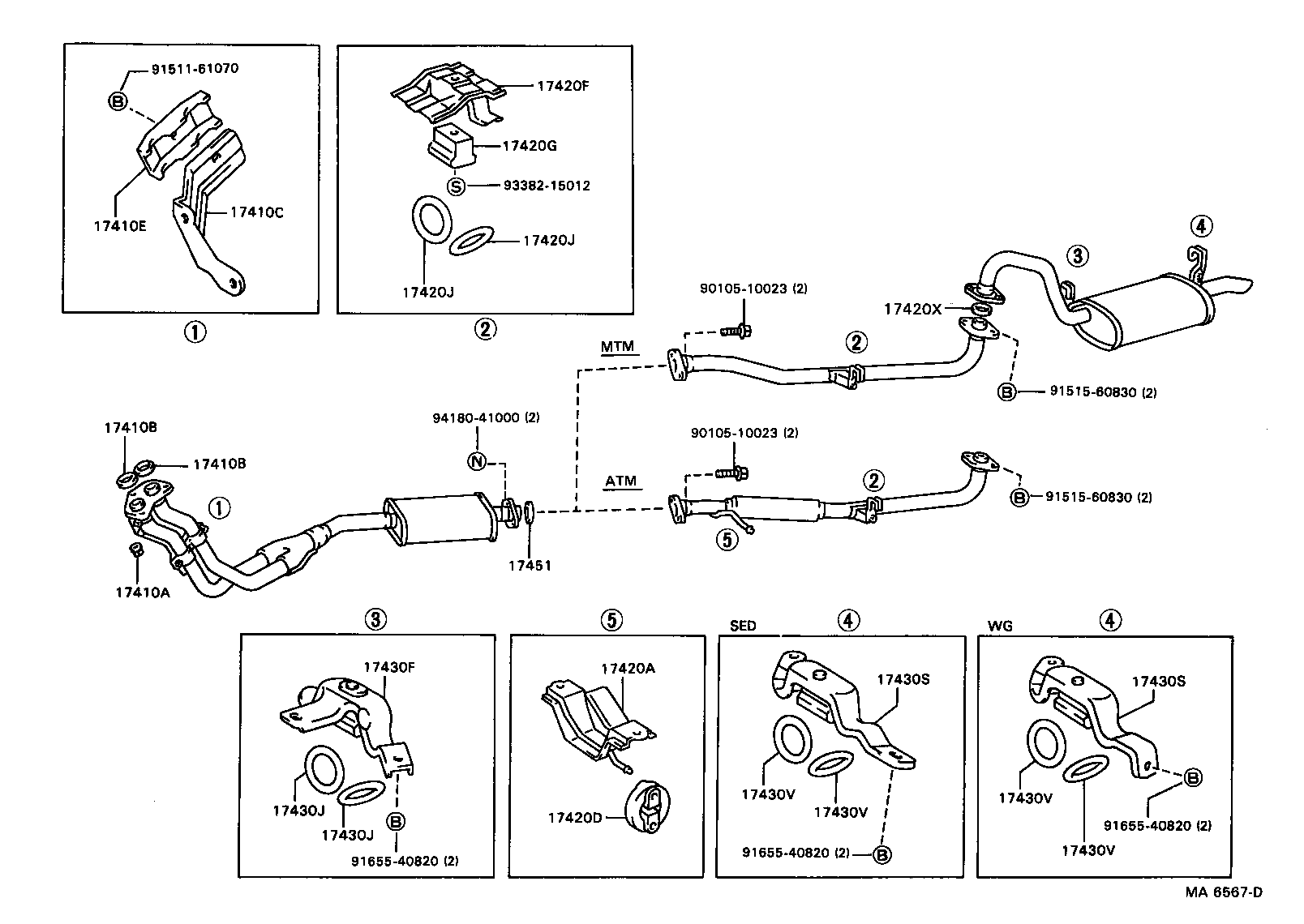

Figure MA5635A MA5635A 1982-01 → 1985-08 Figure MA6567D MA6567D 1983-04 → 1985-08 Figure MA6567D MA6567D 1985-08 → 1986-12 Figure MA8258A MA8258A 1985-08 → 1986-12 Figure MA8259C MA8259C 1985-08 → 1986-12 Figure MA5858 MA5858 1982-06 → 1983-12 Figure MA7687A MA7687A 1984-08 → 1985-08 Figure MA8260B MA8260B 1985-08 → 1986-12 Figure MA9497C MA9497C 1986-12 → — Figure MA5636C MA5636C 1982-01 → 1983-12 Figure MA5636C MA5636C 1986-01 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420A Bracket, Exhaust Pipe Center, Front
17420D Bolt OR Ring, Exhaust Pipe Center, Front
17420F Bracket, Exhaust Pipe, Center
17420G Cushion, Exhaust Pipe Center, Center
17420J Bolt OR Ring, Exhaust Pipe Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17516 Retainer, Exhaust Pipe, NO.2
18435 Protector, Catalytic Converter
18448 Bracket, Converter Protector, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
