Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

37 part groups · 11 illustrations

Illustrations

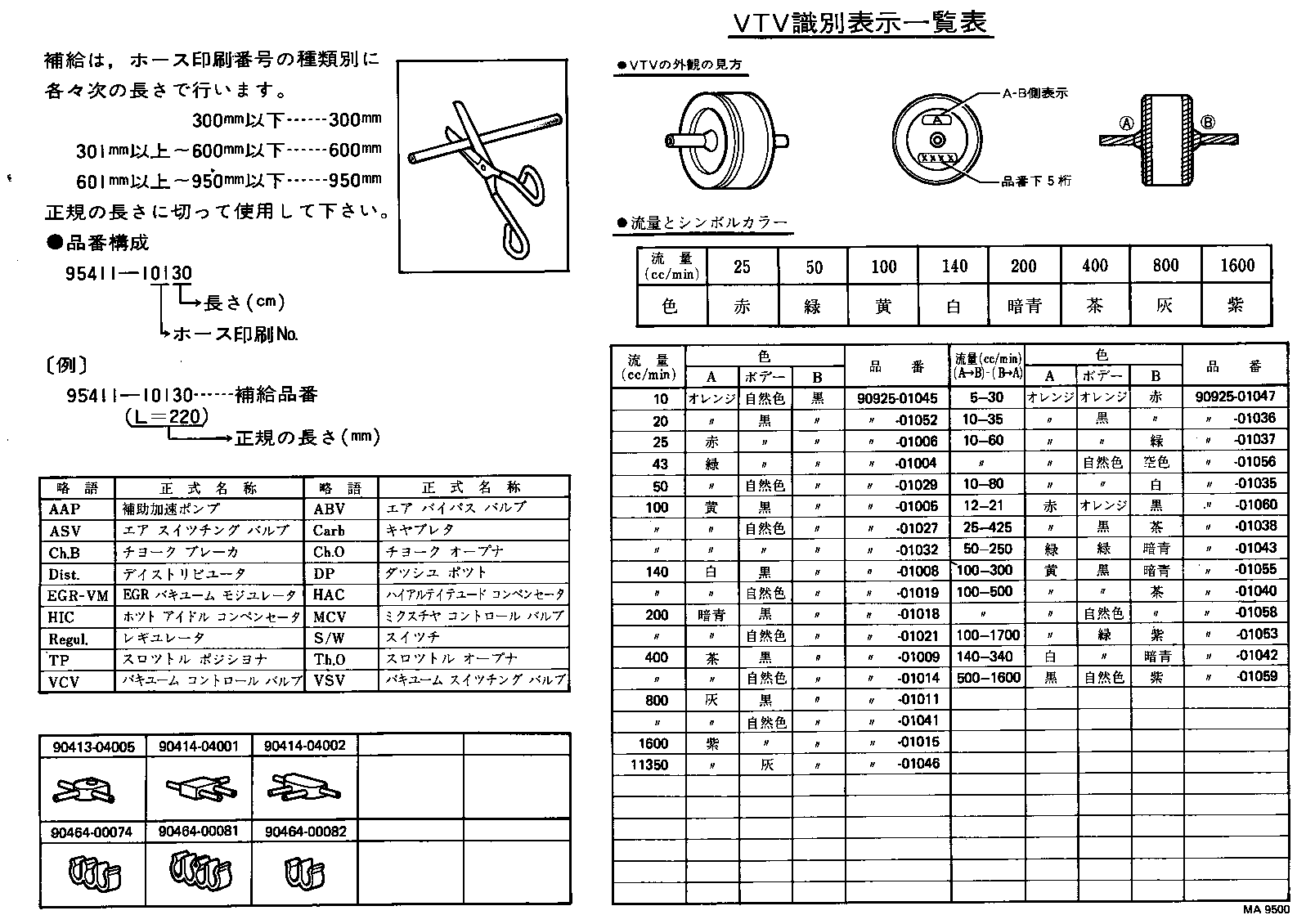

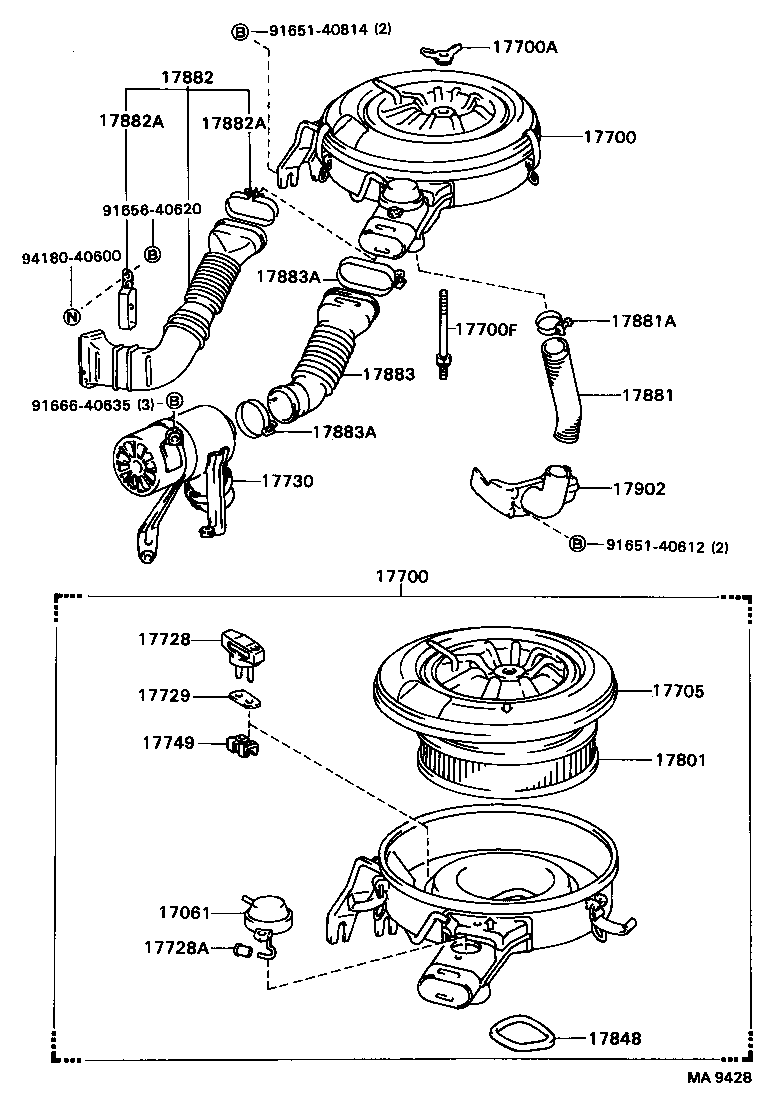

Figure MA7390 MA7390 1982-01 → 1983-12 Figure MA7390 MA7390 1986-01 → — Figure MA9500 MA9500 1986-12 → — Figure MA5109A MA5109A 1982-06 → 1983-12 Figure MA5955D MA5955D 1984-08 → 1986-12 Figure MA7387B MA7387B 1983-04 → 1986-12 Figure MA8263B MA8263B 1985-08 → 1986-12 Figure MA5612 MA5612 1982-01 → 1985-08 Figure MA5613 MA5613 1982-01 → 1985-08 Figure MA5614B MA5614B 1982-01 → 1985-08 Figure MA9428 MA9428 1986-12 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17728 Valve, Thermostatic
17728A Bush
17729 Gasket, Thermostat Valve
17730 Precleaner Assy, Air W/Hose
17730A Hose, Precleaner
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17730C Case, Precleaner
17744 Cup, Precleaner
17749 Support, Thermostat Valve
17751 Inlet, Air Cleaner, NO.1
17764 Duct, Air Cleaner
17784 Screen, Air Cleaner
17789 Cap, Air Cleaner Screen
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884B Box, Air Cleaner, NO.1
17889 Box, Air Cleaner Hose, NO.2
17902 Inlet Sub-assy, Hot Air Intake, NO.1
22250 Meter Assy, Intake Air Flow
22255 Bracket, Air Flow Meter
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
