Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

25 part groups · 13 illustrations

Illustrations

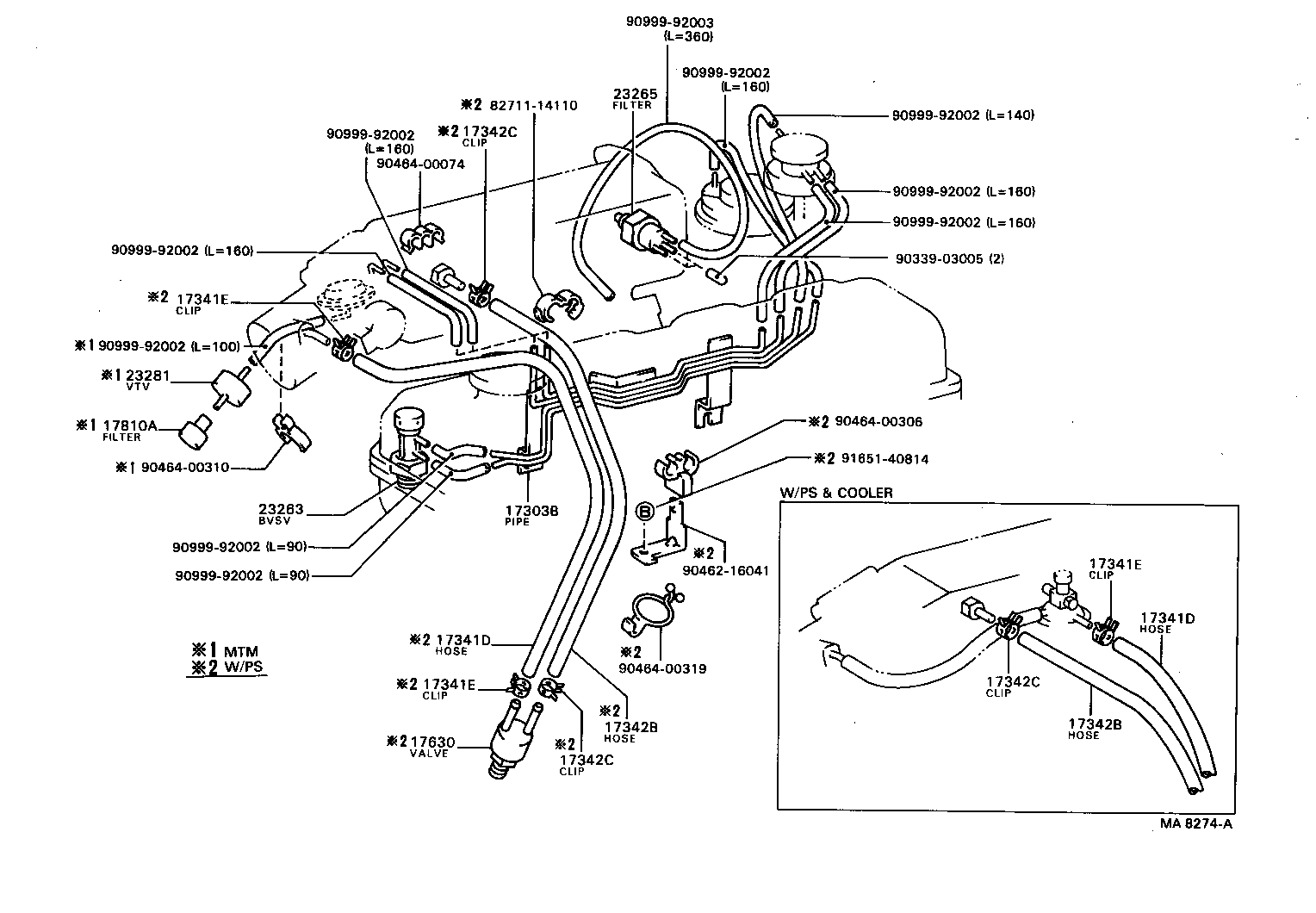

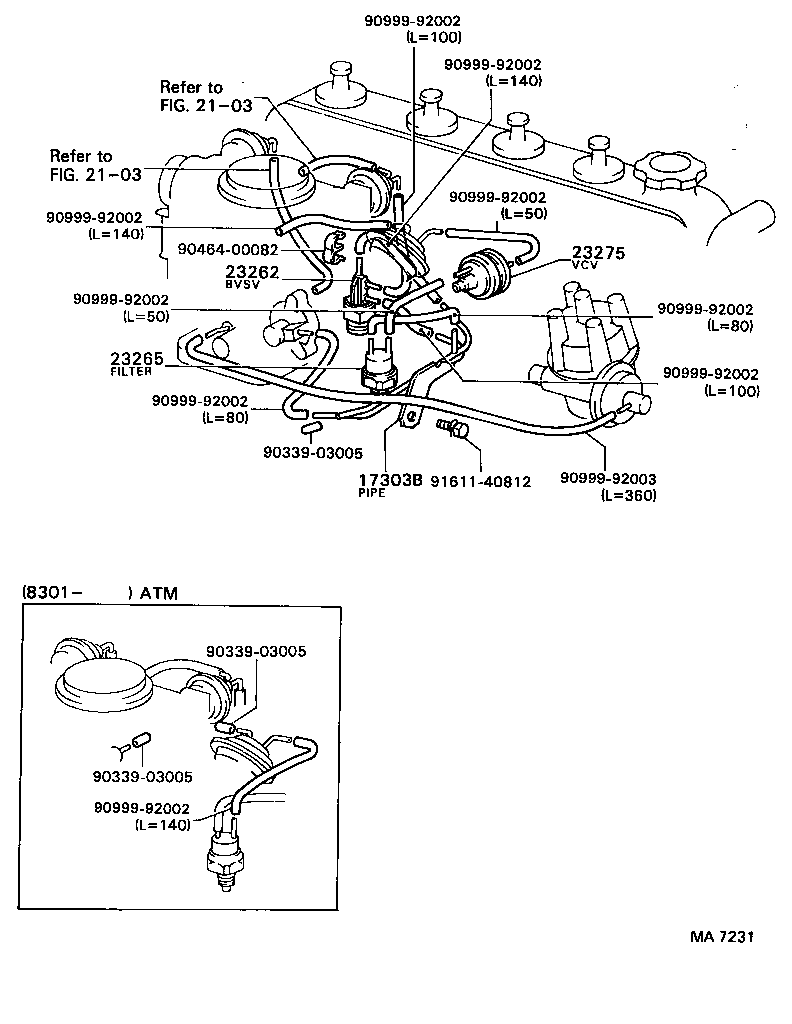

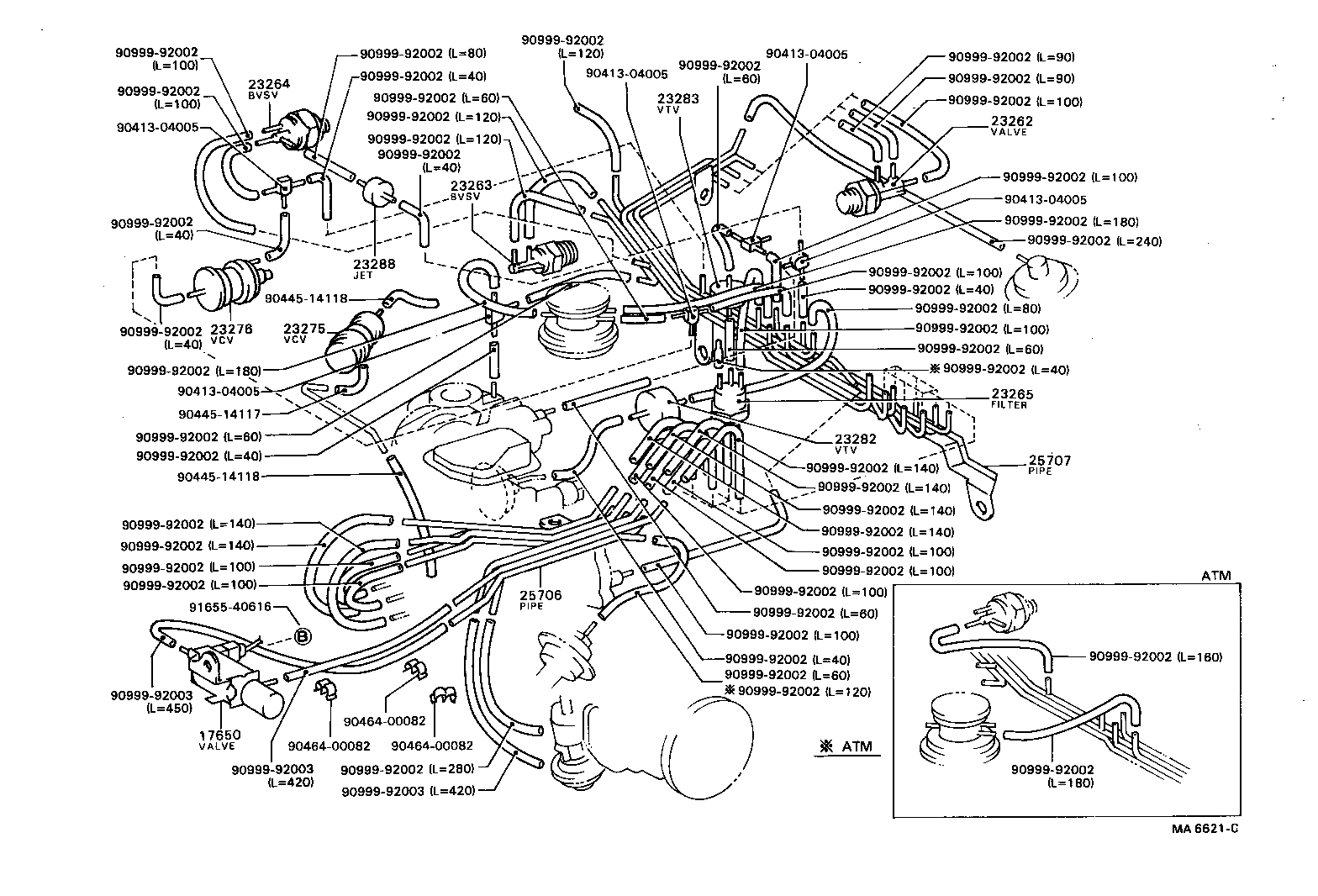

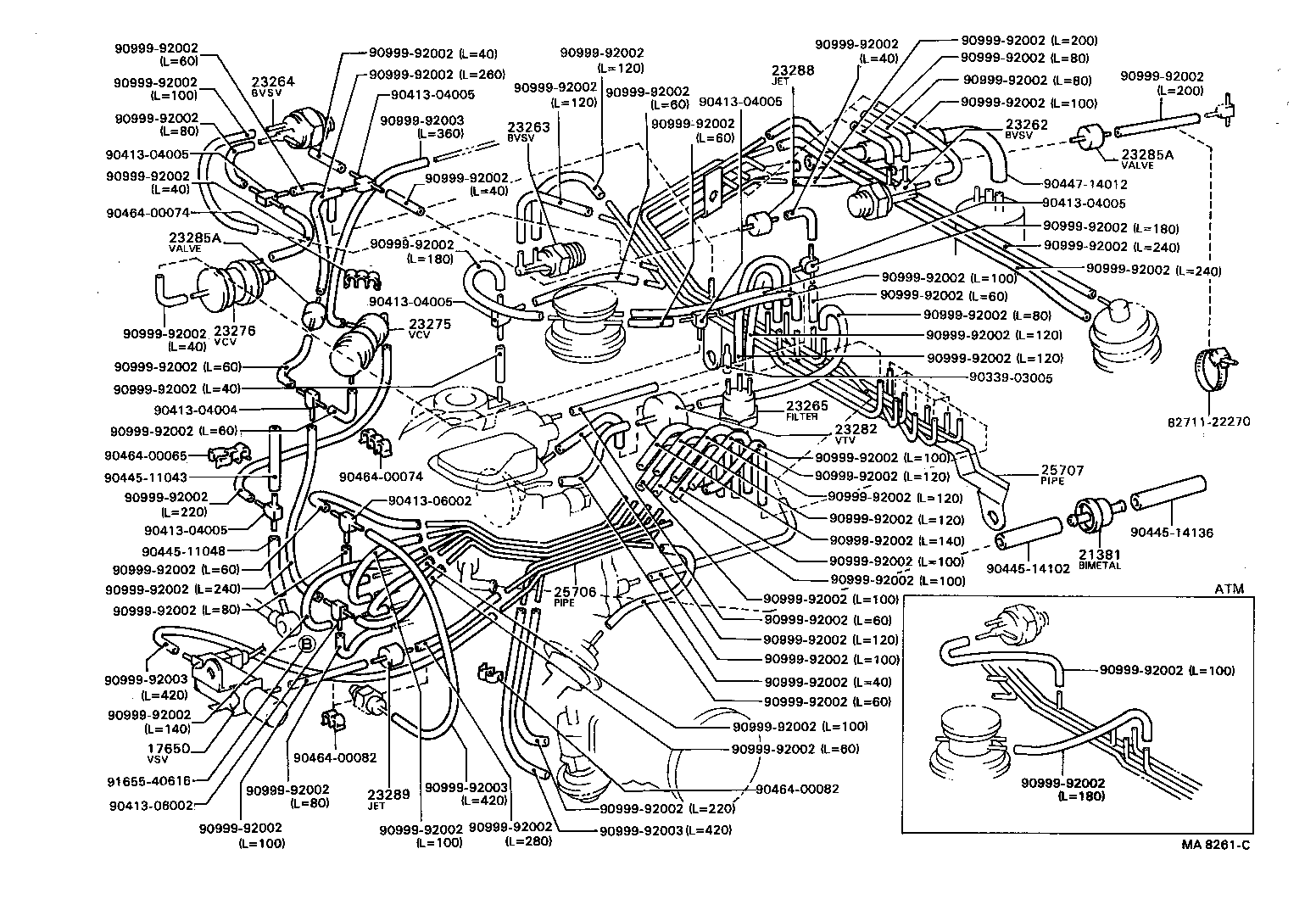

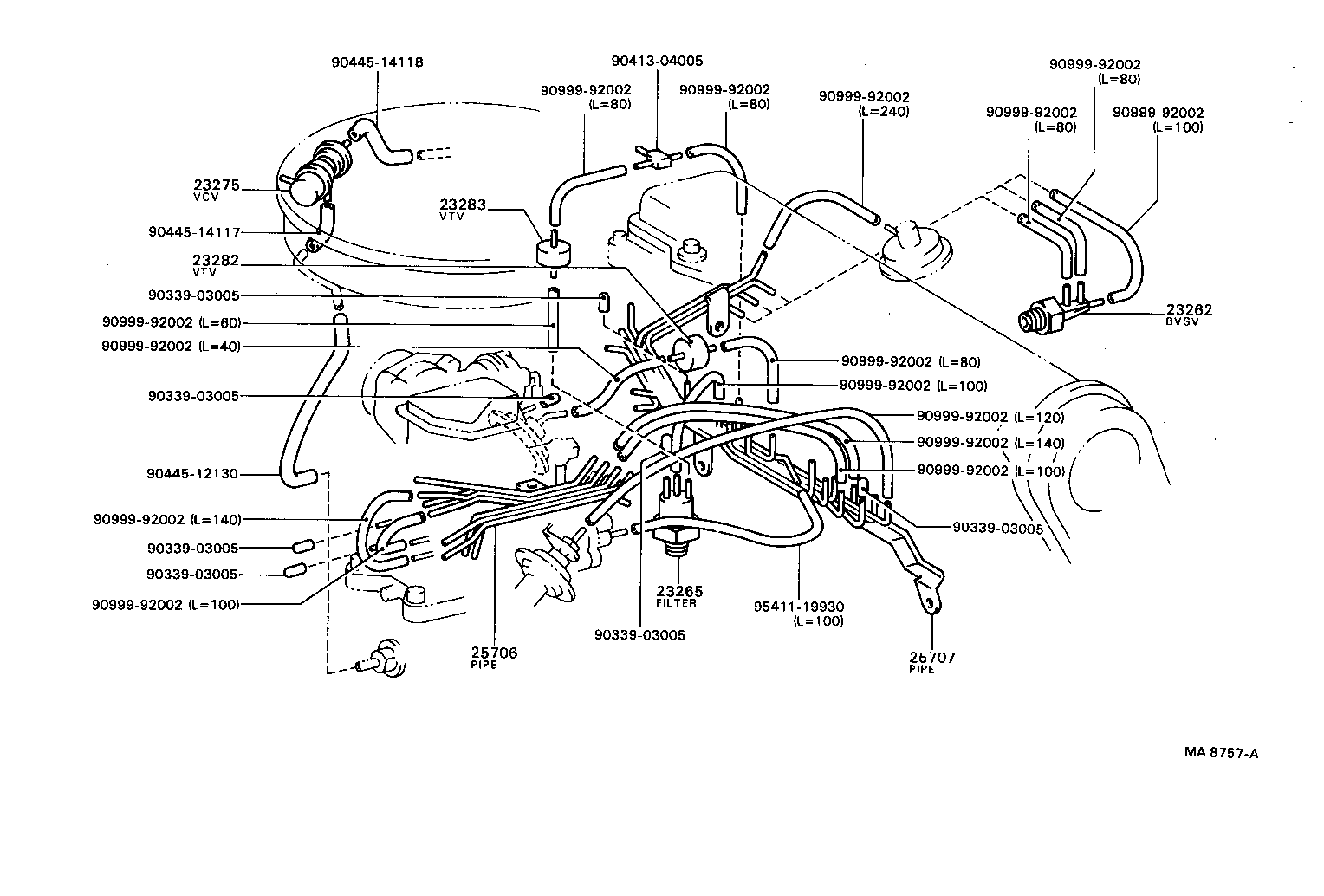

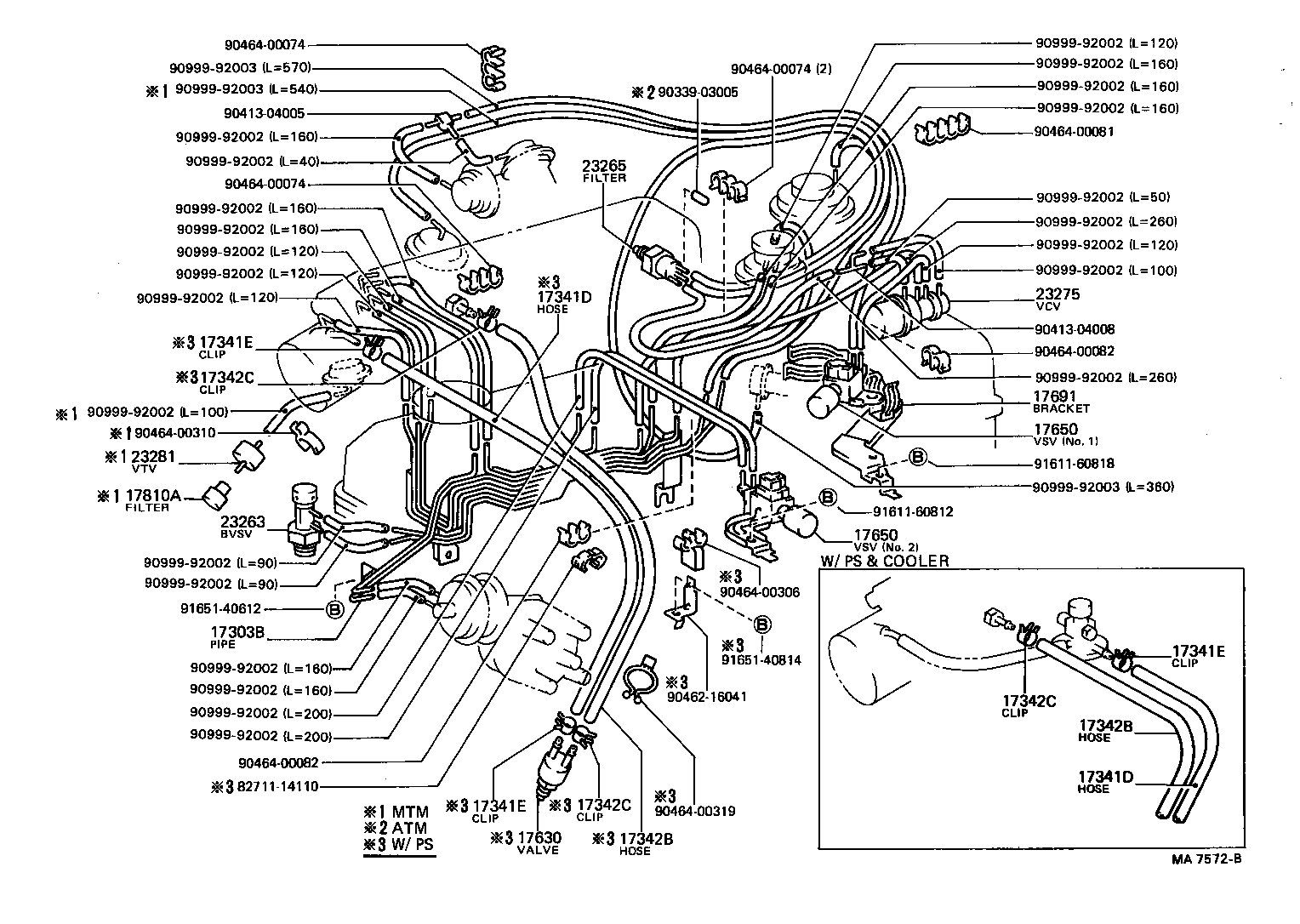

Figure MA9504B MA9504B 1982-01 → — Figure MA5615D MA5615D 1982-06 → 1983-12 Figure MA7572B MA7572B 1984-08 → 1985-08 Figure MA8274A MA8274A 1985-08 → 1986-12 Figure MA9504B MA9504B 1982-01 → — Figure MA6621C MA6621C 1983-04 → 1985-08 Figure MA8261C MA8261C 1985-08 → 1986-12 Figure MA8757A MA8757A 1985-08 → 1986-12 Figure MA8262A MA8262A 1985-08 → 1986-12 Figure MA9504B MA9504B 1982-01 → — Figure MA7231 MA7231 1982-01 → 1985-08 Figure MA9504B MA9504B 1982-01 → — Figure MA9429A MA9429A 1986-12 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17691 Bracket, Vacuum Control Valve, NO.1
17810A Filter Assy, Air
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23264 Valve, Bimetal Vacuum Switching, NO.3
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
