Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

36 part groups · 9 illustrations

Illustrations

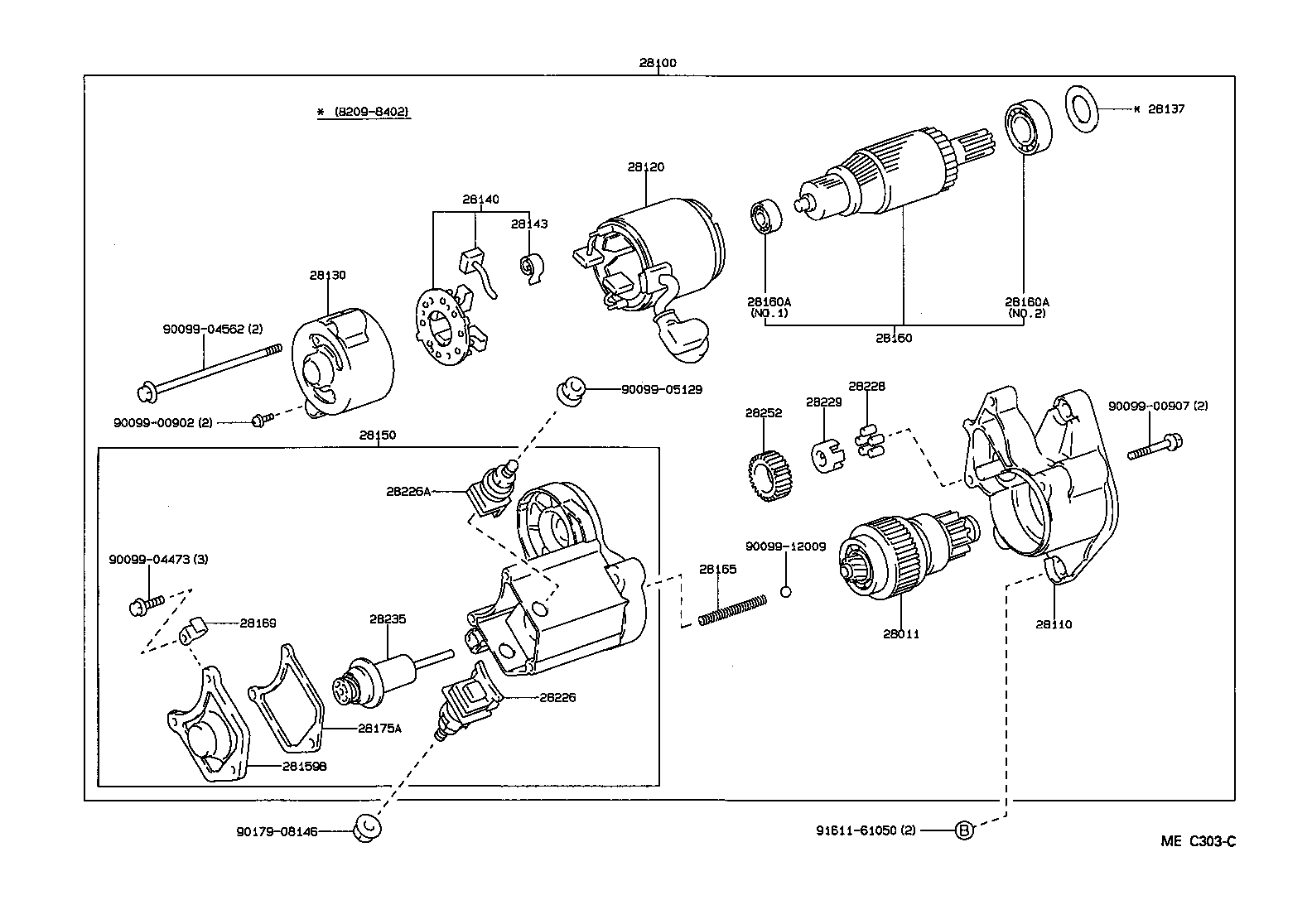

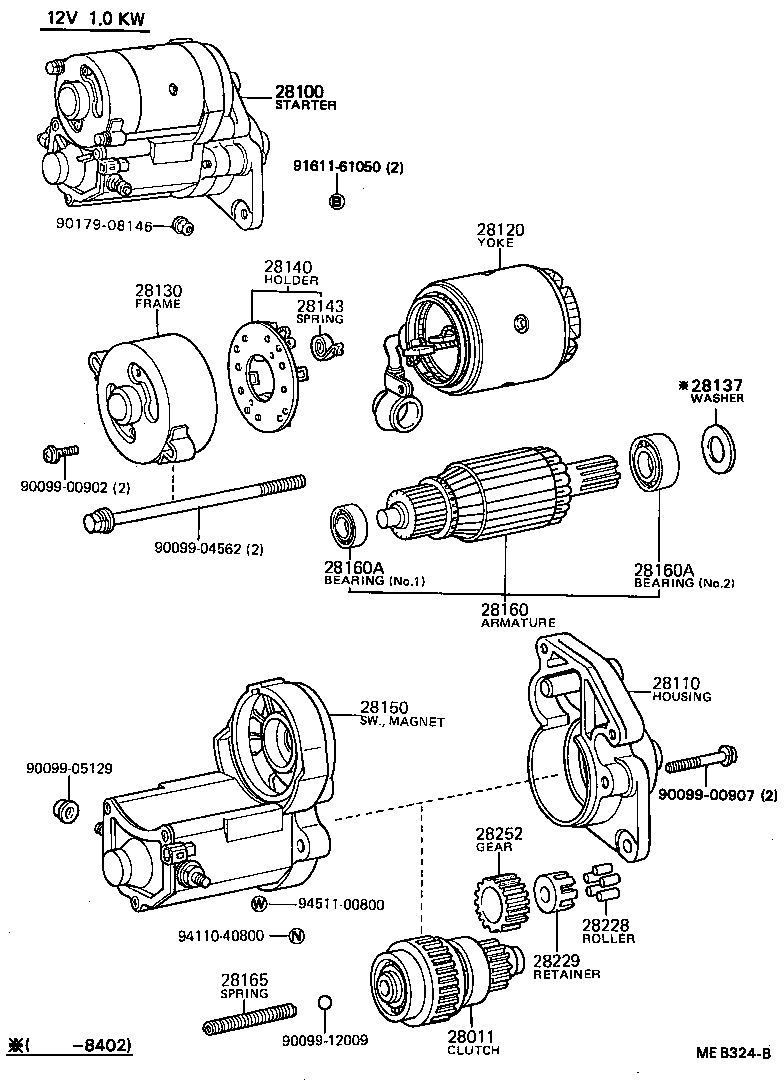

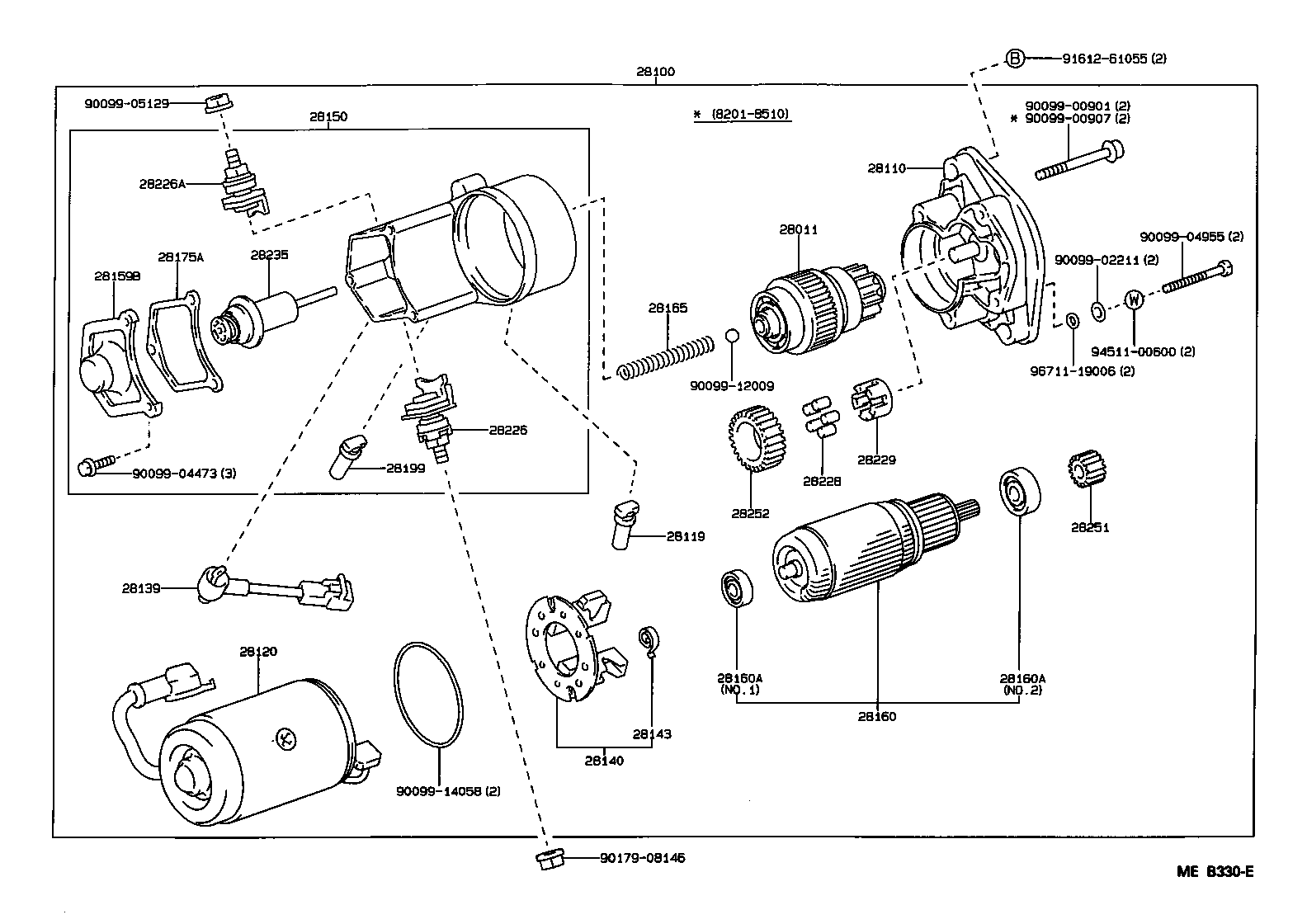

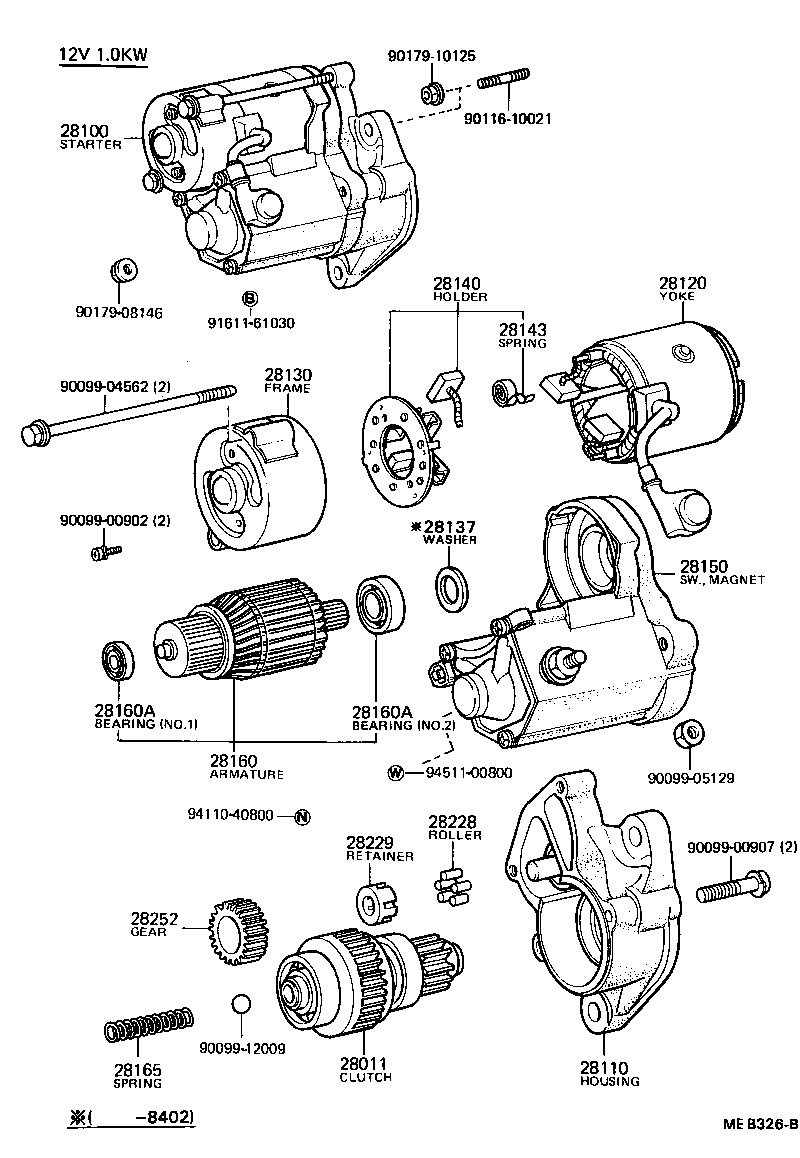

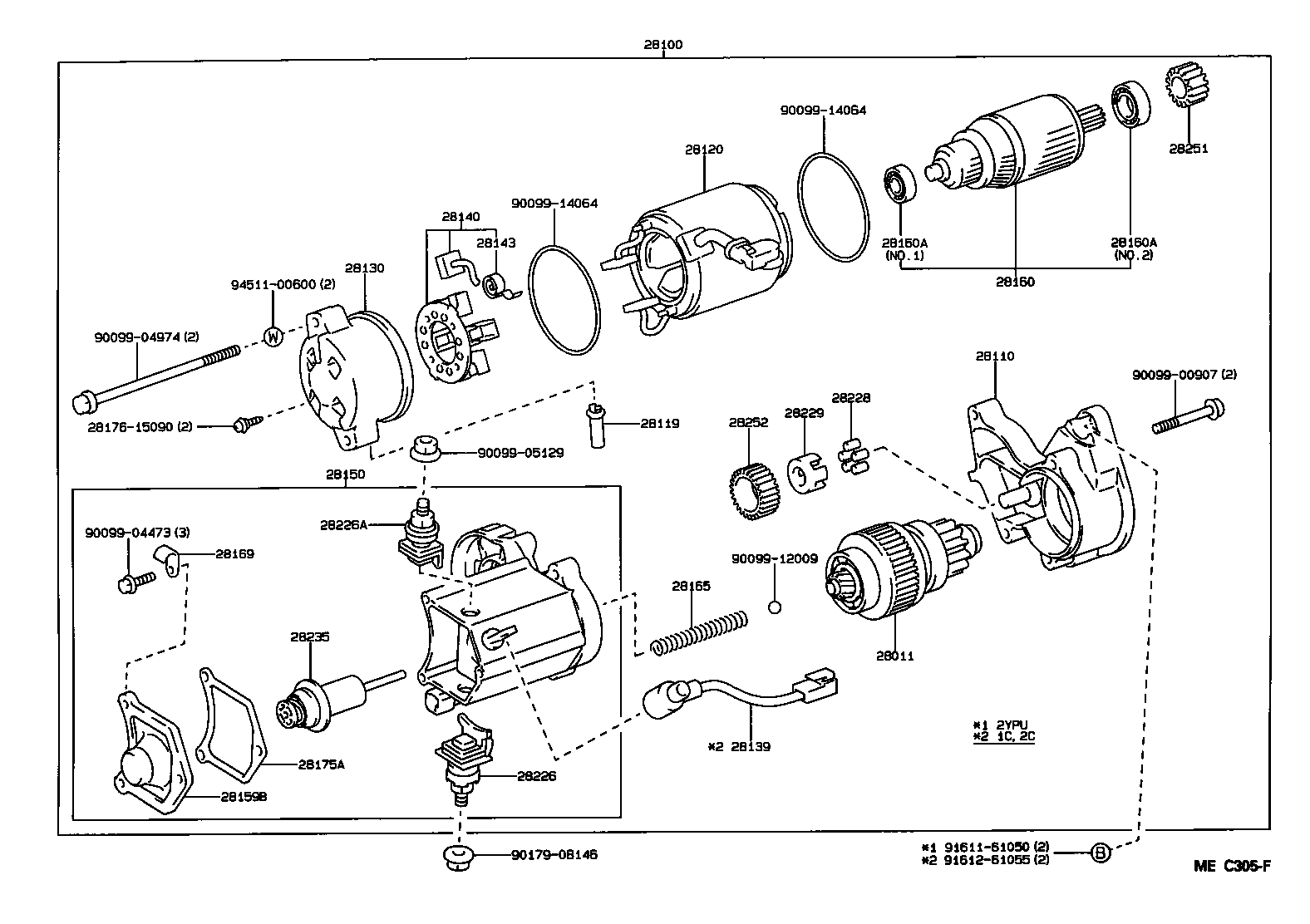

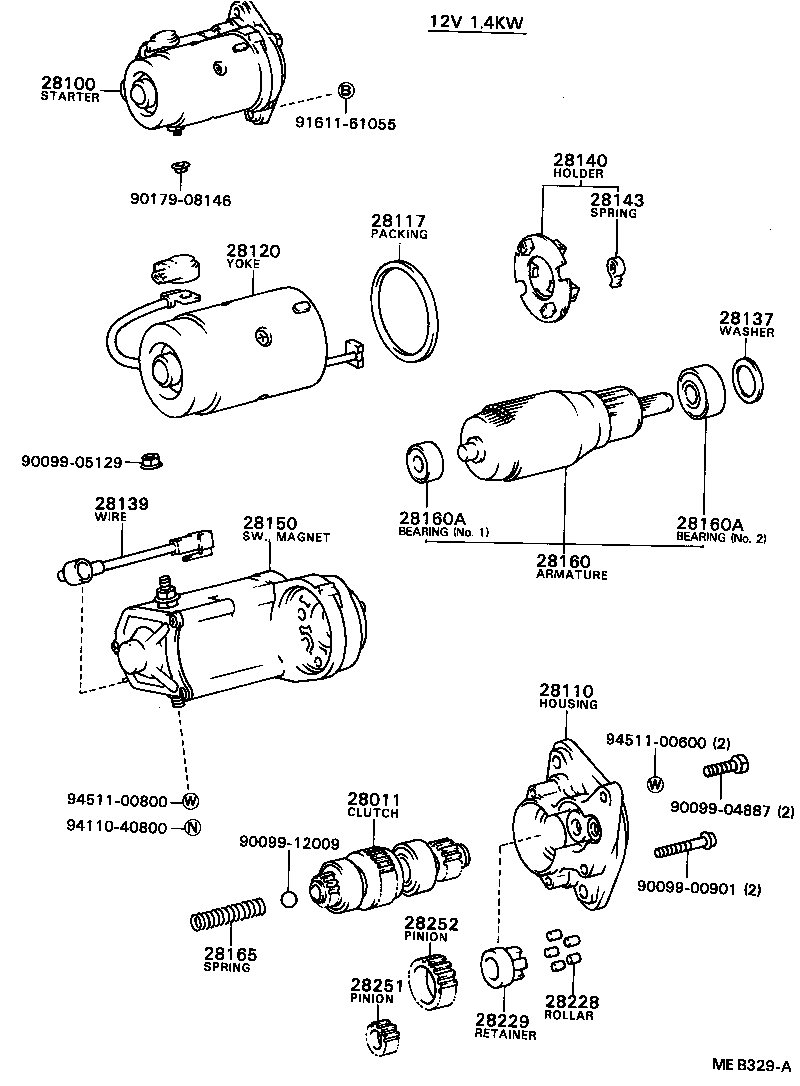

Figure MEB322 MEB322 1982-01 → 1985-08 Figure MEB324B MEB324B 1983-04 → — Figure MEB326B MEB326B 1984-08 → 1986-12 Figure MEB329A MEB329A 1982-01 → 1983-09 Figure MEC305F MEC305F 1983-09 → 1983-12 Figure MEC305F MEC305F 1986-01 → — Figure MEC305F MEC305F 1986-12 → — Figure MEB330E MEB330E 1986-12 → — Figure MEC303C MEC303C 1986-12 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28110 Housing Assy, Starter Drive
28111 Bush(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28117 Rubber(FOR STARTER YOKE)
28119 Cover, Starter End Frame
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28131 Bush, Commutator End Frame
28133 Cover, Bearing(FOR END FRAME)
28136 Plate, Starter Lock
28137 Washer, Felt, Starter
28138 Rubber(FOR STARTER BEARING COVER)
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28153 Cover, Magnet Switch
28159B Cover, Magnet Switch
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28162 Spring, Starter Brake
28163 Nut OR Collar, Pinion Stop, Starter
28163A Ring, Snap(FOR STARTER PINION STOP NUT)
28165 Spring, Starter Magnet Switch Return
28169 Clamp, Starter Motor Lead Wire
28175A Gasket, Magnet Switch Cover
28199 Cover, Starter
28226 Starter Kit, Battery Terminal
28226A Starter Kit, Motor Terminal
28228 Roller, Starter Idle Gear Clutch
28229 Retainer, Starter Idle Gear
28235 Plunger, Magnet Switch
28251 Pinion, Starter Drive
28252 Gear, Starter Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
