Toyota Corona FR
1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe
Discontinued model
Data version 2000-01

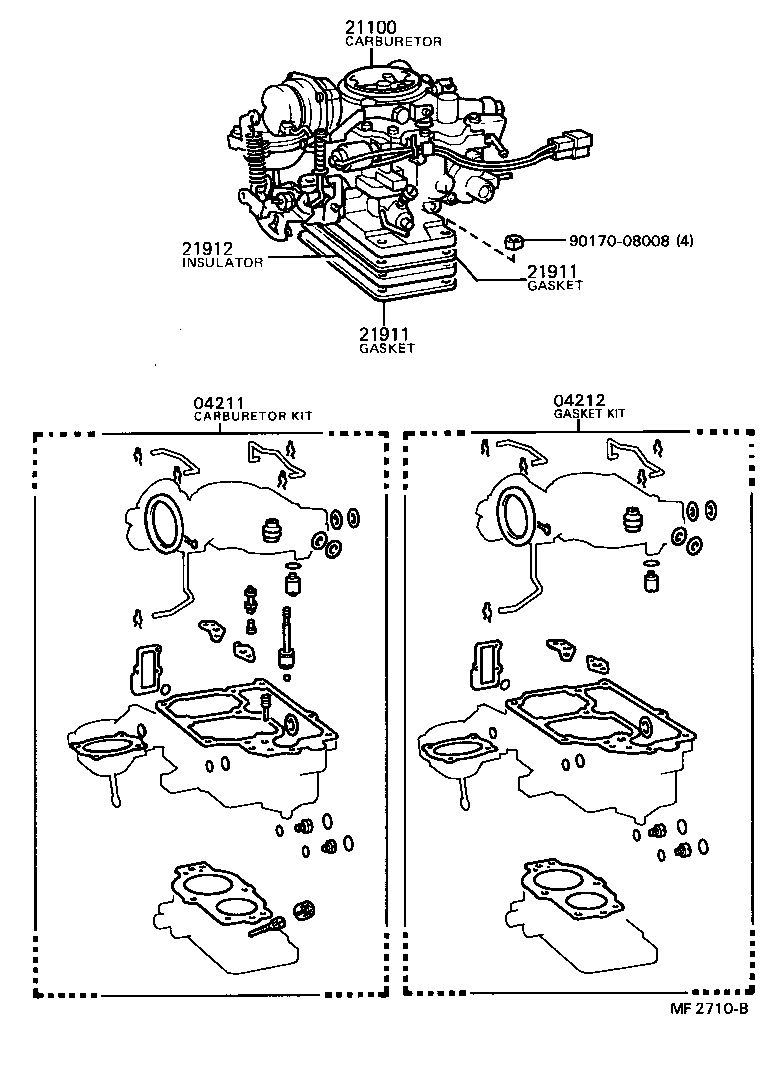

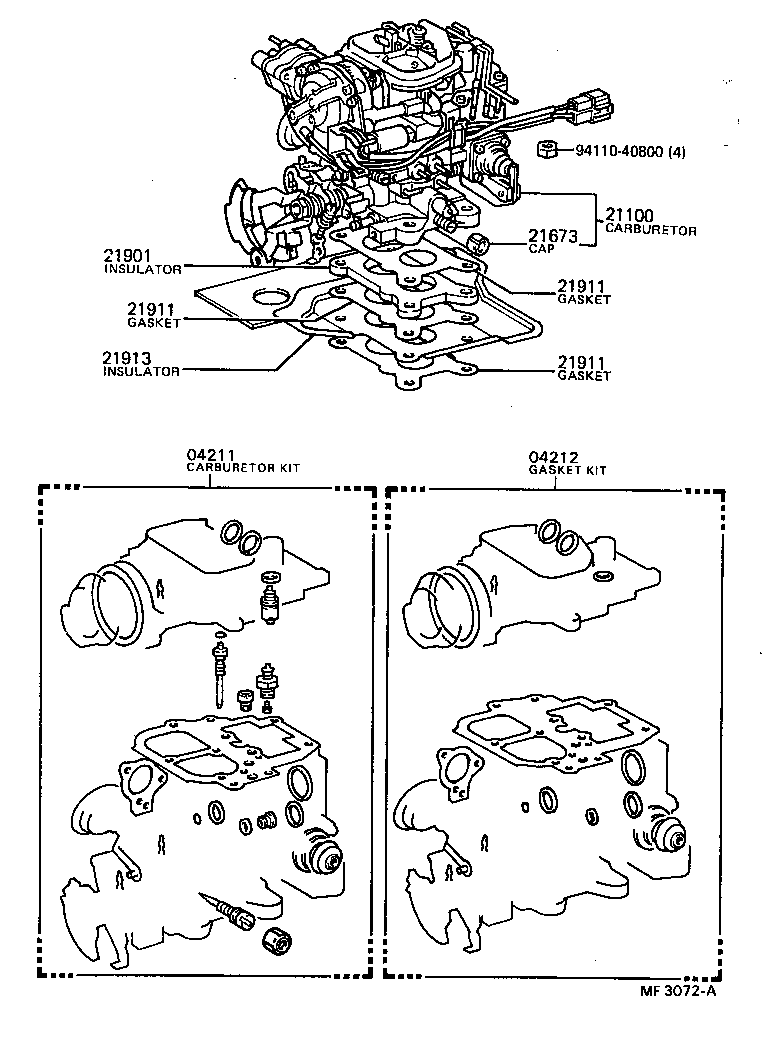

Carburetor Assembly
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04211 | Carburetor Kit |
| 04212 | Gasket Kit, Carburetor |
| 21100 | Carburetor Assy |
| 21673 | Cap, Idle Limit |
| 21901 | Insulator Sub-assy, Carburetor Heat, NO.1 |
| 21911 | Gasket, Carburetor |
| 21912 | Insulator, Carburetor Heat |
| 21913 | Insulator, Carburetor Heat, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
