Toyota Corona FR
1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe
Discontinued model
Data version 2000-01

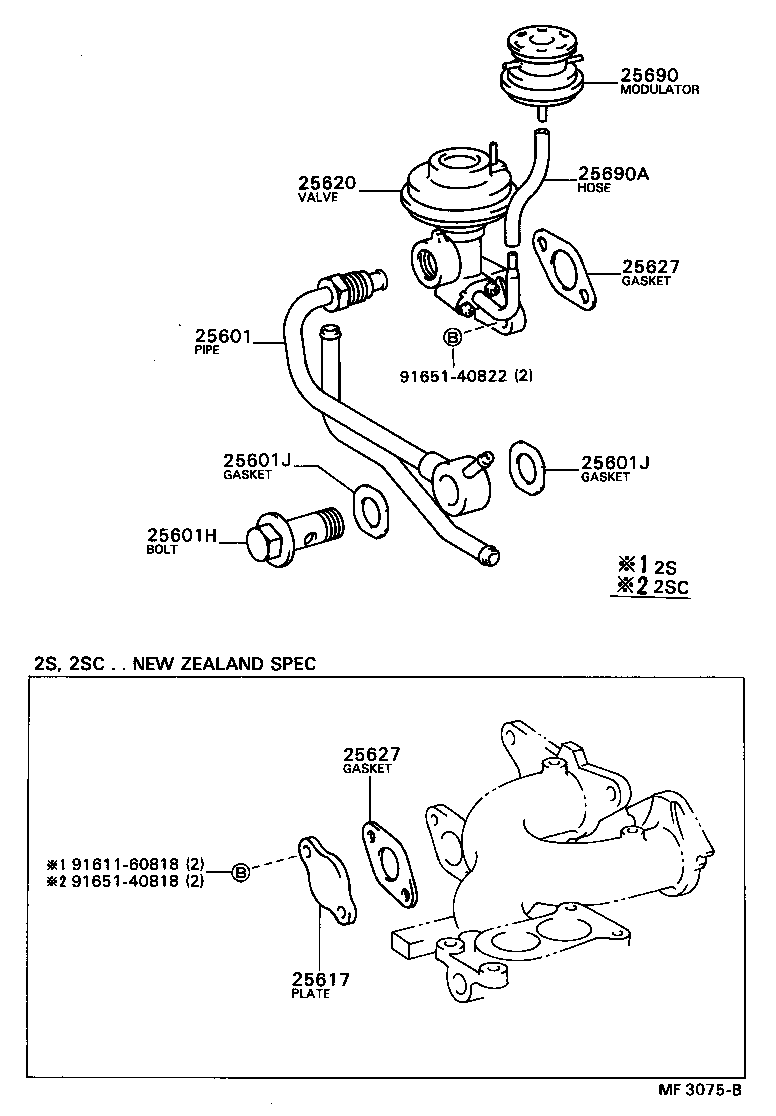

Exhaust Gas Recirculation System
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601A | Sleeve, Ball, Egr Pipe, NO.1 |
| 25601B | Nut, Union, Egr Pipe, NO.1 |
| 25601H | Bolt, Union(FOR EGR PIPE,NO.1) |
| 25601J | Gasket(FOR EGR PIPE, NO.1) |
| 25602 | Pipe Sub-assy, Egr, NO.2 |
| 25617 | Plate, Egr Hole Cover |
| 25620 | Valve Assy, Egr |
| 25620A | Bolt, Stud(FOR EGR VALVE) |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25690 | Modulator Assy, Egr Vacuum |
| 25690A | Hose(FOR EGR VACUUM MODULATOR) |
| 25691 | Bracket, Egr Vacuum Modulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
