Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Extension Housing (MTM)

15 part groups · 6 illustrations

Illustrations

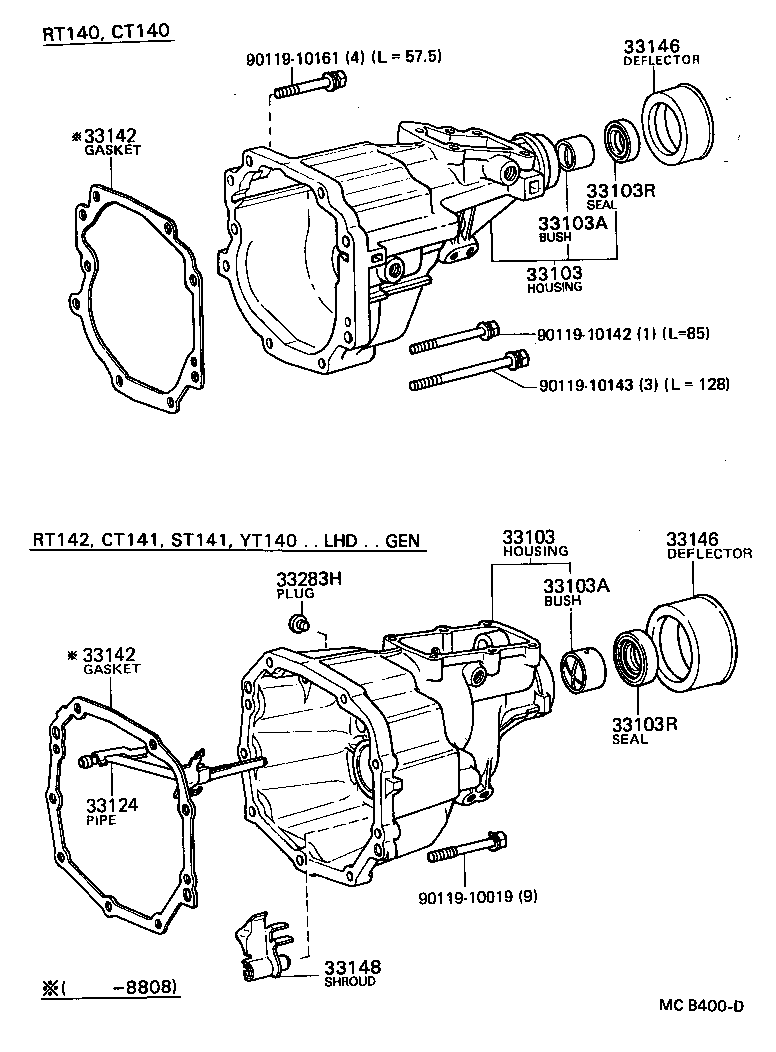

Figure MC7306A MC7306A 1982-01 → 1983-10 Figure MC8199 MC8199 1982-01 → 1983-10 Figure MCP103C MCP103C 1991-10 → — Figure MC7692 MC7692 1982-01 → 1985-08 Figure MCB400D MCB400D 1982-01 → 1991-10 Figure MCB400D MCB400D 1985-08 → 1986-12

Part groups

PNCDescription
33103 Housing Sub-assy, Extension(MTM)
33103A Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33103B Plug, Breather(FOR TRANSMISSION EXTENSION HOUSING)
33103C Plug, NO.1(FOR EXTENSION HOUSING)
33103F Gasket(FOR EXTENSION HOUSING PLUG NO.1)
33103Q Pin, Ring(FOR EXTENSION HOUSING)
33103R Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33124 Pipe, Oil Receiver(MTM)
33124A Clamp(FOR TRANSMISSION OIL RECEIVER PIPE)
33124F Pipe, Oil Receiver, NO.1(FOR EXTENSION HOUSING)
33142 Gasket, Extension Housing(MTM)
33144A Deflector, Extension Housing Oil(MTM)
33146 Deflector, Extension Housing Dust(MTM)
33148 Shroud, Gear, NO.1
33283H Plug, W/Head Straight Screw
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
