Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

19 part groups · 18 illustrations

Illustrations

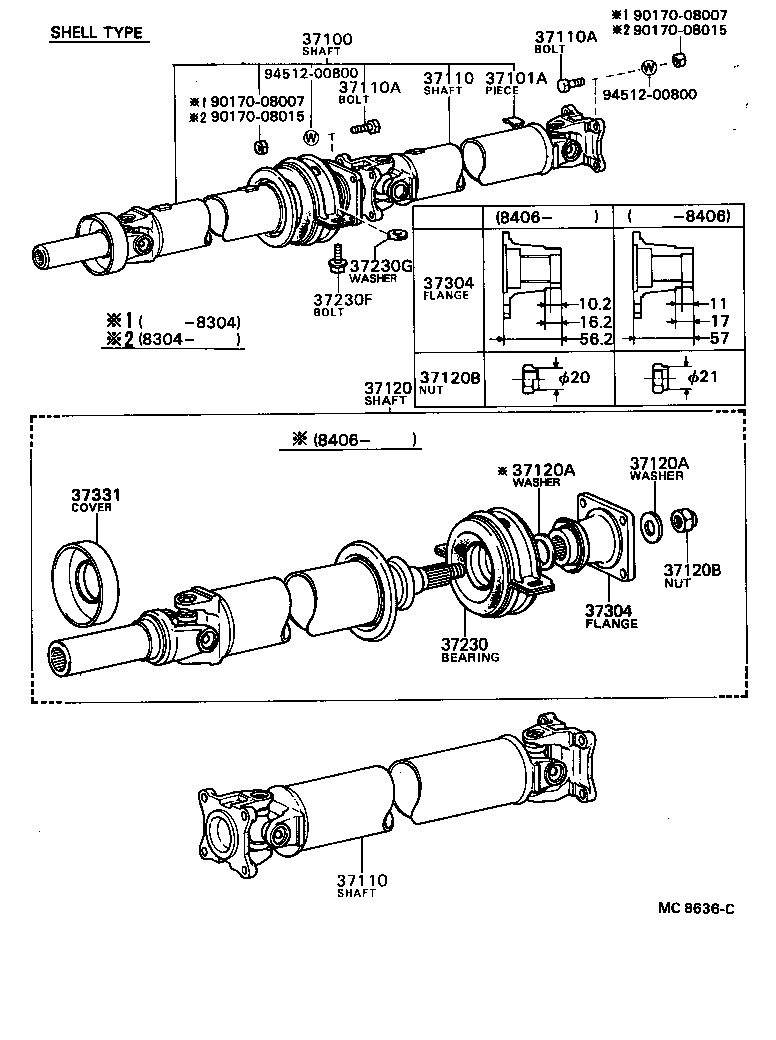

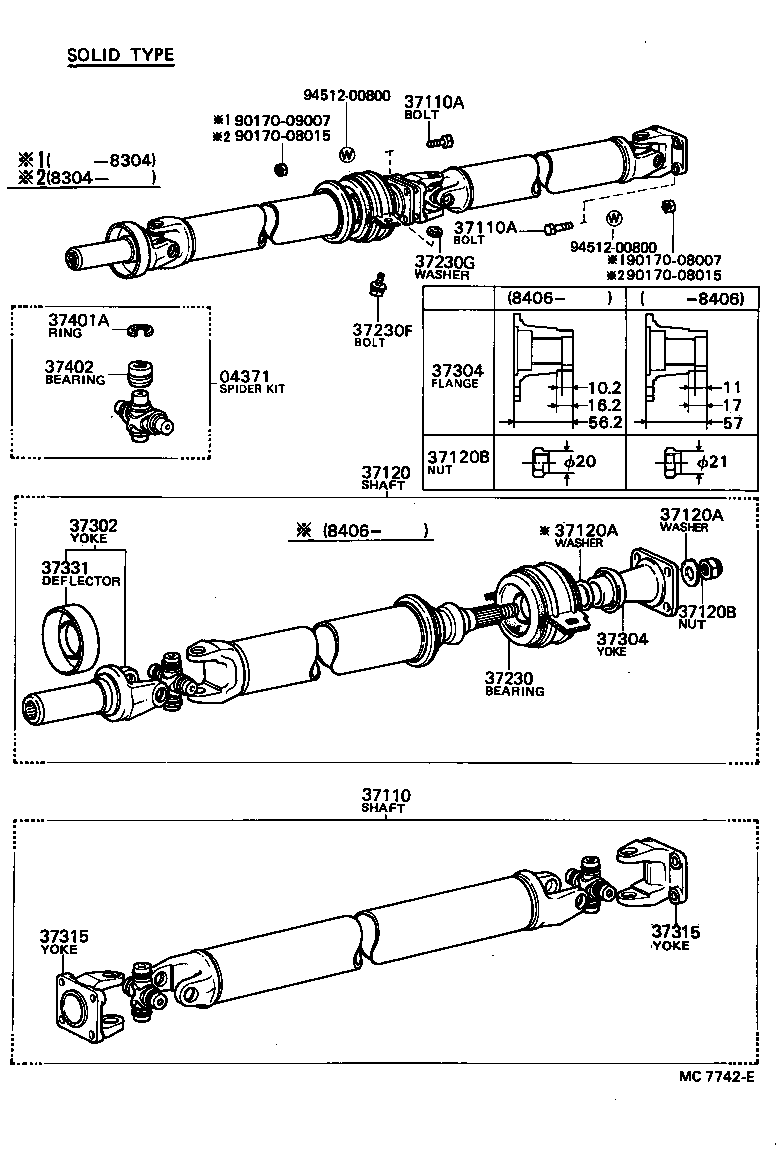

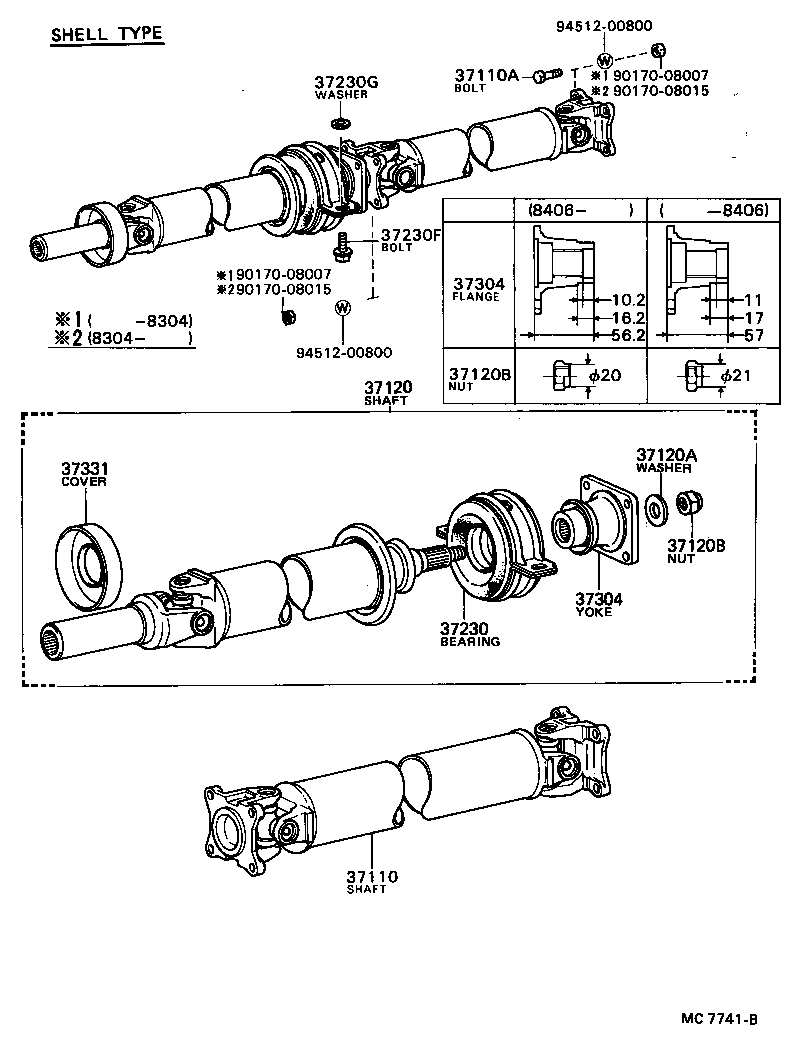

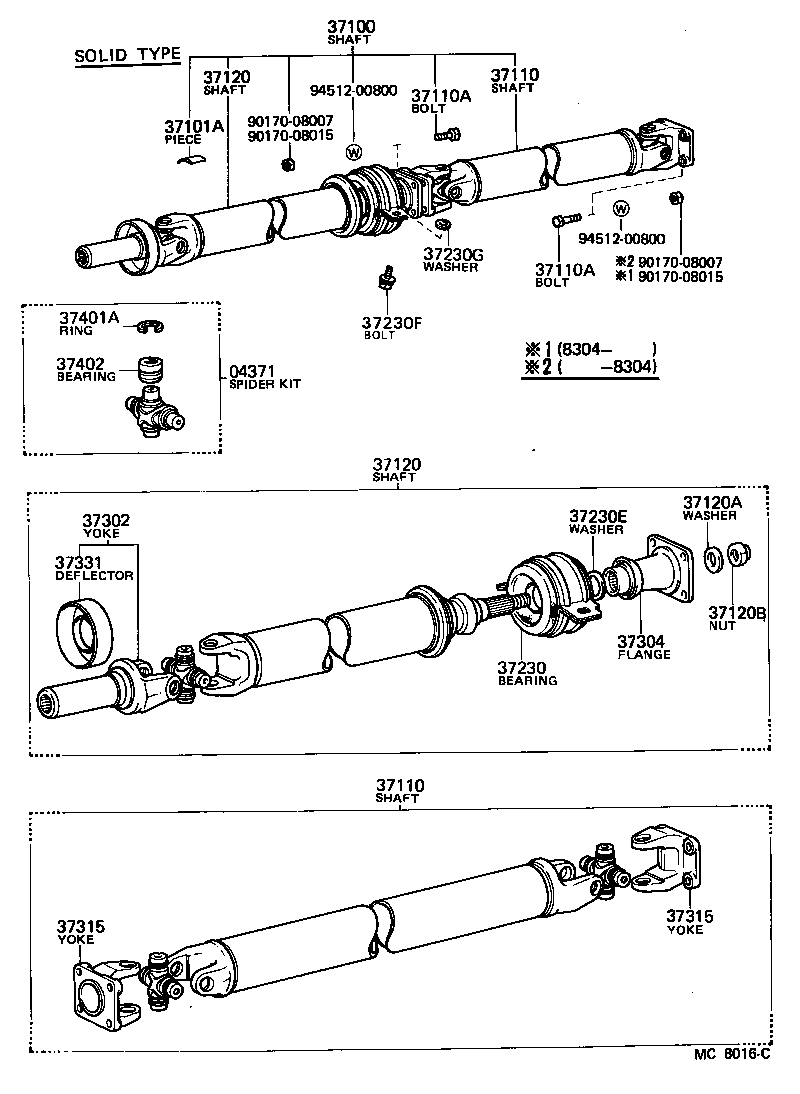

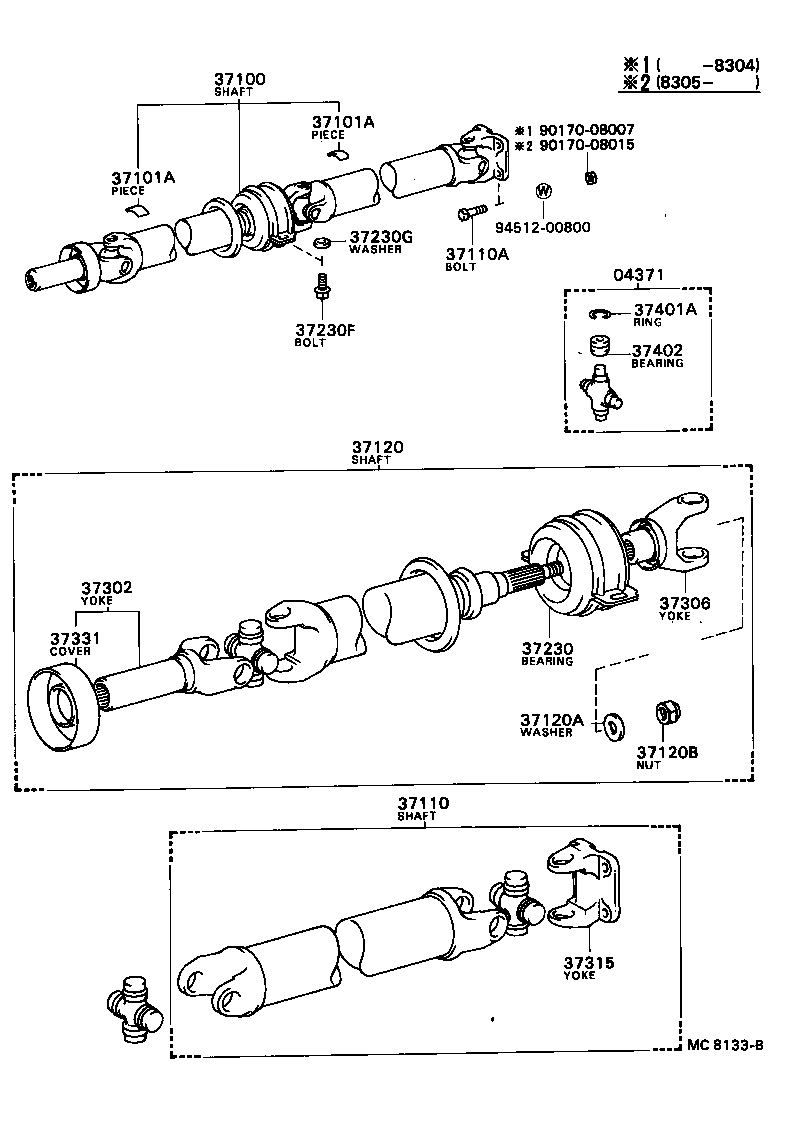

Figure MC8131B MC8131B 1982-01 → 1984-12 Figure MC8131B MC8131B 1982-01 → 1985-08 Figure MC8265B MC8265B 1982-01 → 1984-12 Figure MC8265B MC8265B 1982-01 → 1985-08 Figure MC8132B MC8132B 1982-01 → 1985-08 Figure MC8266B MC8266B 1982-01 → 1985-08 Figure MC8133B MC8133B 1982-01 → 1983-10 Figure MC8636C MC8636C 1982-01 → 1984-12 Figure MC8636C MC8636C 1982-01 → 1985-08 Figure MC8636C MC8636C 1983-04 → 1985-08 Figure MC8636C MC8636C 1985-08 → — Figure MC8636C MC8636C 1986-01 → — Figure MC7742E MC7742E 1982-01 → 1984-12 Figure MC7742E MC7742E 1982-01 → 1985-08 Figure MC7741B MC7741B 1982-01 → 1983-10 Figure MC8016C MC8016C 1982-01 → 1983-10 Figure MCC036 MCC036 1984-08 → 1985-08 Figure MCC036 MCC036 1985-08 → 1986-12

Part groups

PNCDescription
04371 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
37100 Shaft Assy, Propeller W/Center Bearing
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37120A Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120B Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230 Bearing Assy, Center Support, NO.1
37230F Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
37230G Washer, NO.2 (FOR CENTER SUPPORT BEARING)
37239 Insulator, Center Support Bearing Heat
37302 Yoke Sub-assy, Universal Joint Sleeve
37304 Flange Sub-assy, Universal Joint
37306 Yoke Sub-assy, Universal Joint, Center
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
