Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

46 part groups · 10 illustrations

Illustrations

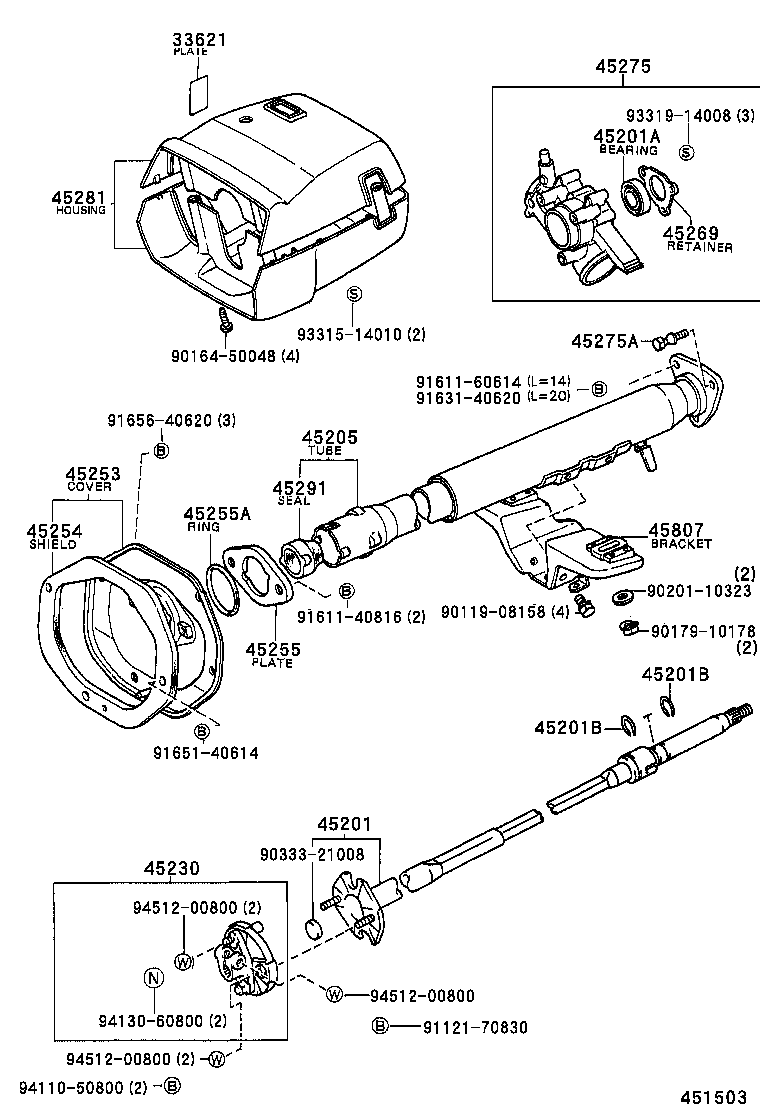

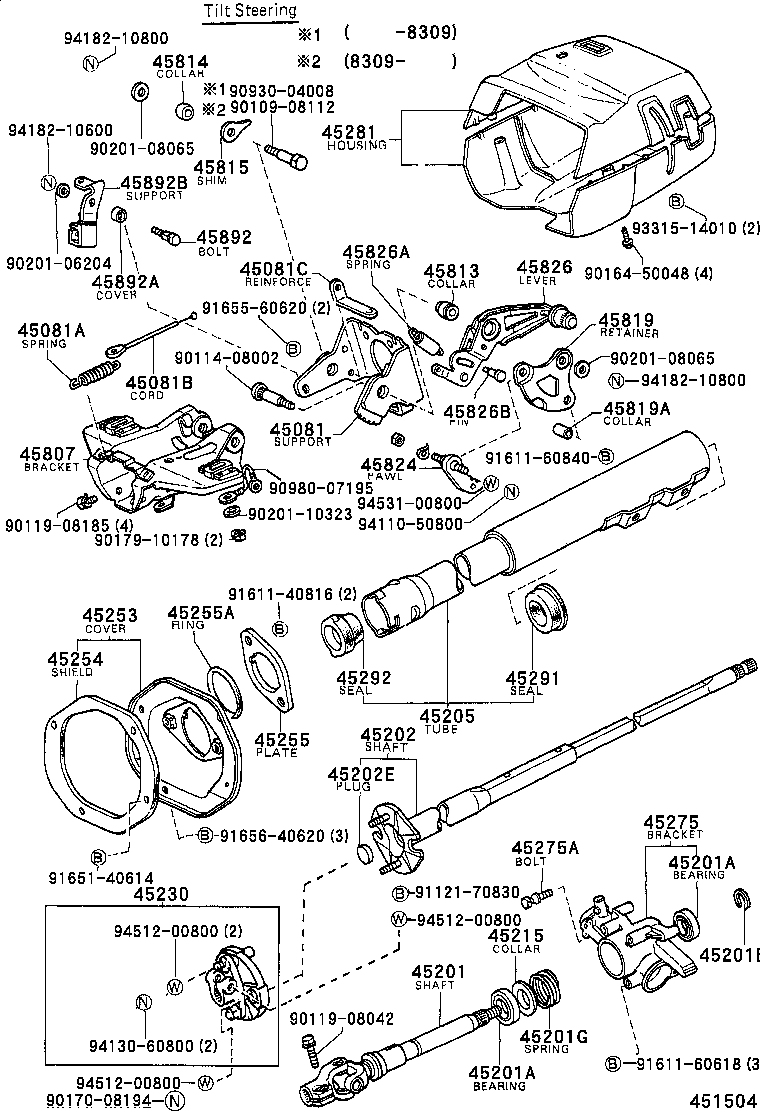

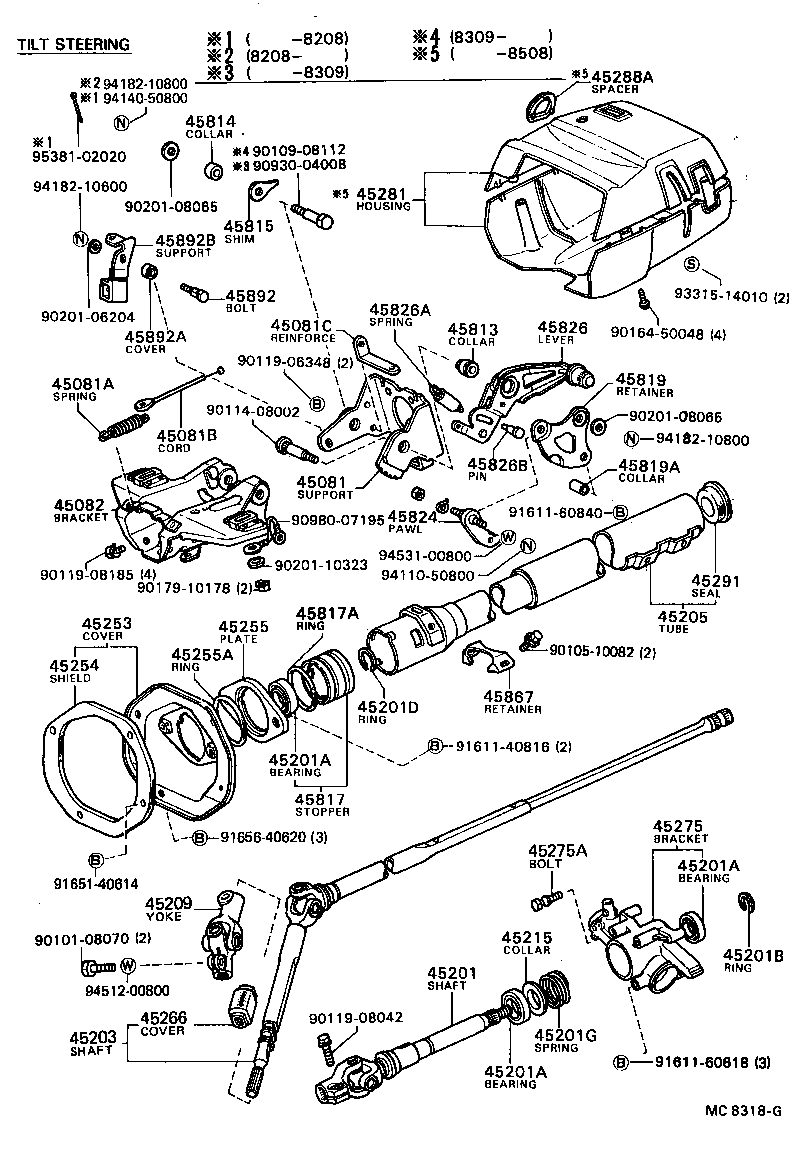

Figure MC8317D MC8317D 1982-01 → 1985-08 Figure MC8317D MC8317D 1983-04 → — Figure MC8318G MC8318G 1982-01 → 1983-05 Figure MC8318G MC8318G 1982-01 → 1985-08 Figure MC8318G MC8318G 1983-04 → — Figure MC8318G MC8318G 1983-05 → 1985-08 Figure MC8318G MC8318G 1983-05 → 1985-08 Figure MC8318G MC8318G 1986-12 → — Figure 451503 451503 1982-01 → 1985-08 Figure 451504 451504 1983-05 → 1985-08

Part groups

PNCDescription
33621 Plate, Control Lever Caution
45081 Support Sub-assy, Tilt Steering
45081A Spring, Tension(FOR TILT STEERING)
45081B Cord(FOR TILT STEERING)
45081C Reinforce, Tilt Steering Support
45082 Bracket Sub-assy, Break Away W/Capsule
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45202E Plug, Plate(FOR STEERING INTERMEDIATE SHAFT)
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45205 Tube Sub-assy, Steering Column
45209 Yoke Sub-assy, Steering Sliding
45215 Collar, Main Shaft Bearing Thrust
45230 Coupling Assy, Flexible
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45255 Plate, Steering Column Hole Cover
45255A Grommet OR Ring, O(FOR STEERING COLUMN CLAMP)
45266 Cover, Steering Intermediate Shaft Dust
45269 Retainer, Main Shaft Bearing
45275 Bracket, Steering Column, Upper
45275A Bolt, Hexagon(FOR STEERING COLUMN BRACKET)
45281 Housing, Steering Column
45288A Spacer, Column Cover
45291 Seal, Main Shaft Upper Dust
45292 Seal, Main Shaft Lower Dust
45807 Bracket Sub-assy, Steering Column Upper Support
45813 Collar, Tilt Steering Support, NO.1
45814 Collar, Tilt Steering Support, NO.2
45815 Shim, Tilt Steering Support
45817 Stopper, Steering Shaft Thrust
45817A Ring, O(FOR STEERING SHAFT THRUST STOPPER)
45819 Retainer, Tilt Lever
45819A Collar(FOR TILT LEVER RETAINER)
45824 Pawl, Tilt Steering
45826 Lever, Steering Tilt
45826A Spring, Tension(FOR STEERING TILT LEVER)
45826B Pin(FOR STEERING TILT LEVER)
45867 Retainer, Steering Main Shaft Stopper
45892 Bolt, Tilt Steering Support Stopper
45892A Cover, Tilt Steering Support Stopper
45892B Support, Tilt Steering Column Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
