Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

14 part groups · 3 illustrations

Illustrations

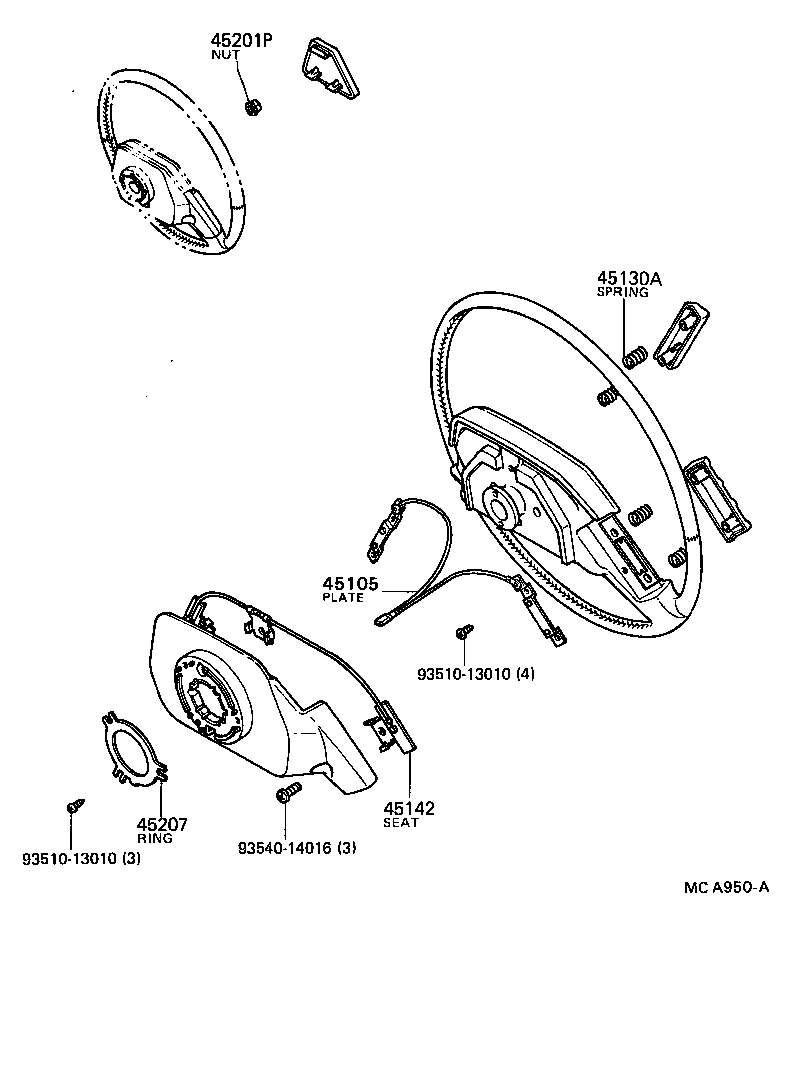

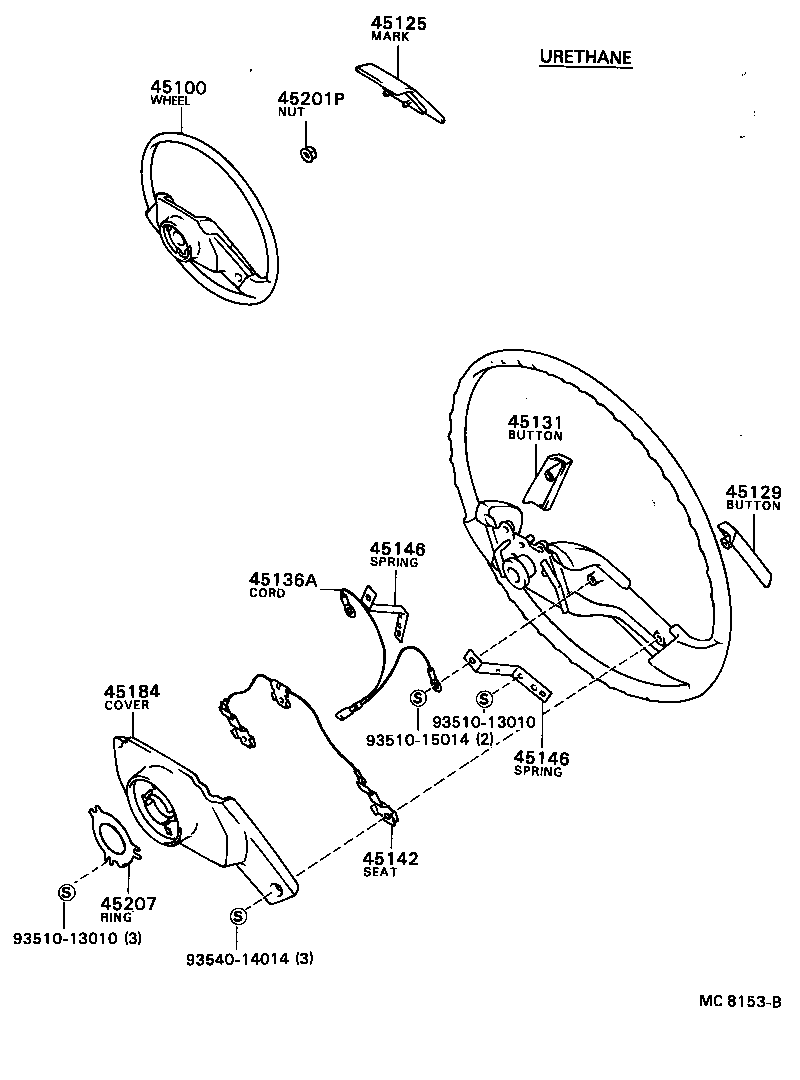

Figure MC8152D MC8152D 1982-01 → — Figure MC8153B MC8153B 1982-01 → 1985-08 Figure MCA950A MCA950A 1983-04 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45143 Seat, Horn Button Contact, NO.2
45146 Spring, Horn Button Contact
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
