Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

26 part groups · 8 illustrations

Illustrations

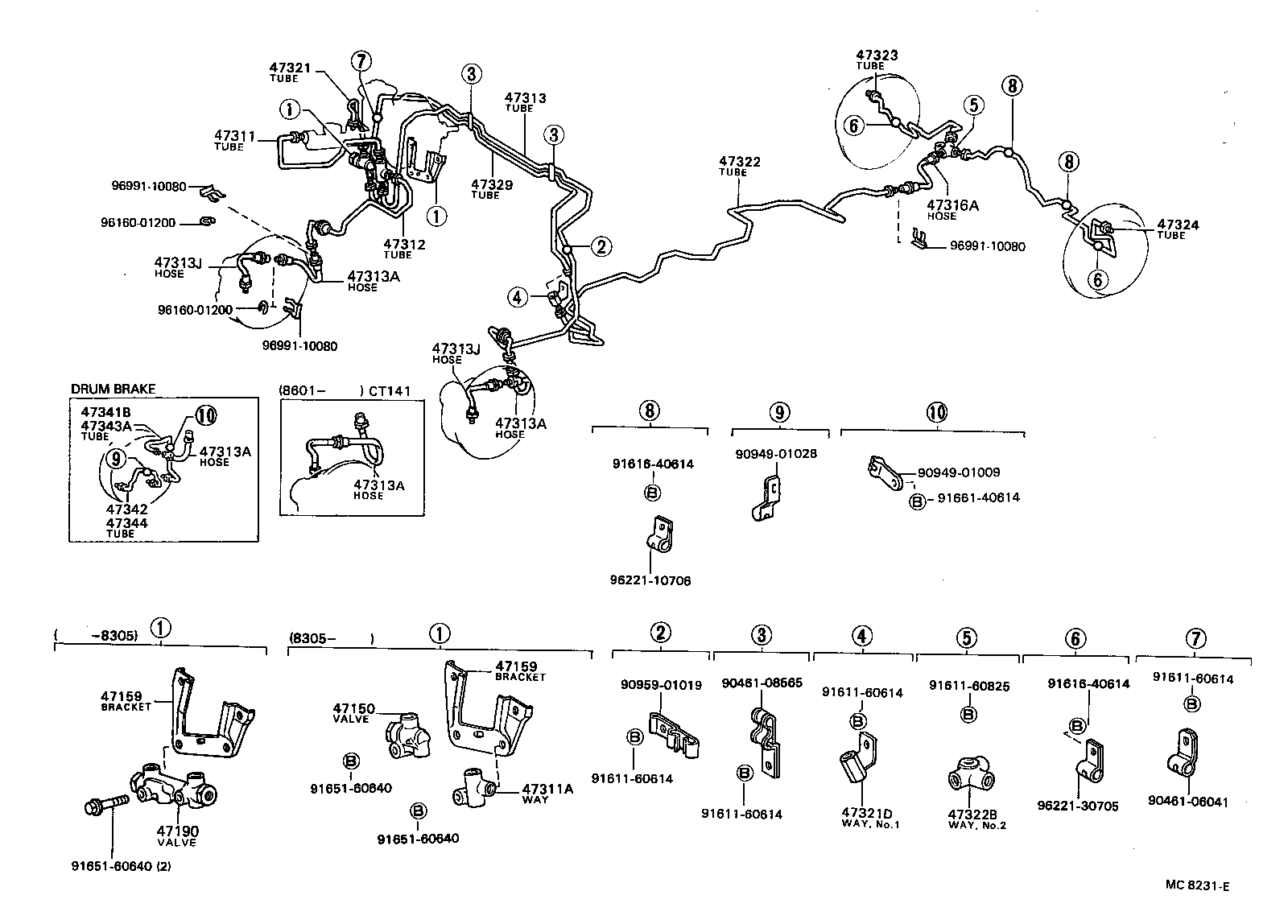

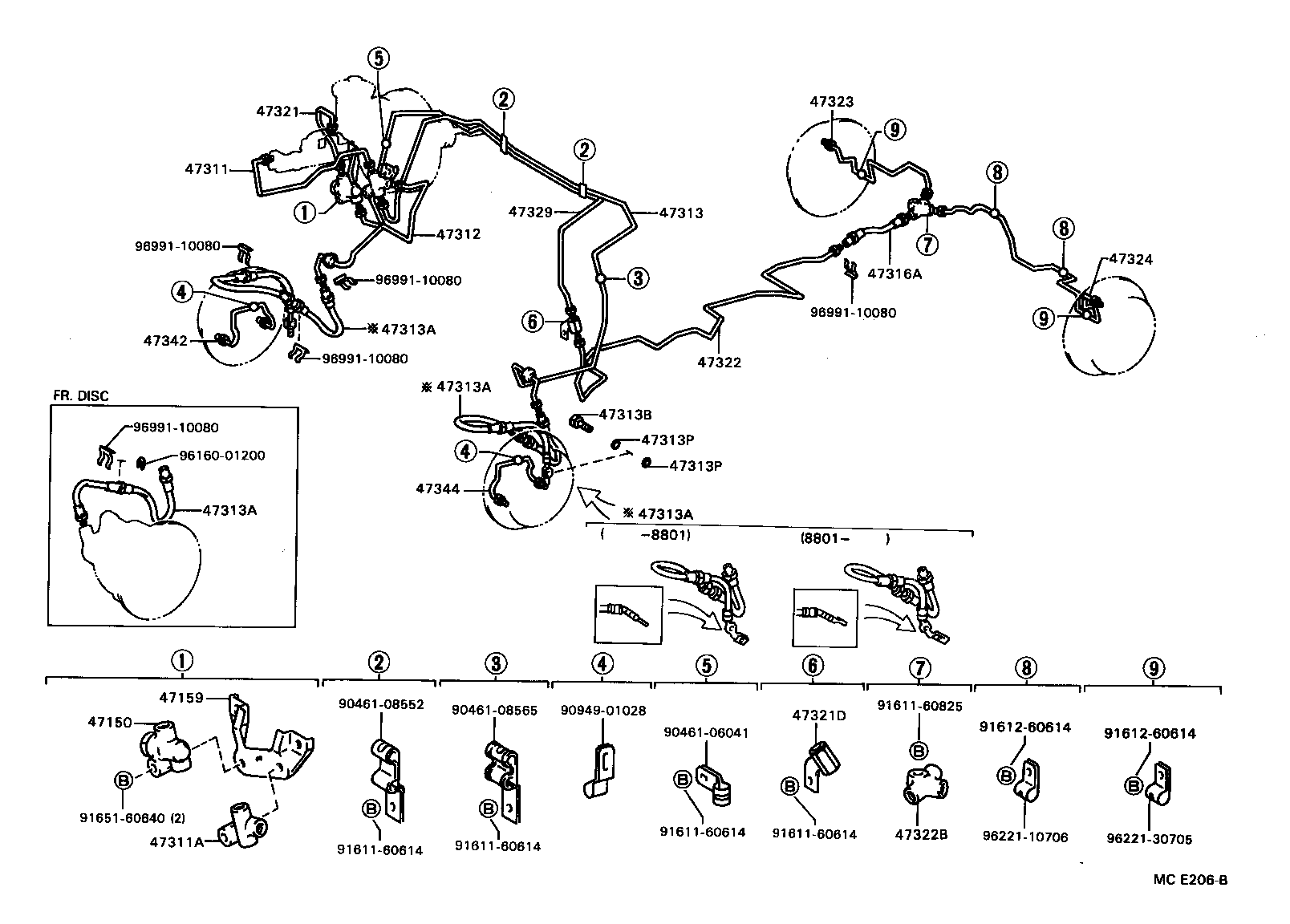

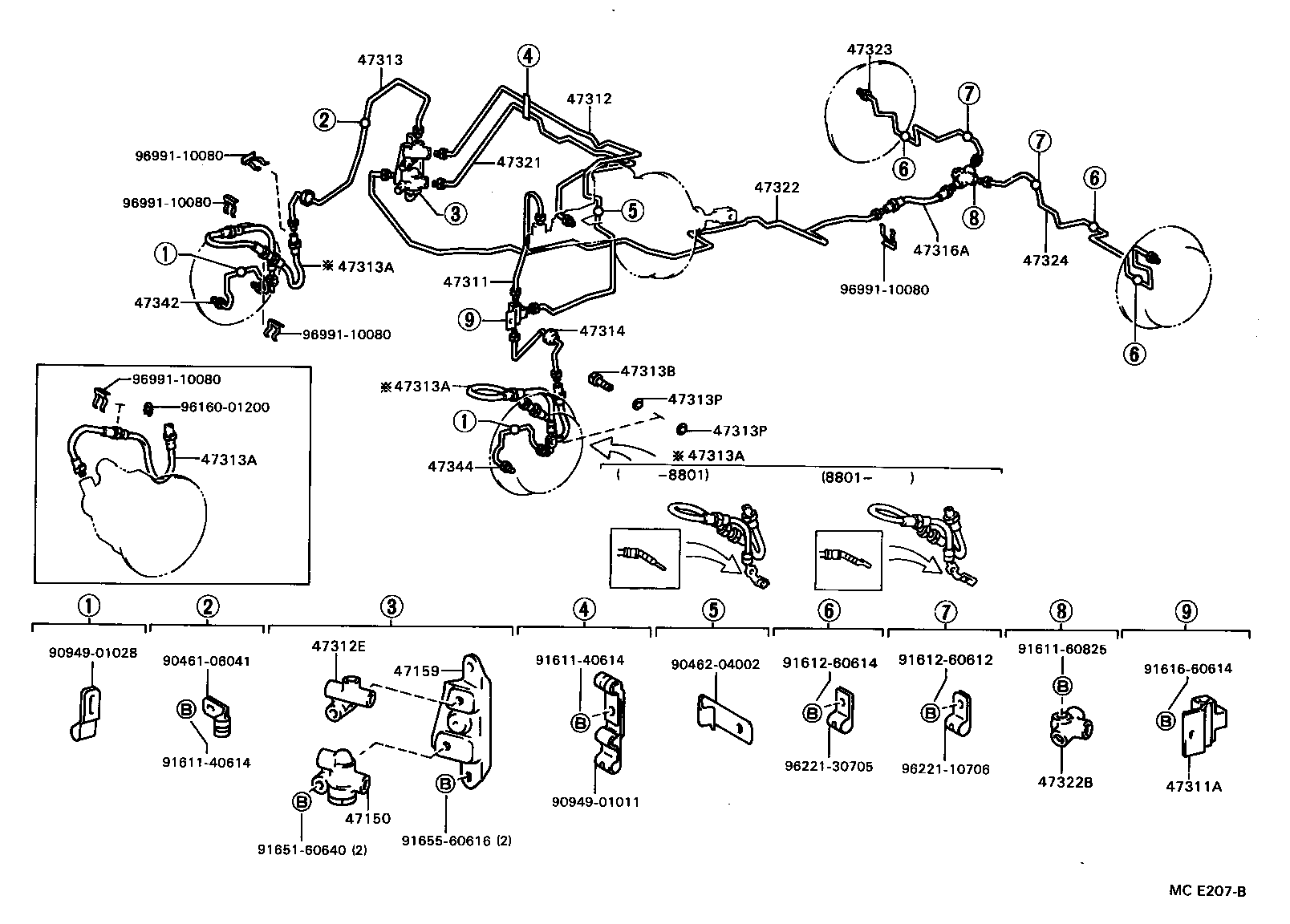

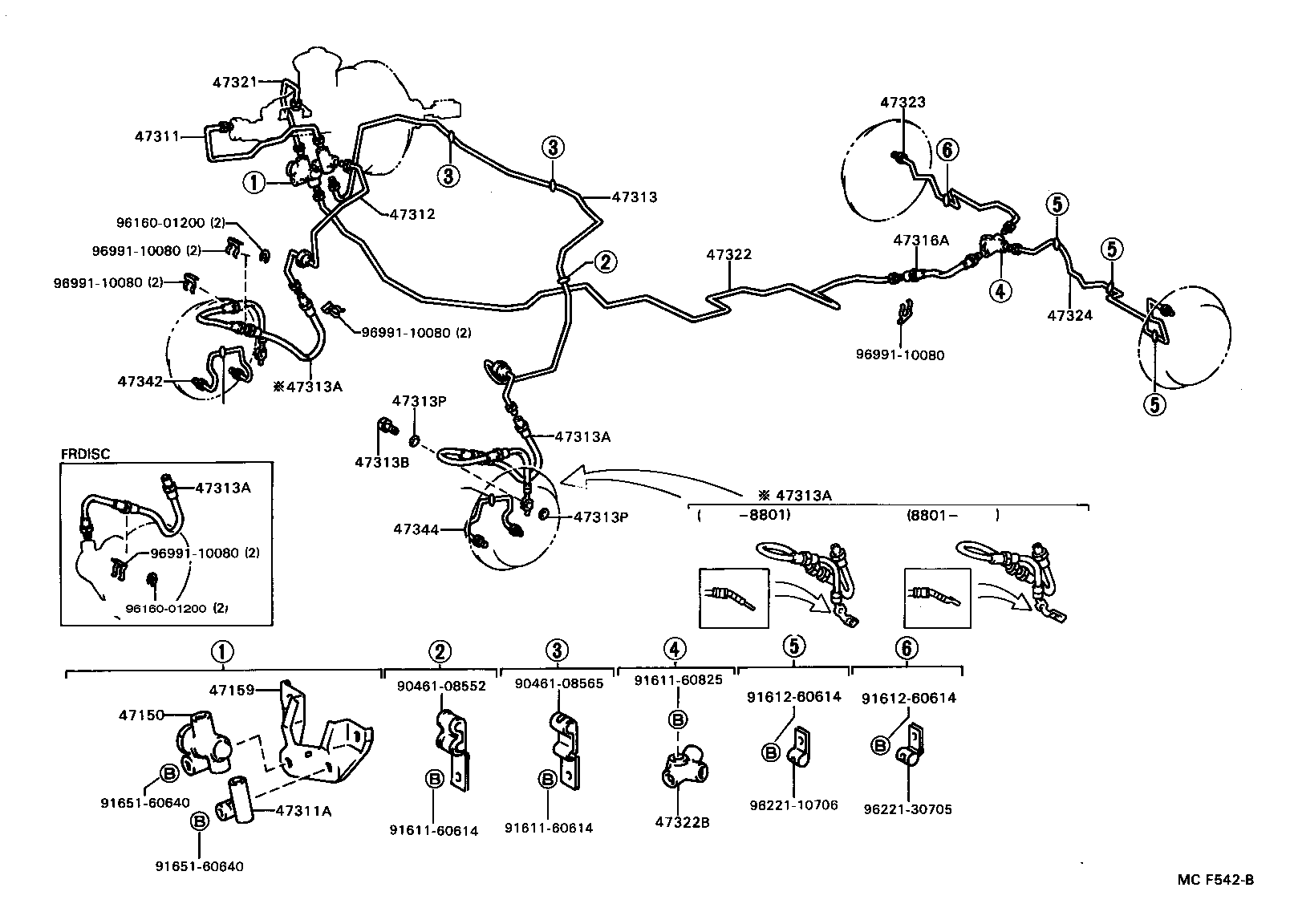

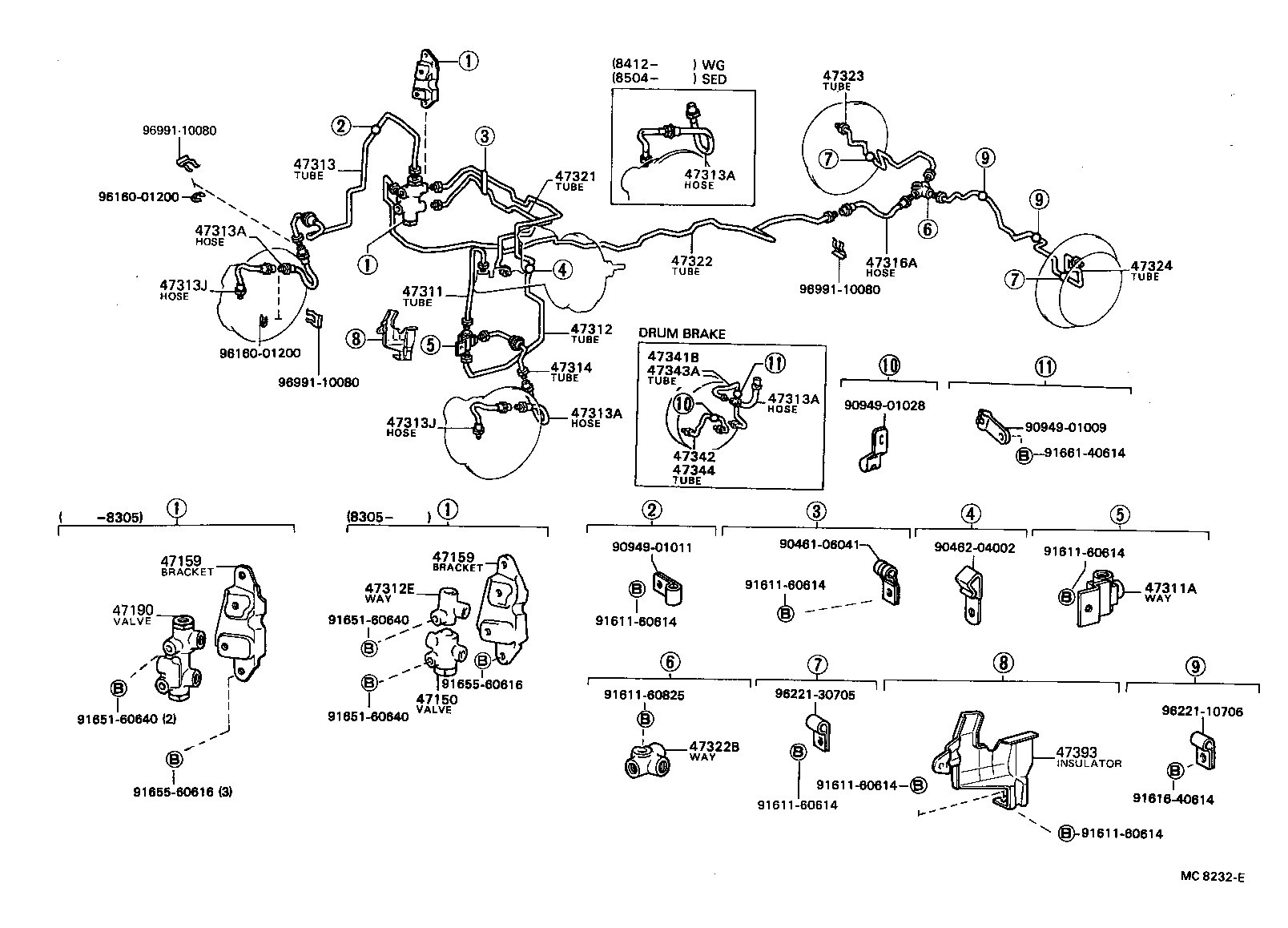

Figure MC8230E MC8230E 1982-01 → 1985-08 Figure MC8231E MC8231E 1982-01 → 1983-12 Figure MC8231E MC8231E 1986-01 → 1986-12 Figure MCE206B MCE206B 1986-12 → — Figure MC8232E MC8232E 1982-01 → 1985-08 Figure MC8232E MC8232E 1985-08 → — Figure MCE207B MCE207B 1986-12 → — Figure MCF542B MCF542B 1988-01 → —

Part groups

PNCDescription
47150 Valve Assy, Proportioning
47159 Bracket, Proportioning Valve
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47329 Tube, Rear Brake, NO.9
47341B Tube, Wheel Cylinder, Front RH NO.1
47342 Tube, Wheel Cylinder, Front RH NO.2
47343A Tube, Wheel Cylinder, Front LH NO.1
47344 Tube, Wheel Cylinder, Front LH NO.2
47393 Insulator, Brake Tube Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
