Rear Spring & Shock Absorber

58 part groups · 9 illustrations

Illustrations

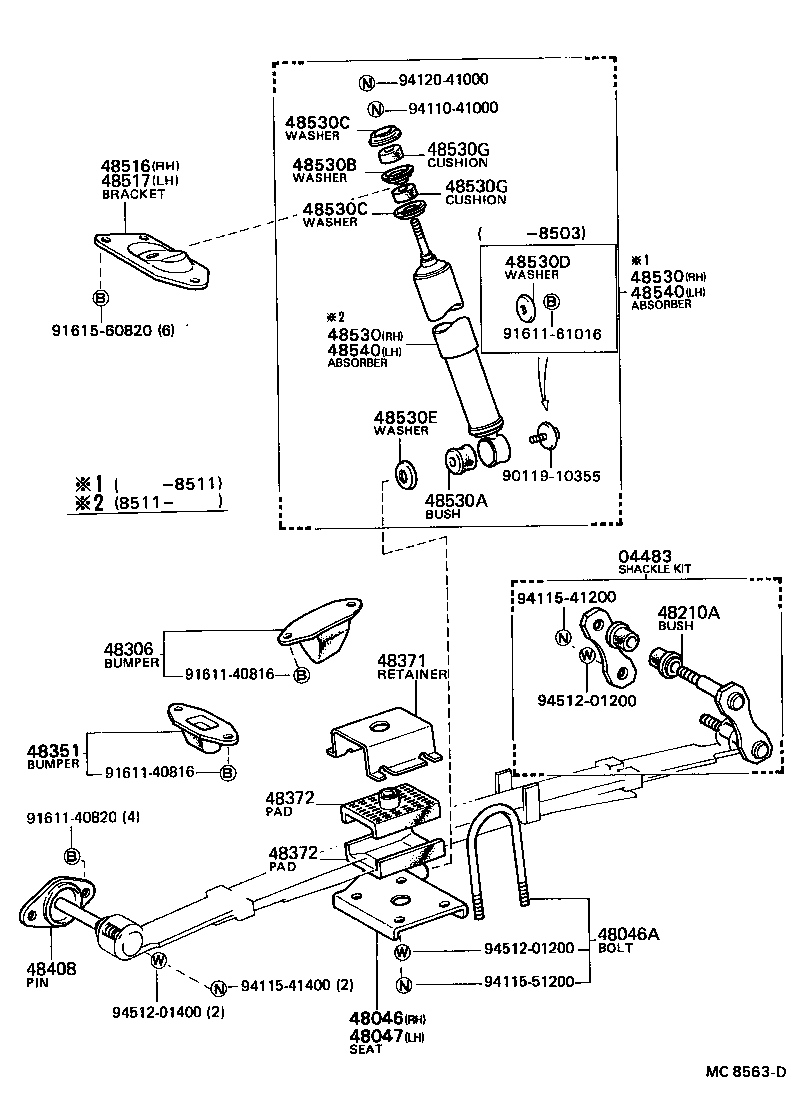

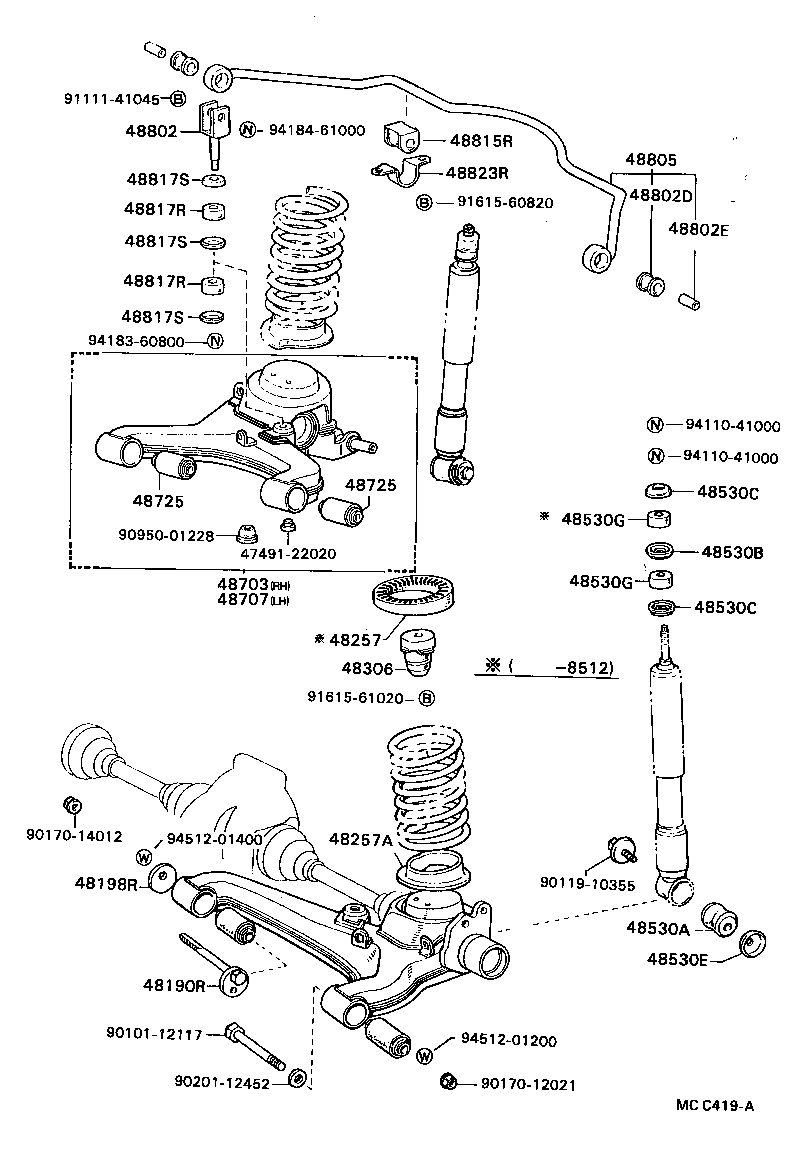

Figure MC8572F MC8572F 1982-01 → 1985-08 Figure MC8572F MC8572F 1985-08 → — Figure MC8572F MC8572F 1986-01 → — Figure MCC419A MCC419A 1985-08 → 1986-12 Figure MC8563D MC8563D 1982-01 → 1984-07 Figure MC8563D MC8563D 1984-07 → 1985-08 Figure MC8563D MC8563D 1985-08 → — Figure MC8238B MC8238B 1982-01 → 1984-07 Figure MC8238B MC8238B 1984-07 → 1985-08

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48190R Cam Assy, Camber Adjust
48198R Cam, Rear Suspension Camber Adjust, NO.2
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210C Bush(FOR REAR SPRING LEAF)
48211 Leaf, Rear Spring, NO.1
48220 Spring Assy, Rear LH
48231 Spring, Coil, Rear
48241 Clip, Rear Spring, NO.1
48242 Clip, Rear Spring, NO.2
48243 Clip, Rear Spring, NO.3
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48253 Spacer, Rear Spring, NO.1
48257 Insulator, Rear Coil Spring
48257A Insulator, Rear Coil Spring, Lower
48306 Bumper Sub-assy, Rear Spring
48351 Bumper, Differential Carrier
48371 Retainer, Rear Spring Pad
48372 Pad, Rear Spring
48408 Pin Sub-assy, Spring Bracket
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48530G Cushion, Rear Shock Absorber, NO.1
48540 Absorber Assy, Shock, Rear LH
48703 Arm Sub-assy, Rear Suspension, RH
48707 Arm Sub-assy, Rear Suspension, LH
48710 Arm Assy, Upper Control
48715 Bush, Upper Control Arm
48715A Bolt, Hexagon(FOR UPPER CONTROL ARM)
48720 Arm Assy, Lower Control, RH
48725 Bush, Lower Control Arm
48725A Bolt(FOR LOWER CONTROL ARM)
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48745 Bush, Lateral Control Rod
48745A Bolt, Hexagon(FOR LATERAL CONTROL ROD)
48745B Washer, Lateral Control Rod Cushion
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48815R Bush, Stabilizer(FOR REAR)
48817R Cushion, Stabilizer(FOR REAR)
48817S Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48823R Cover, Stabilizer Link(FOR REAR)
48832R Bracket, Rear Stabilizer Bar, NO.1 RH
48833R Bracket, Rear Stabilizer Bar, NO.1 LH
