Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

20 part groups · 2 illustrations

Illustrations

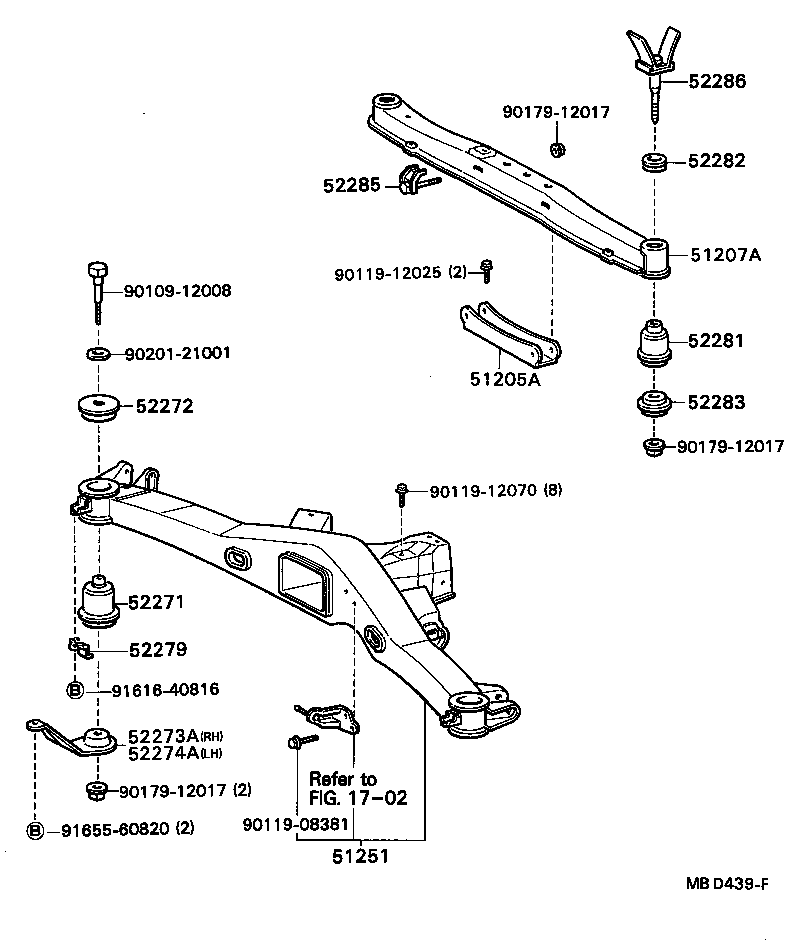

Figure MBD466F MBD466F 1982-01 → — Figure MBD439F MBD439F 1985-08 → 1986-12

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51205A Bracket Sub-assy, Differential Support
51207A Member Sub-assy, Differential Support
51251 Member Sub-assy, Rear Suspension
51296 Bolt, Front Suspension Member Mounting
51441 Cover, Engine Under, NO.1
51448 Protector, Oil Pan
51452 Brace, Front Crossmember TO Front Suspension Member
51961 Hook, NO.1
51962 Hook, NO.2
52271 Cushion, Rear Suspension Member
52272 Stopper, Rear Suspension Member, Upper
52273A Stopper, Rear Suspension Member, Lower RH
52274A Stopper, Rear Suspension Member, Lower LH
52279 Retainer, Rear Suspension Member Cushion
52281 Cushion, Differential Support Member
52282 Stopper, Differential Support Member, Upper
52283 Stopper, Differential Support Member, Lower
52285 Bolt, Differential Support Member Mounting, NO.1
52286 Bolt, Differential Support Member Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
