Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

17 part groups · 3 illustrations

Illustrations

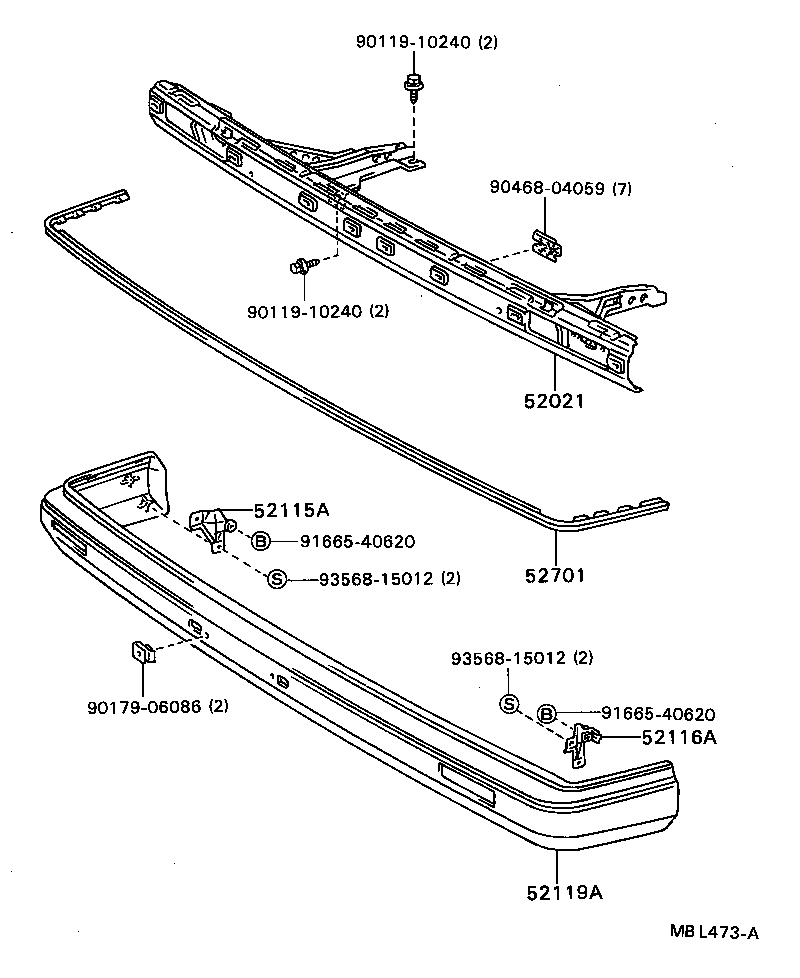

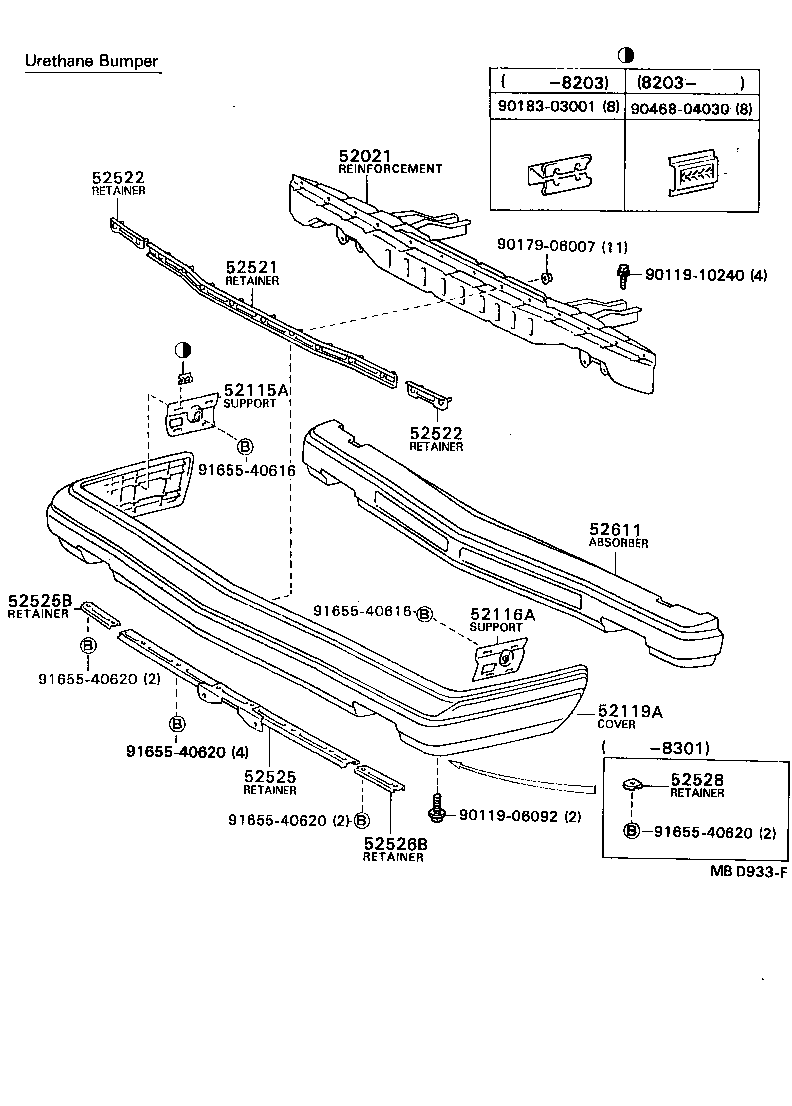

Figure MBD343E MBD343E 1982-01 → 1986-12 Figure MBD933F MBD933F 1982-01 → 1986-12 Figure MBL473A MBL473A 1986-12 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121A Bracket, Front License Plate Mounting, RH
52122A Bracket, Front License Plate Mounting, LH
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526B Retainer, Front Bumper, Lower Side LH
52528 Retainer, Front Bumper, Lower Corner
52611 Absorber, Front Bumper Energy
52701 Moulding Sub-assy, Front Bumper
52717 Retainer, Front Bumper Moulding
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
